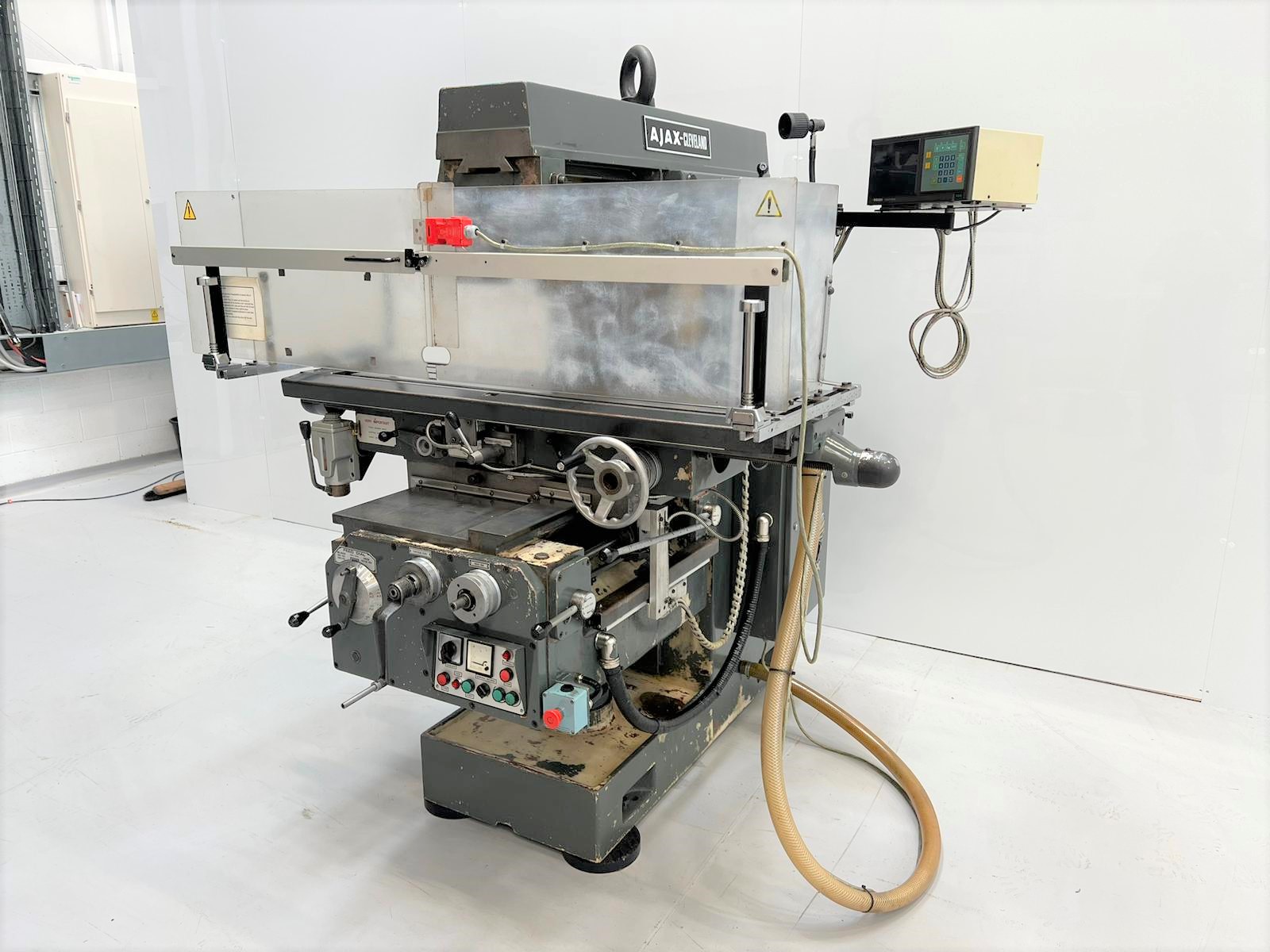

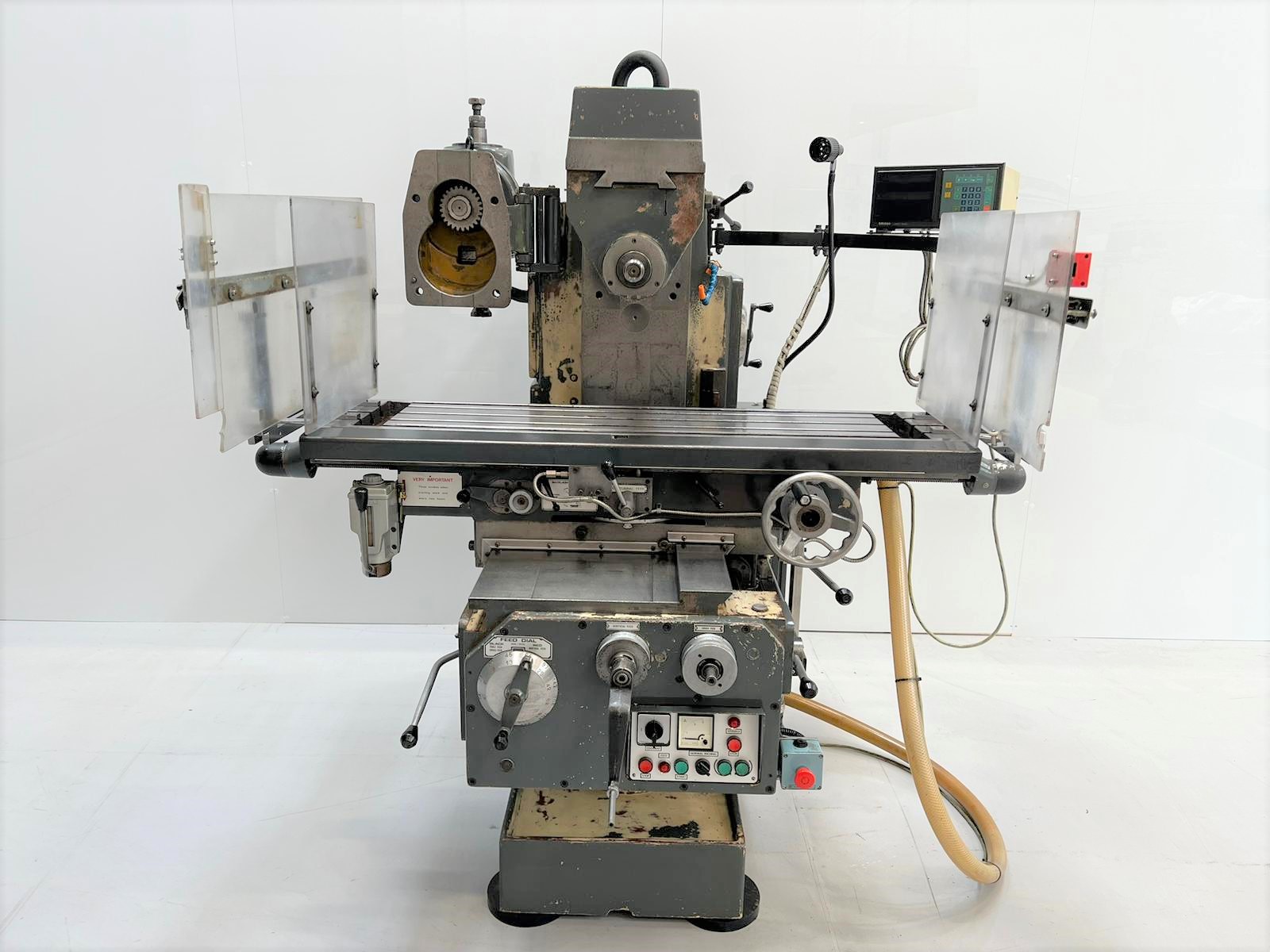

AJAX Cleveland No.2 Universal Milling Machine with DRO

AJAX Cleveland No.2 Universal Milling Machine with DRO

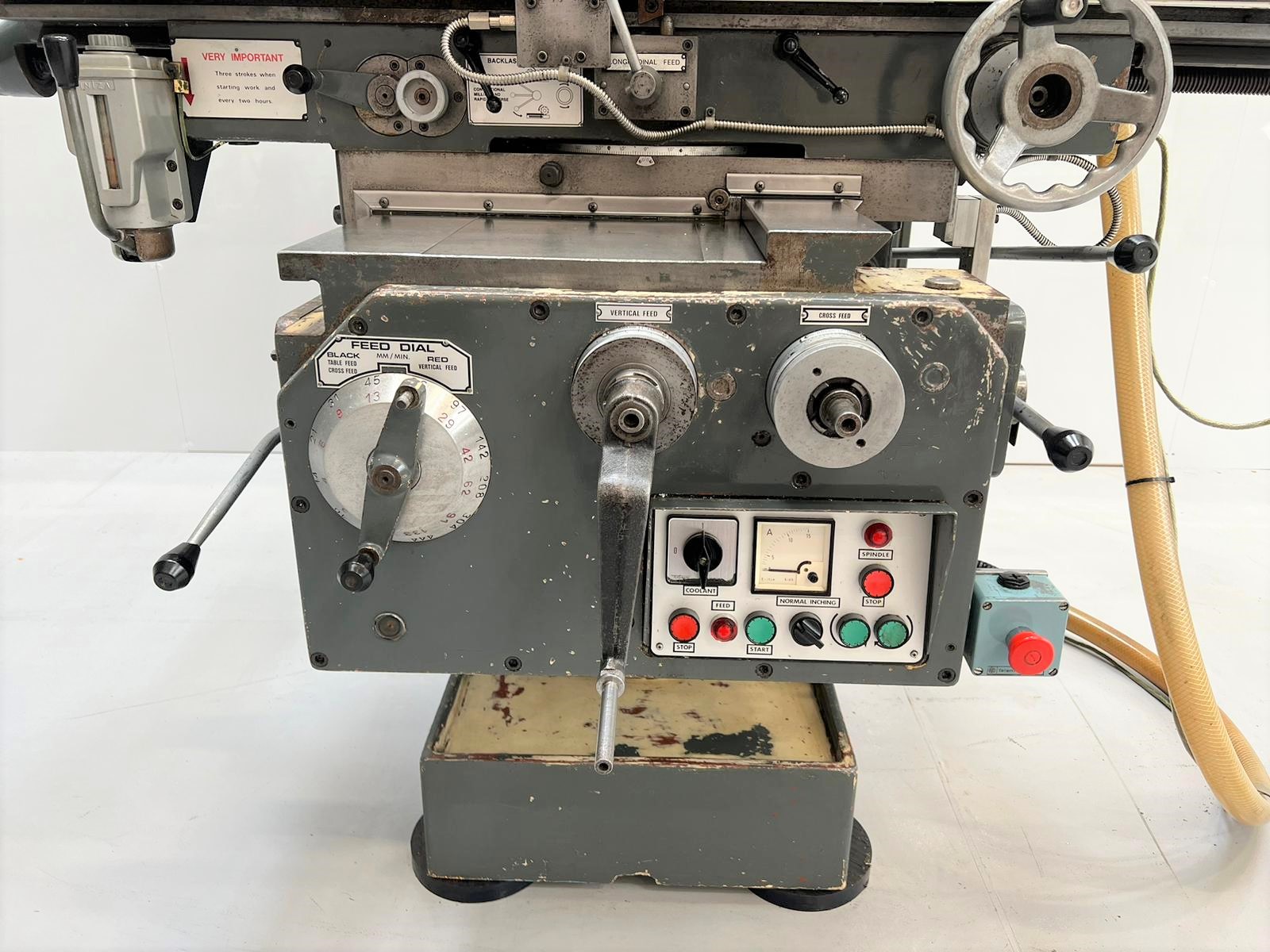

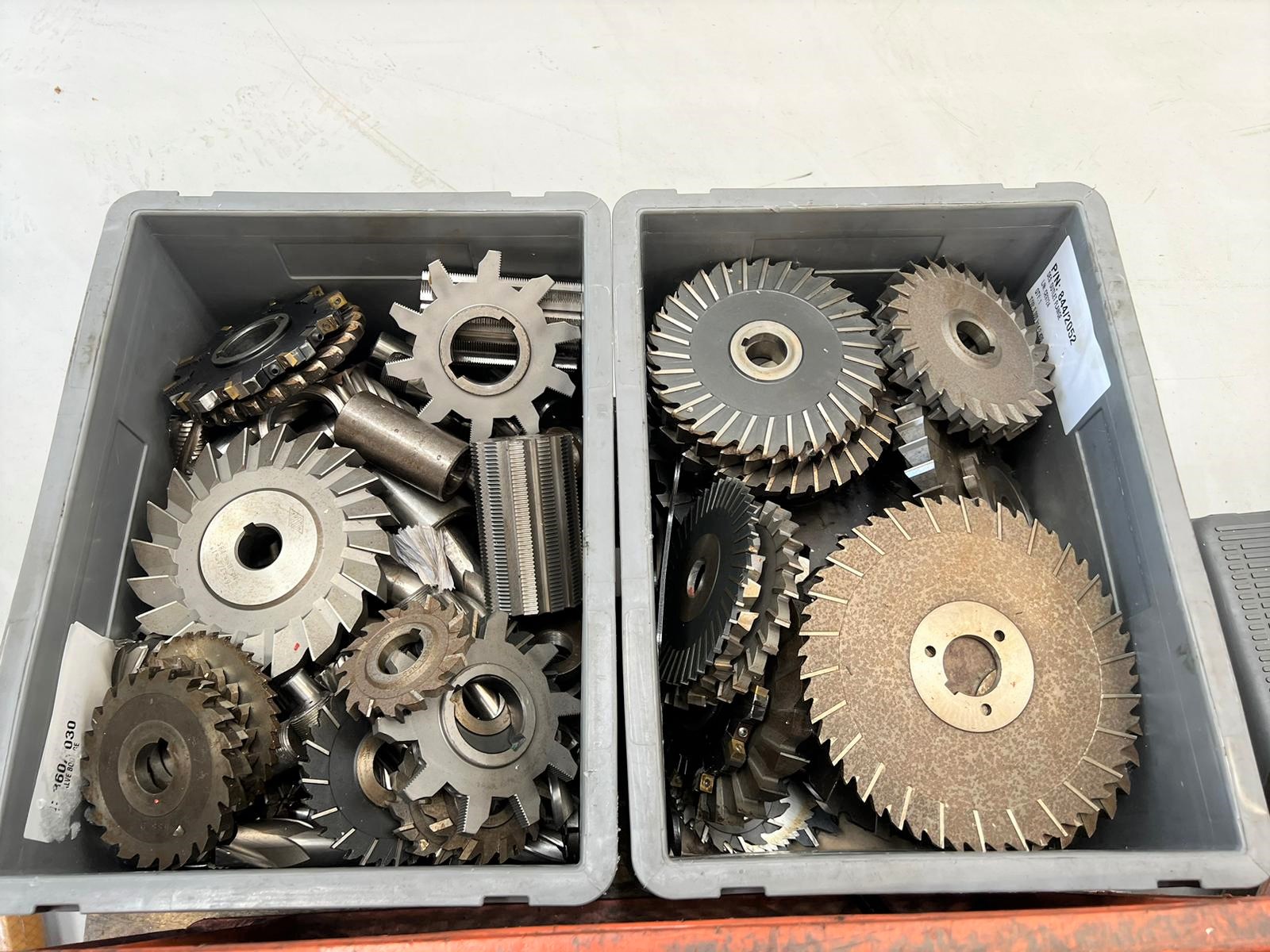

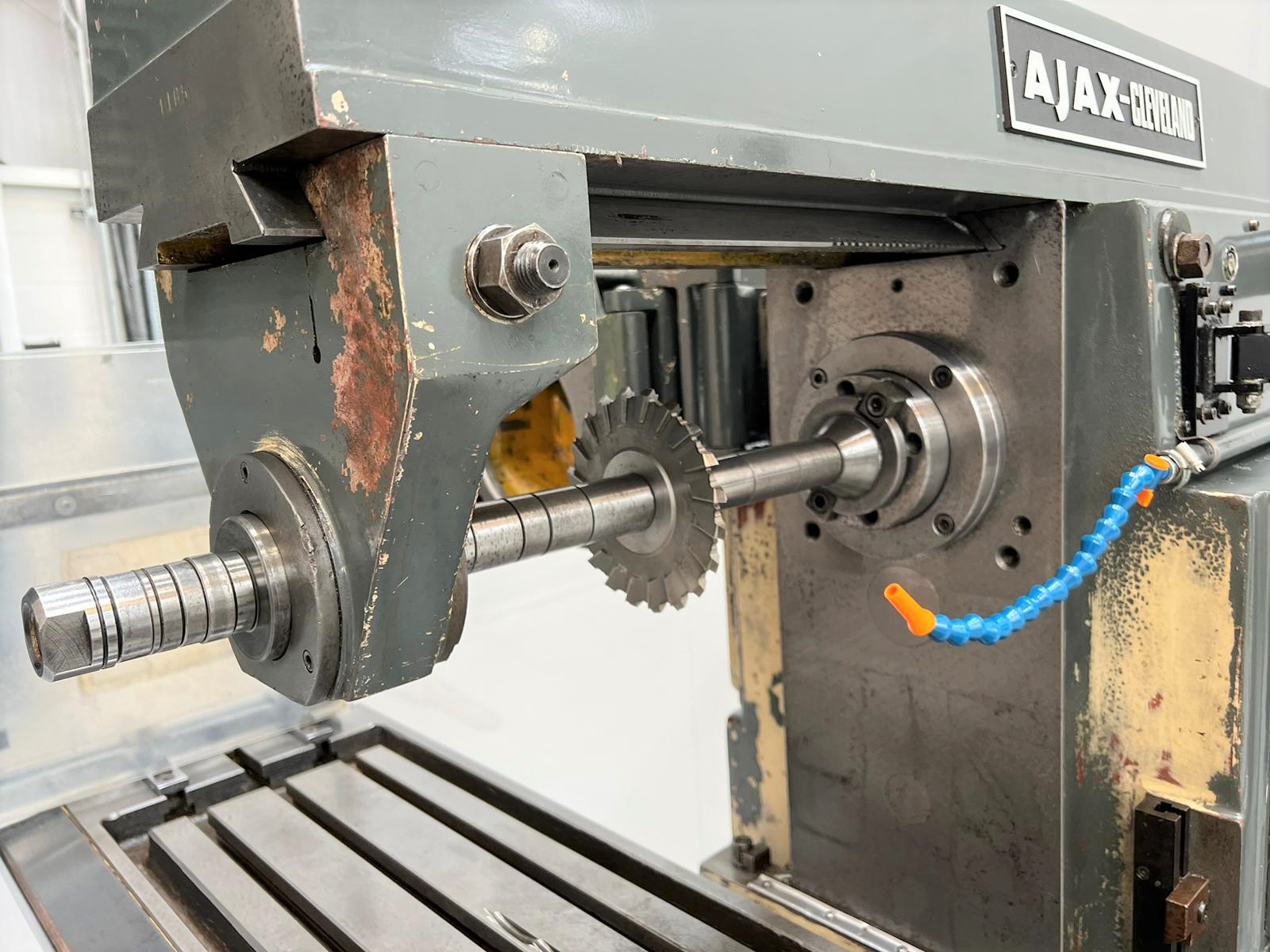

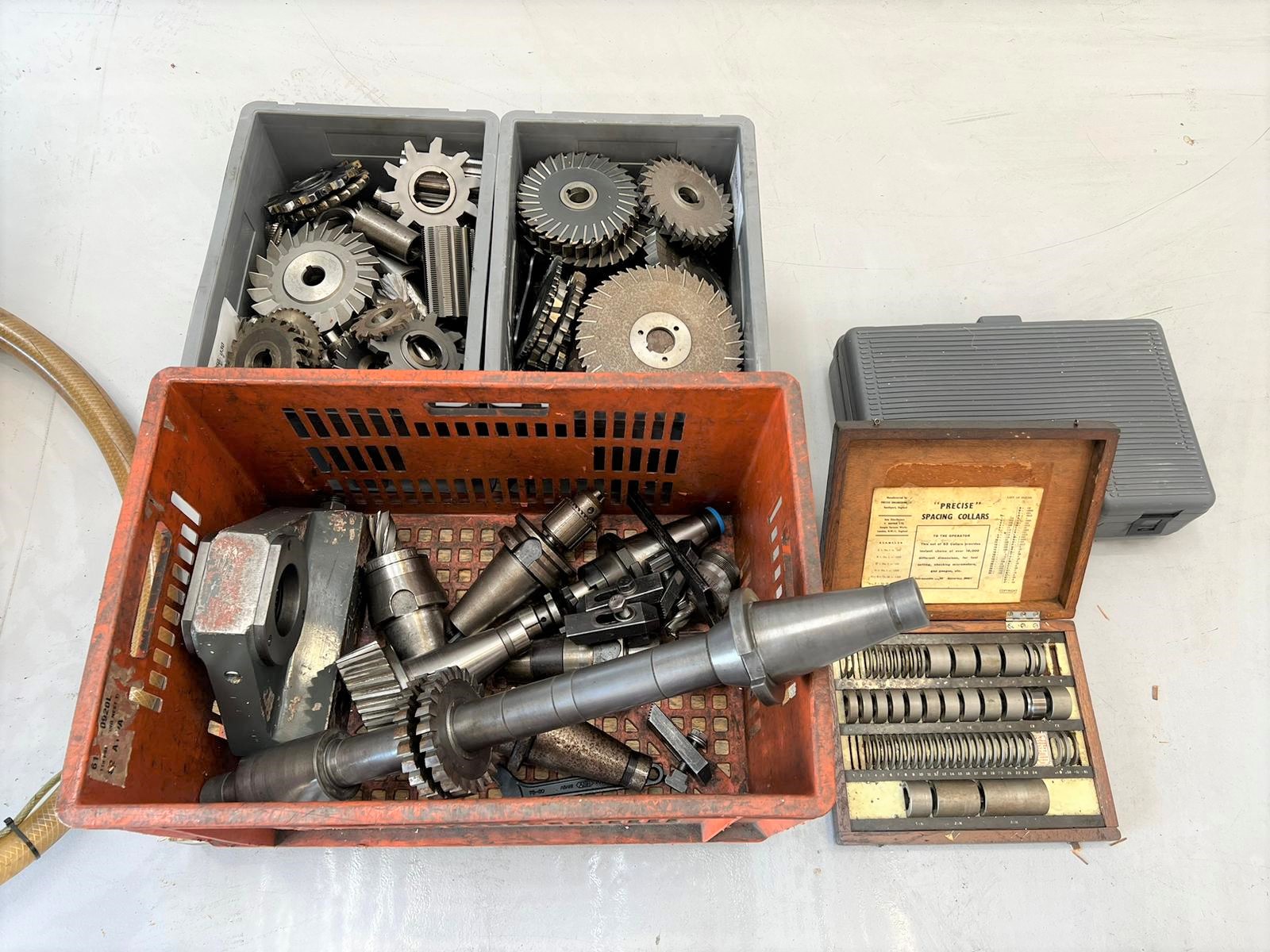

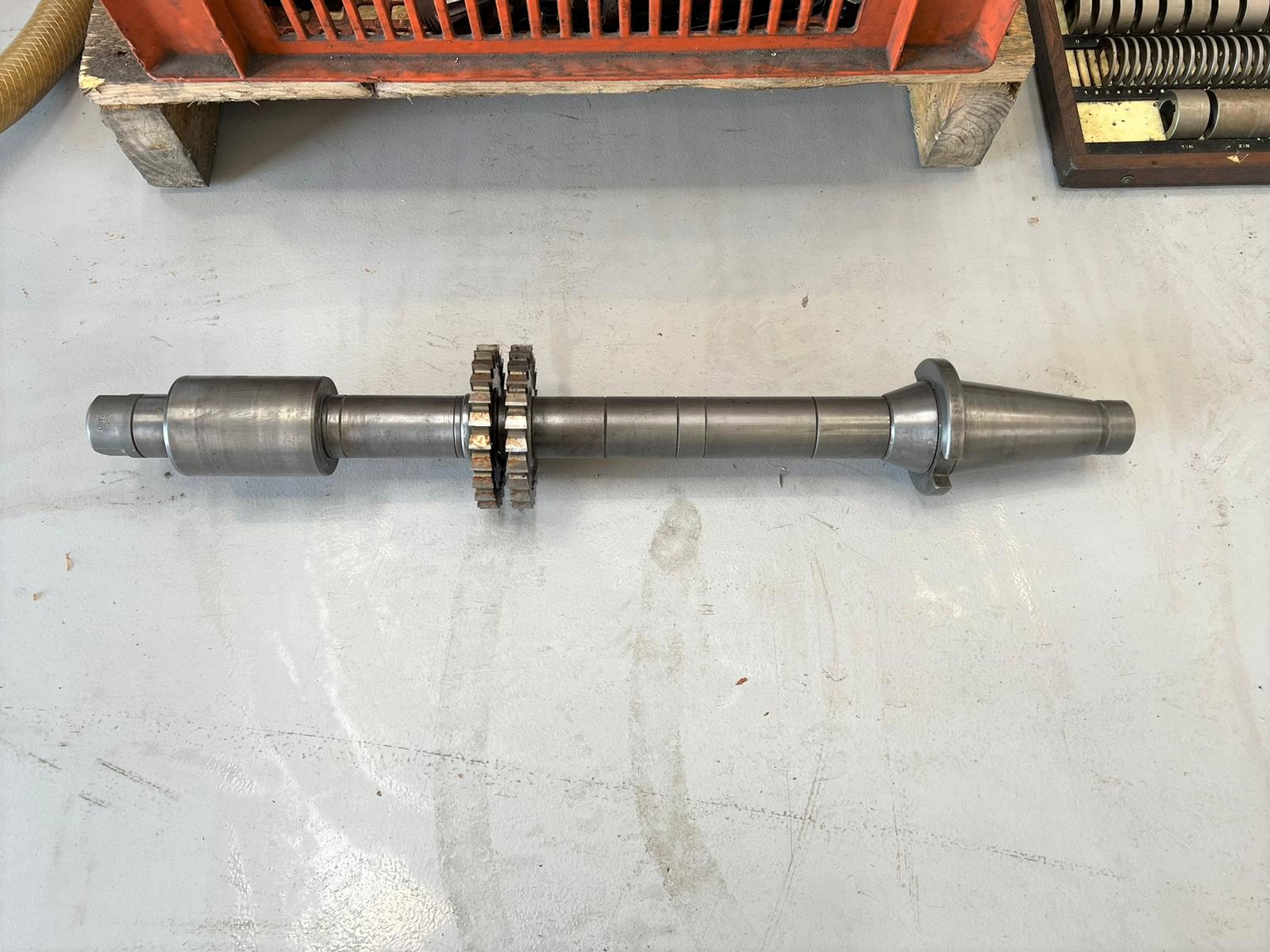

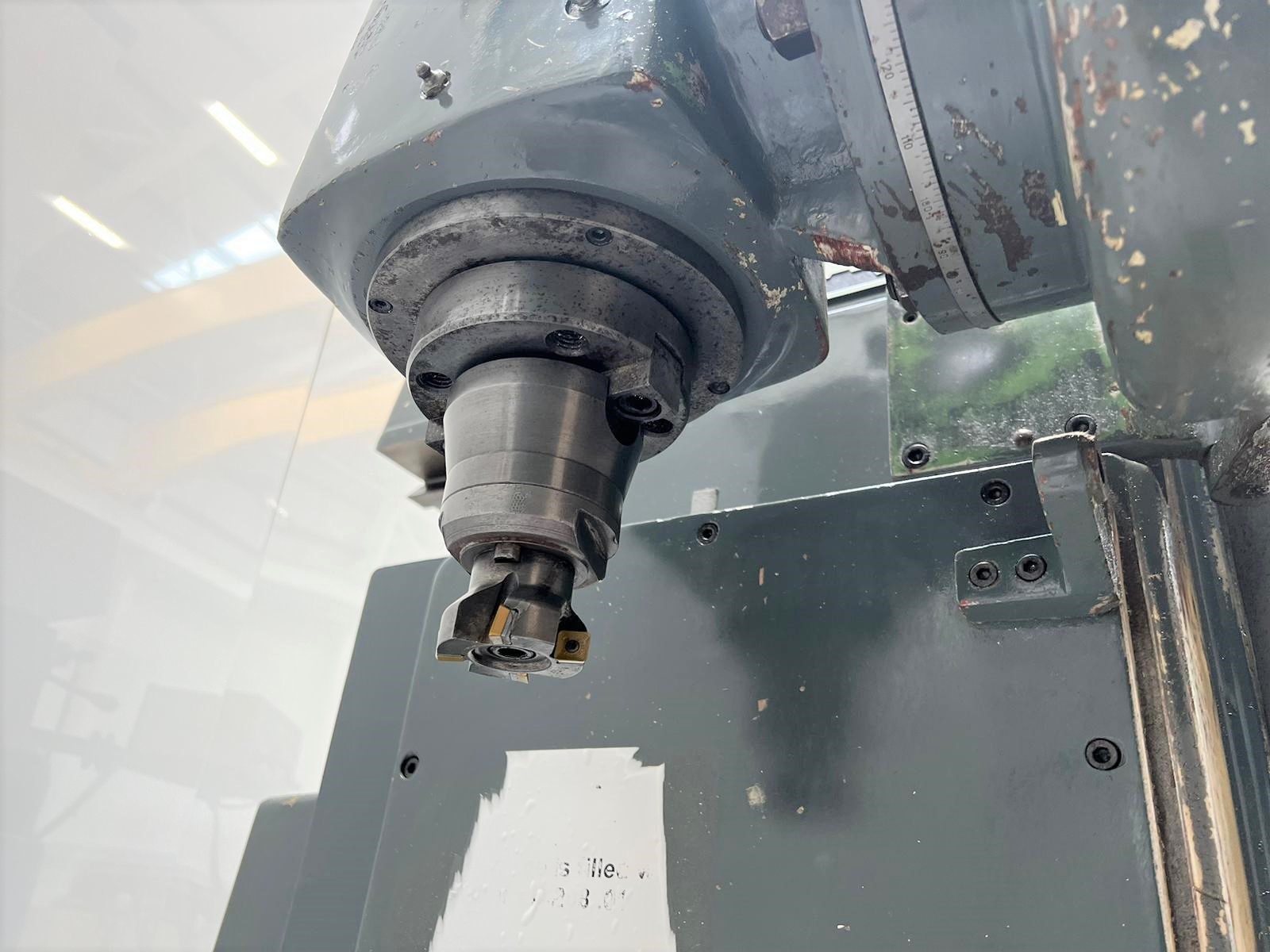

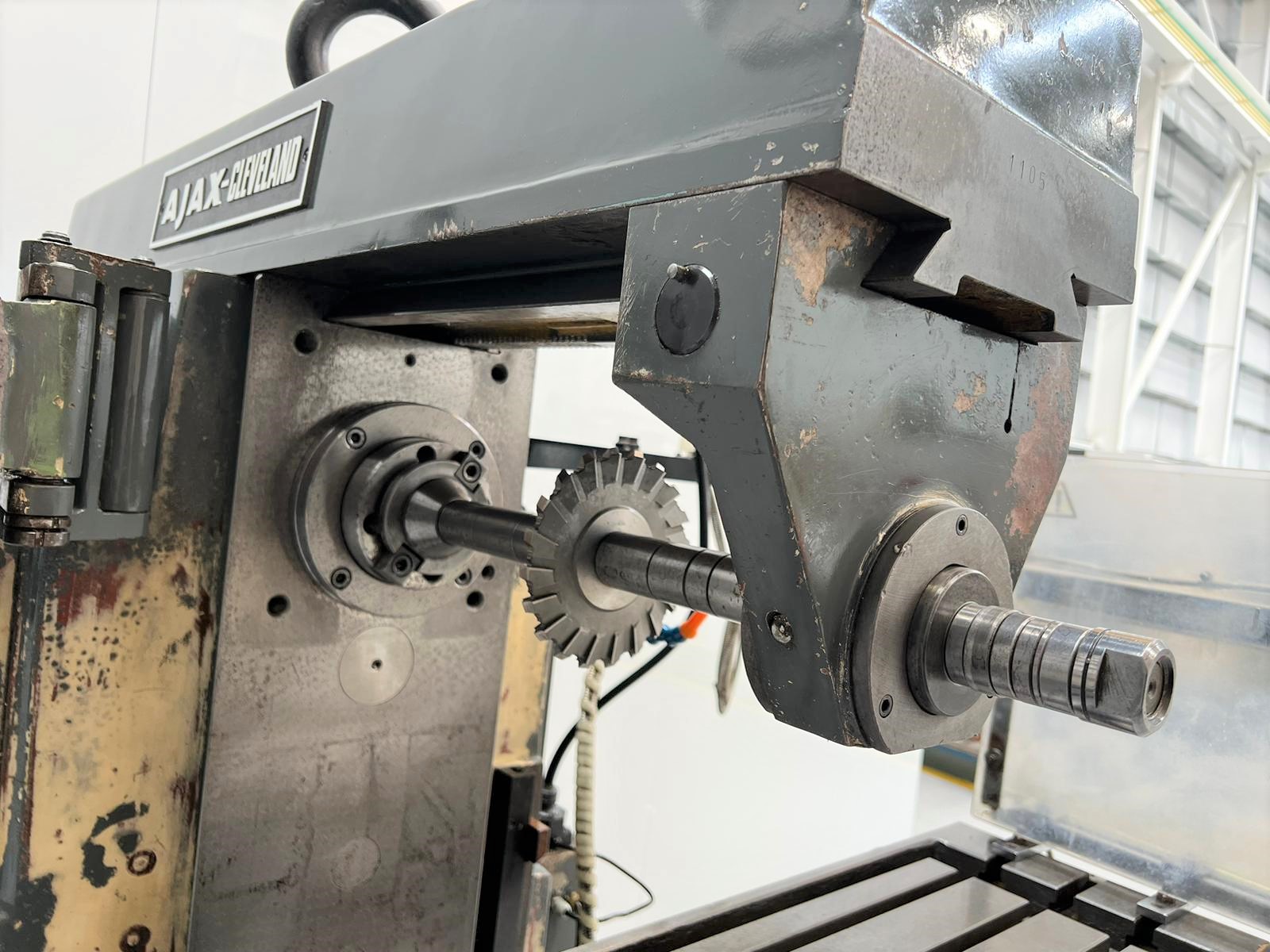

Table size 1400mm x 340mm. T Slot No. & size 3 x 18mm. T slot centres 80mm. Table swivels 90 ° inclusive. Longitudinal travel 1067mm. Cross travel 330mm. Vertical travel (Knee) 450mm. Maximum distance centre of spindle to table 450mm. Spindle taper 50 ISO. Spindle speeds 28-1400 rpm. Feeds Long & cross 10-650mm/min. Vertical 3-195mm/min. Rapids Long & cross 3000mm/min. Vertical 900mm/min. Spindle drive motor 4.47kW. Feed drive motor 1.1kW. Coolant pump .093 kW. Machine fitted with Vertical Head attachment which swivels 360° with 40 ISO taper. Fitted with interlock guarding. 2 x Milling arbors. Spindle Toolholders. Various HSS Milling Cutters.

Machine dimensions 1980mm x 1980mm x 1900mm. Approximate weight 2150 kg.



Reference ID: 29365
