Maximum cutting length 4050mm. Maximum cutting thickness:
Mild Steel 45hb 6-8mm
Aluminium 30hb 8-10mm
Stainless Steel 60hb 5-6mm

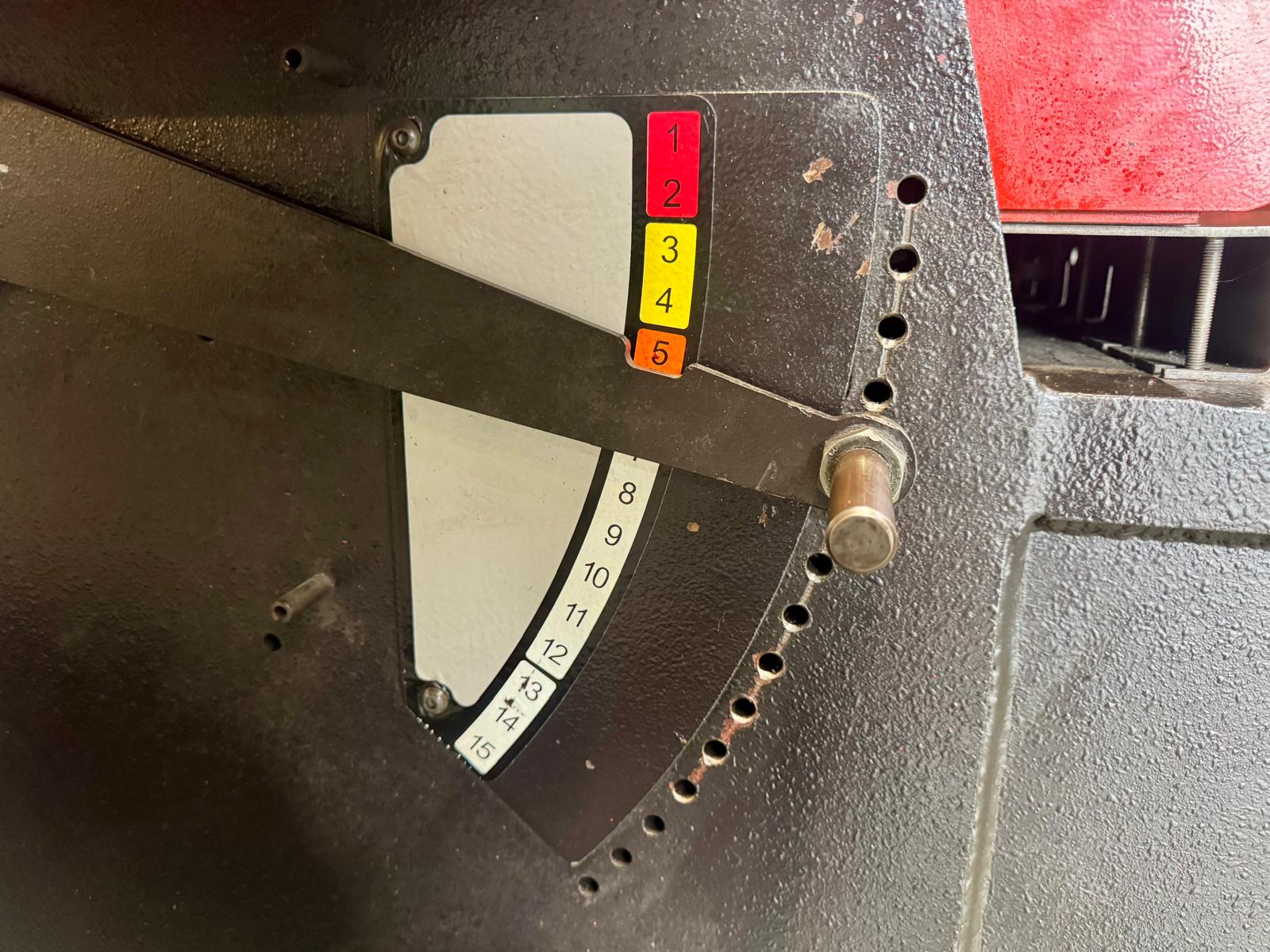

Max force 271KN. Max stroke 190mm. Max stroke speed Lowering 0.053 m/s. Max stroke speed Raising 0.153 m/s. Maximum cutting angle 2.1°
Minimum cutting angle 0.4°. Backgauge adjustment 1000mm. Stroke 190mm. Power 15kW
Machine dimensions L x W x H 4810mm x 2210mm x 2040mm
Approximate weight 11,650 kg
