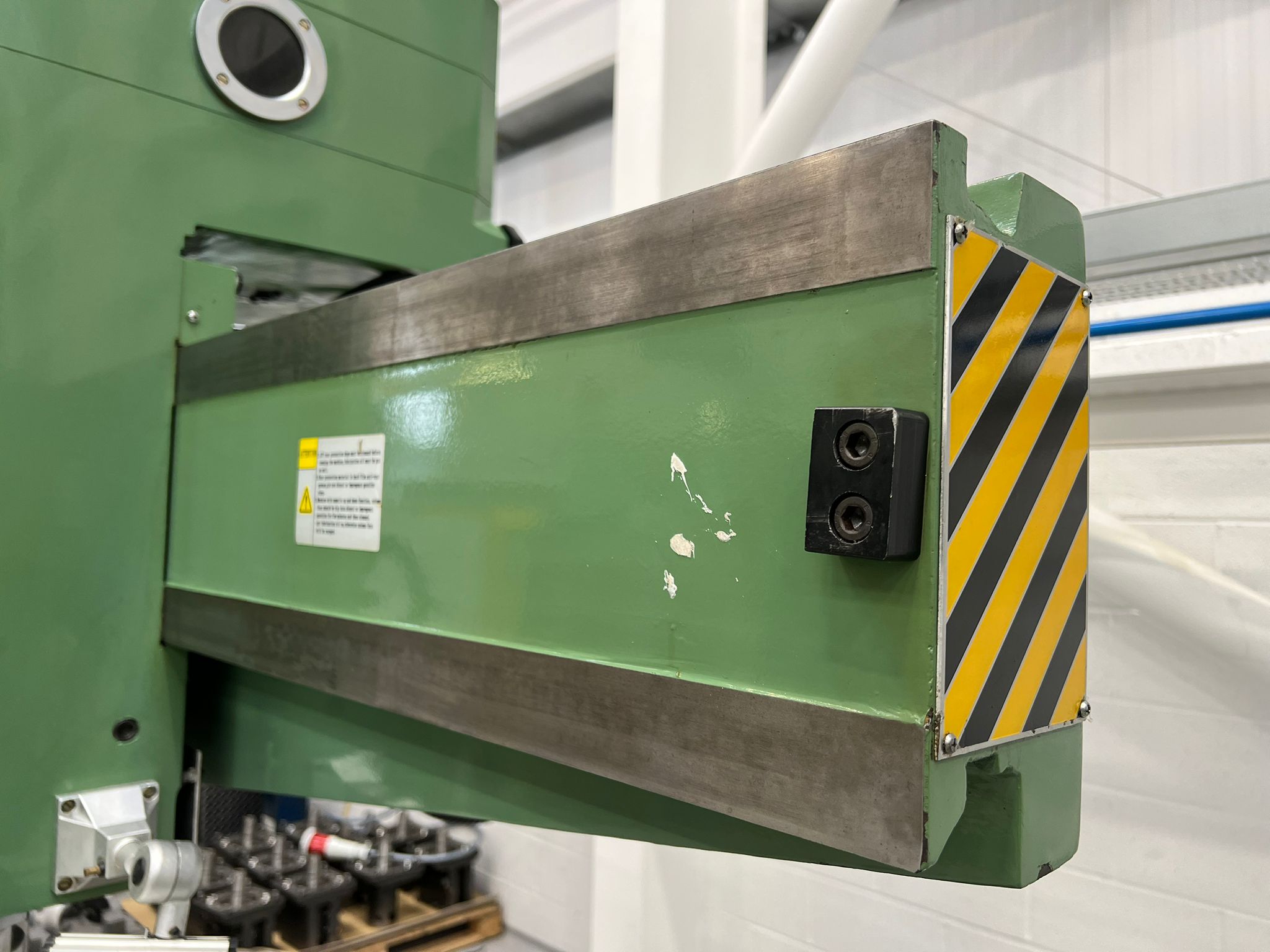

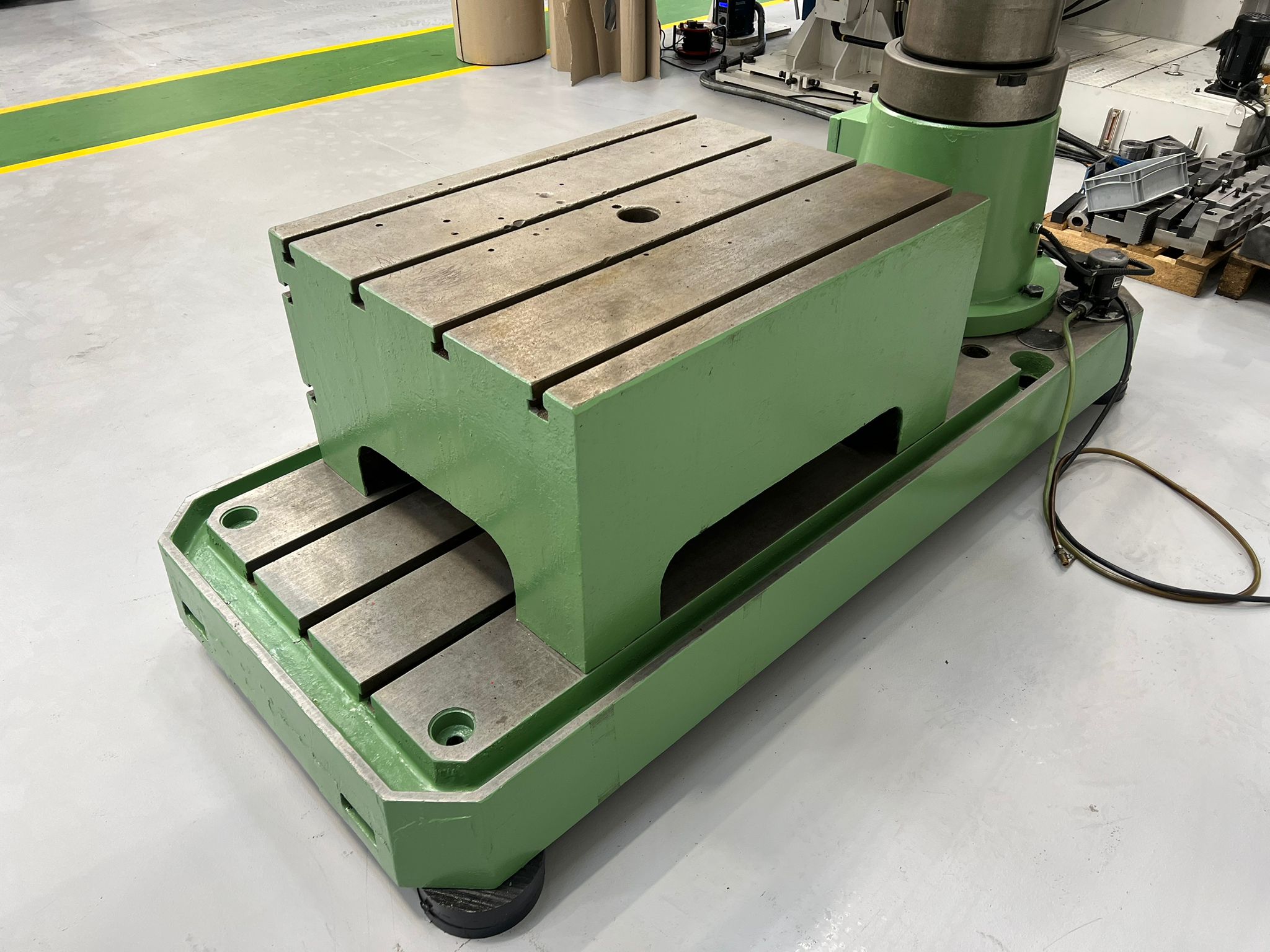

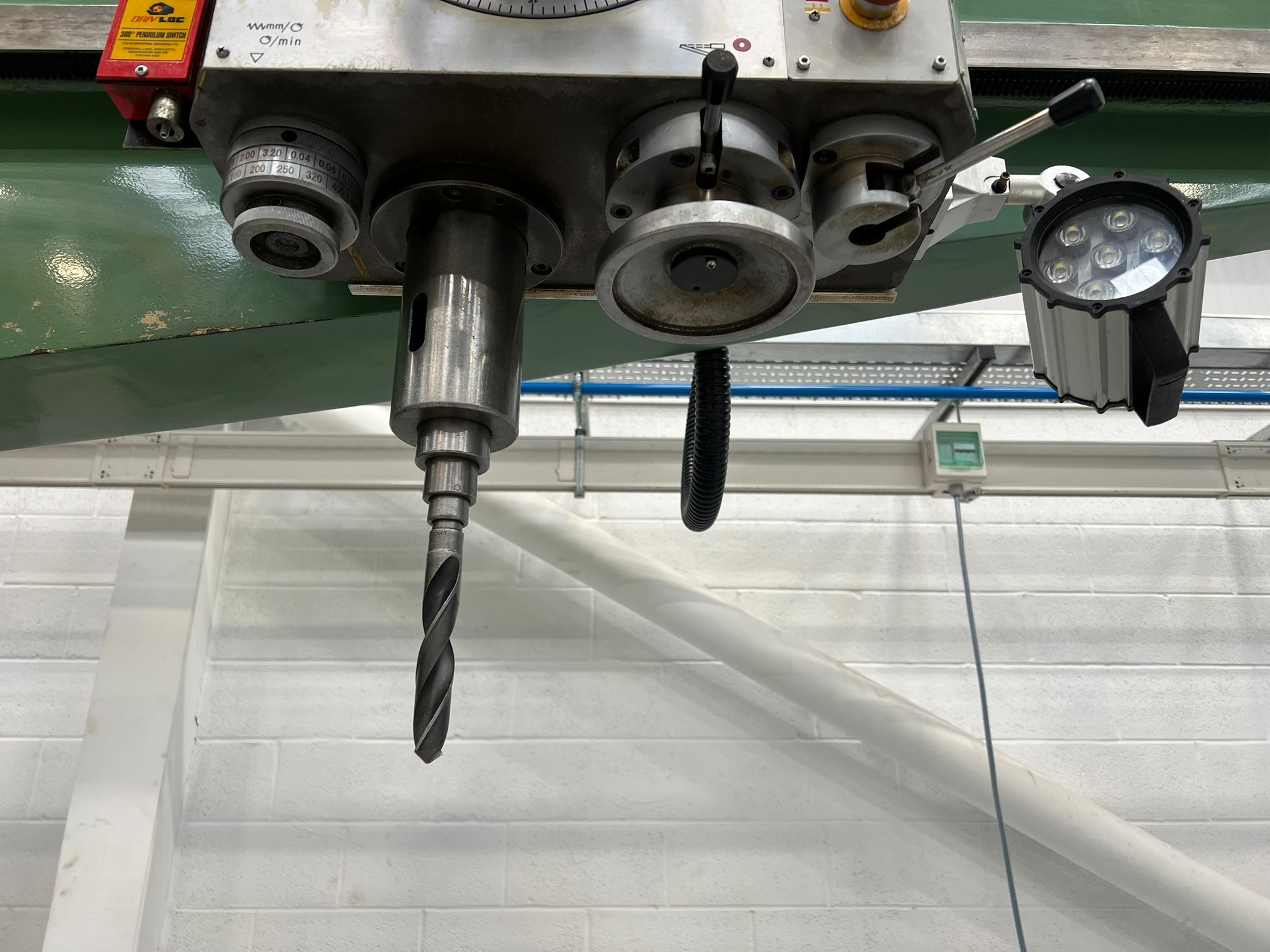

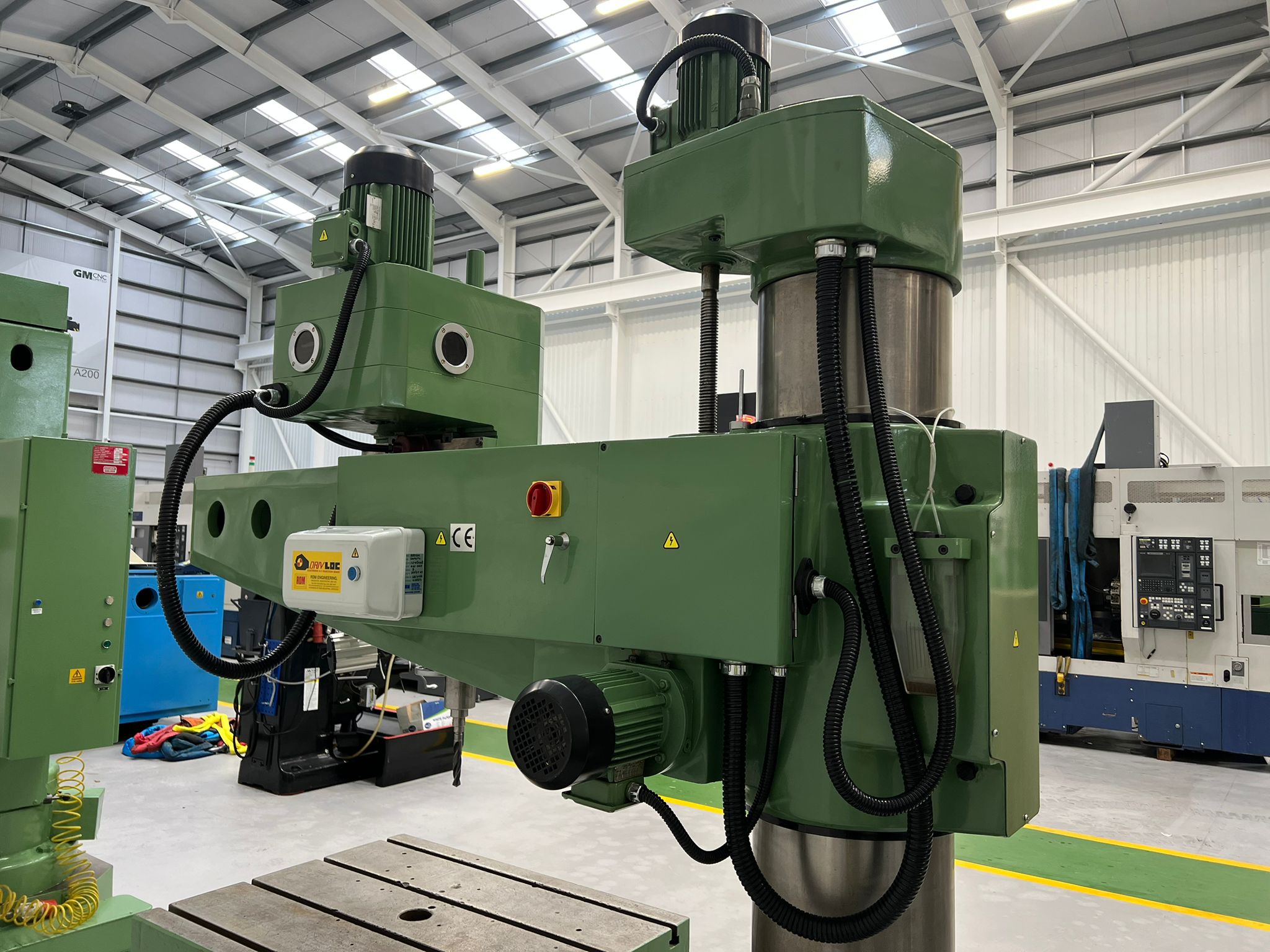

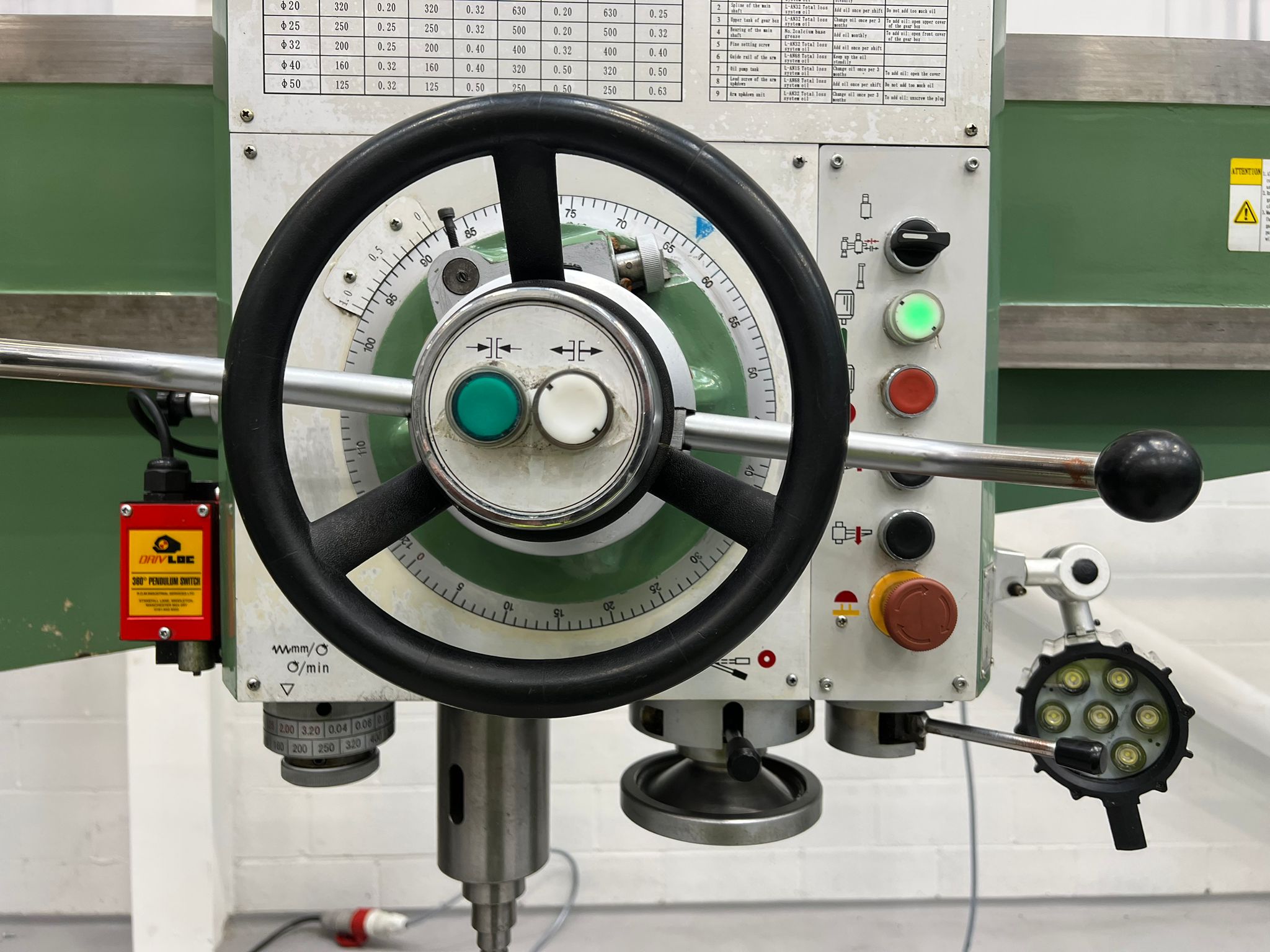

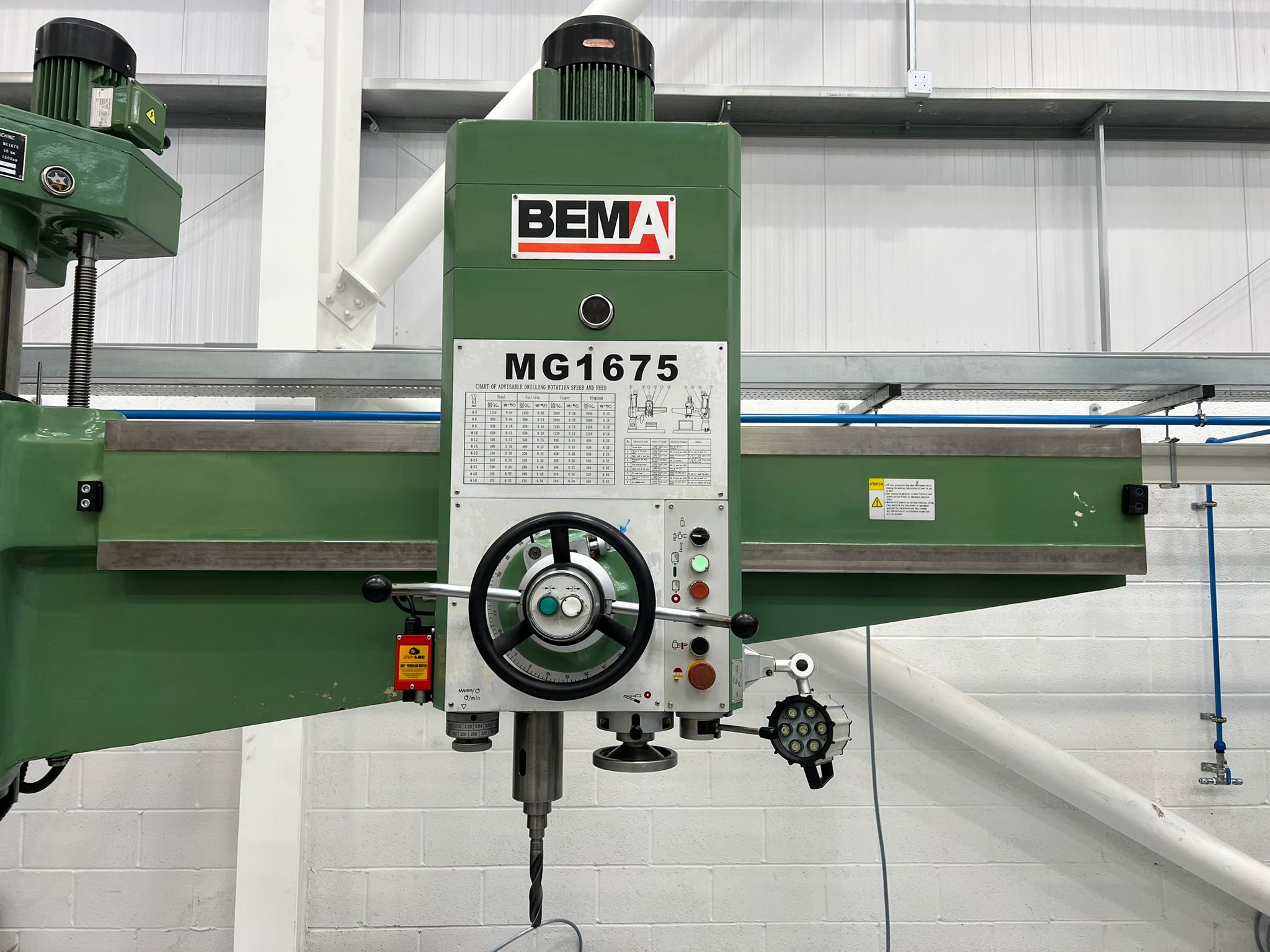

Capacity (Cast Iron) 75mm. Capacity (Mild Steel) 50m. Spindle Centre to Column (min-max) 350 – 1600mm. Spindle Taper 5 Morse Taper. Motor Kw 4. Speeds 25 – 2000rpm. Spindle Stroke 315mm. Box Table mm 630mm x 500mm x 500mm. Base Plate mm 2400mm x 1000mm. Automatic hydraulic clamping and unclamping when arm is raised or lowered. Independent clamping of drilling head to arm. Manual, automatic and fine feeds. DC Injection brake providing instant stop in emergency.
Machine dimensions L x W x H 2500mm x 1060mm x 2650mm. Approximate weight 3750 kg.
