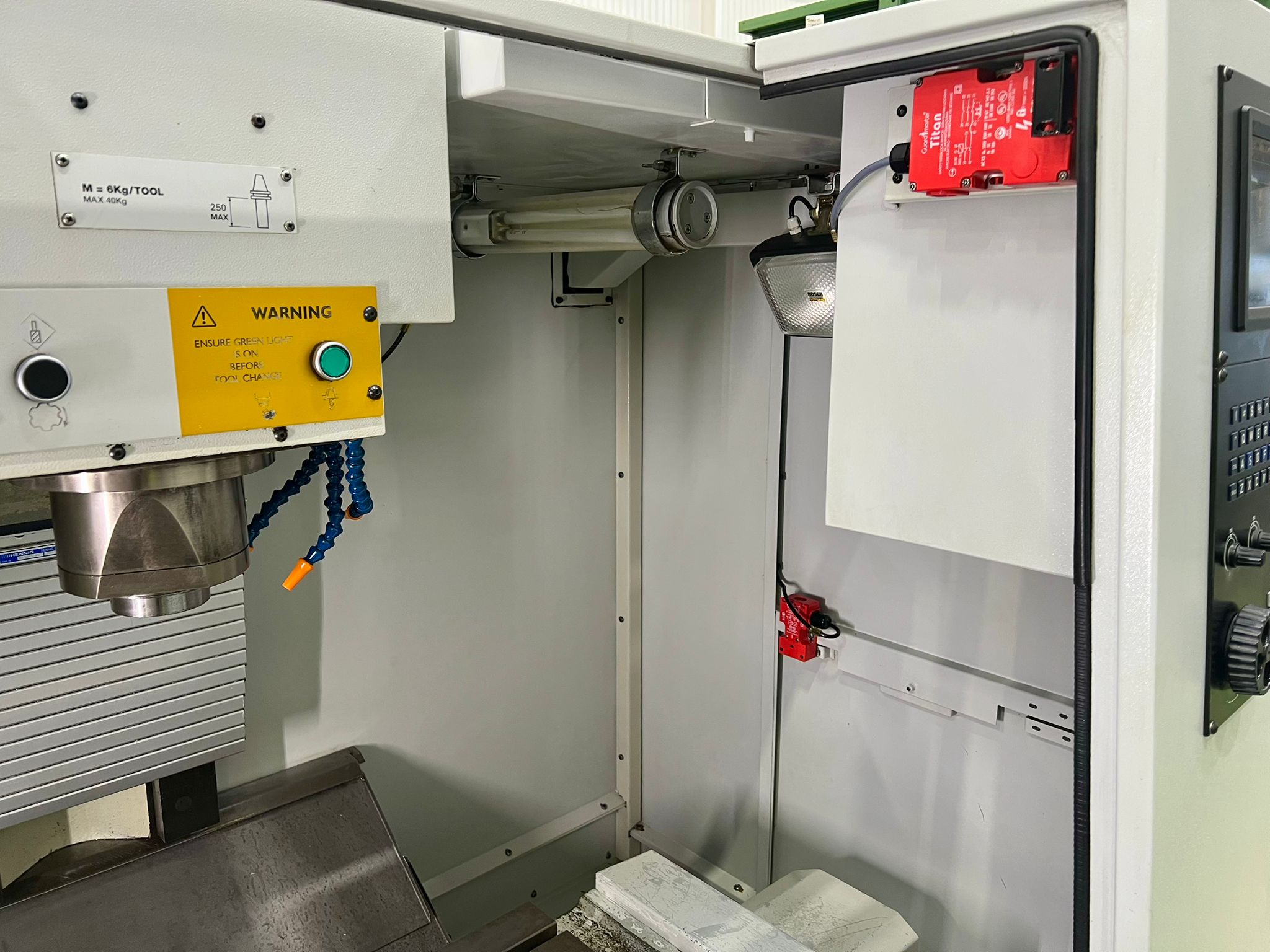

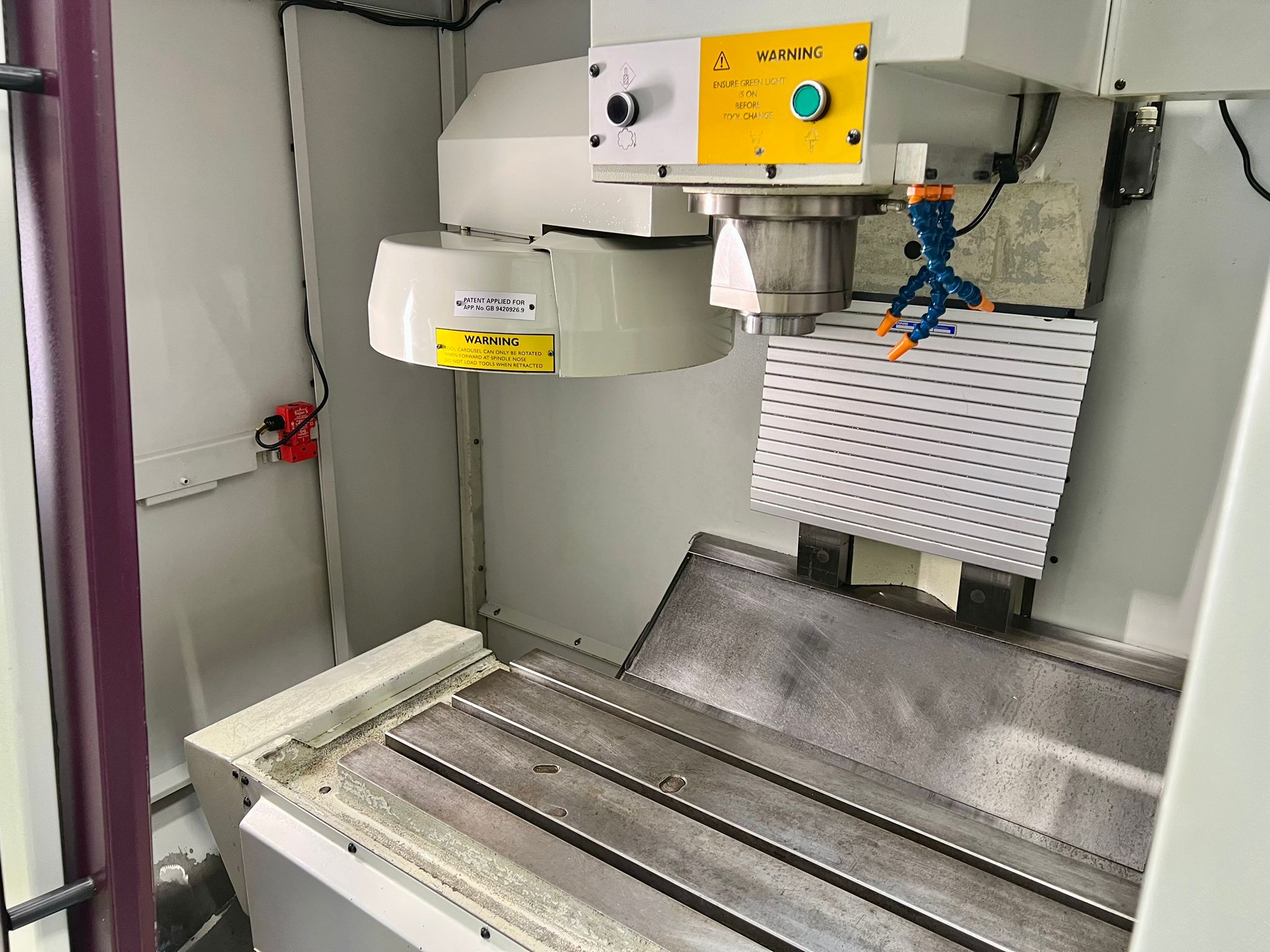

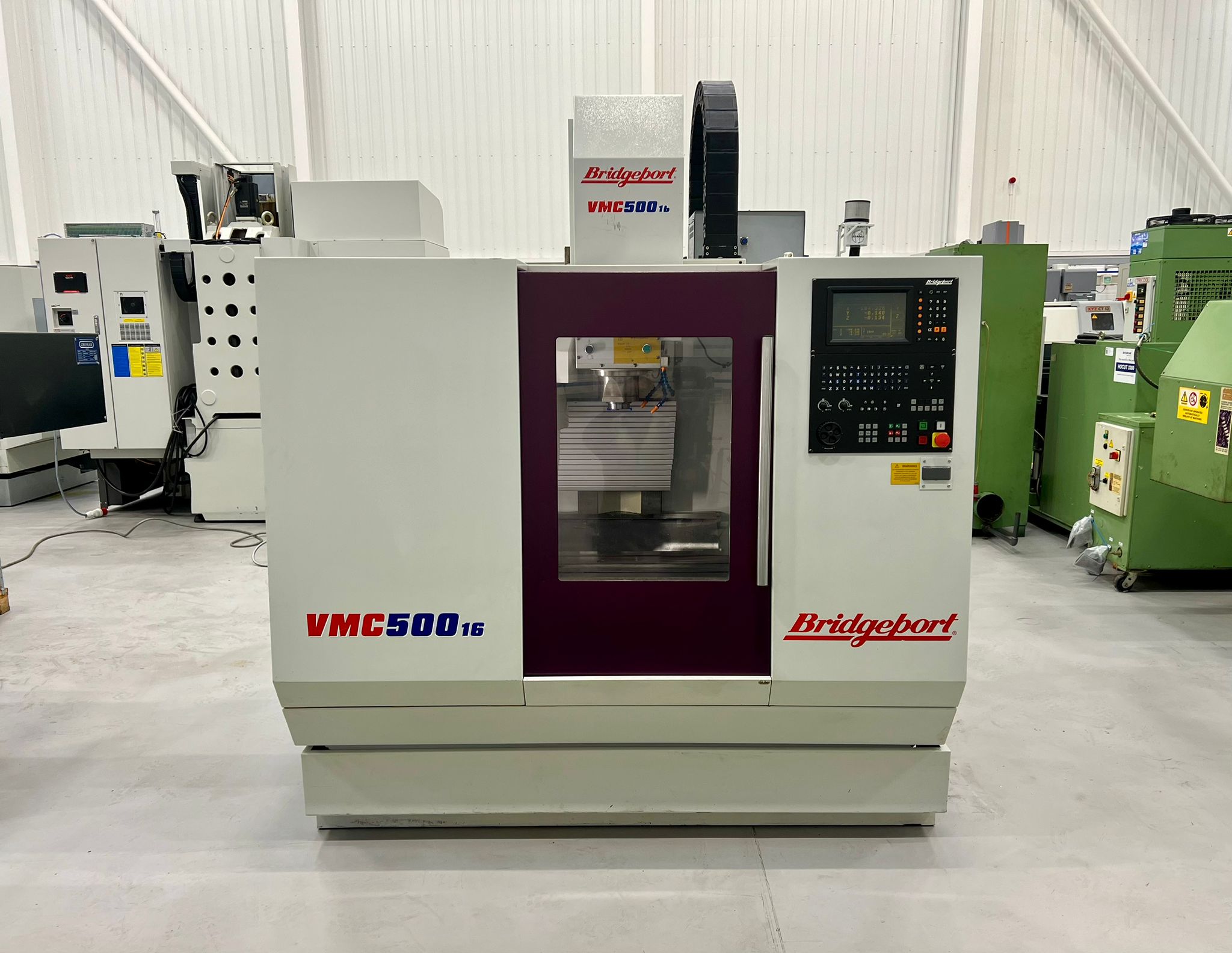

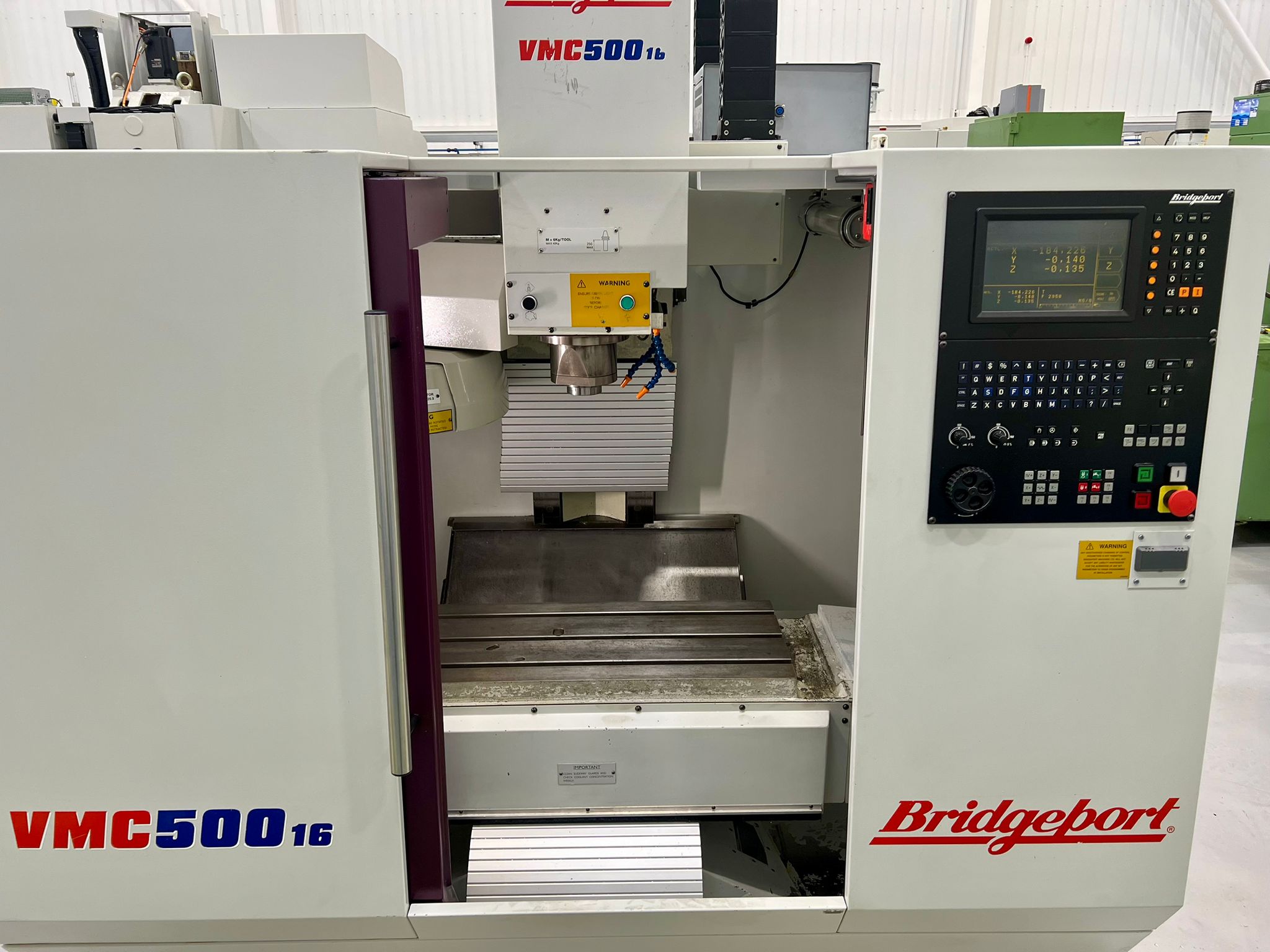

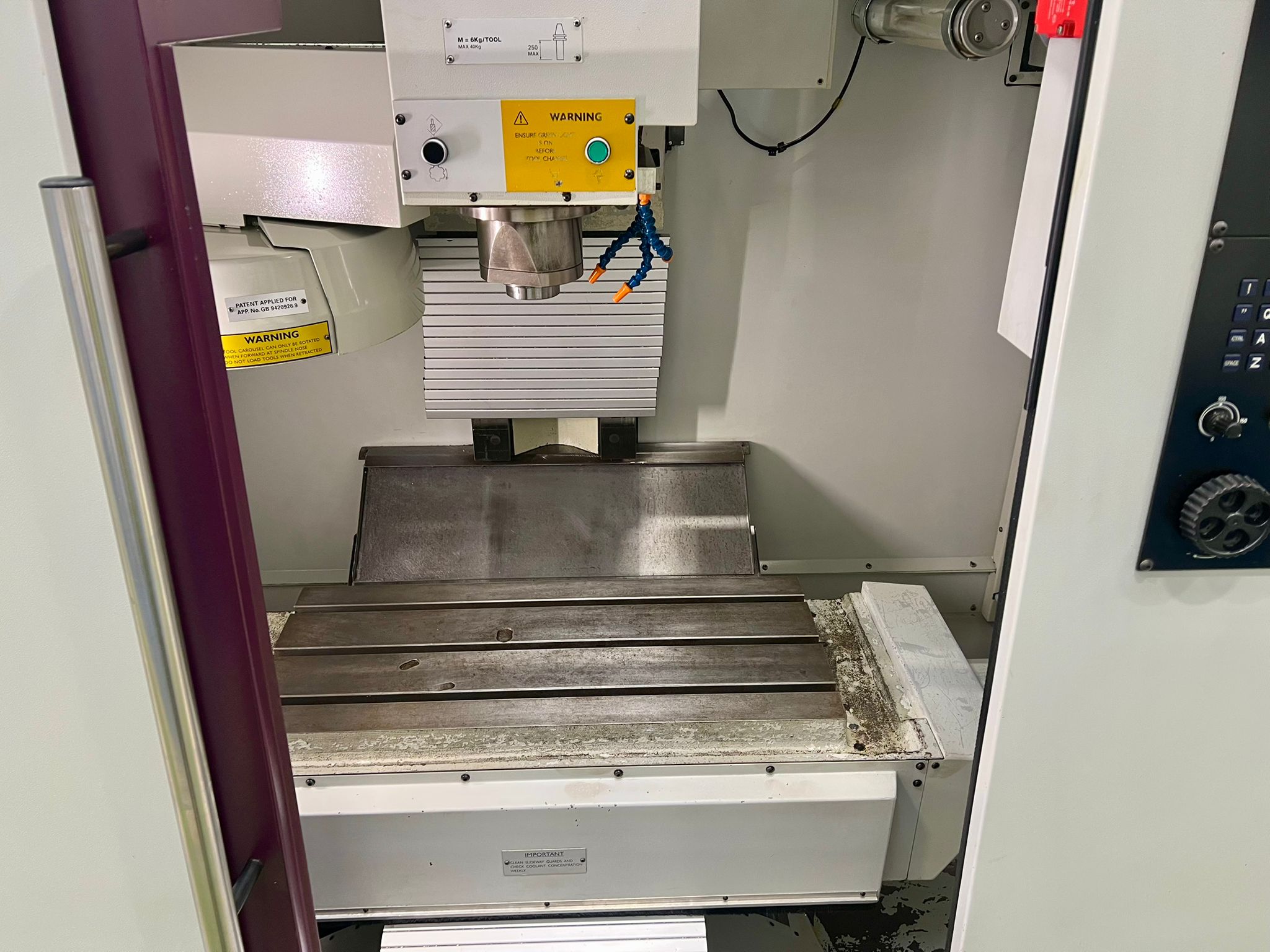

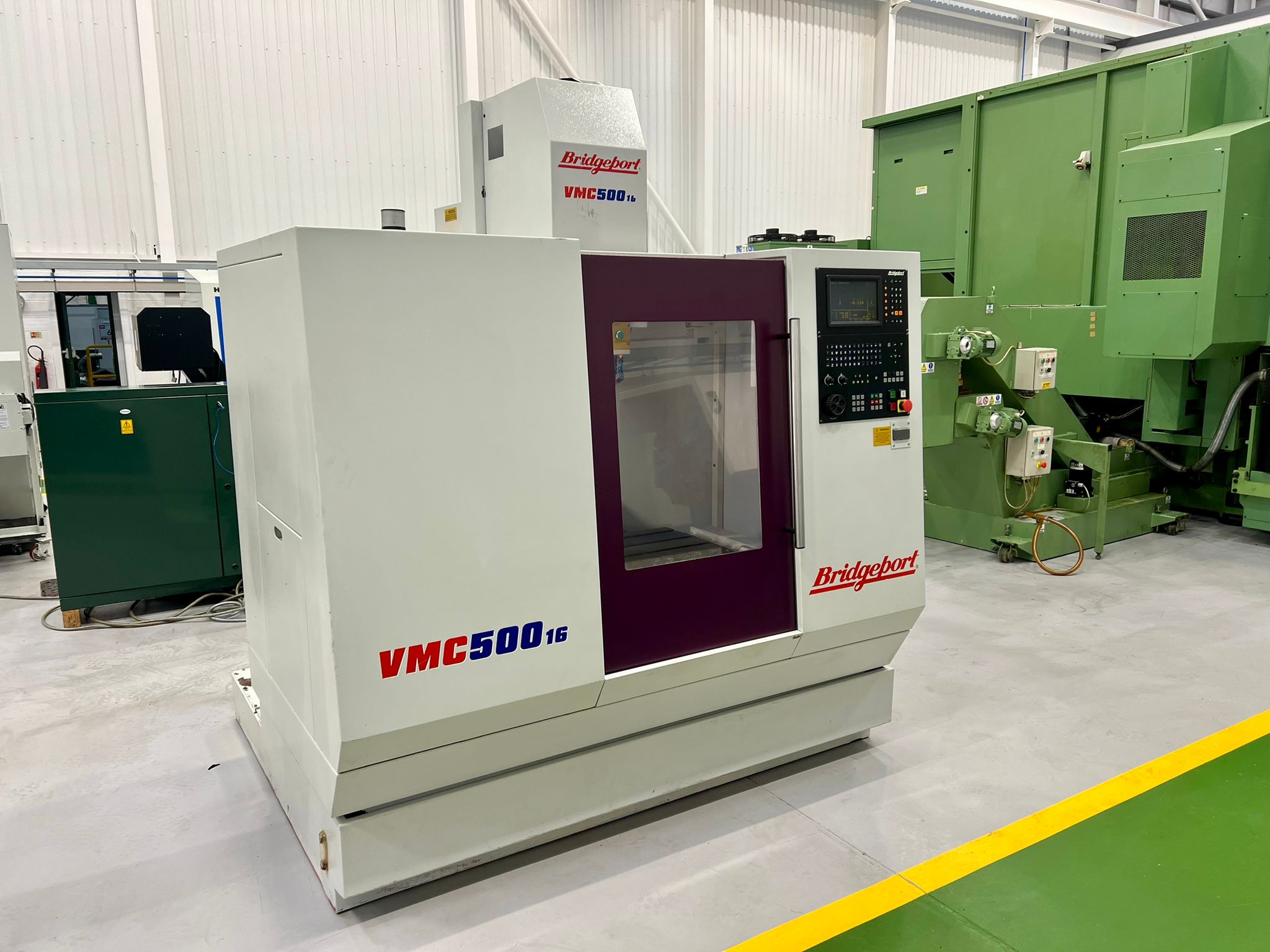

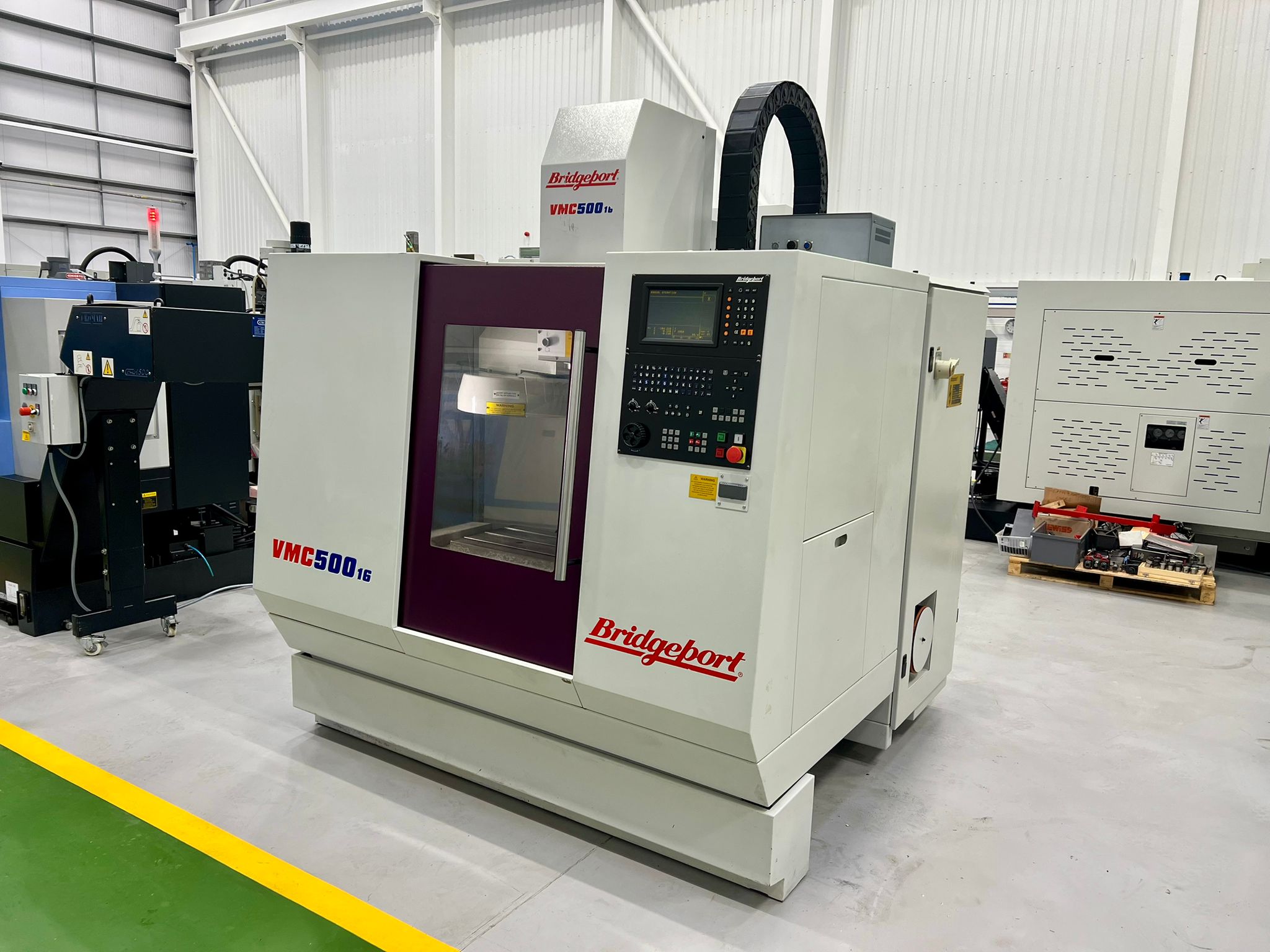

BRIDGEPORT 500/16 Vertical Machining Centre with Heidenhain Control. Year 1998

BRIDGEPORT 500/16 Vertical Machining Centre with Heidenhain Control. Year 1998

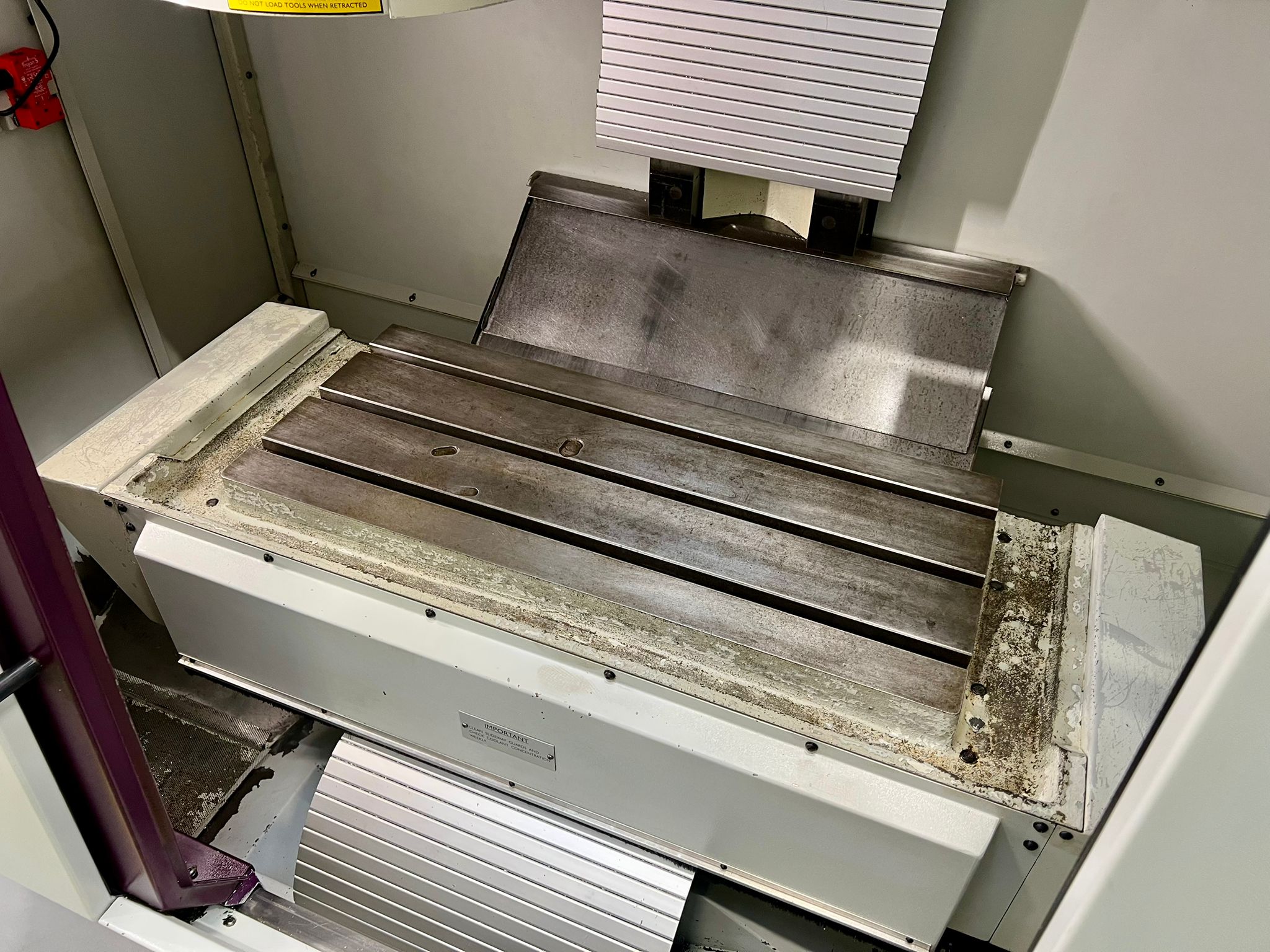

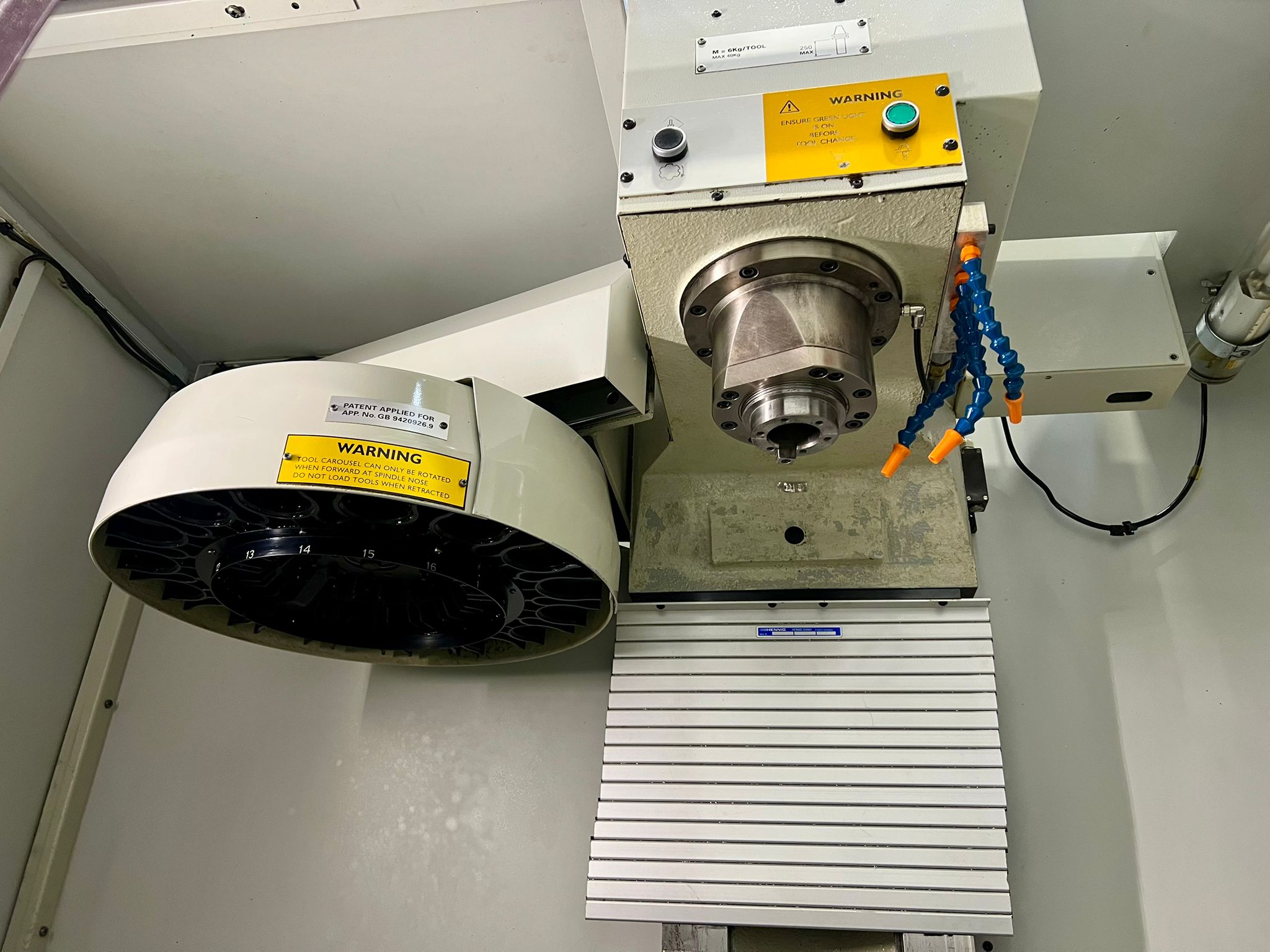

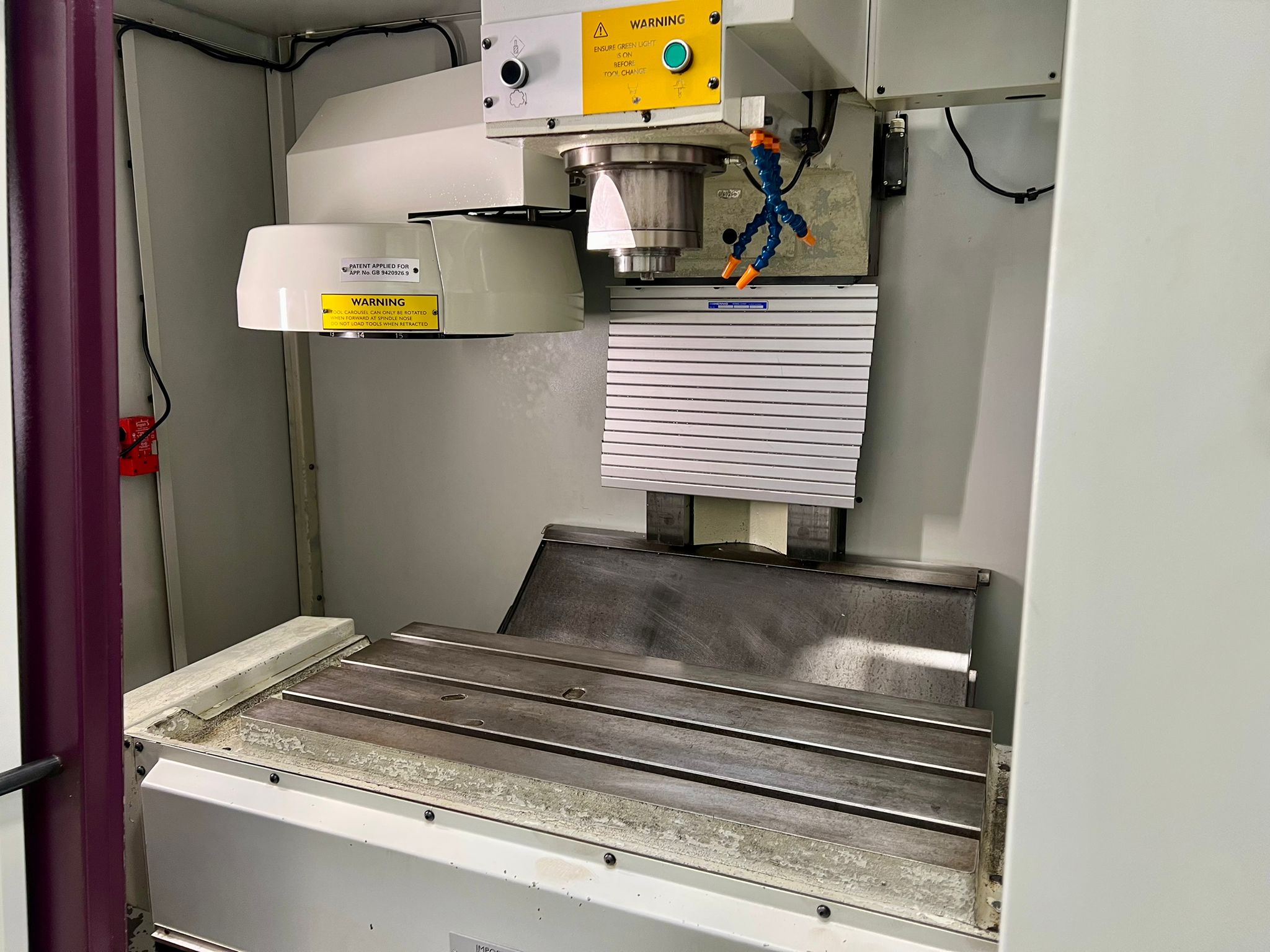

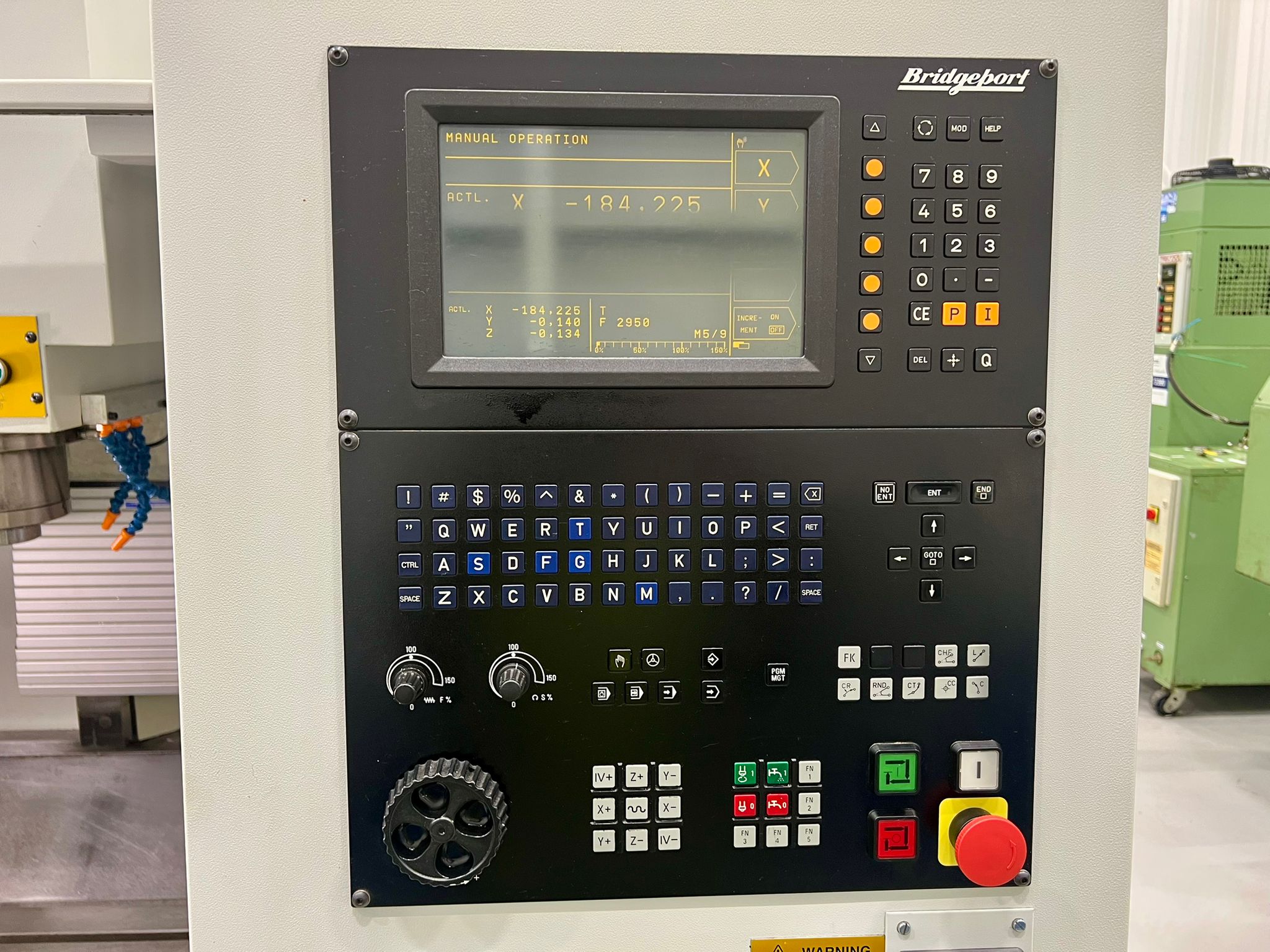

Travels X/Y/Z 500/340/520mm. Rapids X/Y/Z 20/20/16m/min. Spindle power 7.5kw. Spindle speed 40-7,000rpm. Spindle taper BT40. Surface 840mm x 360mm. 3 slots on 112mm centres. Max load 500kg. Toolchange capacity 16. Change time (tool-tool) 6.5 secs. Change time (metal- metal) 8.5 secs. Max tool weight 6kg. Max tool length 250mm. Max tool diameter (adj. pocket empty) 130mm. Max tool weight of all tools 40kg. Positioning +/- 0.005mm (Ap 0.010). Repeatability +/- 0.002mm (Ru 0.004). Heidenhain TNC 370 Control.

Dimensions L x W x H 2100 x 2000 x 3535mm. Weight 2600Kg

Reference ID: 30218
