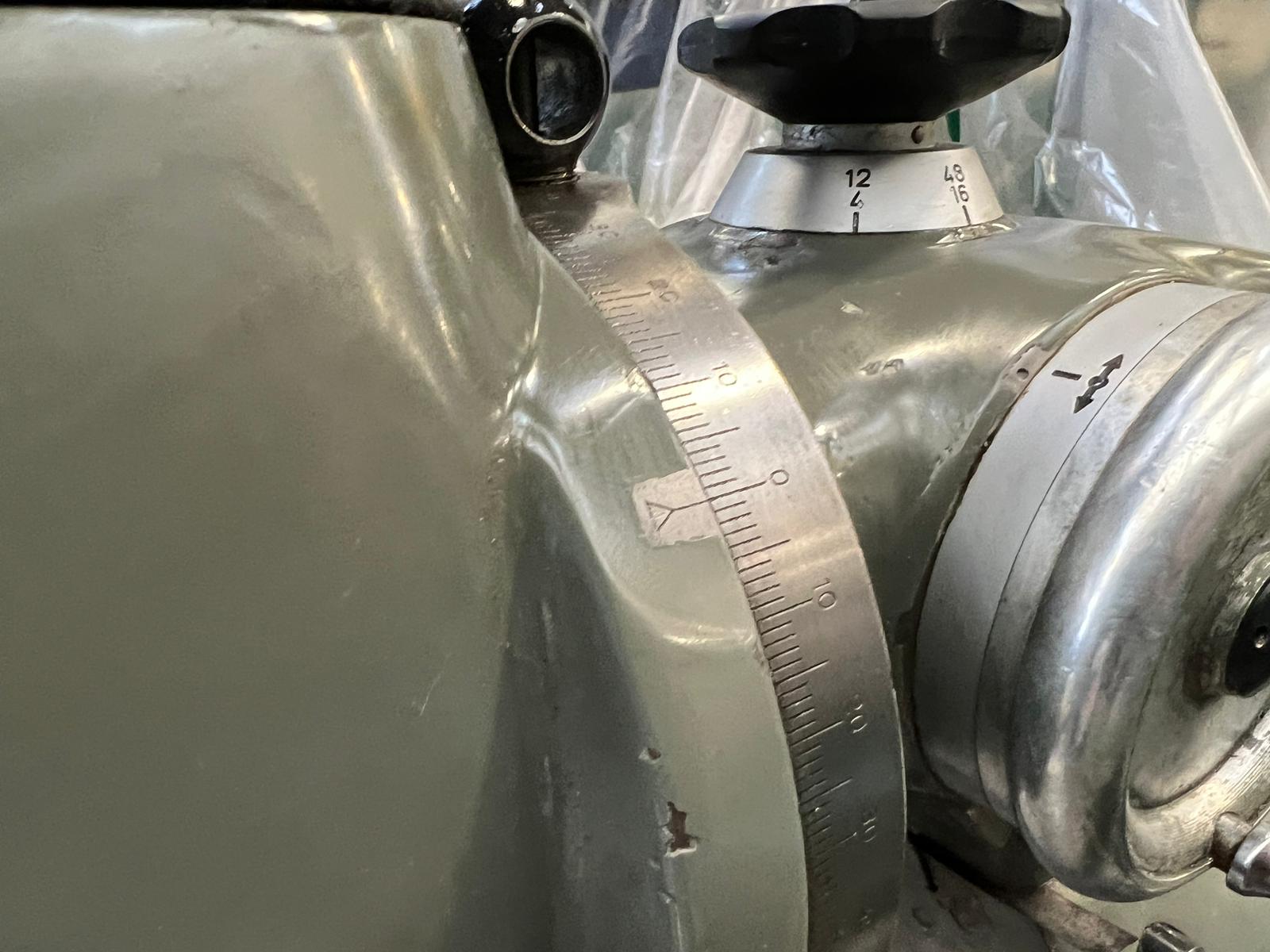

DECKEL LK Jig Boring Machine

DECKEL LK Jig Boring Machine

Table size 300mm x 650. T Slots (5) 12mm. Long travel 400mm. Cross travel 254mm.Vertical travel 340mm. Table loading 150kg. Spindle speeds (15 Geared for Boring) 40-500 rpm. Spindle speeds (20 Geared for Boring) 40-3150 rpm. Spindle Taper 40 ISA. Divisions of scale 1mm. Spindle motor 0.55 kW. Motor speed 1400 rpm. Rapids 400mm/min. Machine complete with LVS Precision Grinding Attachment (Spindle speeds 15,000-30,000 rpm). Boring Attachment. 305mm dia. Rotary Table with optics. Transformer cabinet for infinitely variable speed wheel spindle motors. Heidenhain DRO. Machine Handbook. Machine Serial No.90037
Dimensions L x W x H 1370mm x 1290mm x 1510mm (excluding attachments) 1900 (including attachments). Weight 975kg

Reference ID: 29195
