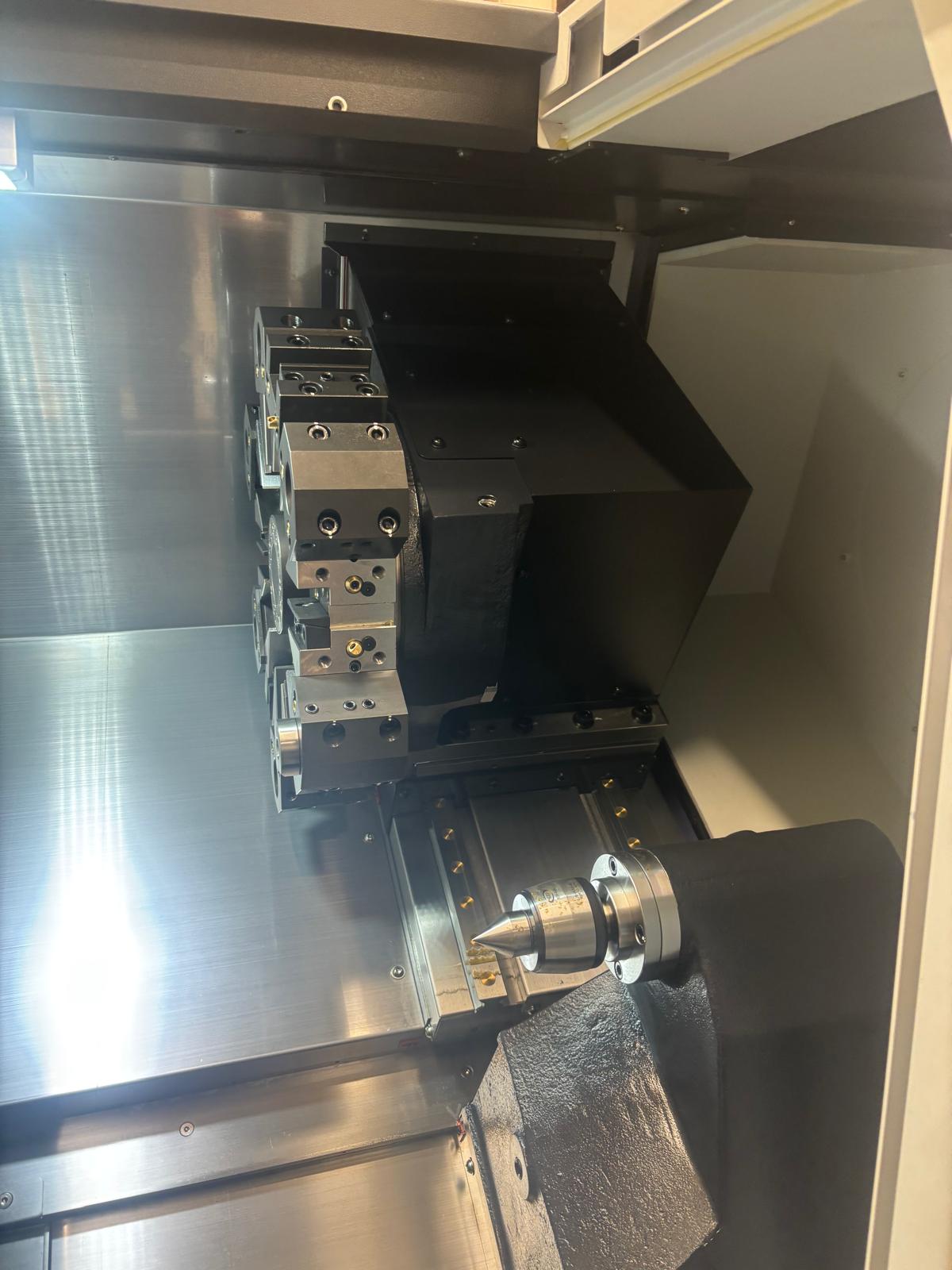

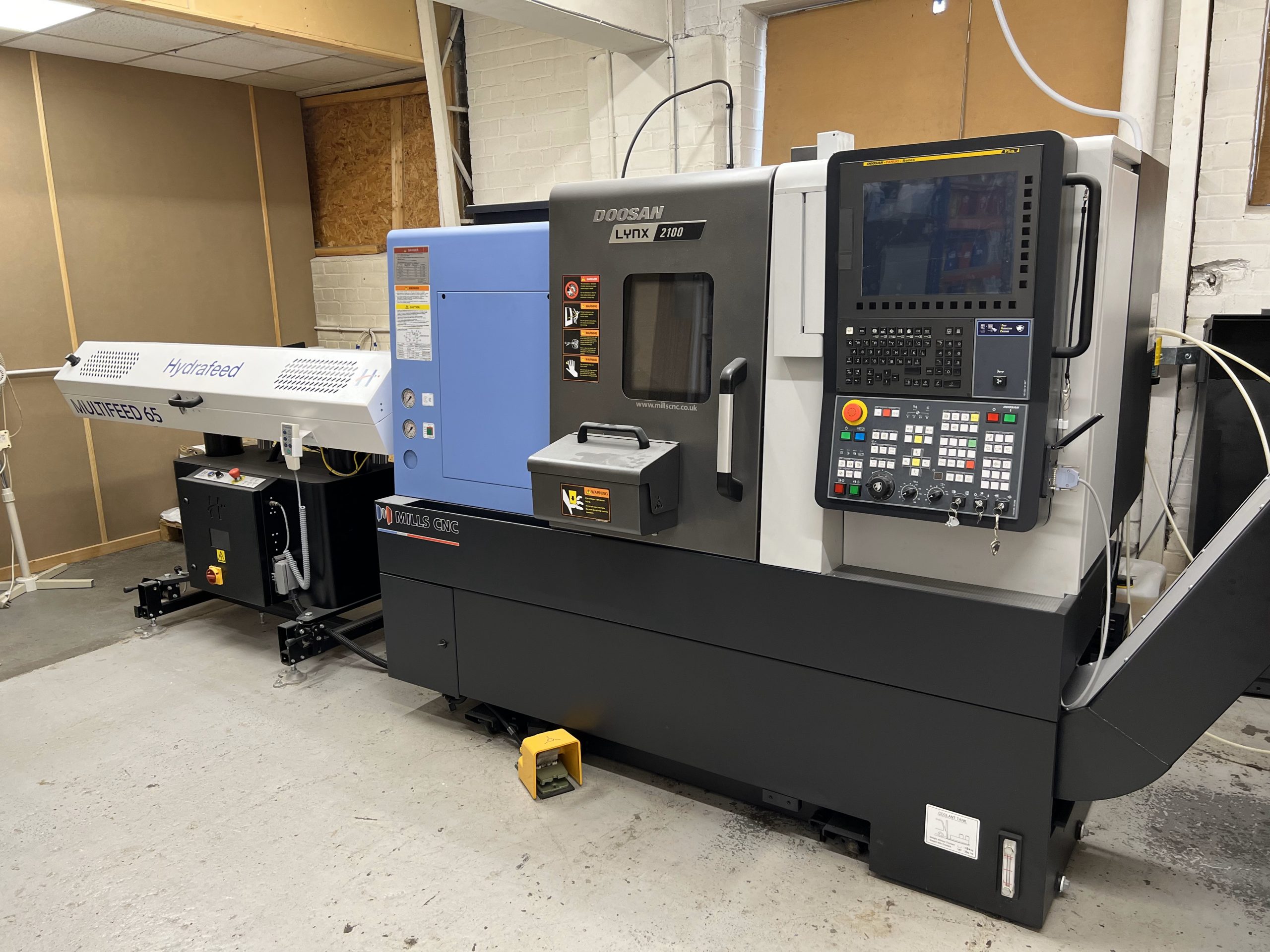

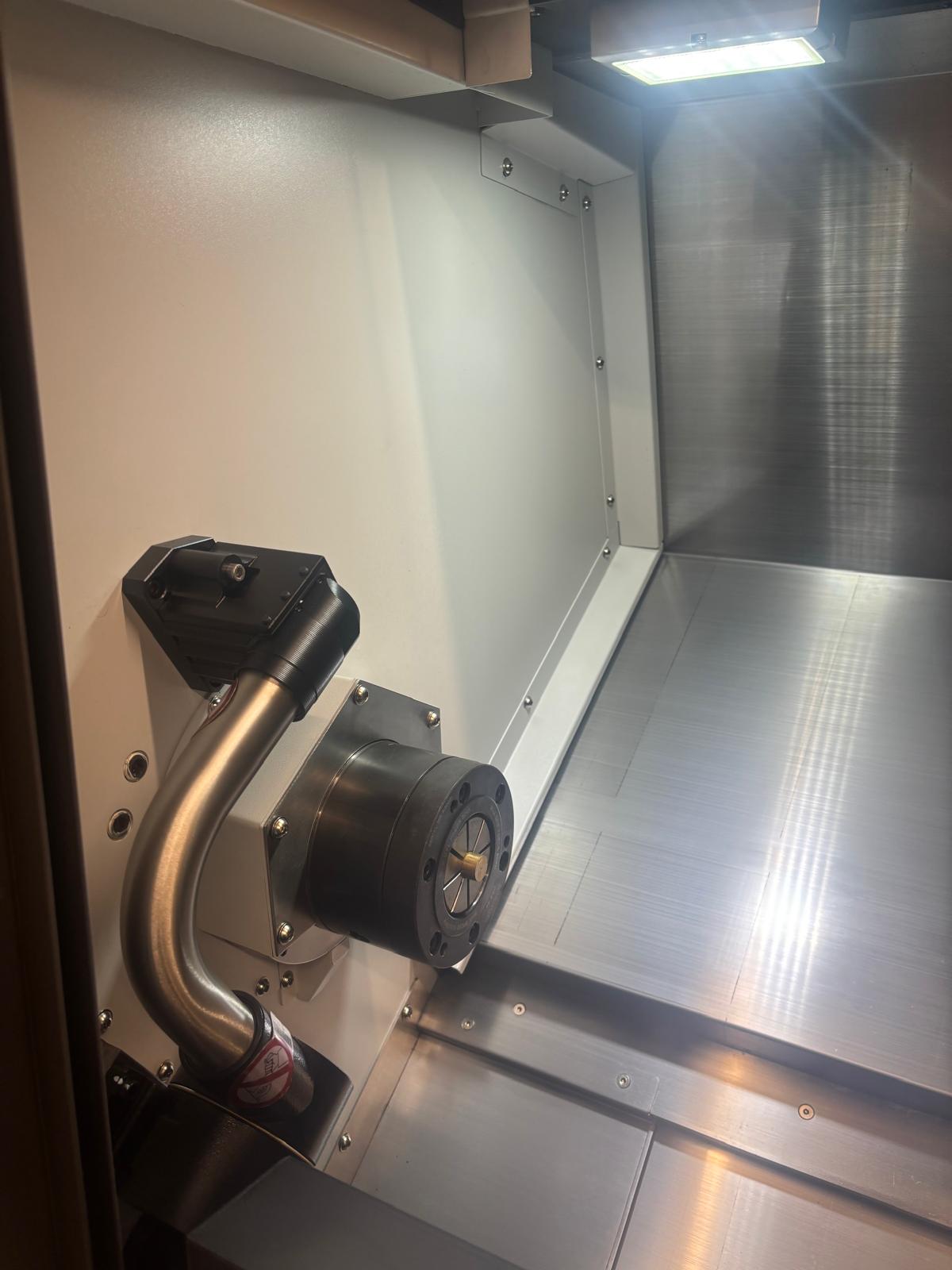

Maximum turning dia. 350mm. Maximum turning length 350mm. X/Z travels 205mm/340mm. Rapids X/Z 30m/36m/min. Bar capacity 51mm. Spindle speeds 6000 rpm. Spindle power 15 kW. 12 station turret. Machine complete with Hydrafeed 65 Short barfeed. Collet chuck. Tailstock. Swarf conveyor. Complete tooling package. Machine was purchased in 2021. Installed in 2022 and never used.
Machine dimensions L x W x H 2320mm x 1595mm x 1693mm. Approximate weight 3100 kg.
