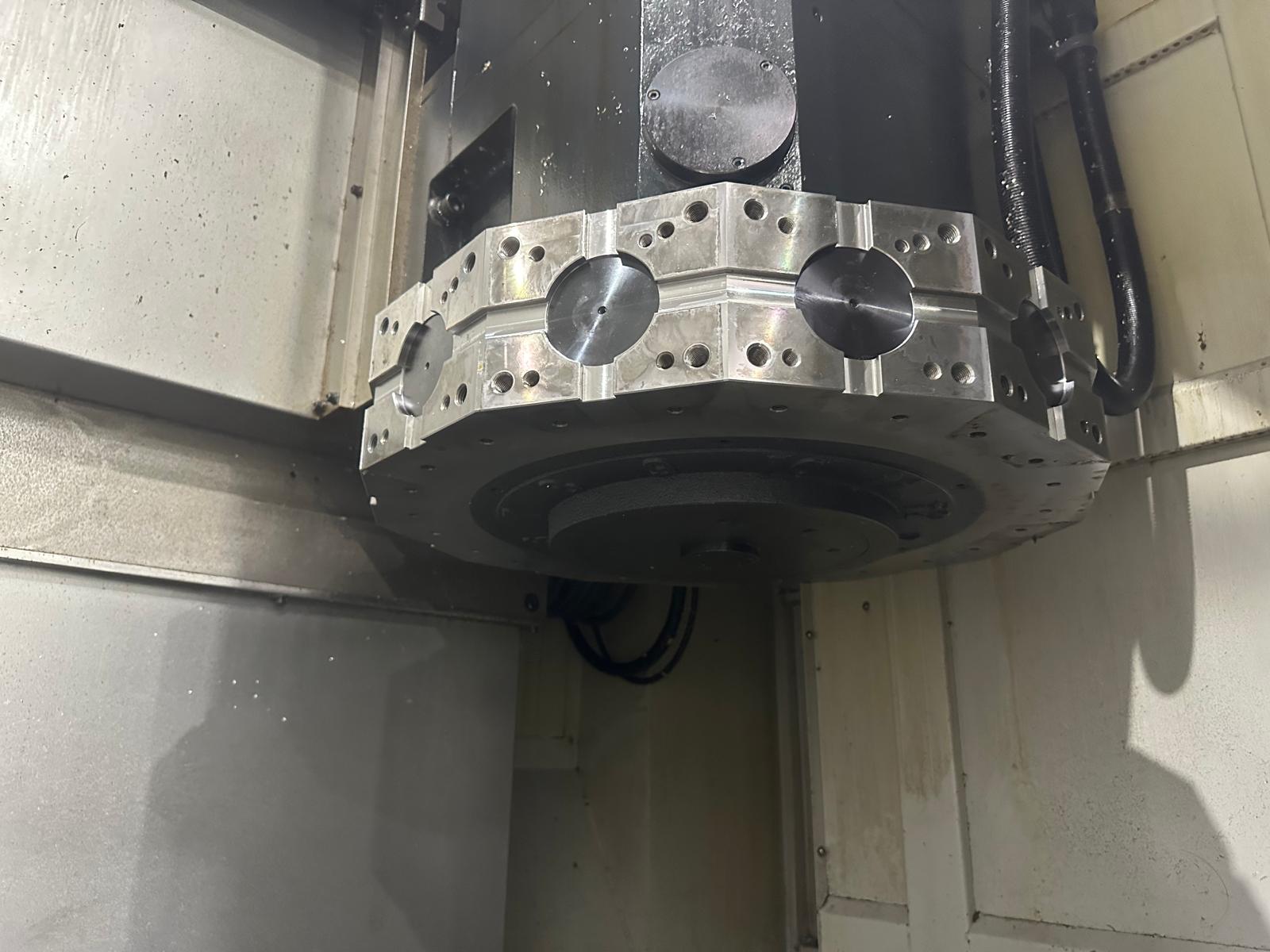

Swing over bed 1270mm. Swing over saddle 1000mm. Maximum turning diameter 1100mm. Maximum turning length 960mm. Maximum workpiece weight (incl. chuck) 2,200kg. Spindle nose 702-4-NO.15. Spindle max power 65 / 55 / 45kW. Spindle max torque 7,552Nm. Spindle speed maximum 850rpm. Integral box guideway construction. X axis travel 580mm. Z axis travel 1,000mm. C axis travel 360deg. X axis rapid traverse 20m/min. Z axis rapid traverse 20m/min. C axis rapid traverse 14r/min. Type BMT85P. Number of stations 12. OD tool size 32mm square. Boring bar size 80mm diameter. Rotary tool power 7.5/11.0kW. Rotary tool speed 3000rpm. Rotary tool collet size ER50 (6-32mm diameter). Power requirements 98.77kVA.
Additional Accessories
Swarf Conveyor MH500 type (rear exit). Swarf bin. FSE 70 bar NOP pump upgrade for switchable duty 3 pressures: 20, 40 and 70 bar (back pressure) via M code. Coolant chiller. Operator working platform. Coolant wash gun. Renishaw OLP40 inspection probe. Filtermist FX7002F oil mist separator with F Monitor 2.

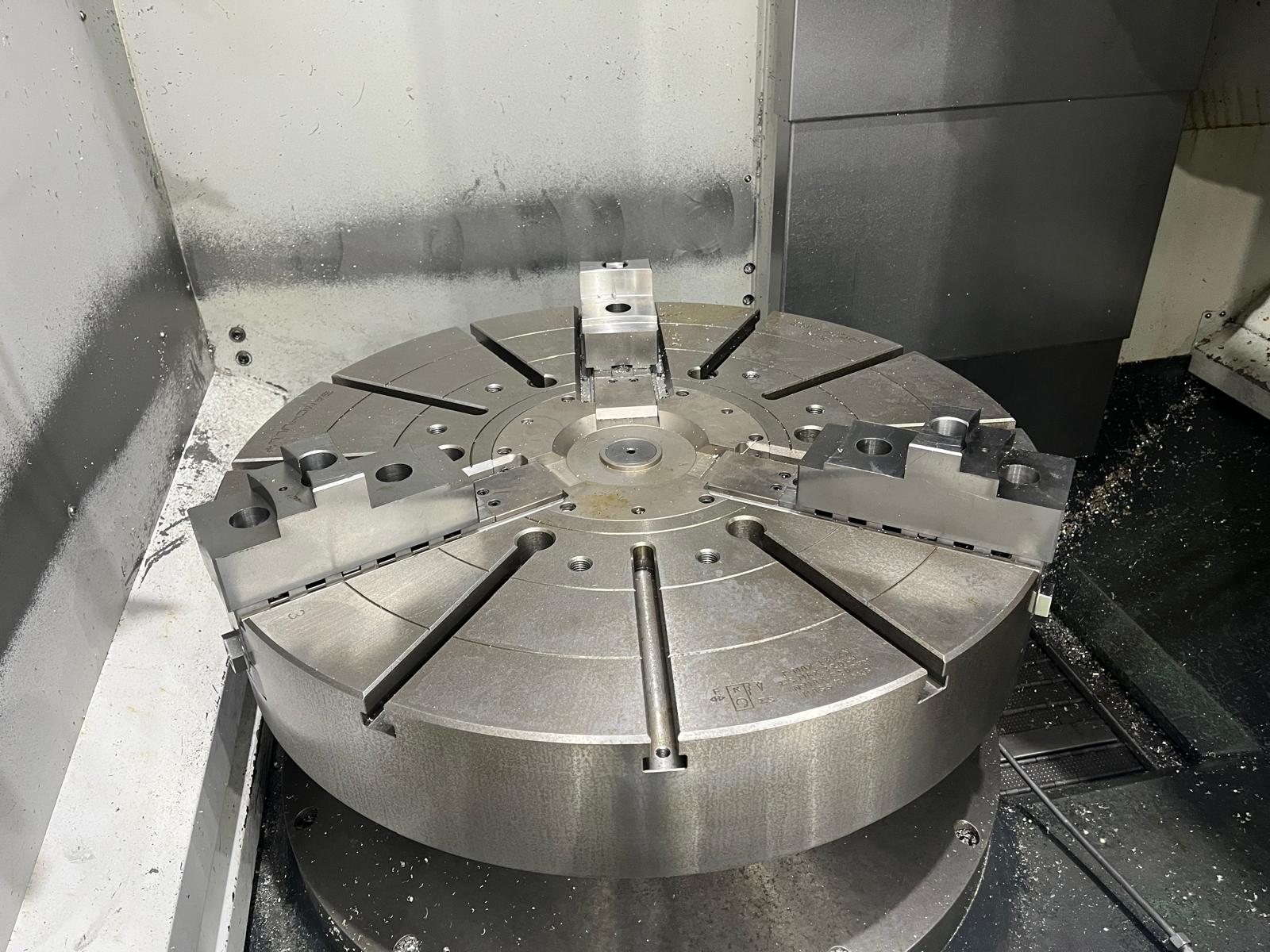

HC40G Samchully Closed Centre Chuck including 1 set of hard jaws & 1 set of soft jaws. 2 off Face type toolholder (R78935). 2 off Cross type toolholder (R78756A).
Compete with a selection of 8 x unused live tooling
Dimensions L x W x H 2830mm x 3305mm x 4012mm. Weight 22,550kg.
Only 550 Cutting Hours from New !
