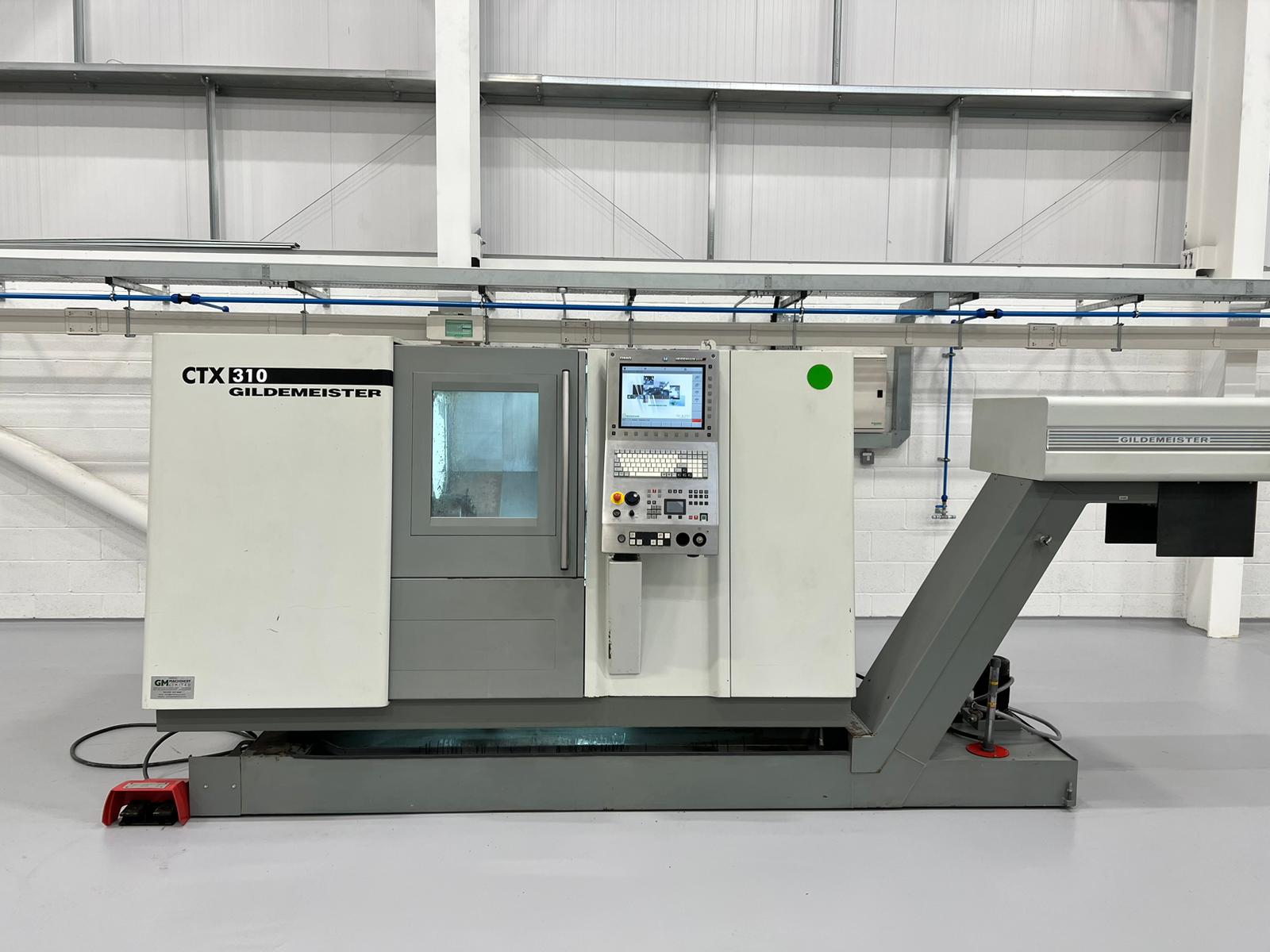

Swing over bed 500mm. Swing over cross slide 375mm. Bar capacity 50.8mm. Z axis travel 450mm. X axis travel 202mm. Y axis travel +/- 40mm. Spindle speeds 20-5500 rpm. 12 Station Turret. No. of driven stations 12 (9 kW) . Max speed of driven tools 4500 rpm. Motor power 16 kW. C Axis. Swarf Conveyor. Tailstock. Heidenhain Plus iT Control.
Dimensions (Swarf conveyor fitted) L x W x H 4000mm x 1563mm x 1730mm high. Approx weight 4,500 kgs.
