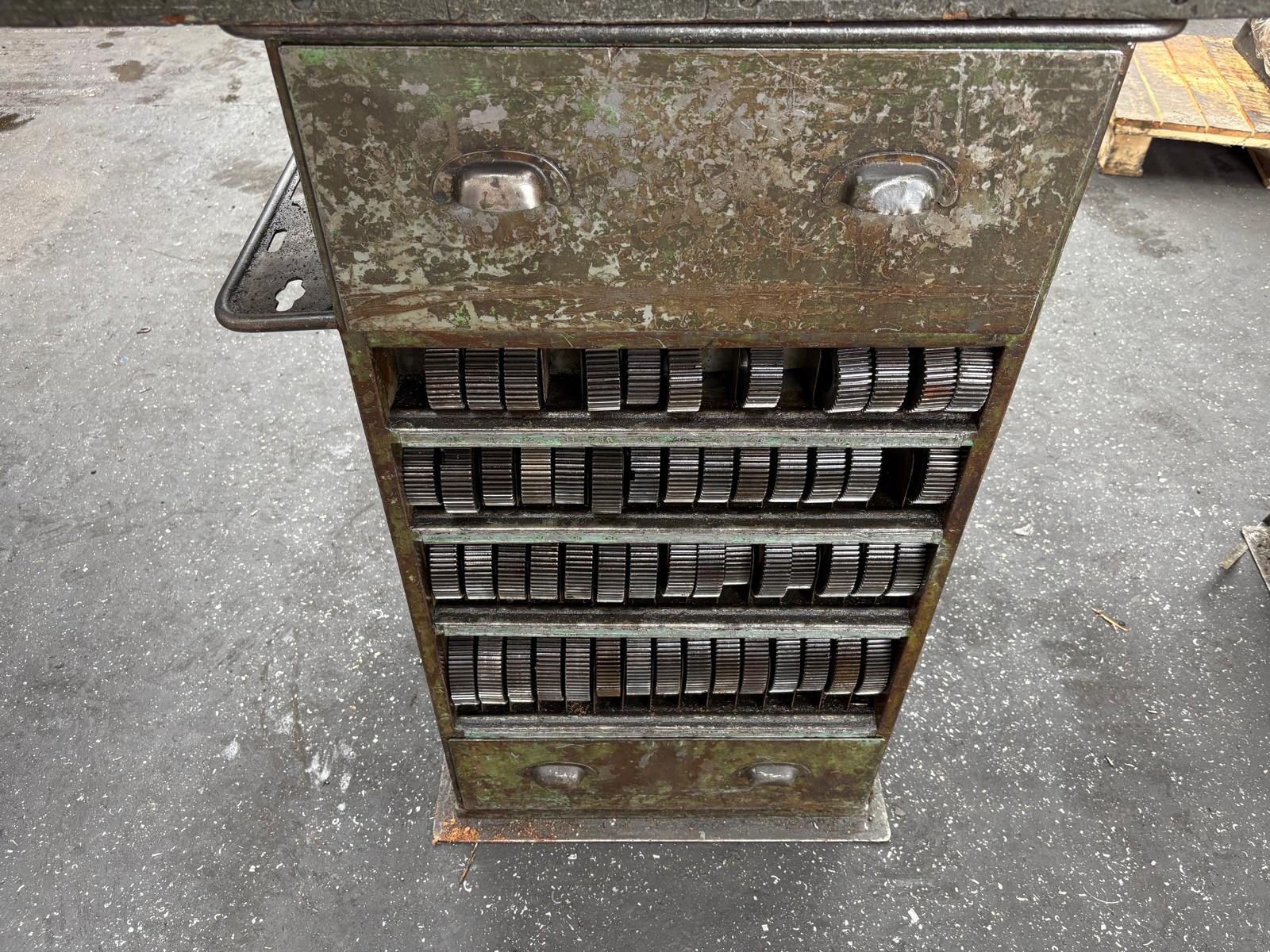

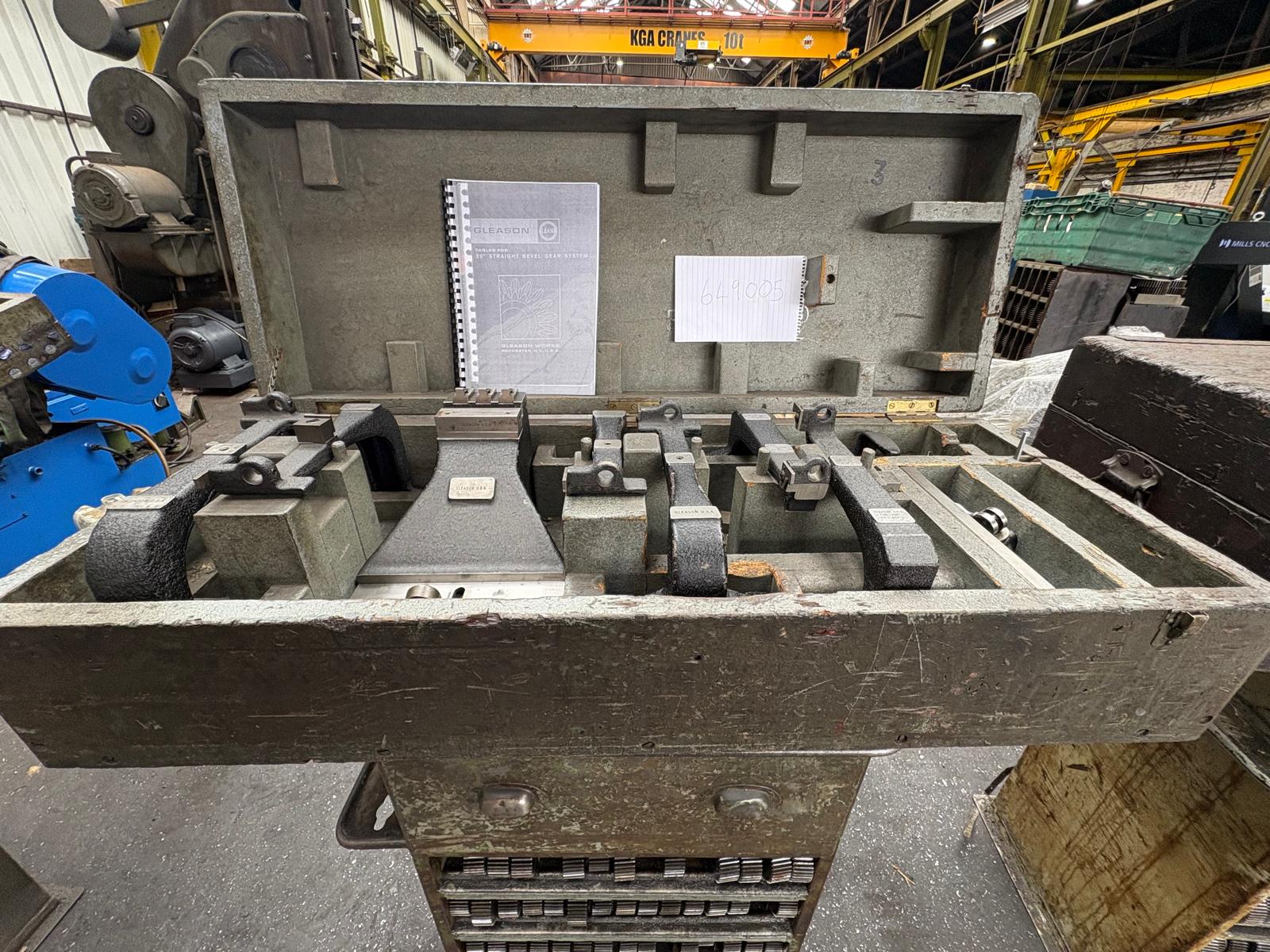

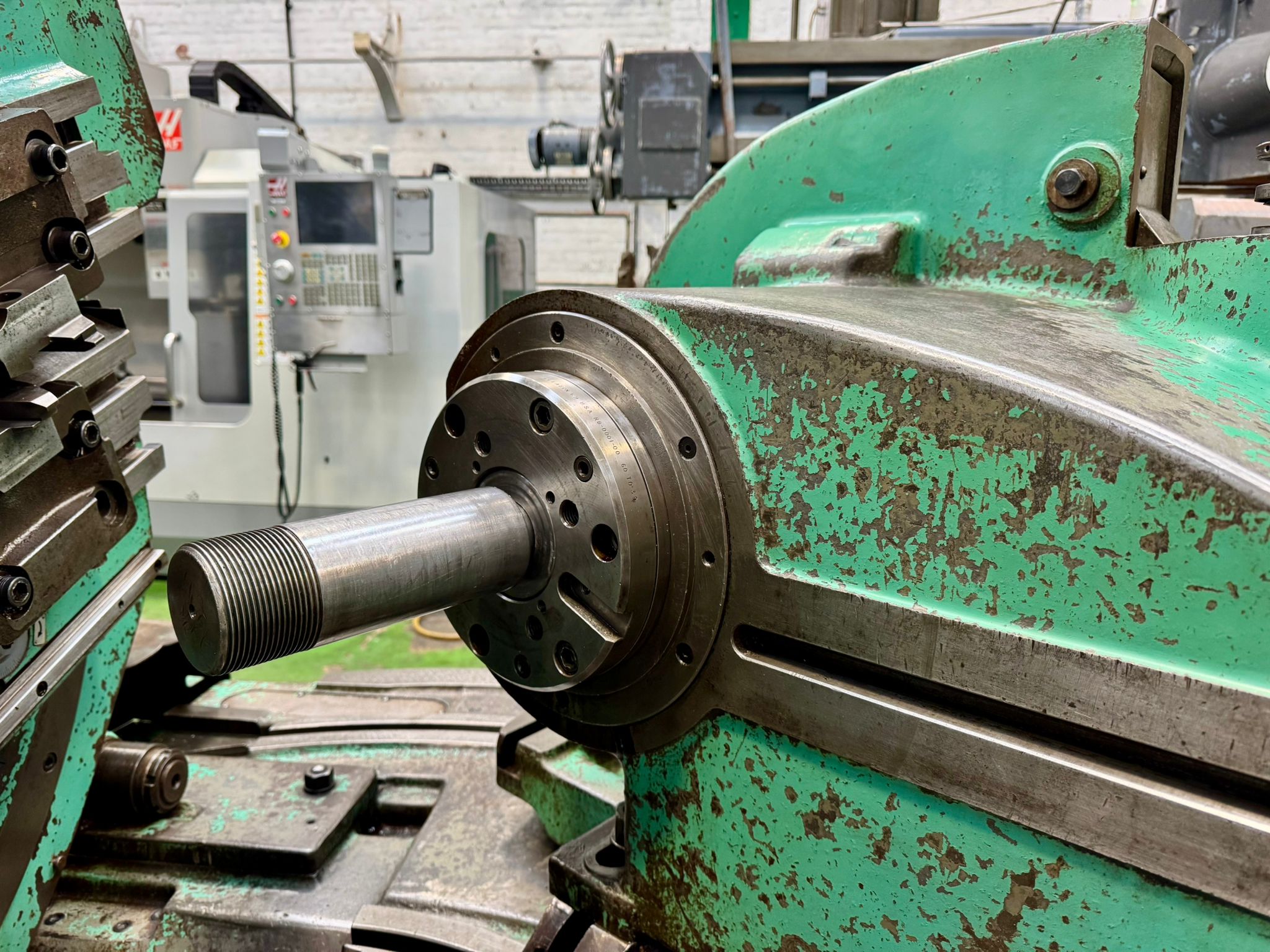

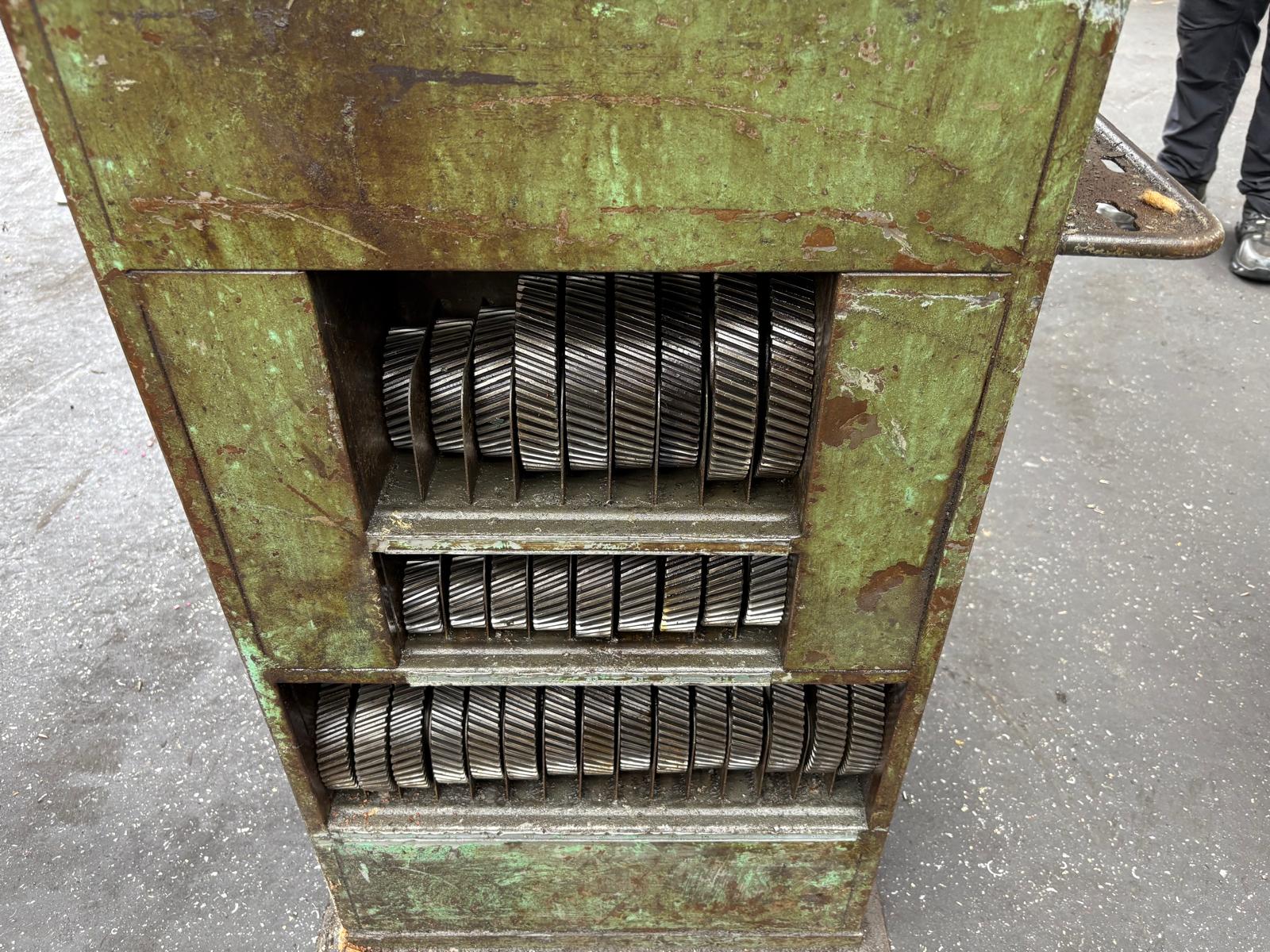

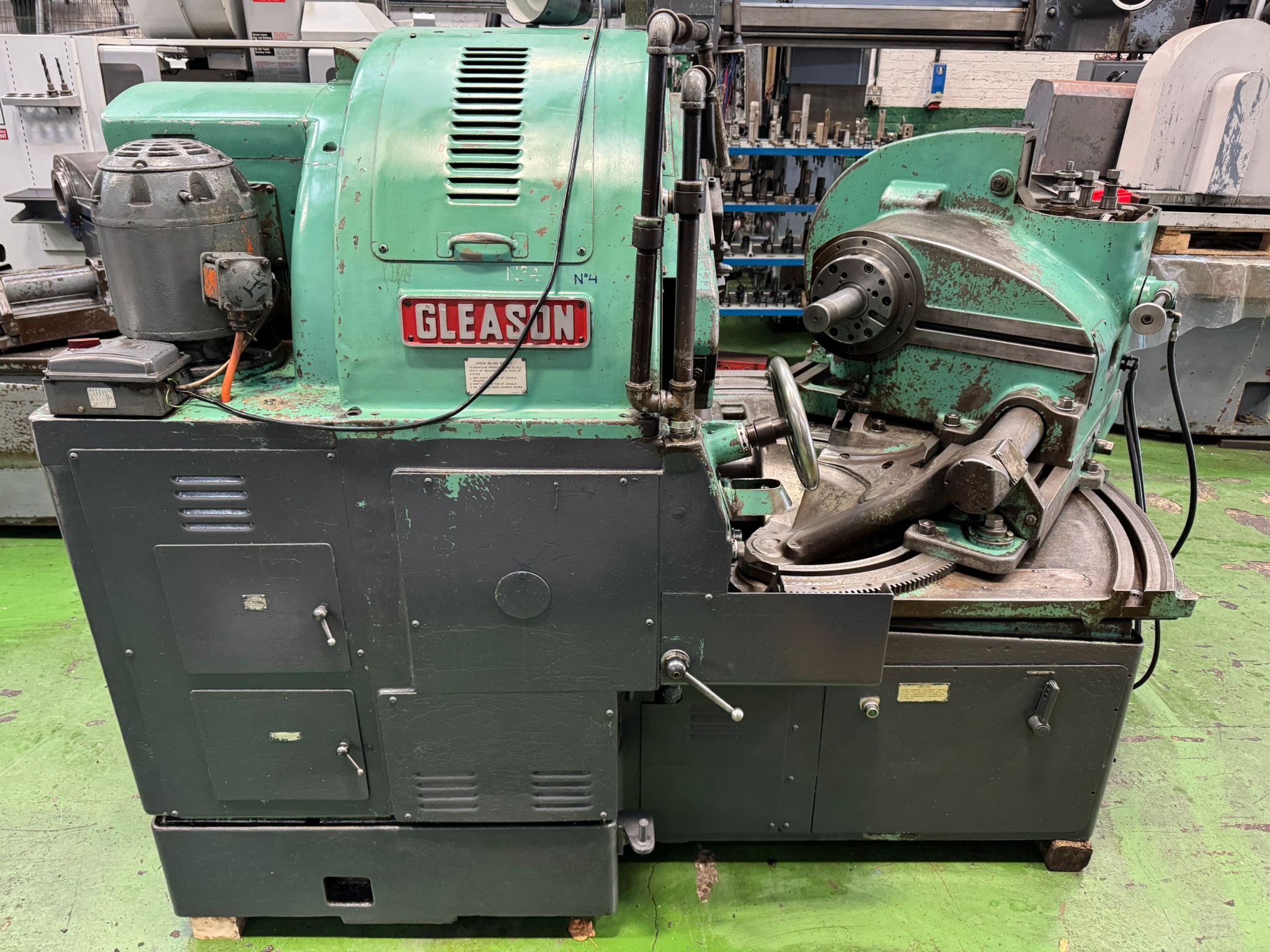

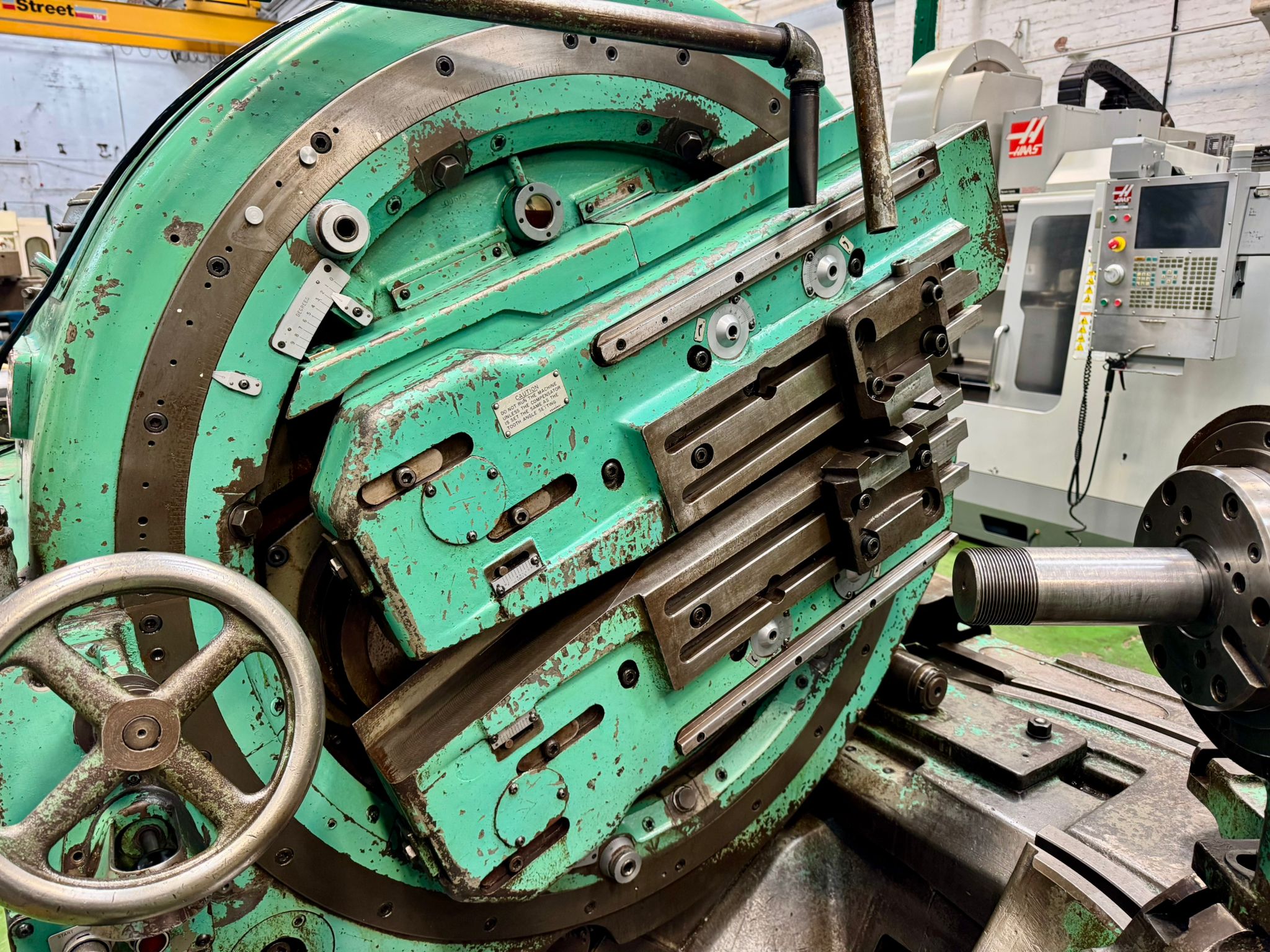

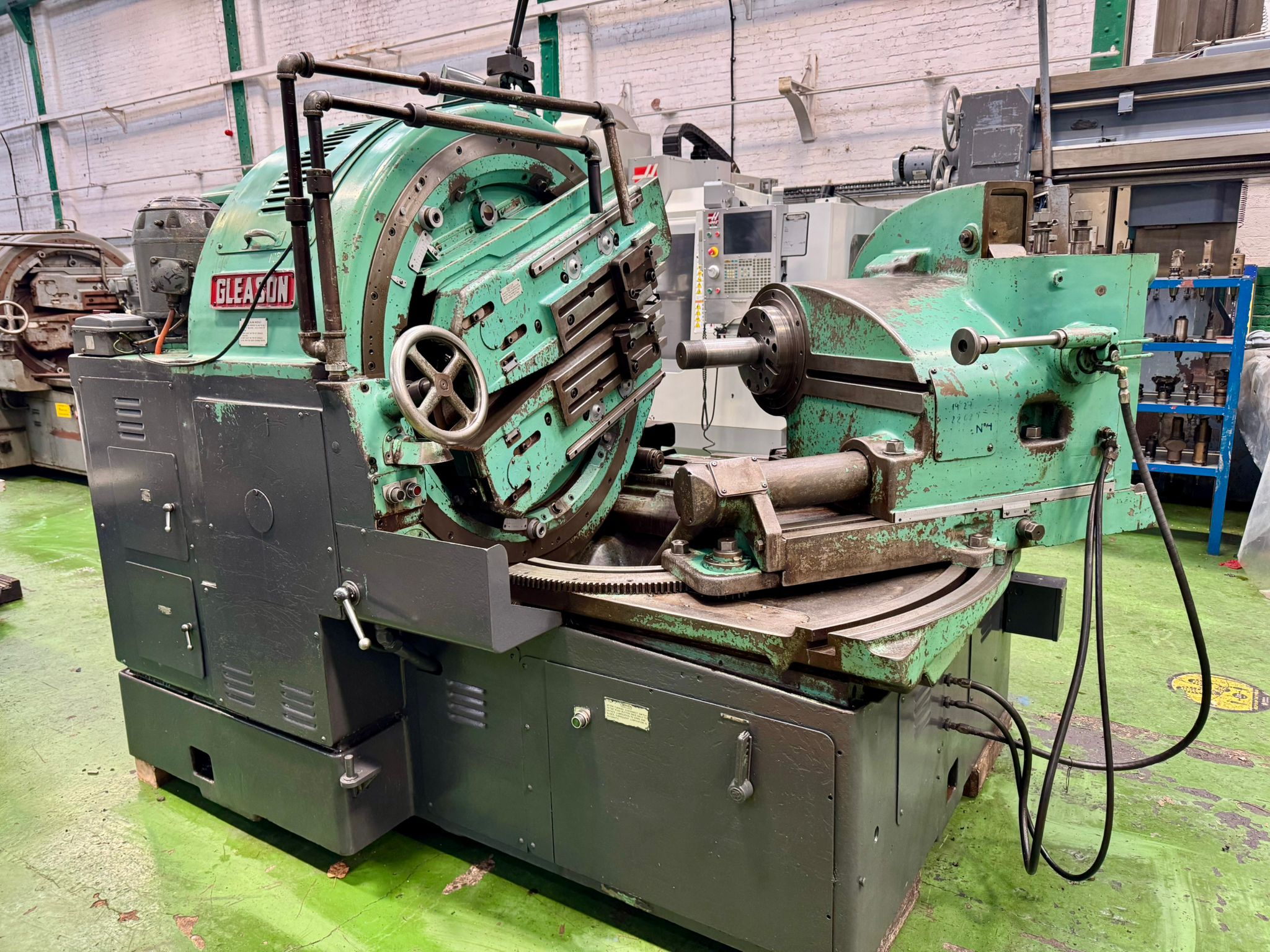

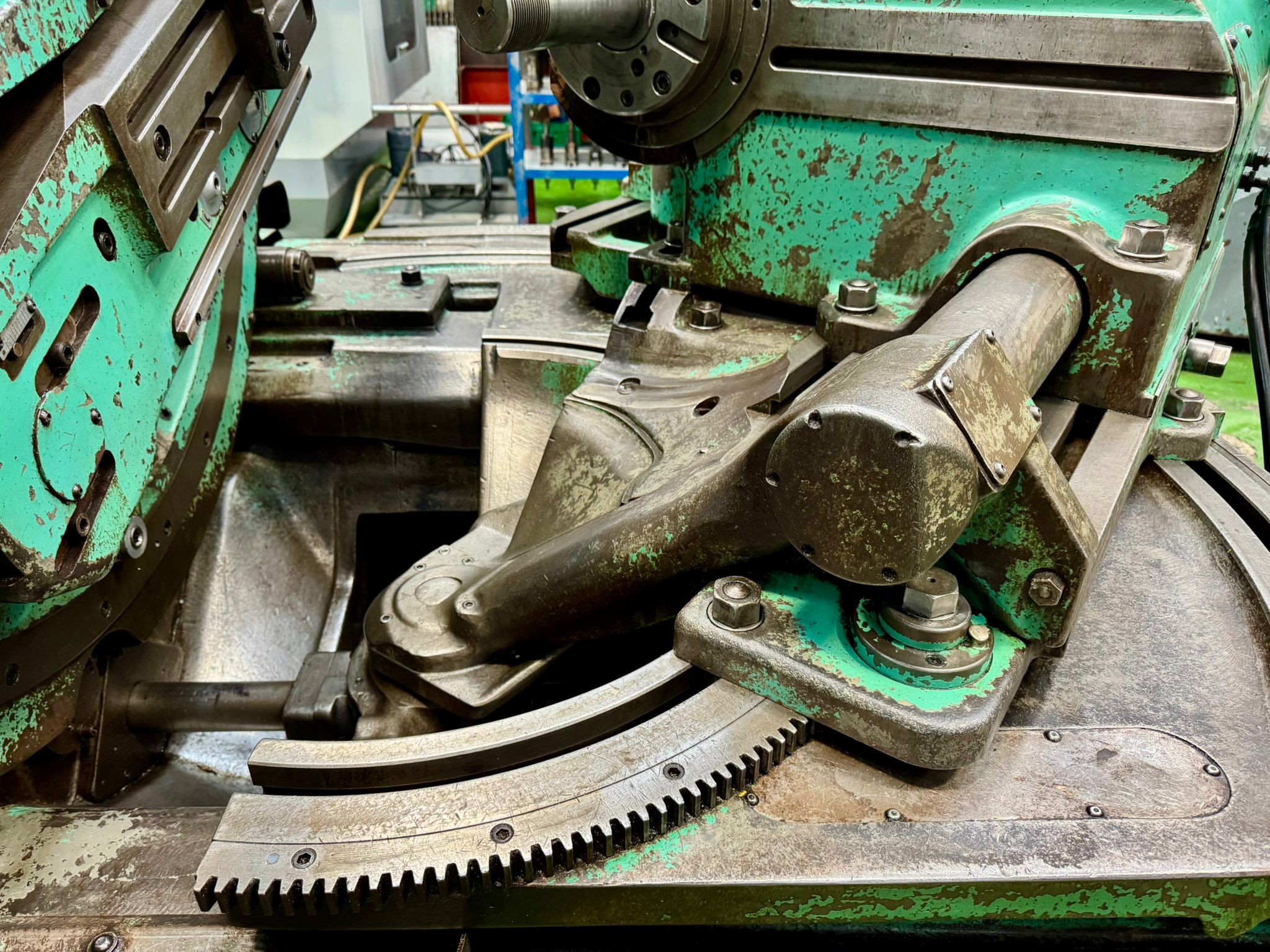

Longest Cone Distance (1-3/4″ Stroke): 18″. Shortest Cone Distance 0. Maximum Pitch Angle (Shafts @ 90 Degrees) 84 Deg. 18′. Minimum Pitch Angle 5 Deg. 42′. Extreme Ratio 10 – 1. Maximum Pitch Diameter 10-1 Ratio 35-1/2″. 2-1 Ratio 31-3/4″. 1-1 Ratio 25″. Maximum Pitch (Gleason System) 1-1/2 DP. Maximum Face Length 6″. Stroke Length 1-1/4″-8″. Minimum Number of Teeth In Miter 13 Work Spindle. Diameter Of Taper Hole At Large End 6″. Taper Per Foot 3/4″. Depth Of Taper 6″. Diameter Of Hole 18″ Deep From Spindle Face 5.5/8″. Diameter Of Hole Through Spindle 5″. Diameter Of Spindle Nose 9.1/4″. Spindle Nose To Centerline of Machine 5″-26″. Speeds and Feeds 22 Feeds From 23 Seconds To 10 Minutes 45 Seconds. 13 Speeds From 22 Strokes Per Minute To 170 Strokes Per Minute. Change Gears. Gauges.

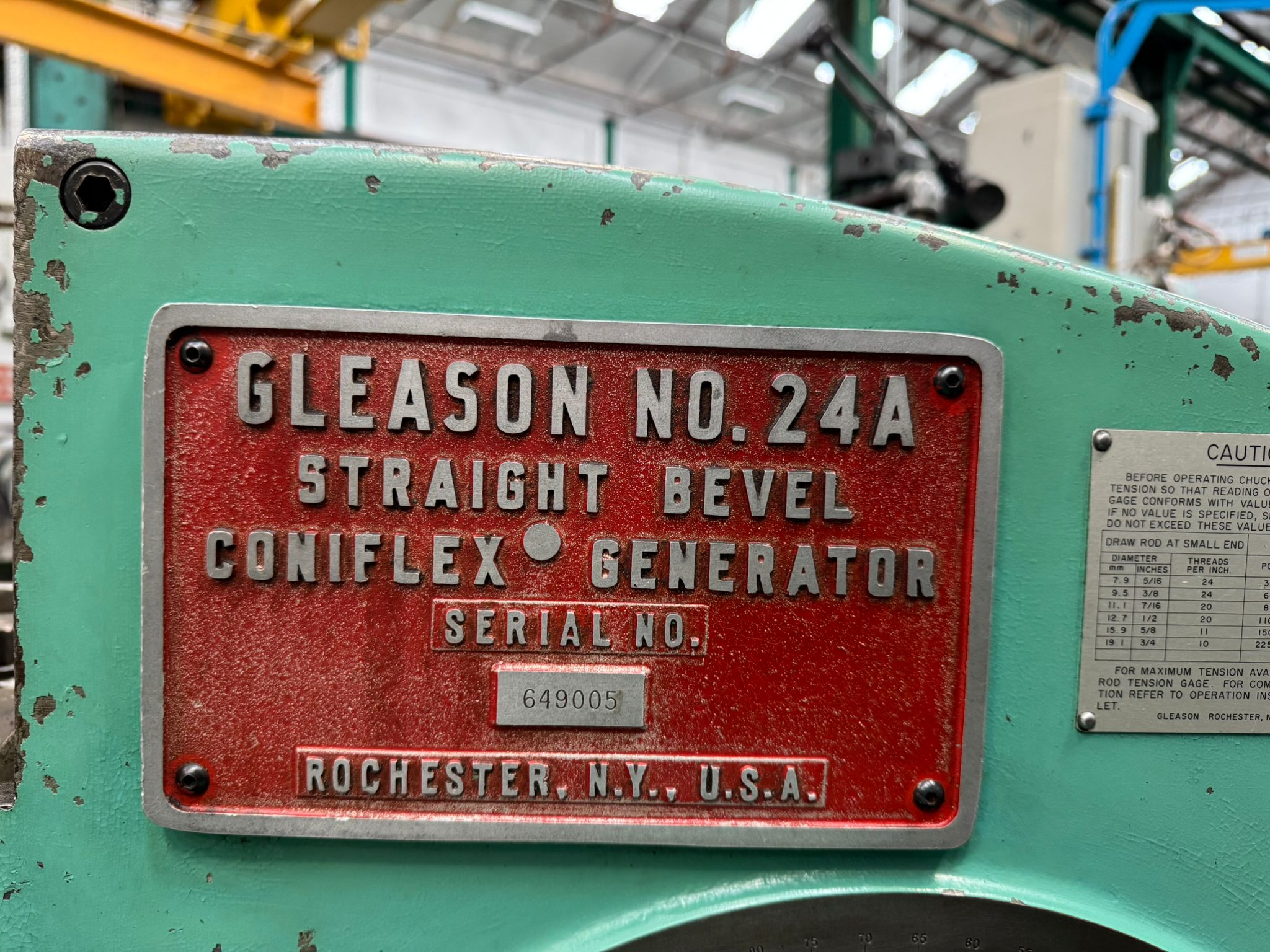

Machine dimensions L x W x H 105” x 74″ x 80”. Approximate weight x 11 Tons. Serial No. 649005
