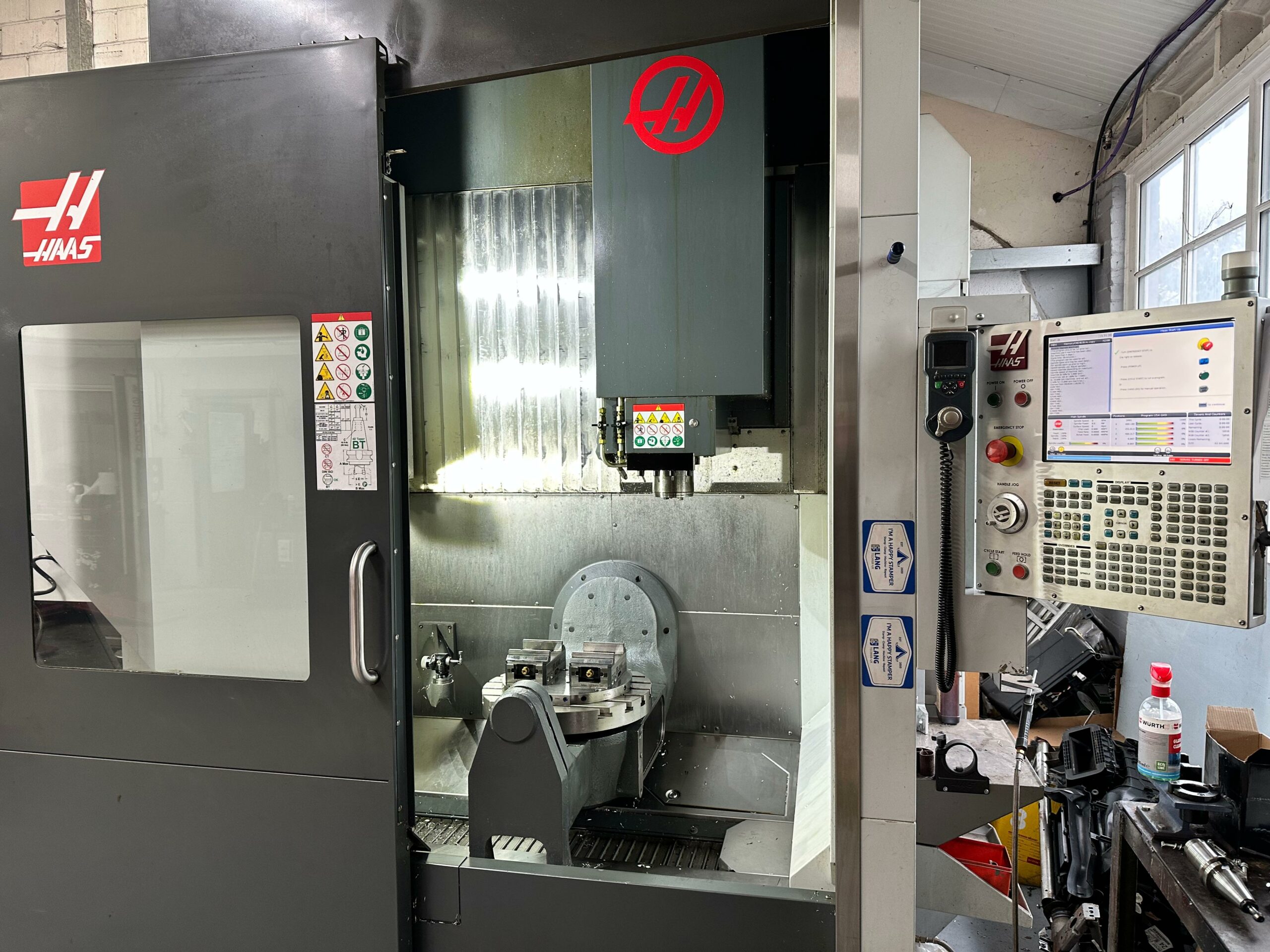

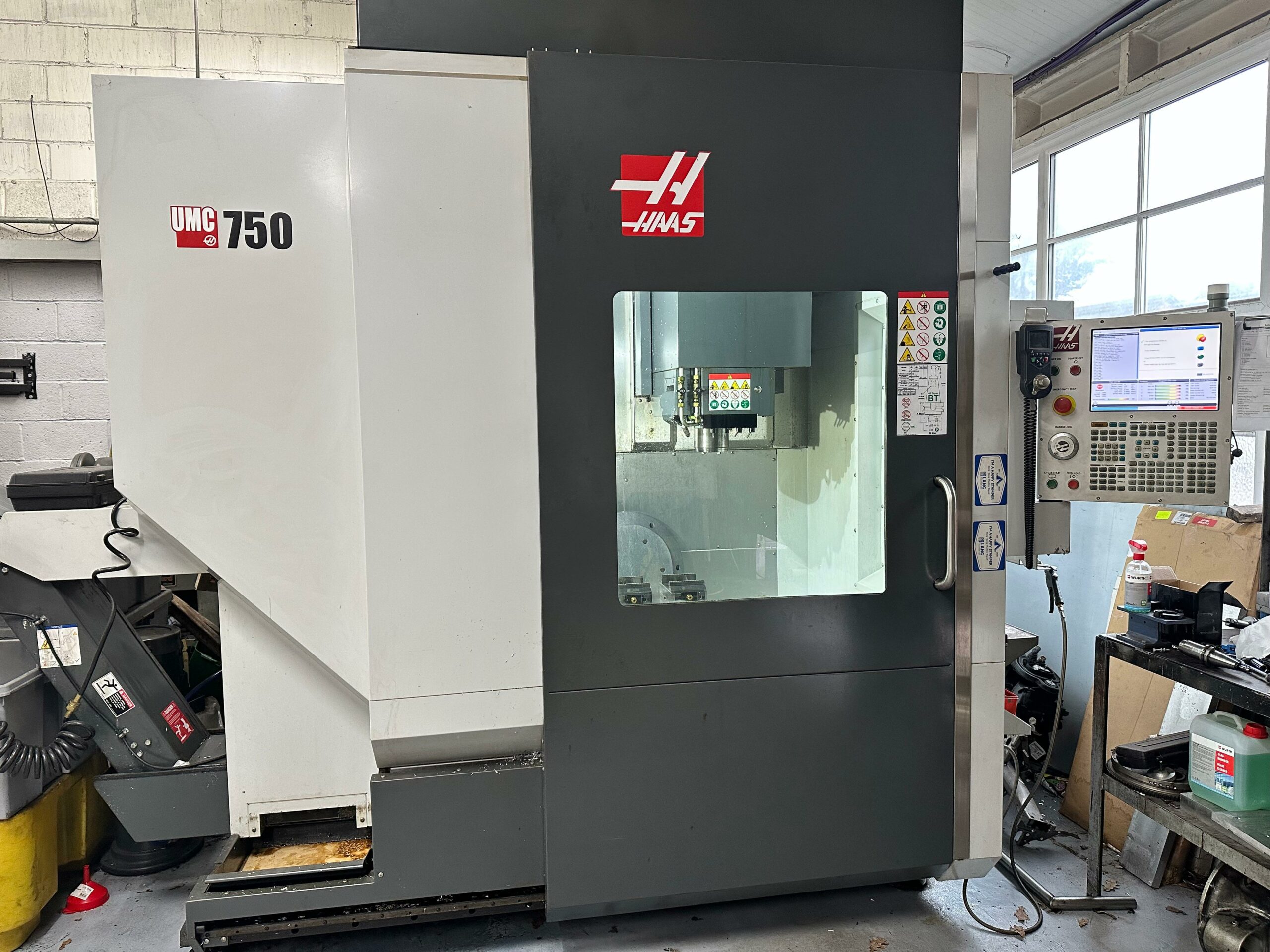

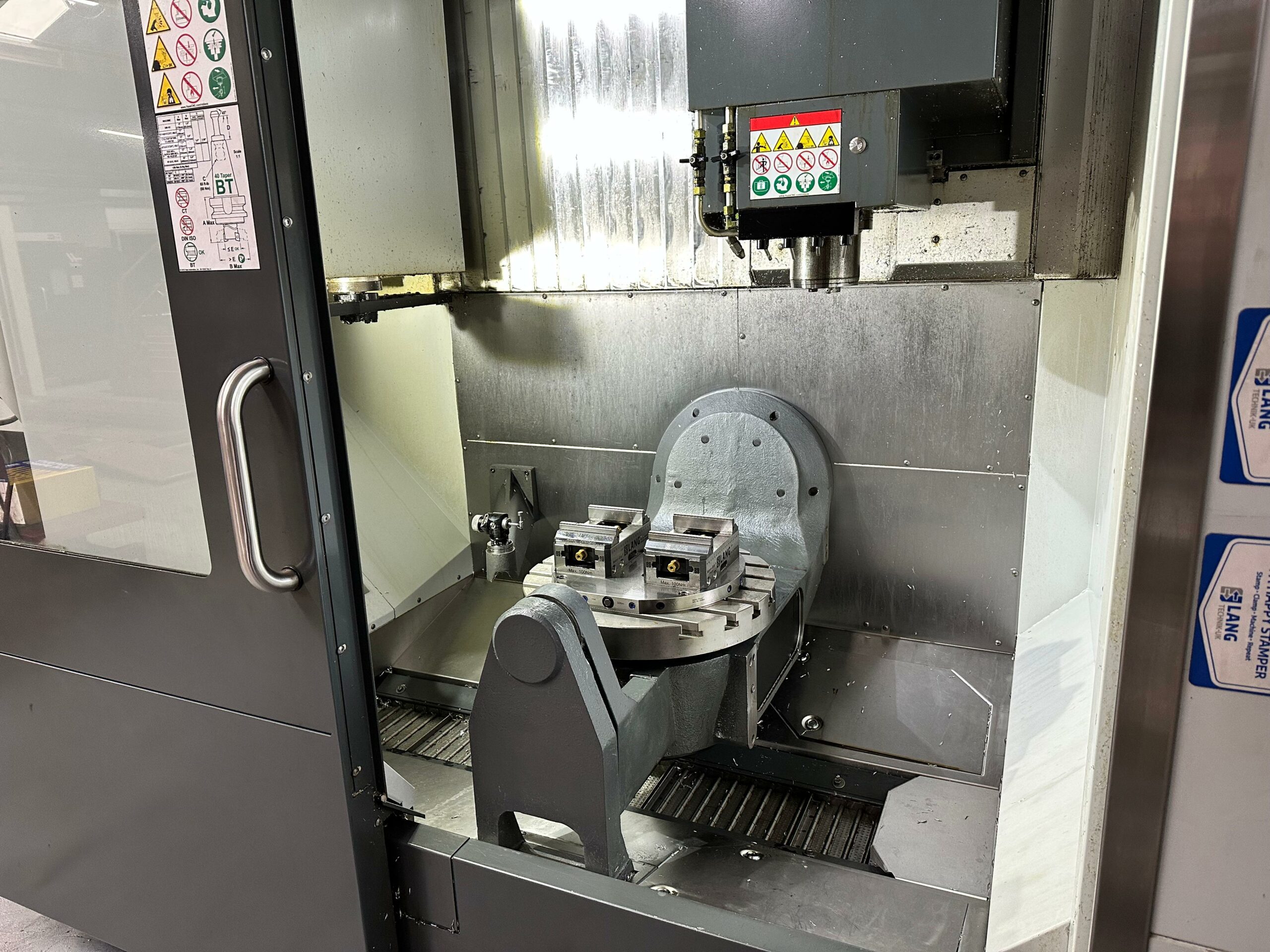

Travels X/Y/Z 762/508/508mm. Spindle Nose to Platter (~ max) 610mm. Spindle Nose to Platter (~ min) 102mm. Table Diameter 500mm. Max Weight on Table 300Kg. T-Slot Width 15.90 to 16.00mm. Number of Std T-Slots 7. T-Slot Center Distance 63mm. Max Spindle Rating 22.4kW. Max Speed 12,000rpm. Max Torque 122.0 Nm @ 2000 rpm. Drive System Inline Direct-Drive. Taper BT40. Liquid Cooled. B Axis Tilt 120 – 35- degrees. ATC 30 + 1. Max Tool Diameter (full)** 64 mm. Max Tool Diameter (adjacent empty)** 127mm. Max Tool Length (from gage line) 305mm. Max Tool Weight 5.4Kg.
Options installed: Macros, Rotation and Scaling, Rigid Tapping, TCPC and DWO, M19 Spindle Orient, High Speed Machining, VPS Editing, Media Display, Fourth & Fifth Axis interface, Max Memory 1GB. Wireless Networking, Compensation Tables, Through Spindle Coolant.
Dimensions L x W x H 3130 x 4014 x 3153 mm. Weight 6800Kg.
