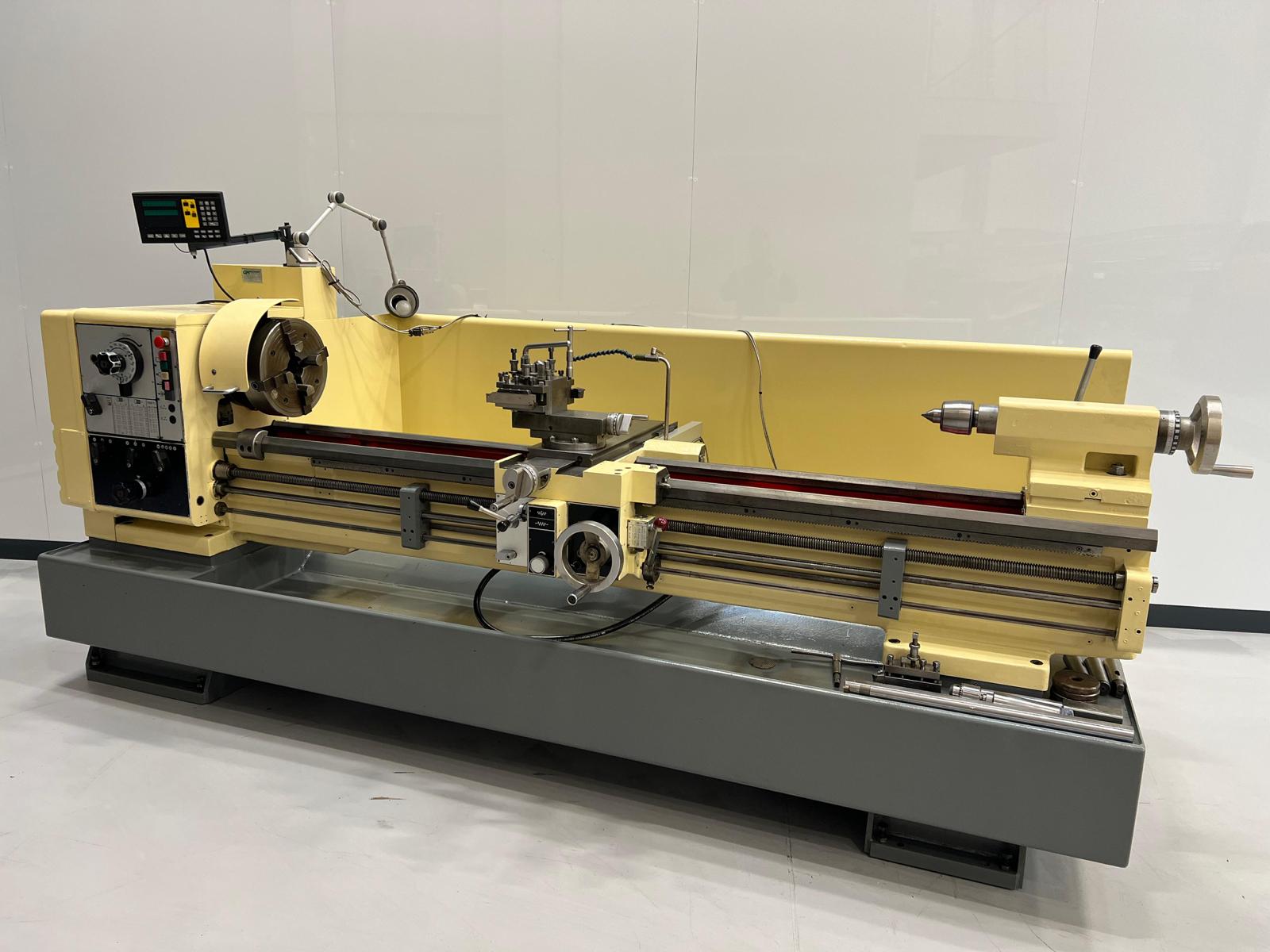

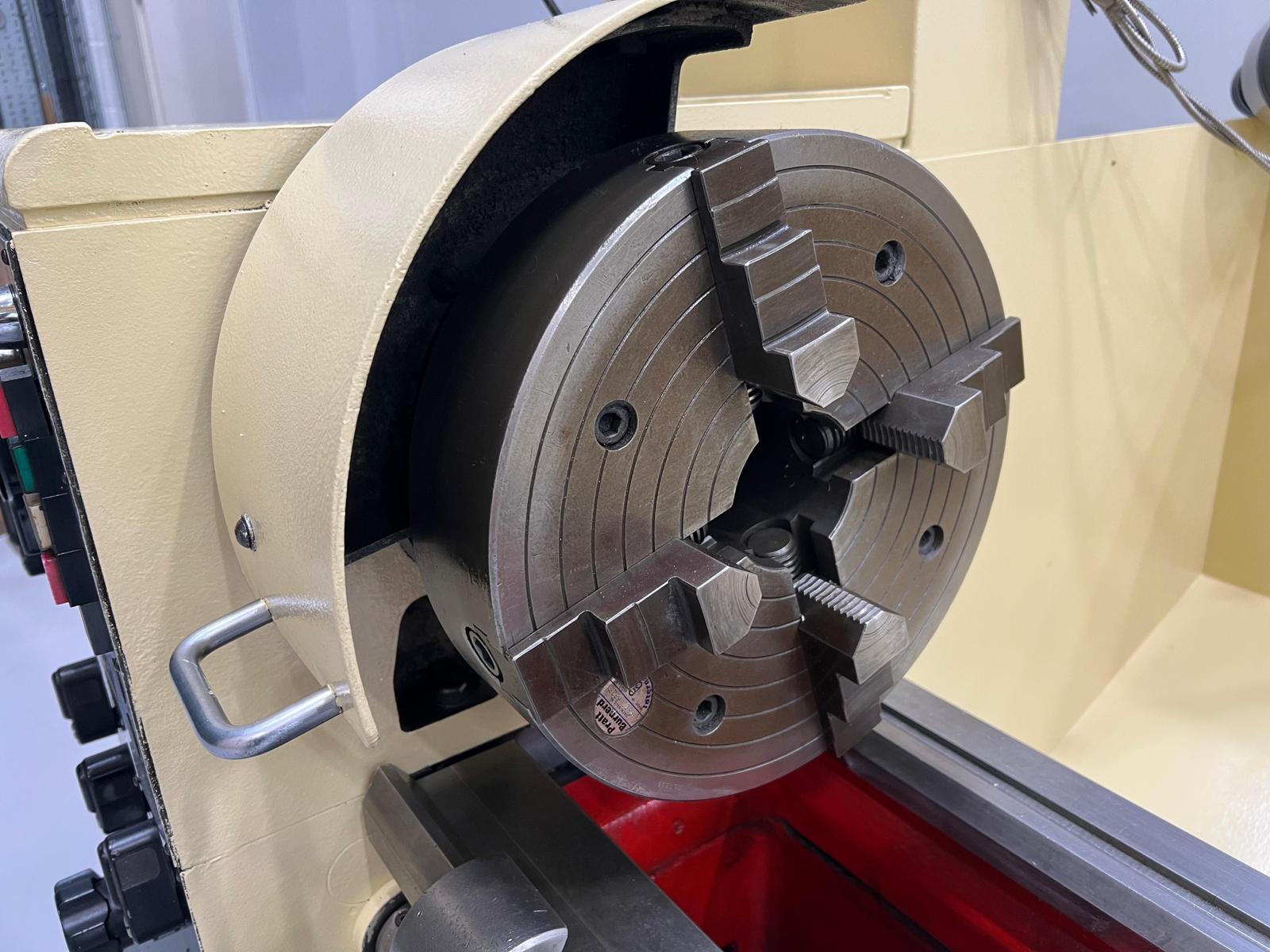

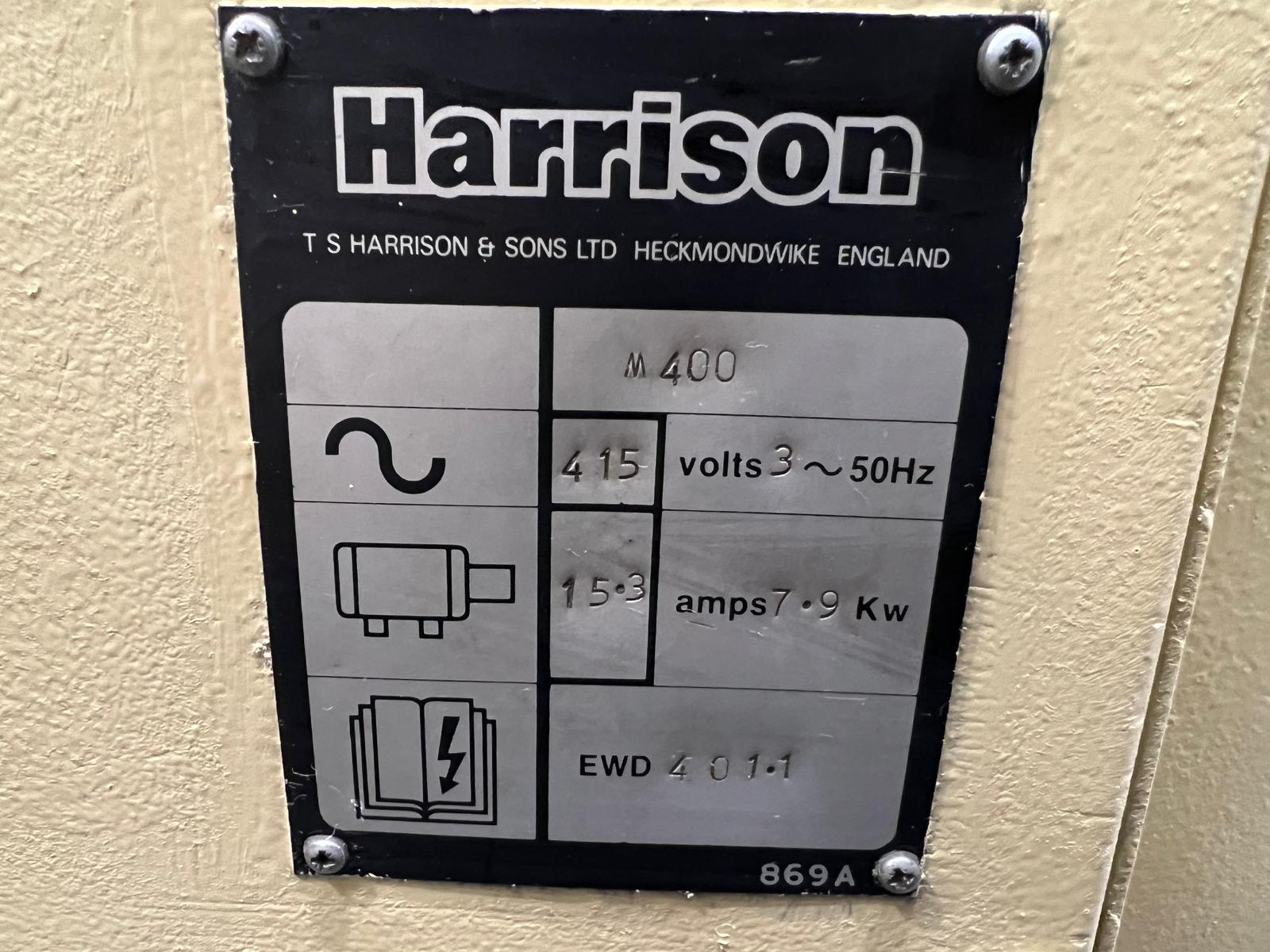

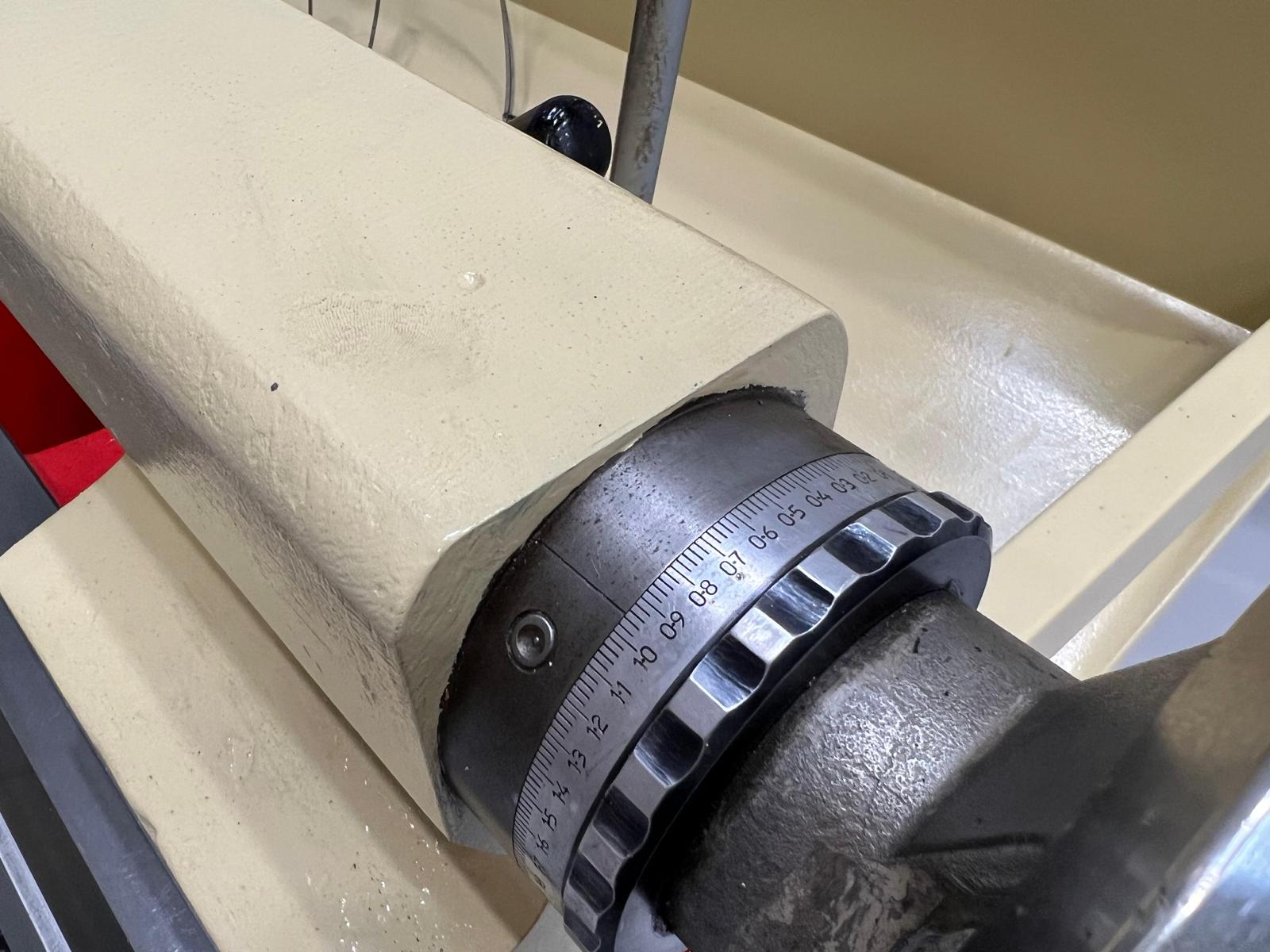

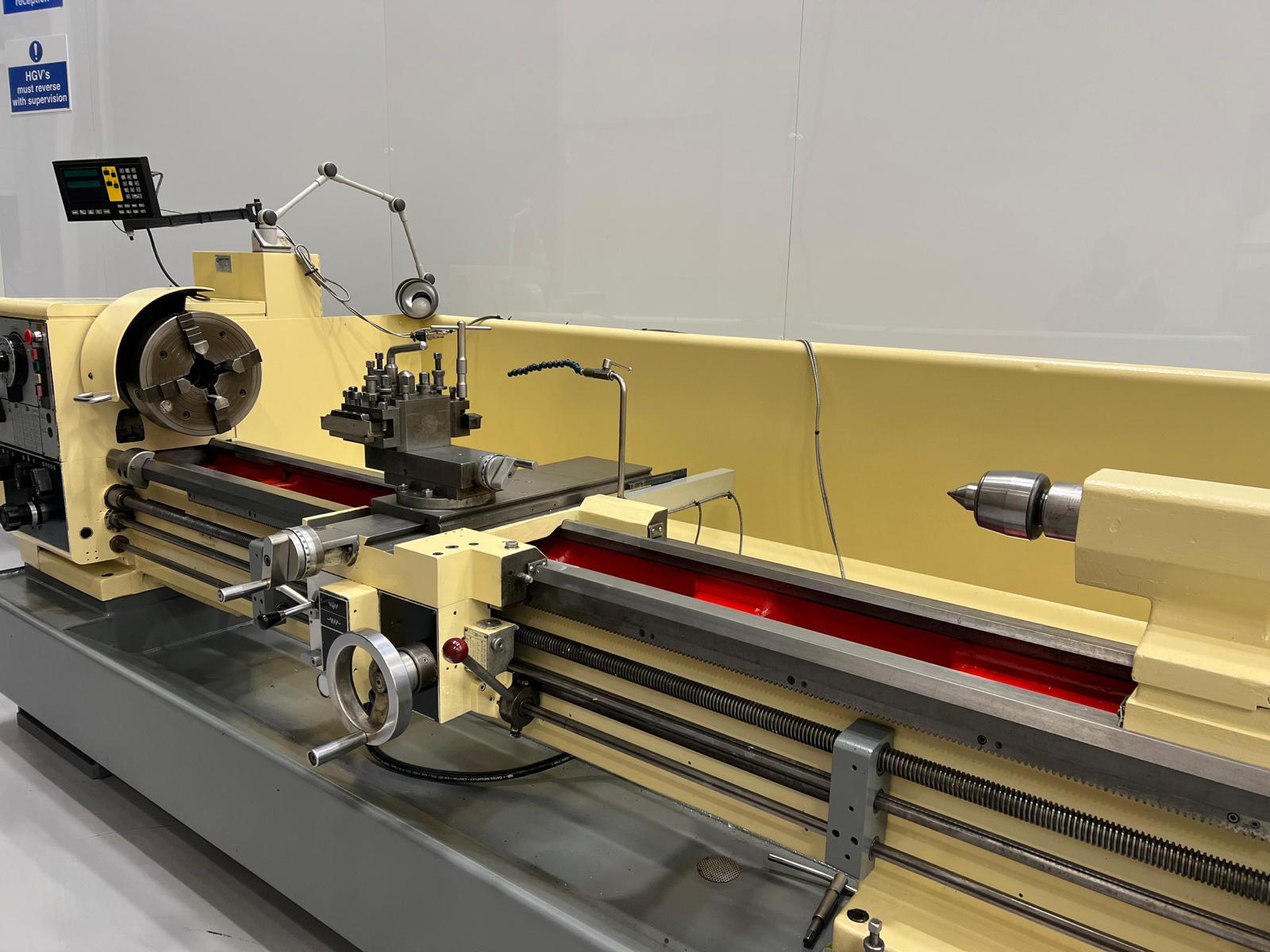

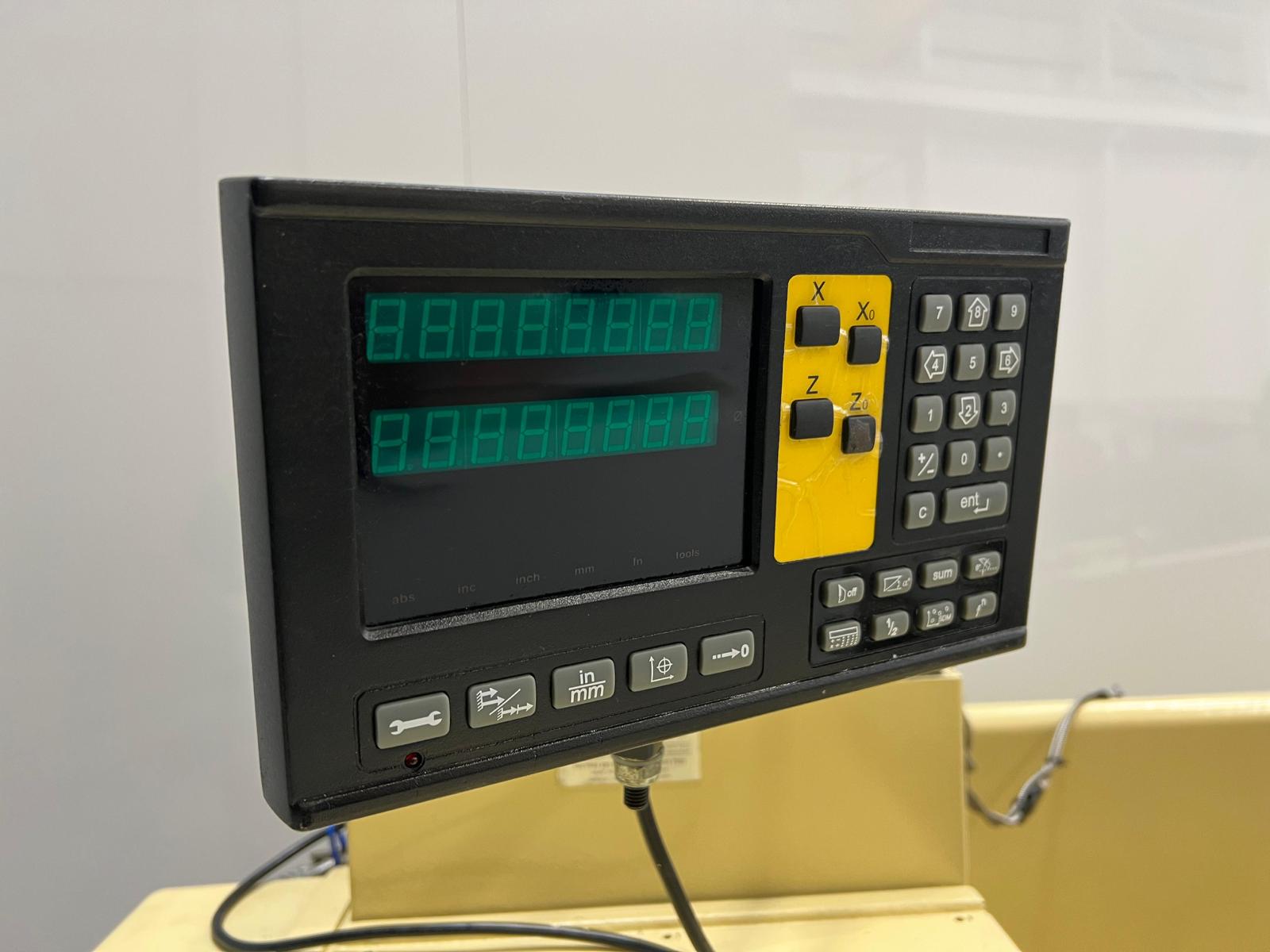

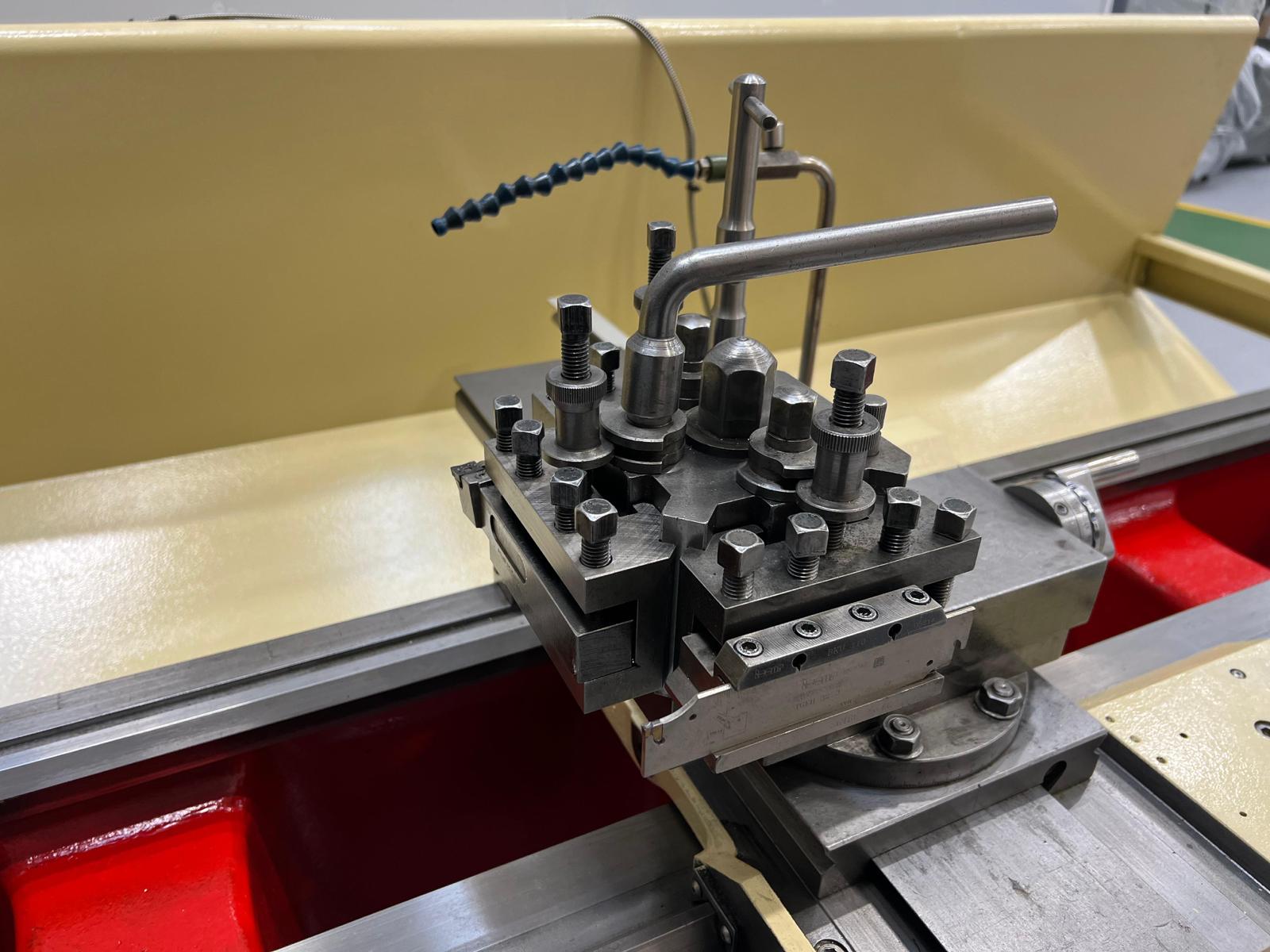

Swing over bed 420mm. Swing in gap 610mm. Swing over cross slide 254mm. Spindle nose D1-8. Distance between centres 2032mm. Spindle speeds 40-2000 rpm. Quick change toolpost. 4 x Toolholders. Spindle bore 65mm. Tailstock taper 5MT. 305mm dia. 3 jaw chuck.315mm dia. 4 jaw chuck. 2 Axis Digital Readout. Screw cutting dial. Chuck guard. Splash guarding. Main motor 7.9 kW. Serial No. M408022 6628
Approximate dimensions L x W x H 3100mm x 1000mm x 1676mm. Approx Weight 2250kg
