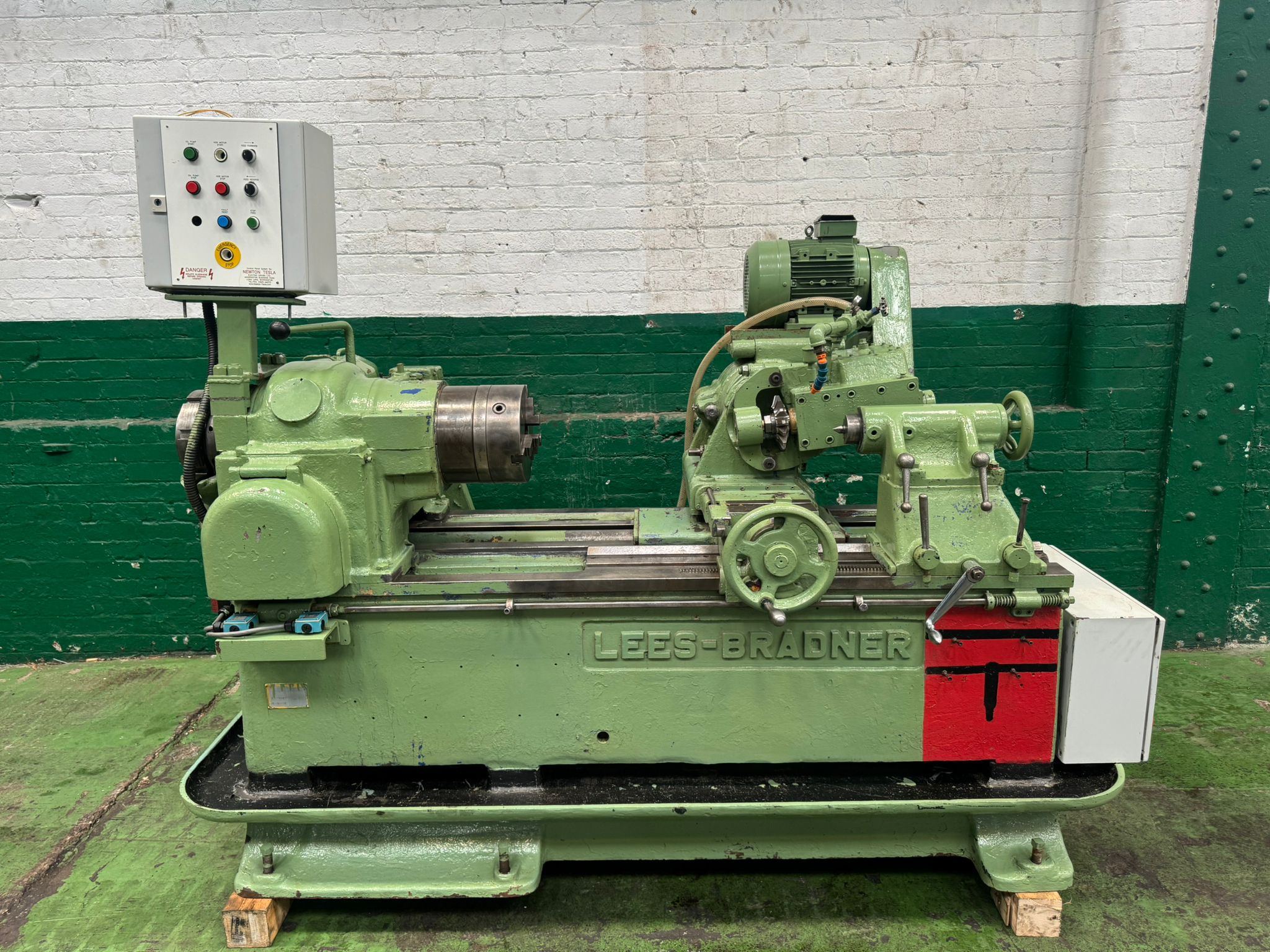

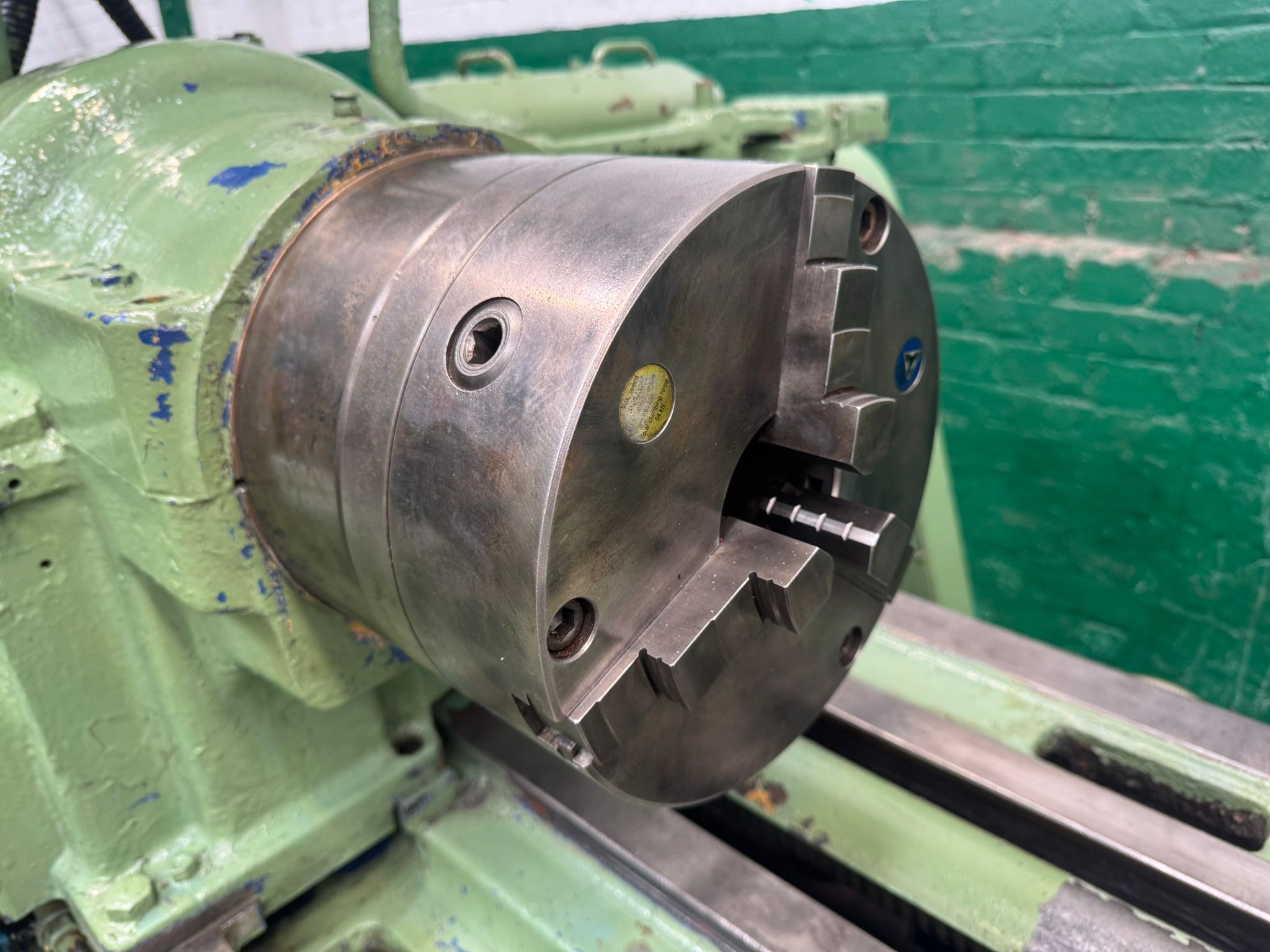

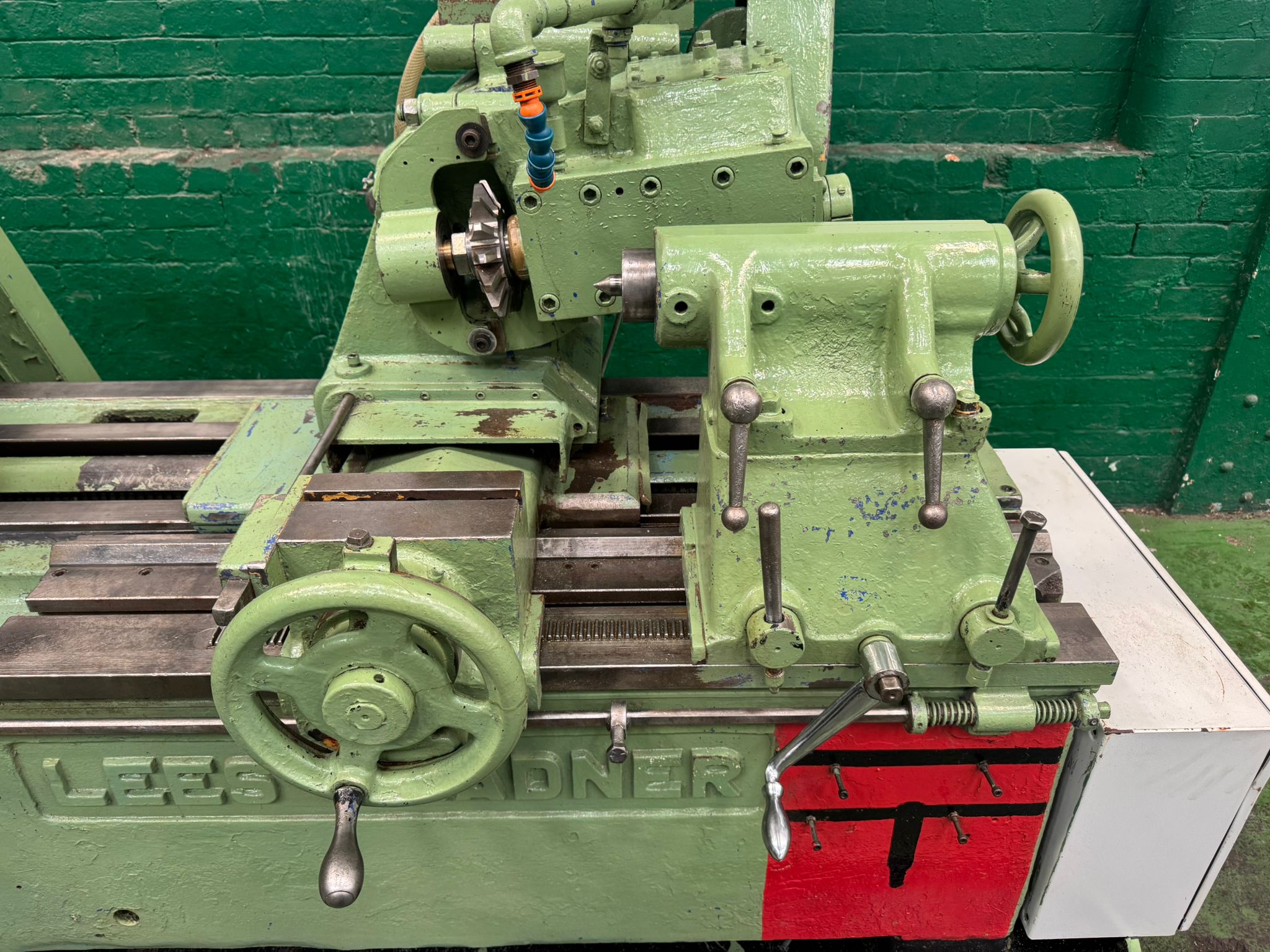

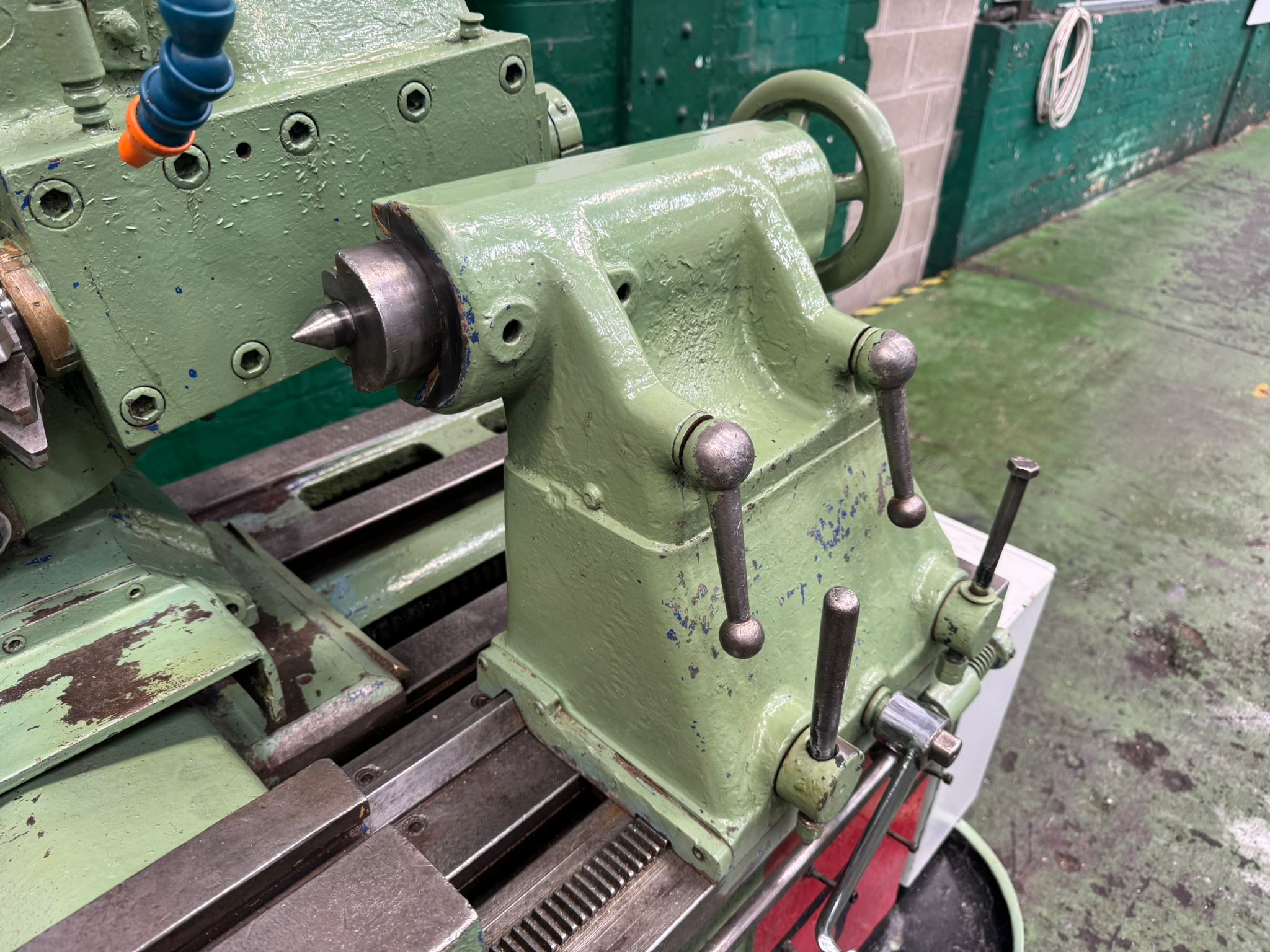

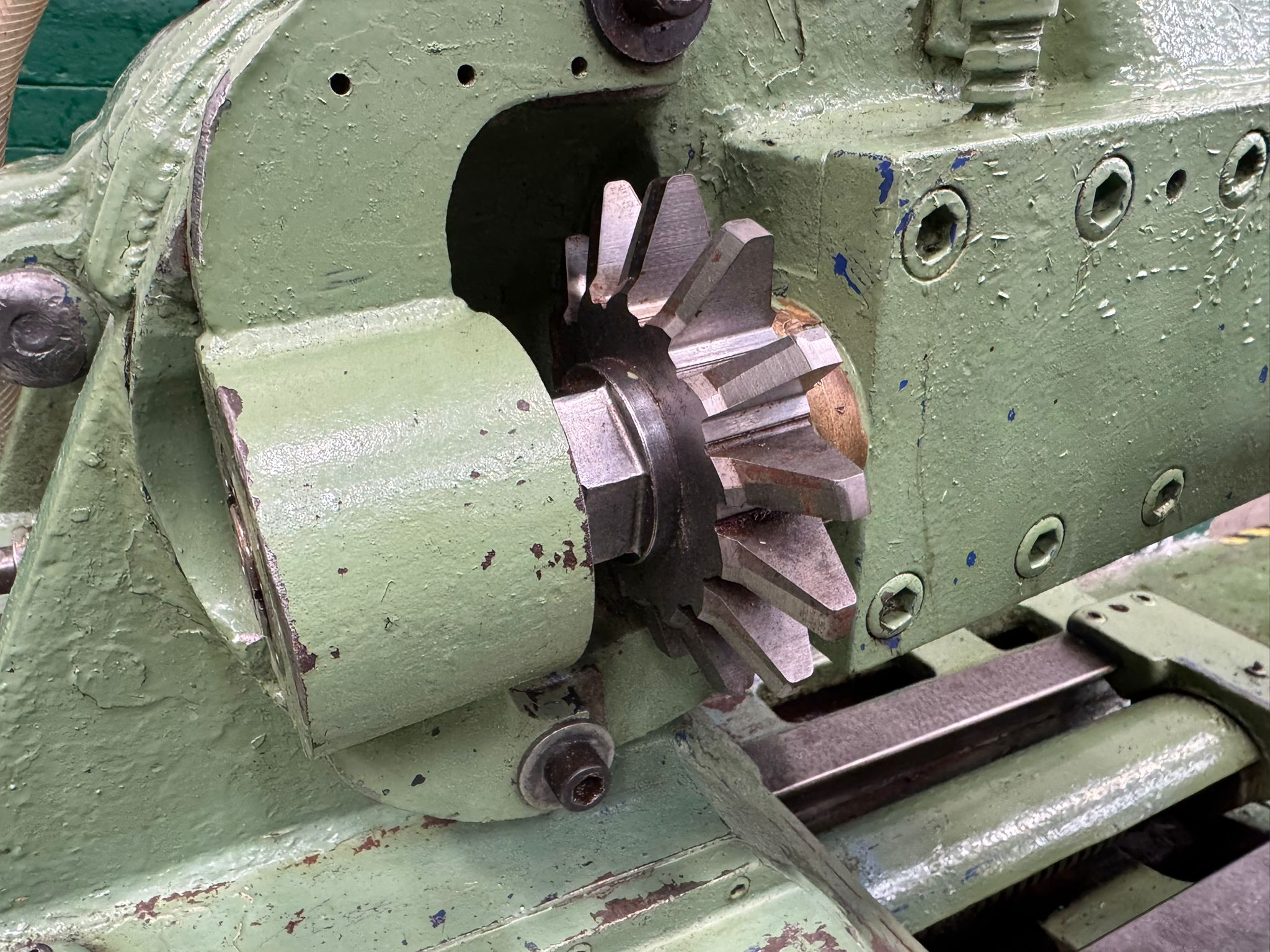

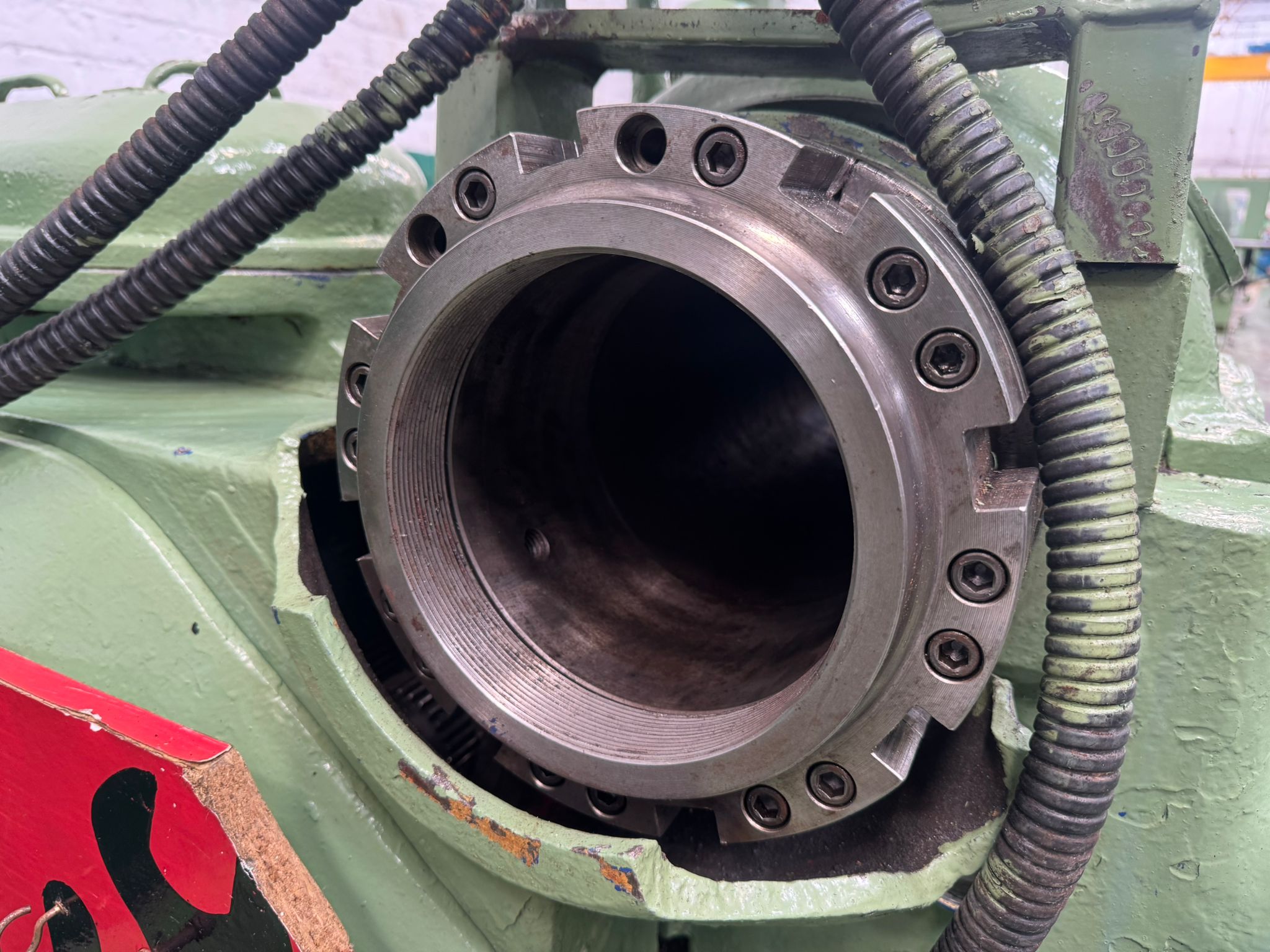

Capacity between Centres 54”. Swing over Bed ways 24”. Swing over Cutter Carriage 12”. Min/Max Longitudinal Distance Nose of Work Spindle to Centre of Cutter Swivel Head 7”/55”. Min/Max Axial Distance Centre of Work Spindle to Centre of Cutter Spindle 0”/9.1/2”. Capacity through Work Spindle, Follow Rest, & Collet 6”. Max. O/S Diam., Single (Disc Type) 7’’. Max. O/S Diam., Ring (Hob) Type Thread Milling Cutter 3.7/8”. Min Effective Root Diameter of Cutter 2.7/8”. Distance centre of Cutter Spindle to Front Face of Cutter Head 1.3/8”. Max. Width, ring type cutter, using standard cutter spindle and cutter spindle outer support, no offset of hub 1.1/4’’ . Bore of Cutter, for standard cutter spindle 1.3/4”. Required Keyway of Cutter for Std. Cutter Spindle 1/4”x1/8” or 7/16”x3/16”. Pitch of Lead Screw 1/2”. Cutter spindle speeds by variable speed drive with a 20/1 Ratio 50 – 200 or 200 – 800 rpm. Machine complete with Cutter Arbor. Hobbing Head. Tailstock. Change Gears. Machine Serial No. 514.
Machine Dimensions L x W 108” x 49”. Approximate weight 3628 kg.
