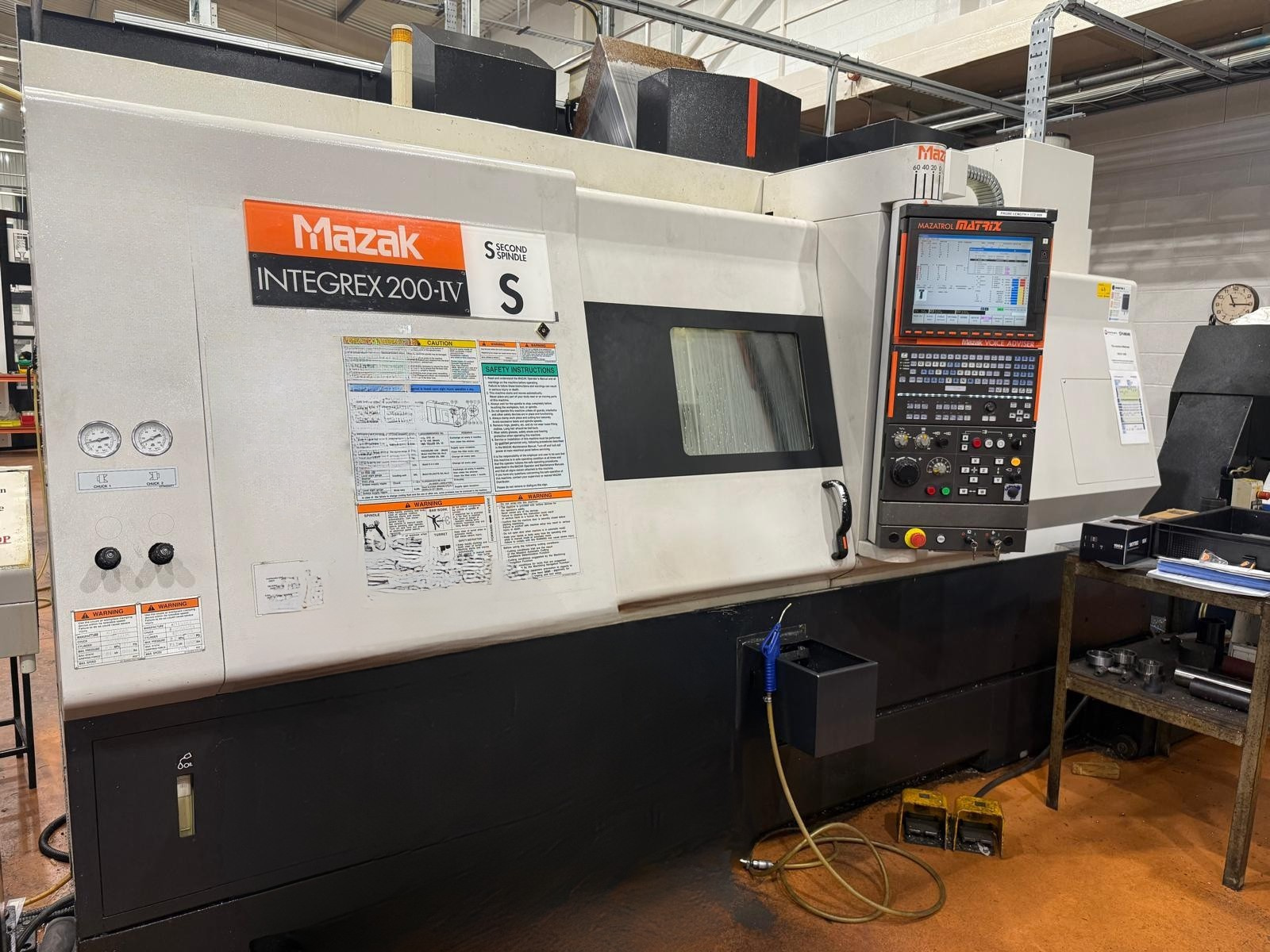

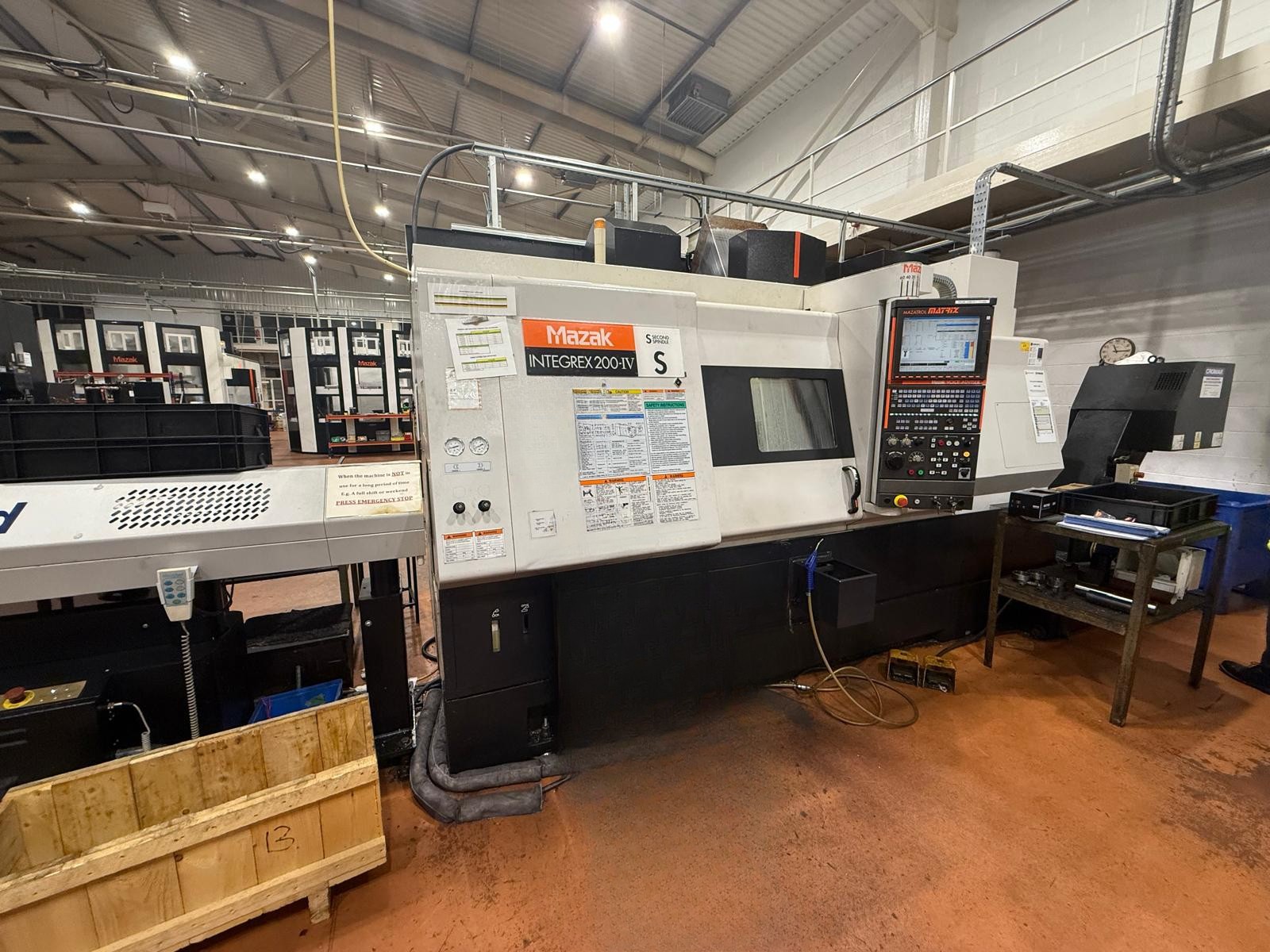

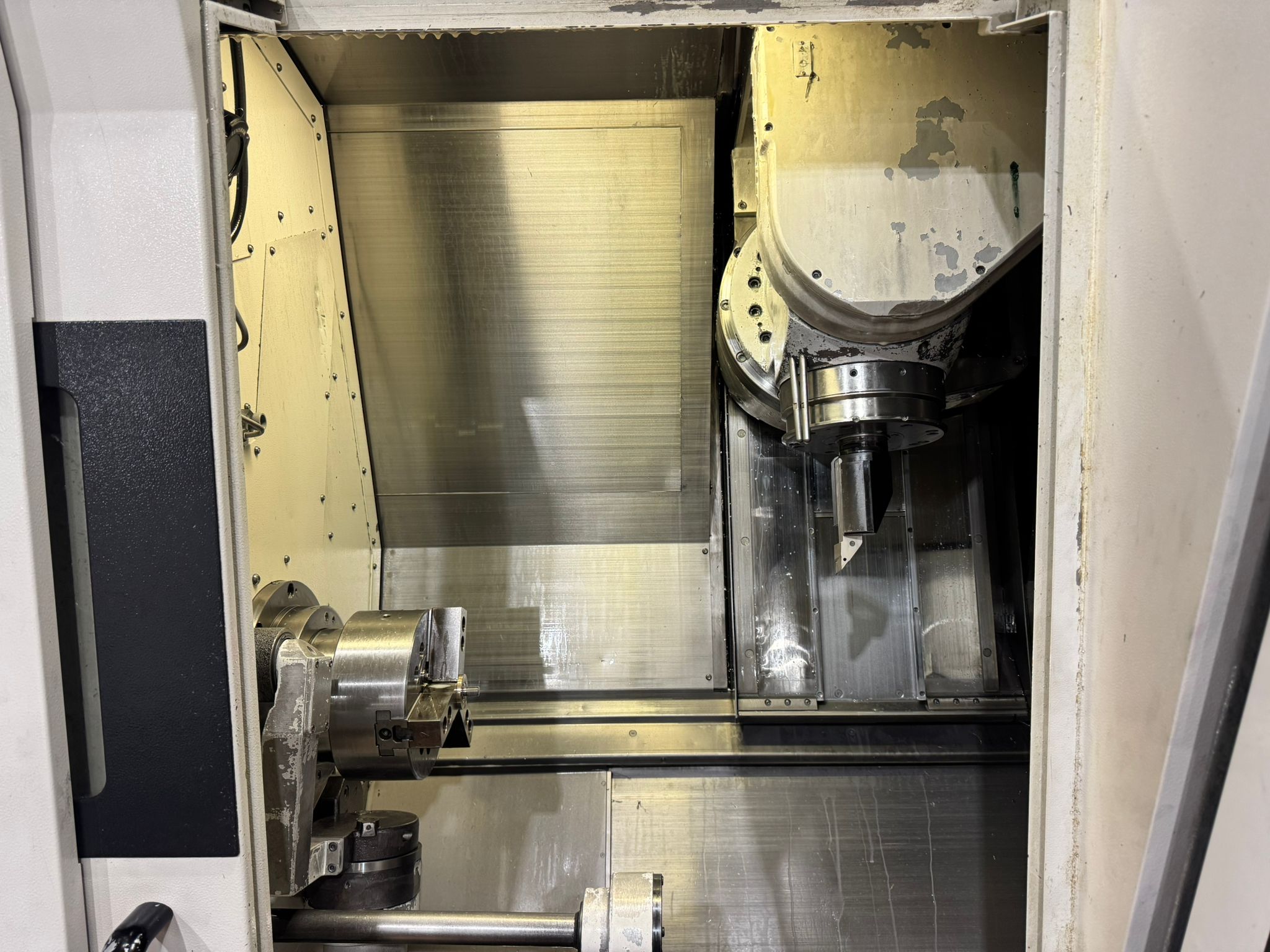

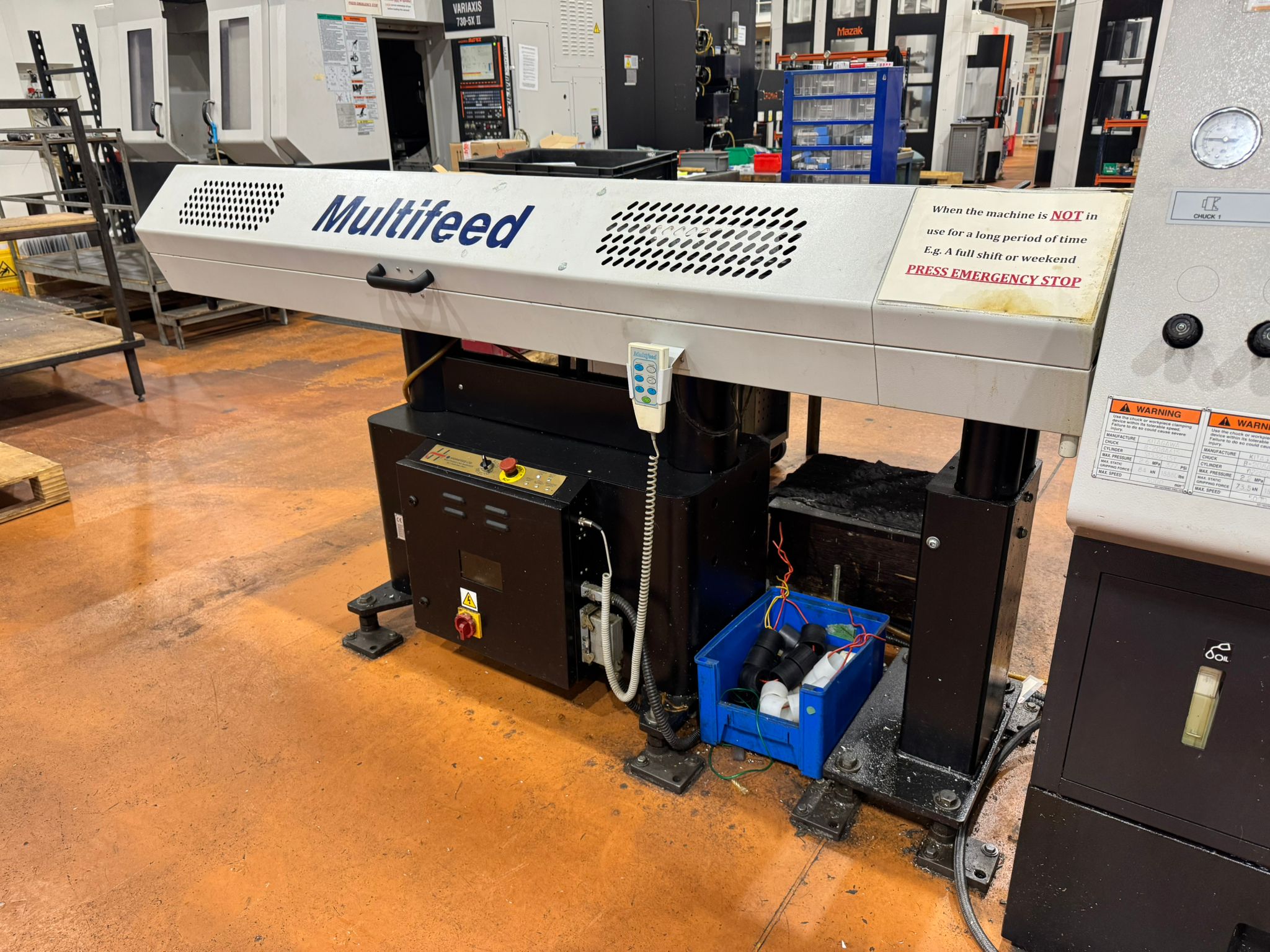

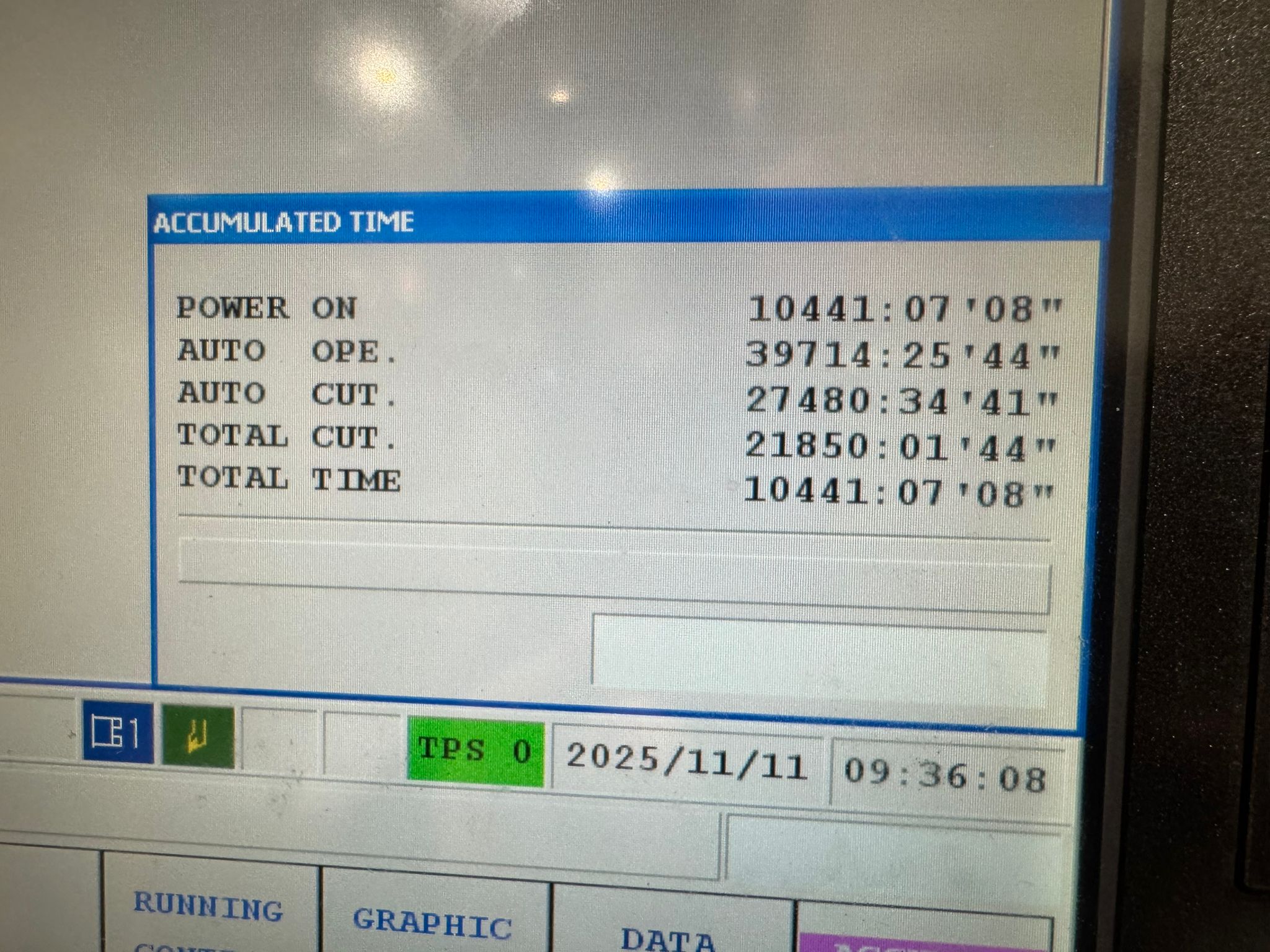

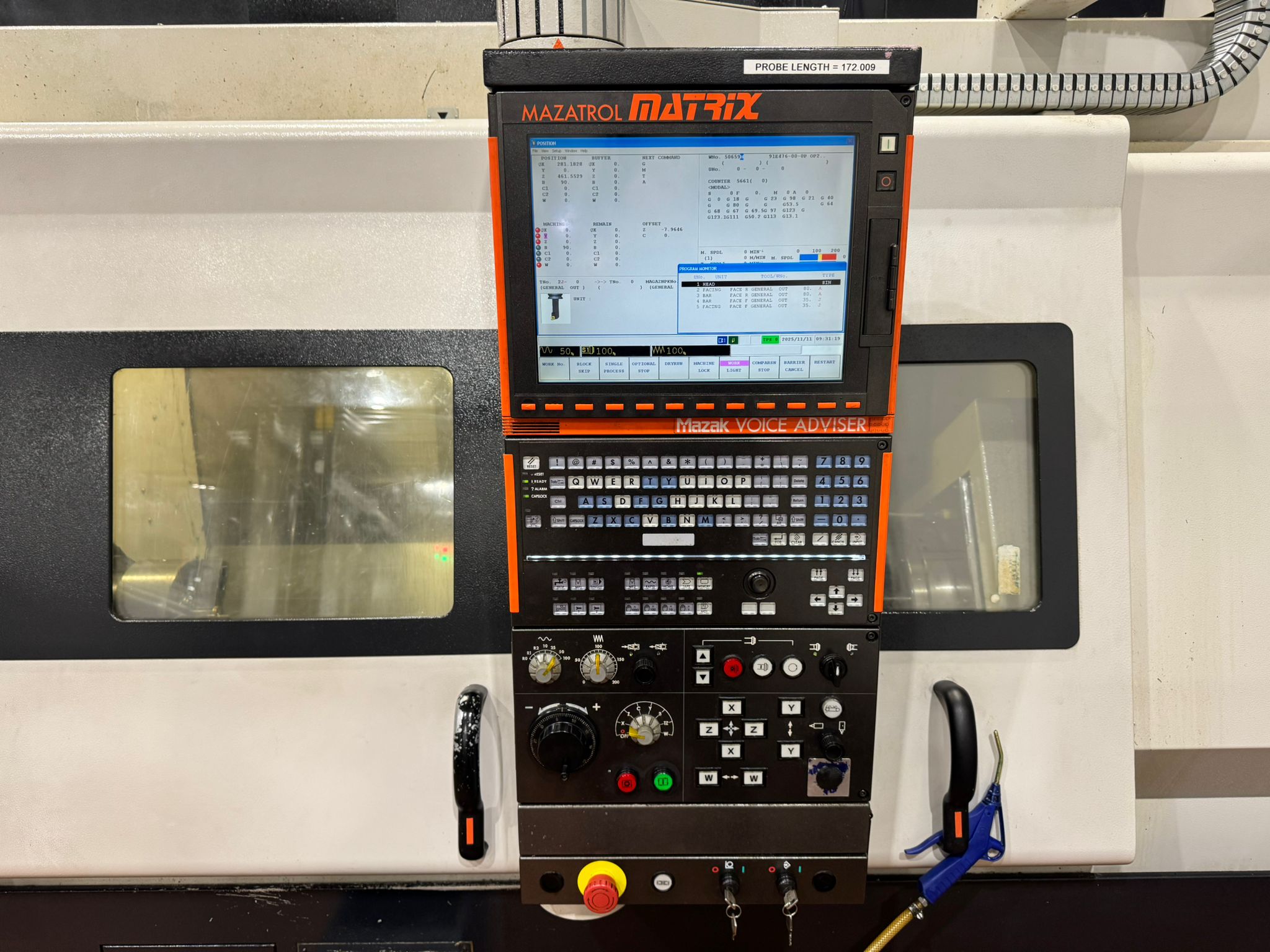

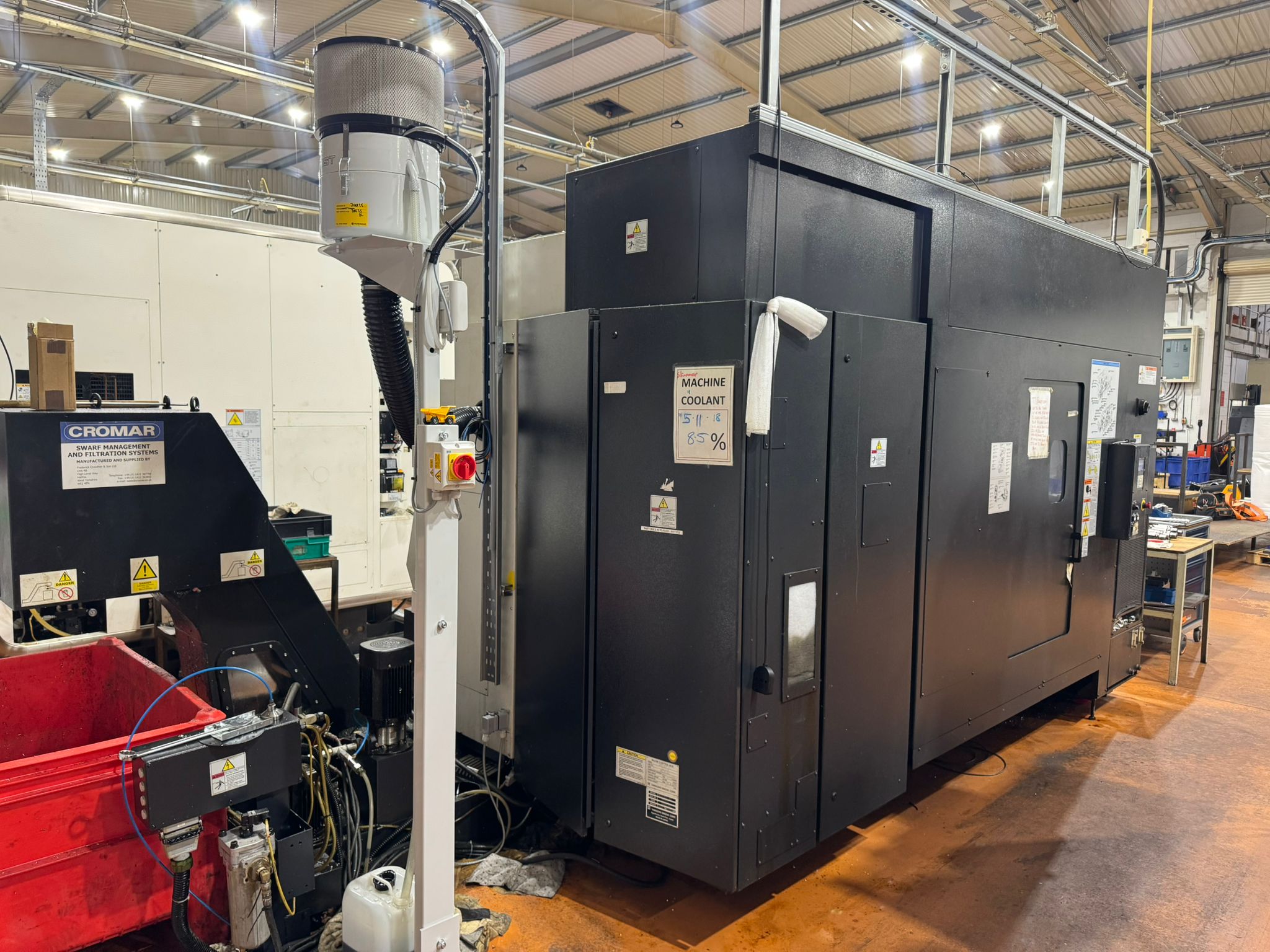

MAZAK Integrex 200IV CNC Lathe with Subspindle and Hydrafeed Barfeed. Mazatrol Matrix Control. Year 2008

MAZAK Integrex 200IV CNC Lathe with Subspindle and Hydrafeed Barfeed. Mazatrol Matrix Control. Year 2008

Max bar size diameter 51mm. Max cutting diameter 660mm. Max cutting length 1016mm. Max swing 660mm. Max swing over carriage 660mm. Main spindle 30 minute rating 22kW

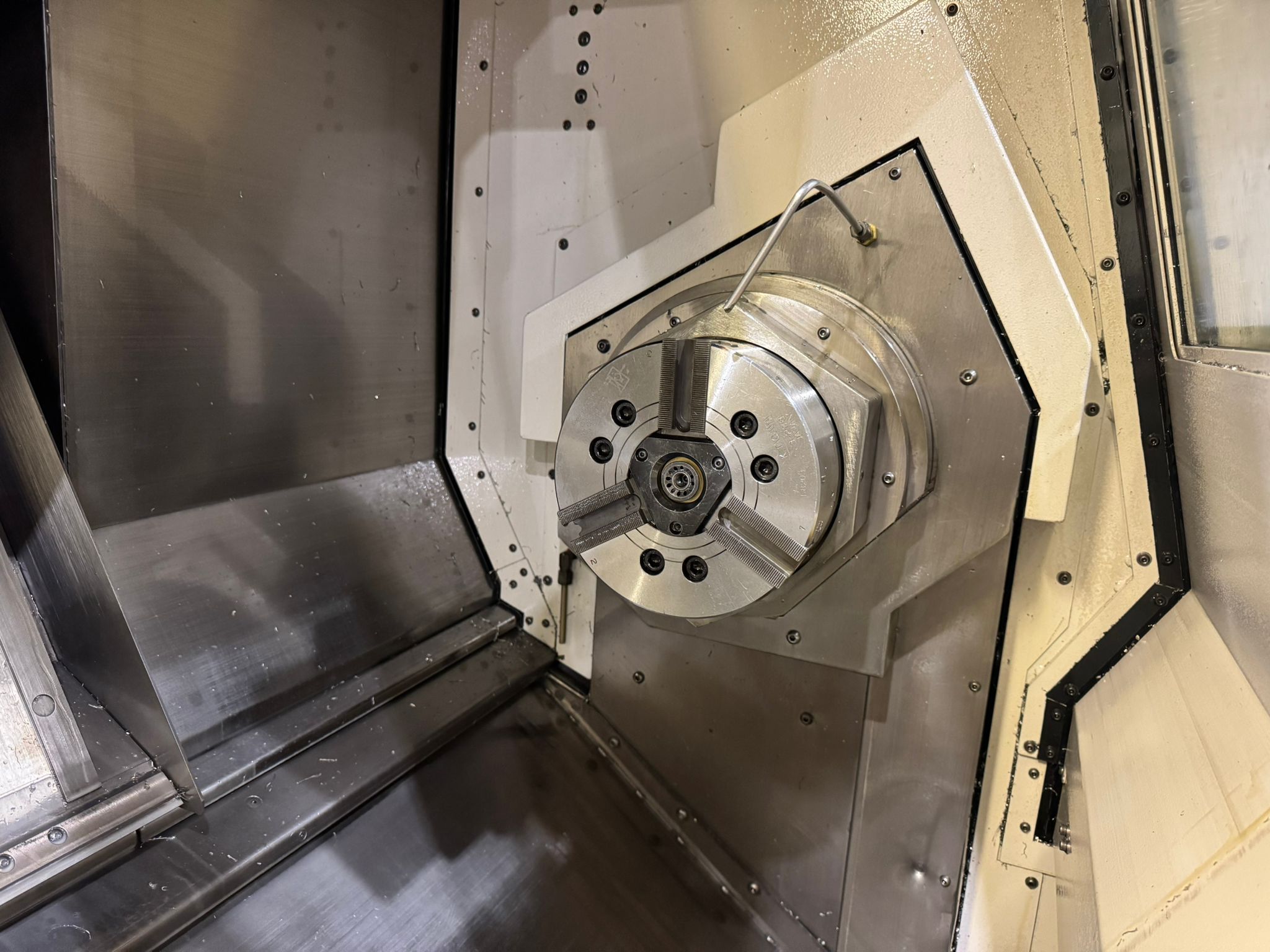

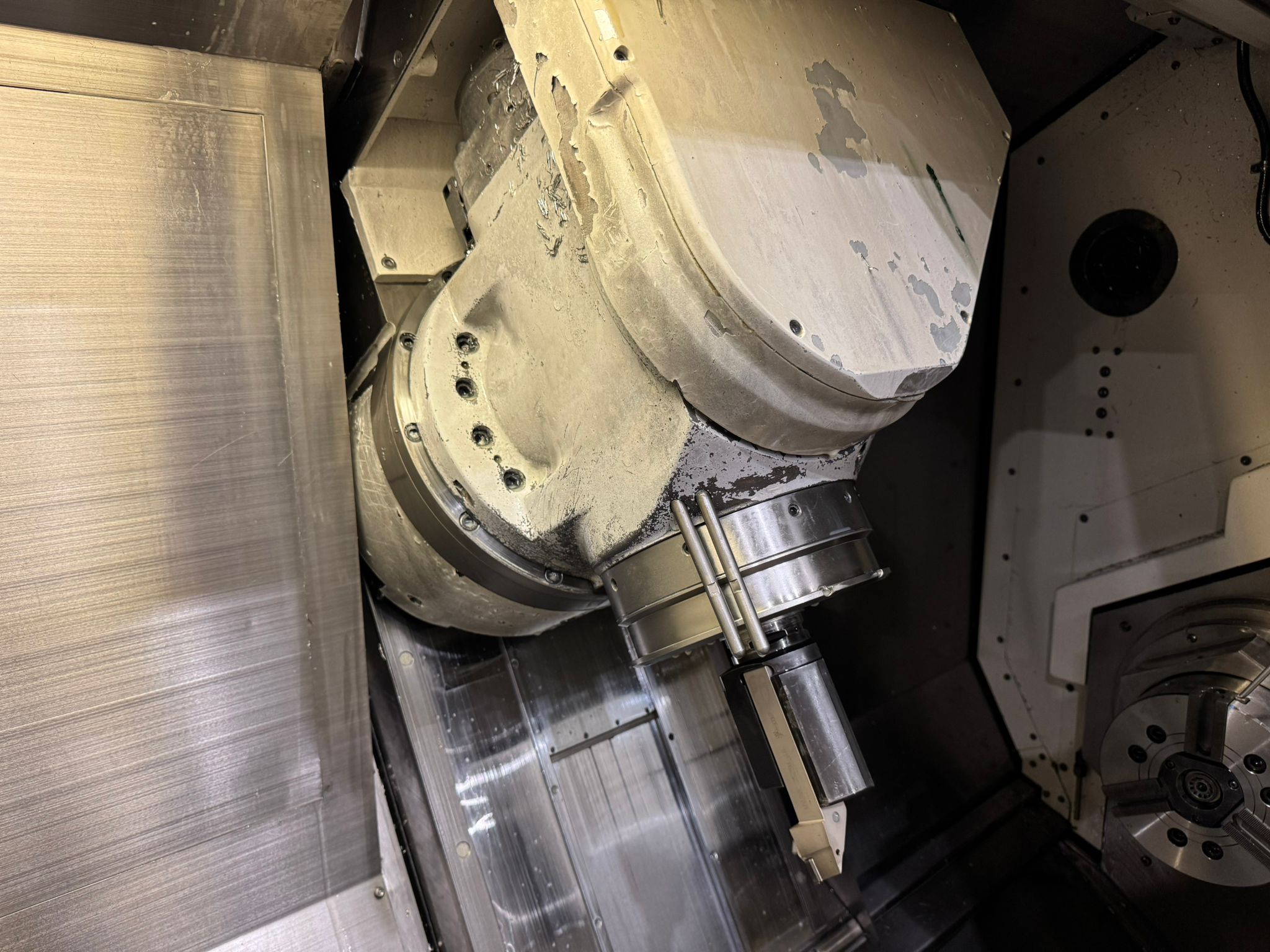

Second spindle 30 minute rating 18.5 kW.Driven tool 12.2 kgf/m. Main spindle 35.7 kgf/m. Second spindle 33.2 kgf/m
Main spindle speed 35 – 5,000 rpm. Spindle bore 76mm. Spindle centre line 1050. Spindle nose A2-6’’
Spindle indexing increments 0.0001°. X axis 580mm. Y axis 160mm. Z axis 1045mm
Cutting feedrates. X axis (max) 8 m/min. Y axis (max) 8 m/min. Z axis (max) 8 m/min. Rapid traverse. X axis (max) 38 m/min. Y axis (max) 26 m/min. Z axis (max) 38 m/min. C axis (max) 400 rpm. Driven tool 15 kW. Driven tool capacities (Material S45C). Drilling tools 30 mm. End mill tools 32 mm. Face milling tools 100 mm. Tapping tools M27 x 2 mm pitch. Driven tool speeds. Maximum 12,000 rpm. Minimum 15 rpm. Tool size. Boring bar shank diameter (max) 40 mm. Turning tool length 125 mm. Turning tool shank 25 mm. Toolholder location method. Rotary tool Mazak KM63. Turning. tool Mazak KM63. Turret indexing time 90°/0.5 seconds. Type of turret Single spindle with ATC. Max tool length From gauge line 300 mm. Maximum tool weight 10 kgf
Tool change time (tool/tool) 1.3 seconds. Tool selection method Random. Tool storage diameter. With adjacent tool 90 mm. Without adjacent tool 125 mm. Tool storage per magazine 20. Type of tool magazine : Drum. Second Spindle Chuck type B208. Max sub spindle speed 5,000 rpm. Continuous rating 61.4 kVA. Pressure 0.5 Mpa. Flow 500 L/min
Approx Dimensions (without barfeed) L x W x H 3820 x 2597 x 2060mm
Weight 9,700 Kg
