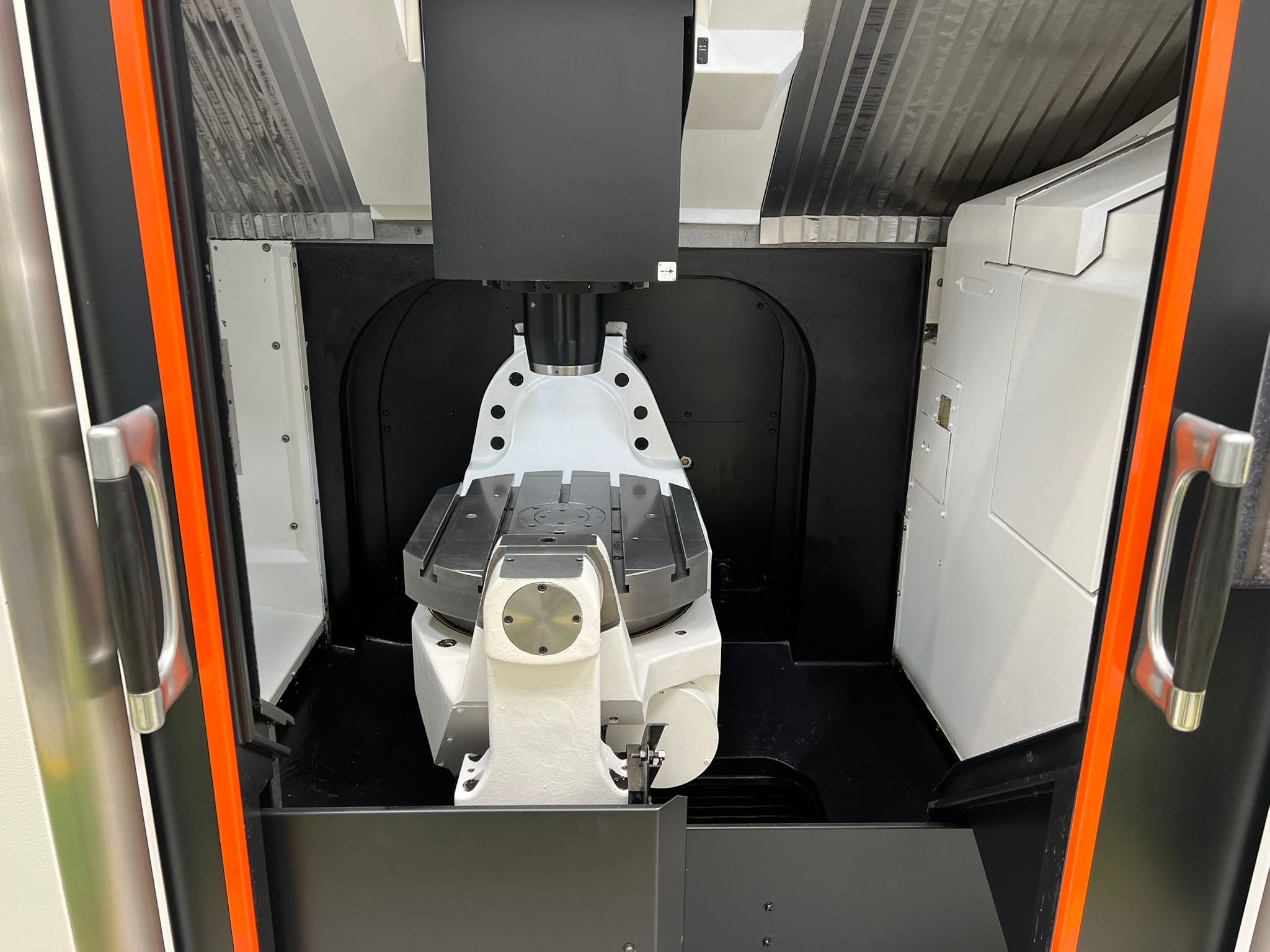

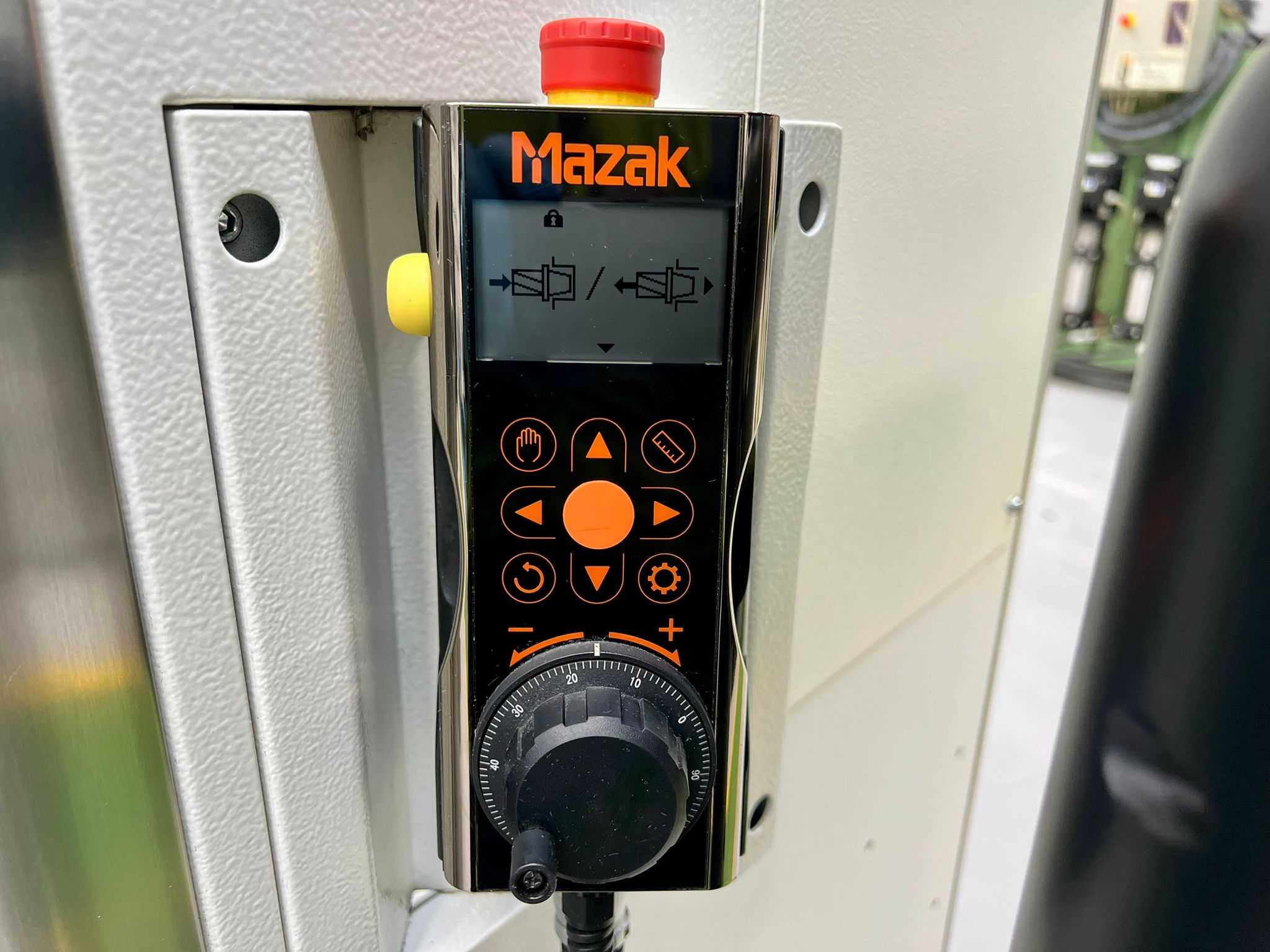

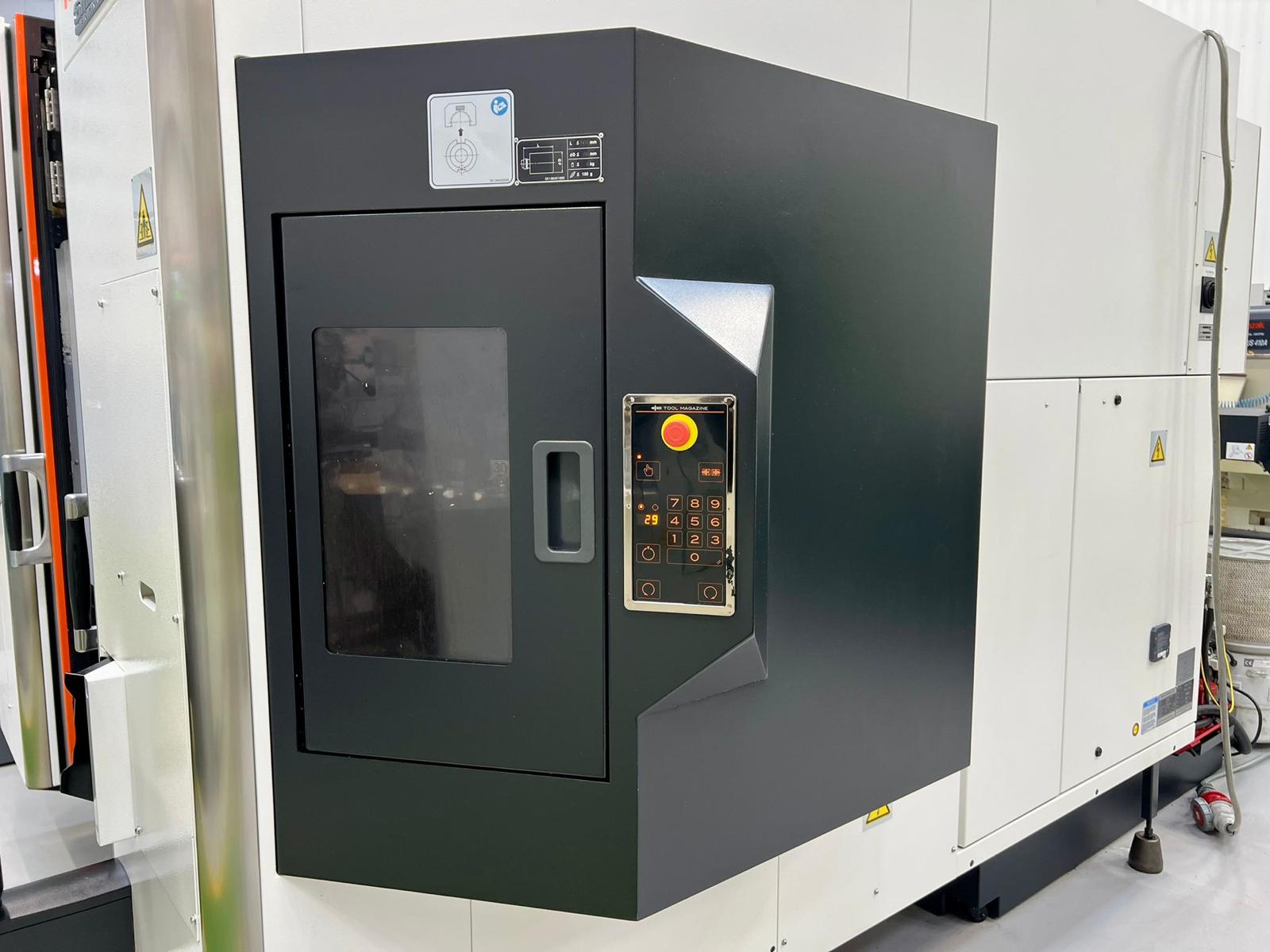

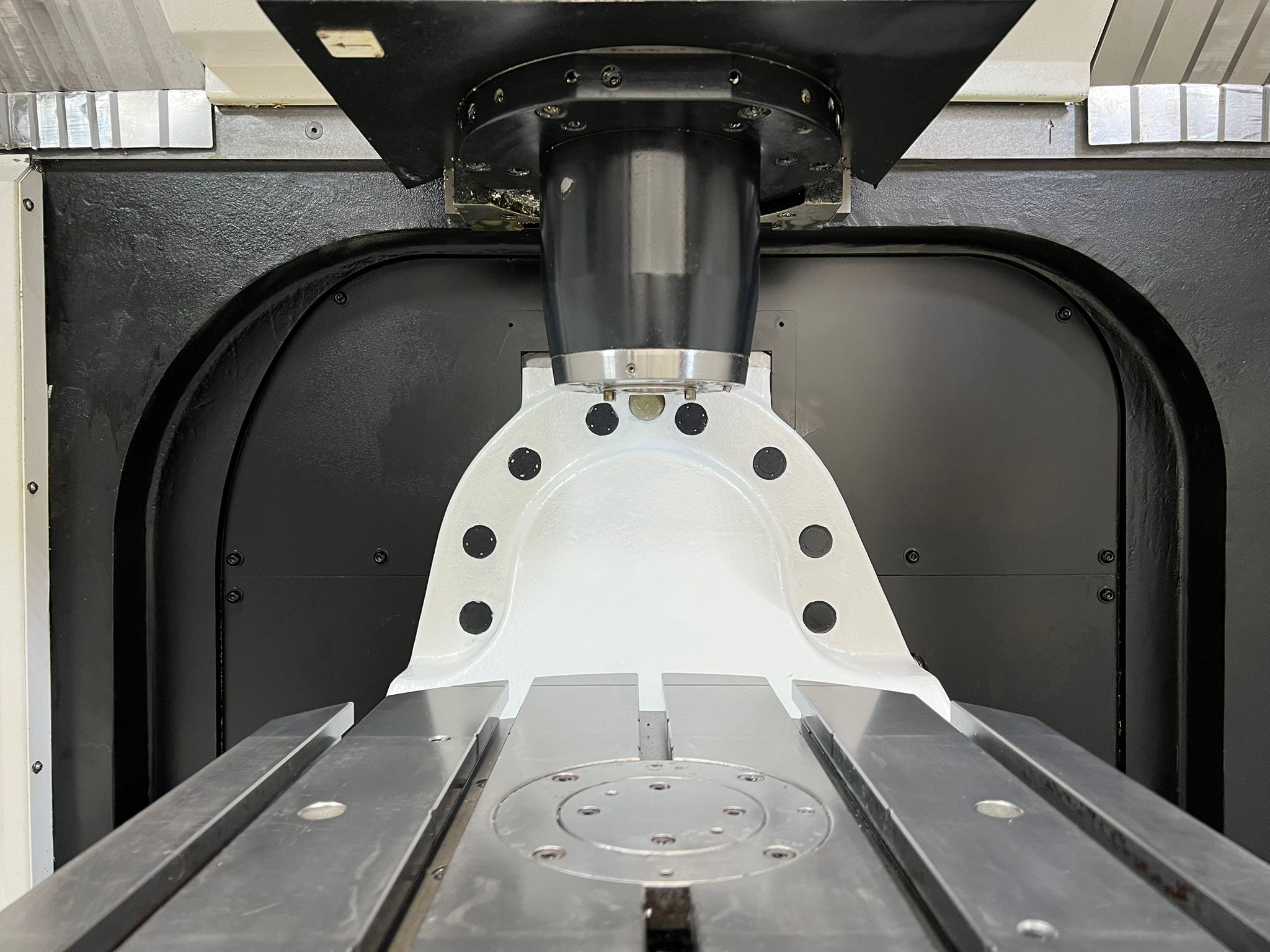

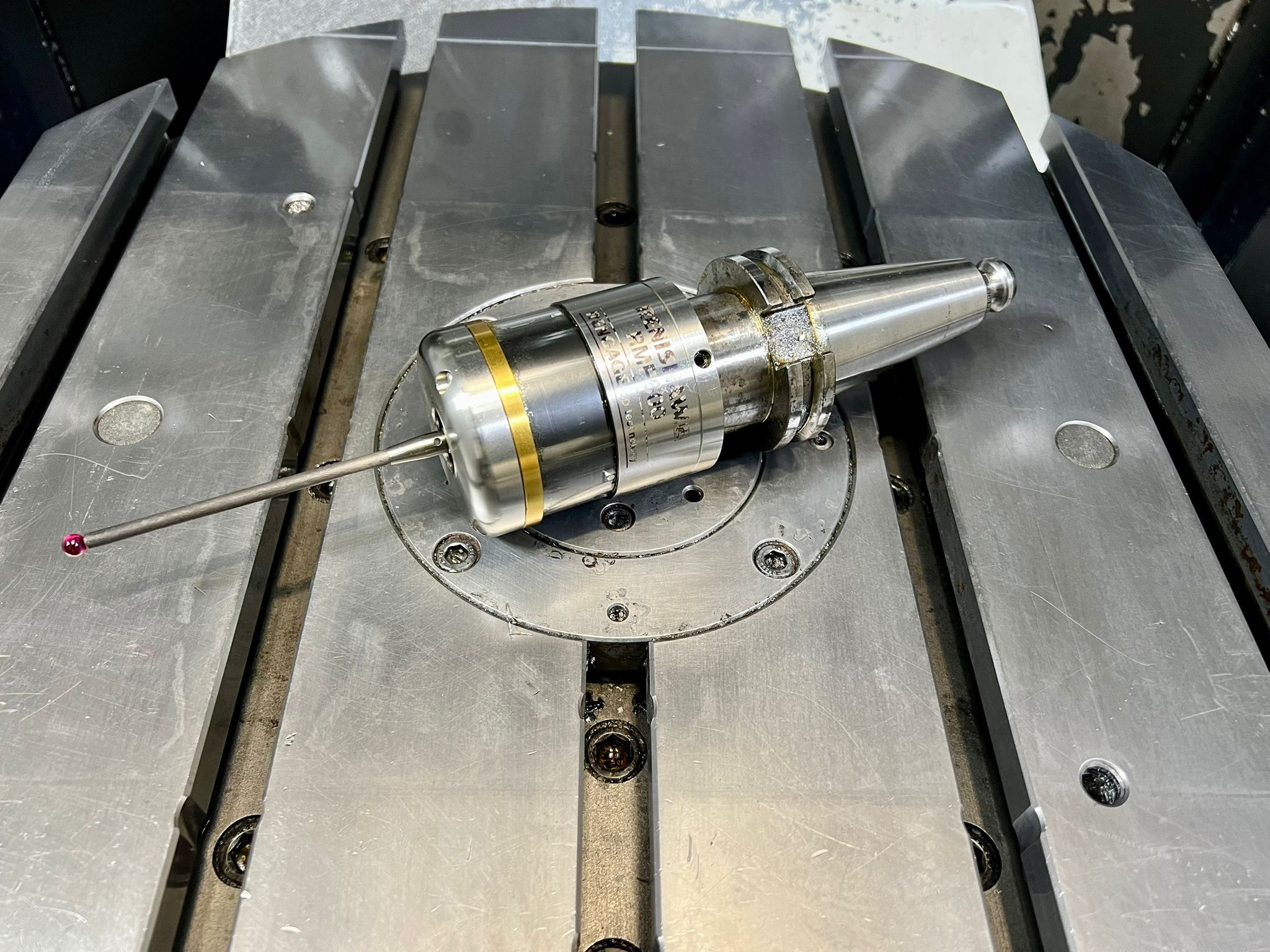

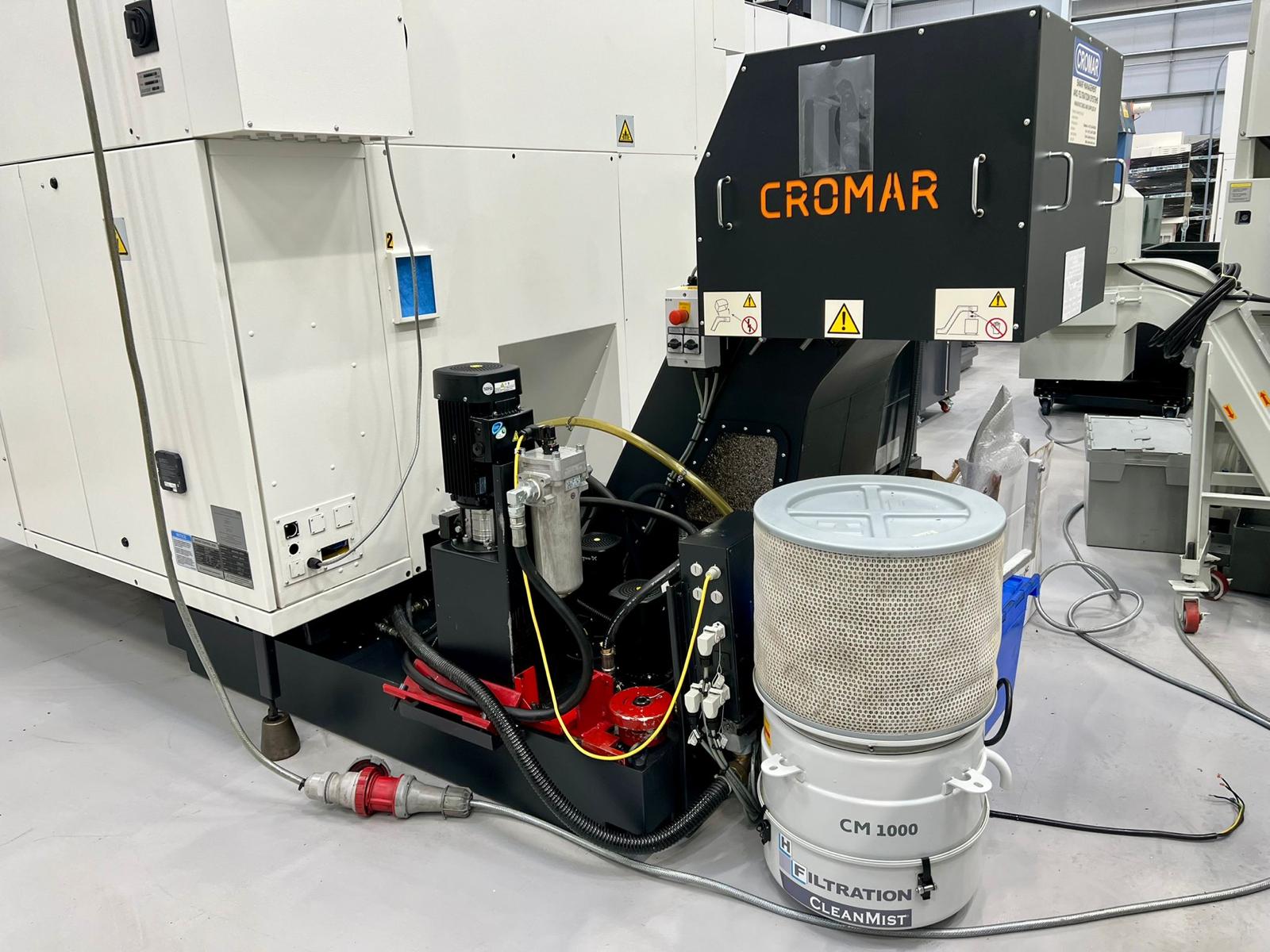

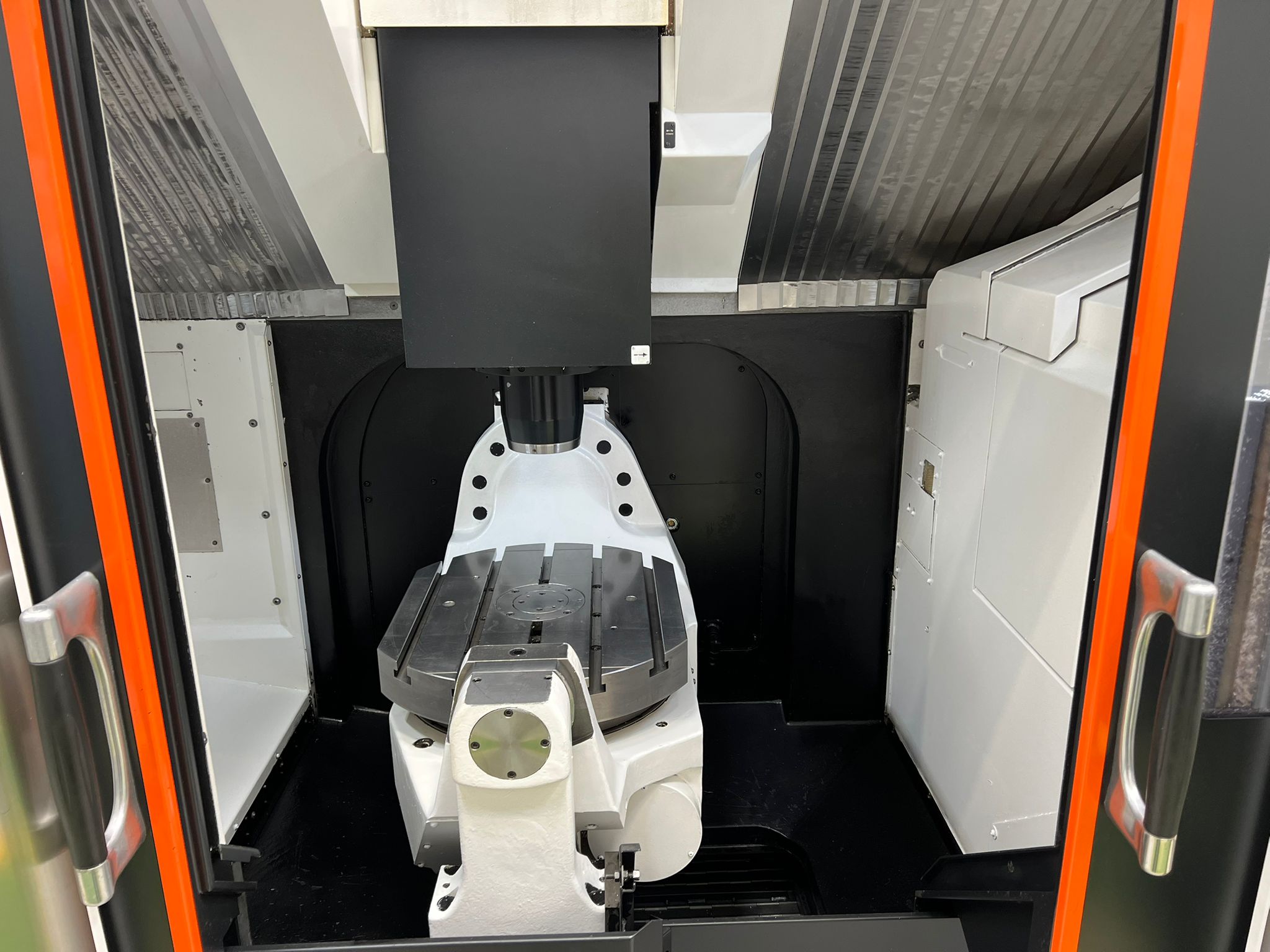

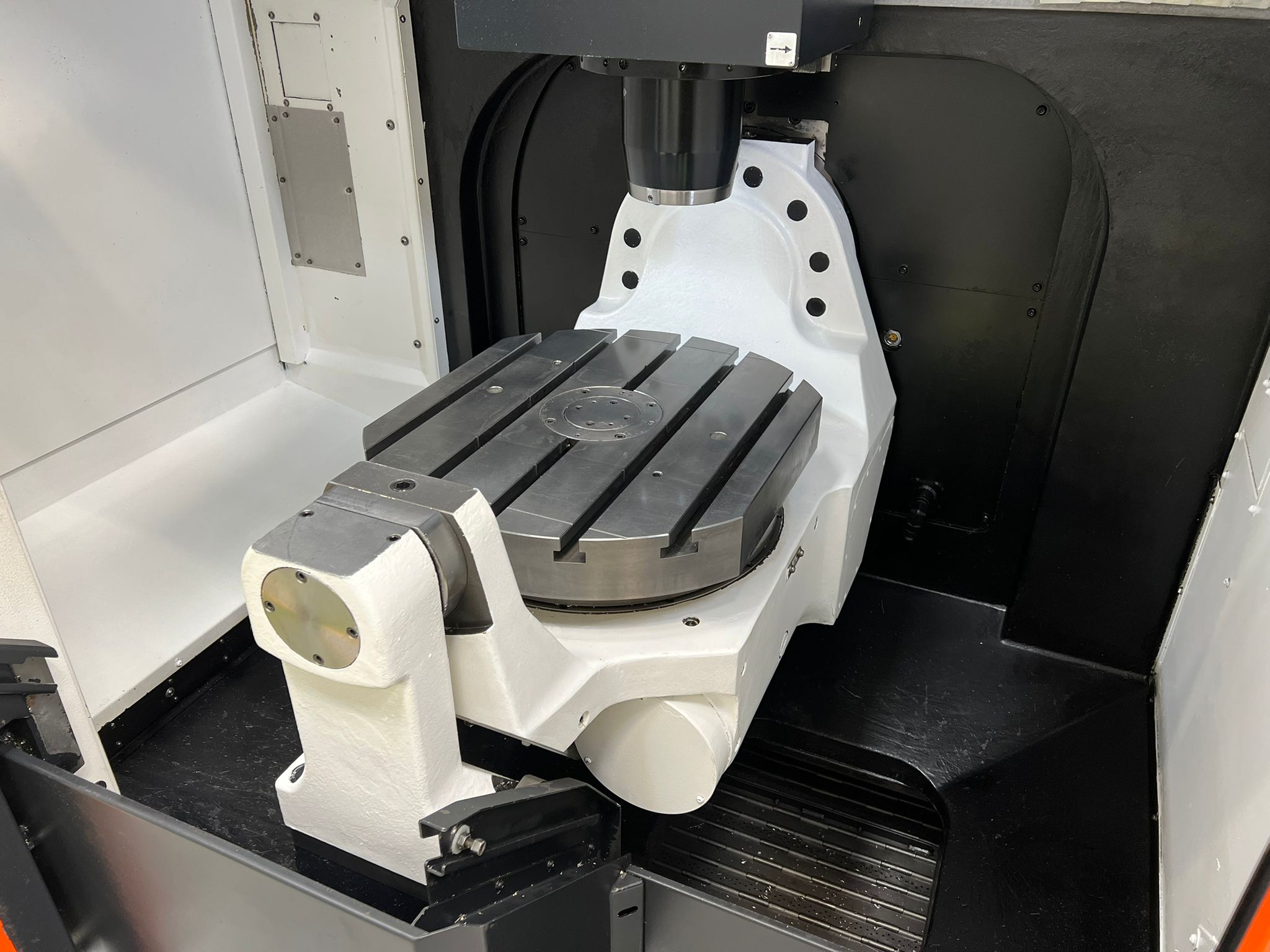

Table size 600mm × 500 mm. Max workpiece size 730mm × 450 mm. Max capacity on table 500 kg. X/Y/Z travels 850mm/550/510mm. B axis (table tilt) 210 º (-120º +90º). C axis (table rotation) 360º. Min/Max distance spindle nose to table top 70mm – 580 mm. Rapid feed (X/Y/Z Axis) 30m/min. Rapid feed B/C Axis 30 rpm. Min indexing increment B axis 0.0001º.Min indexing increment C axis 0.0001º. Maximum working feed 30m/min. Number of simultaneous axis 5. Spindle taper BT 40. Maximum spindle speed 12,000 rpm. Main spindle power 11/7.5 kW. Maximum spindle torque 65 Nm. Automatic tool changer 30 positions. Random tool selection. Total power requirement 40.9kVA. Max tool diameter 90mm (with tools either side). Maximum tool diameter 130 mm (no tools either side). Max tool length 300 mm. Max tool weight 8 kg. Features include synchronised Tapping. Cromar Swarf conveyor. Renishaw probe. High pressure through spindle coolant 15 Bar. Coolant tank capacity 500 litres. Tool presetter. Synchronised spindle turning angle with cylindrical interpolation. Manual pulse generator with wire (portable handwheel). Programable air blast by spindle nose. Cylindrical interpolation.
Machine dimensions L x W x H 2400mm x 3325mm x 3060mm . Approximate weight 11000 kg.
