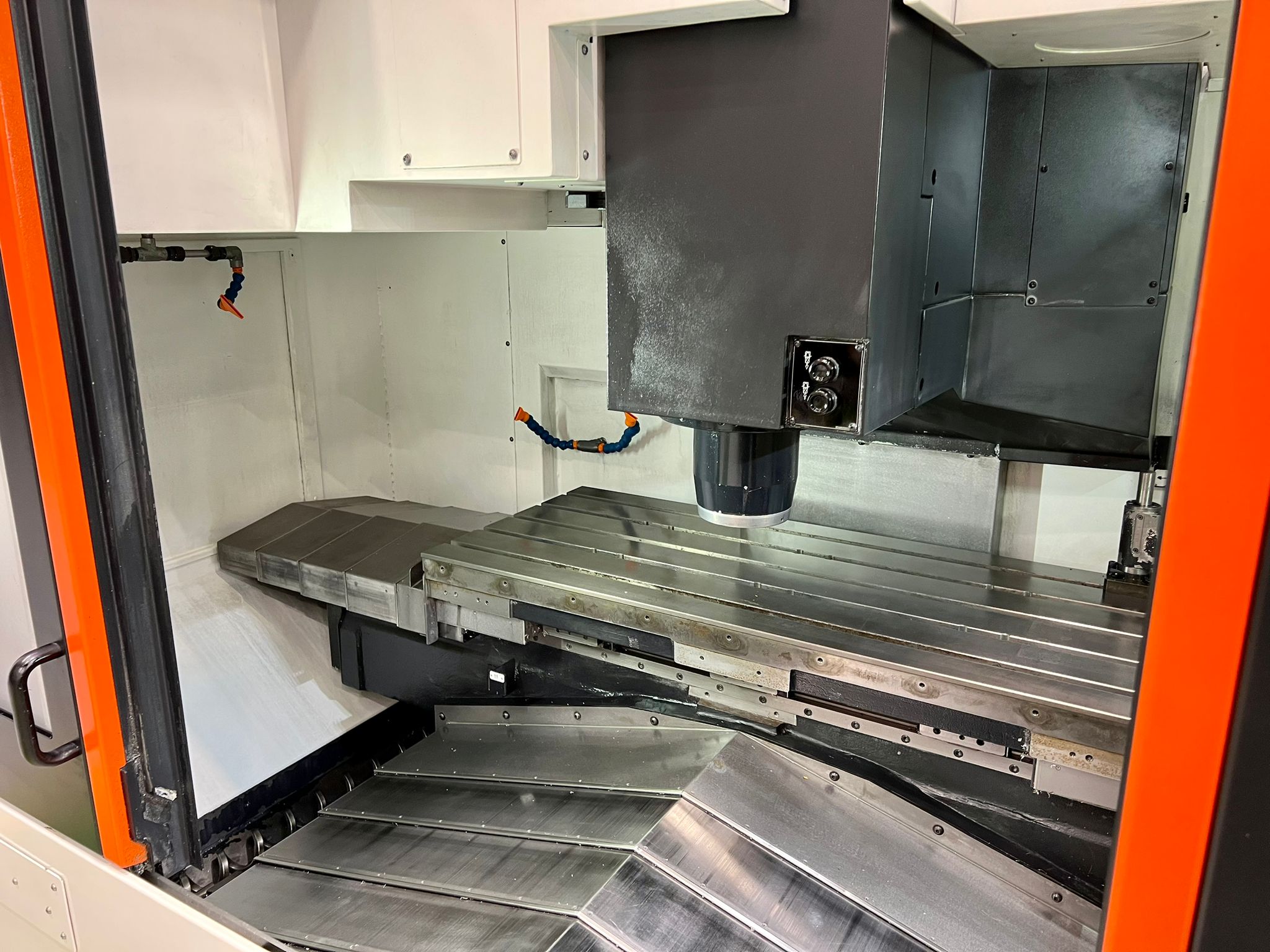

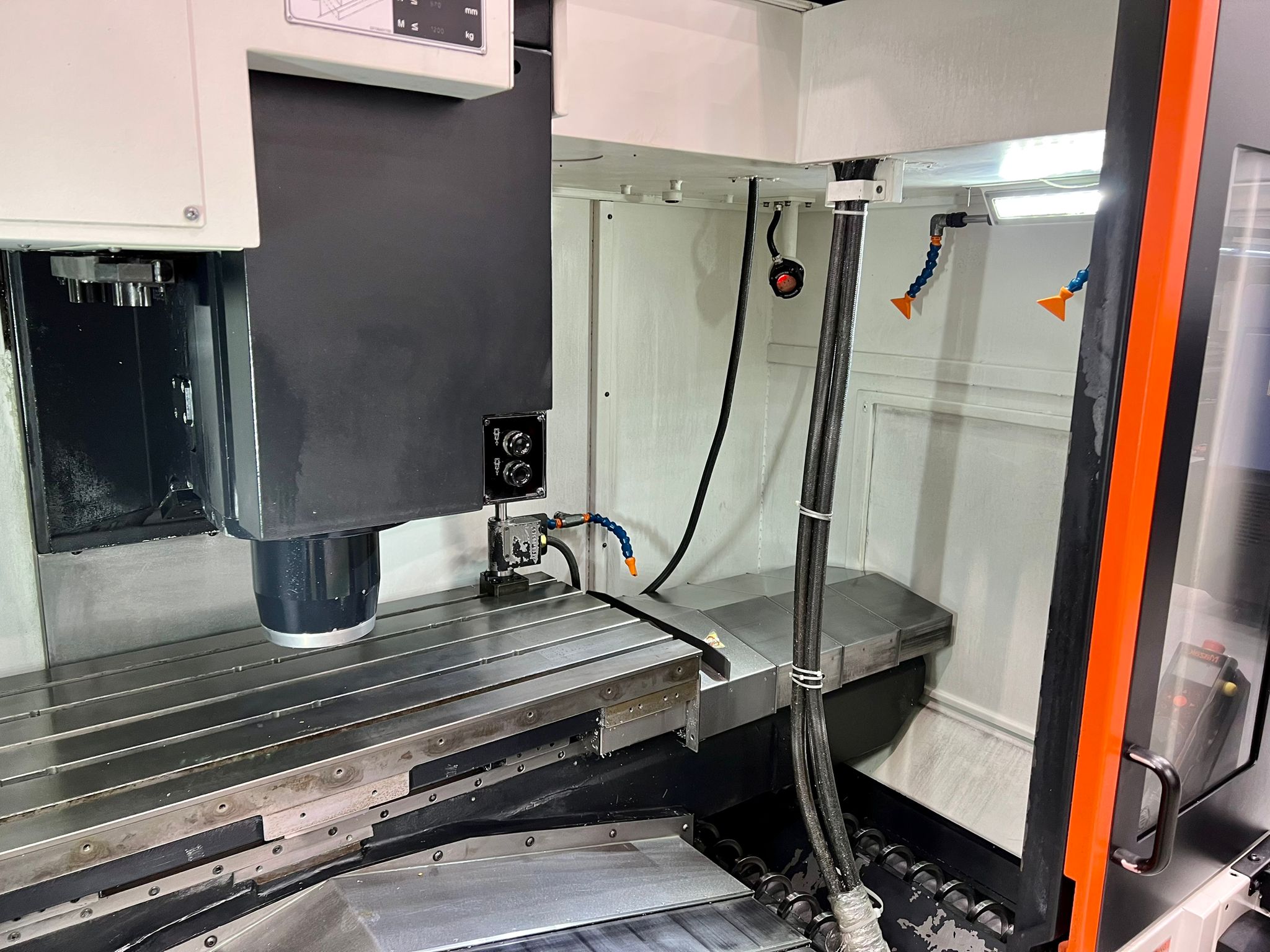

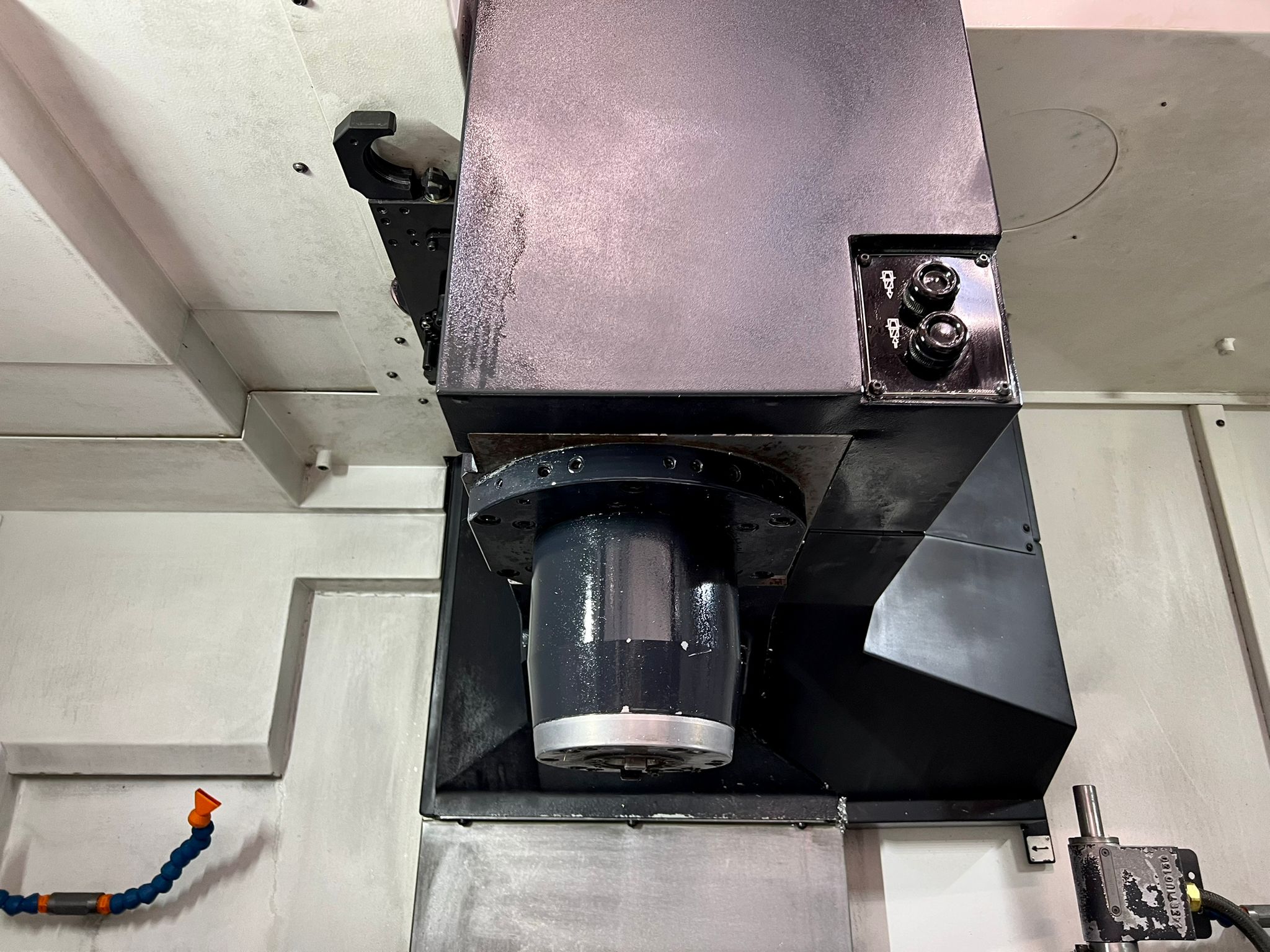

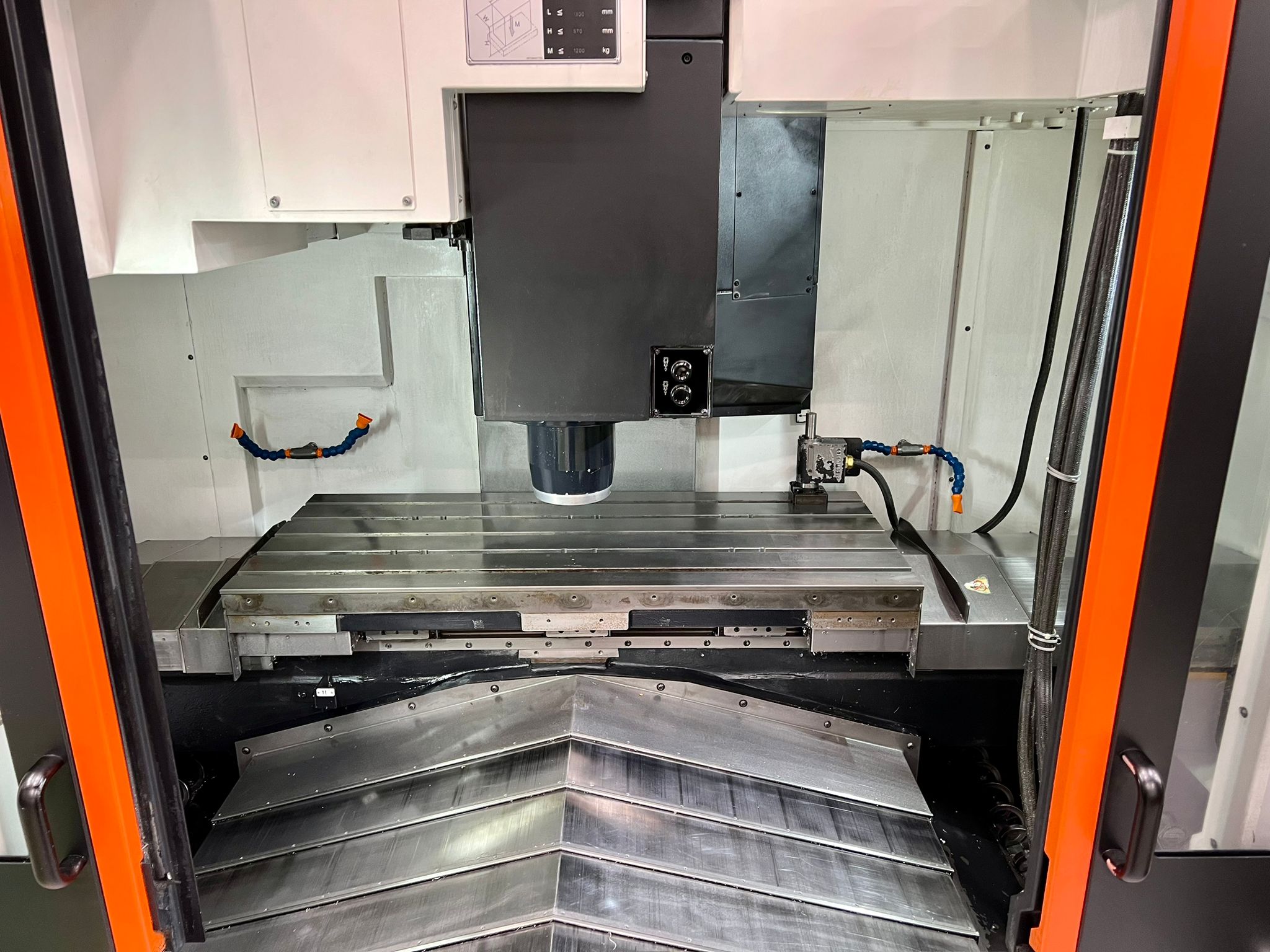

Table size 1300 x 550mm. T slot size 18mm. No of slots 5. Travels X/Y/Z 1050/530/510mm. Distance from spindle nose to table min/max 150/660mm. Distance from centre of spindle to front of column 586mm. Max table weight (evenly distributed) 1200Kg. Spindle nose type 7/24 taper, No. 4. Spindle Speeds 35 – 18000rpm. Speed change stepless regulation. Main motor 11kW. Rapid traverse feedrate 42000mm/min. Cutting feedrate 1 – 8000mm/min. Max tool length 350mm. Spindle hours 5890
EQUIPMENT/ADDITIONAL OPTIONS

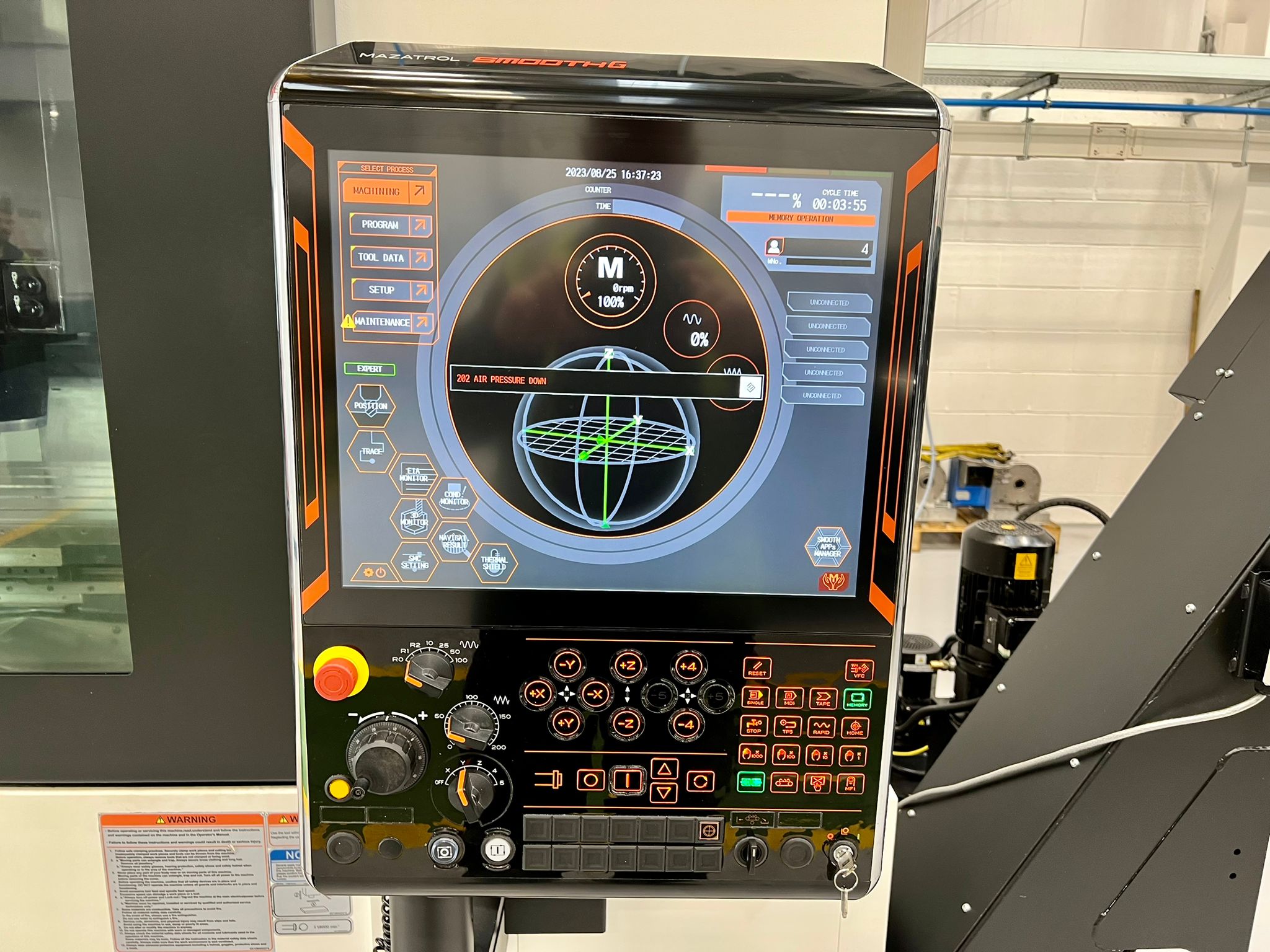

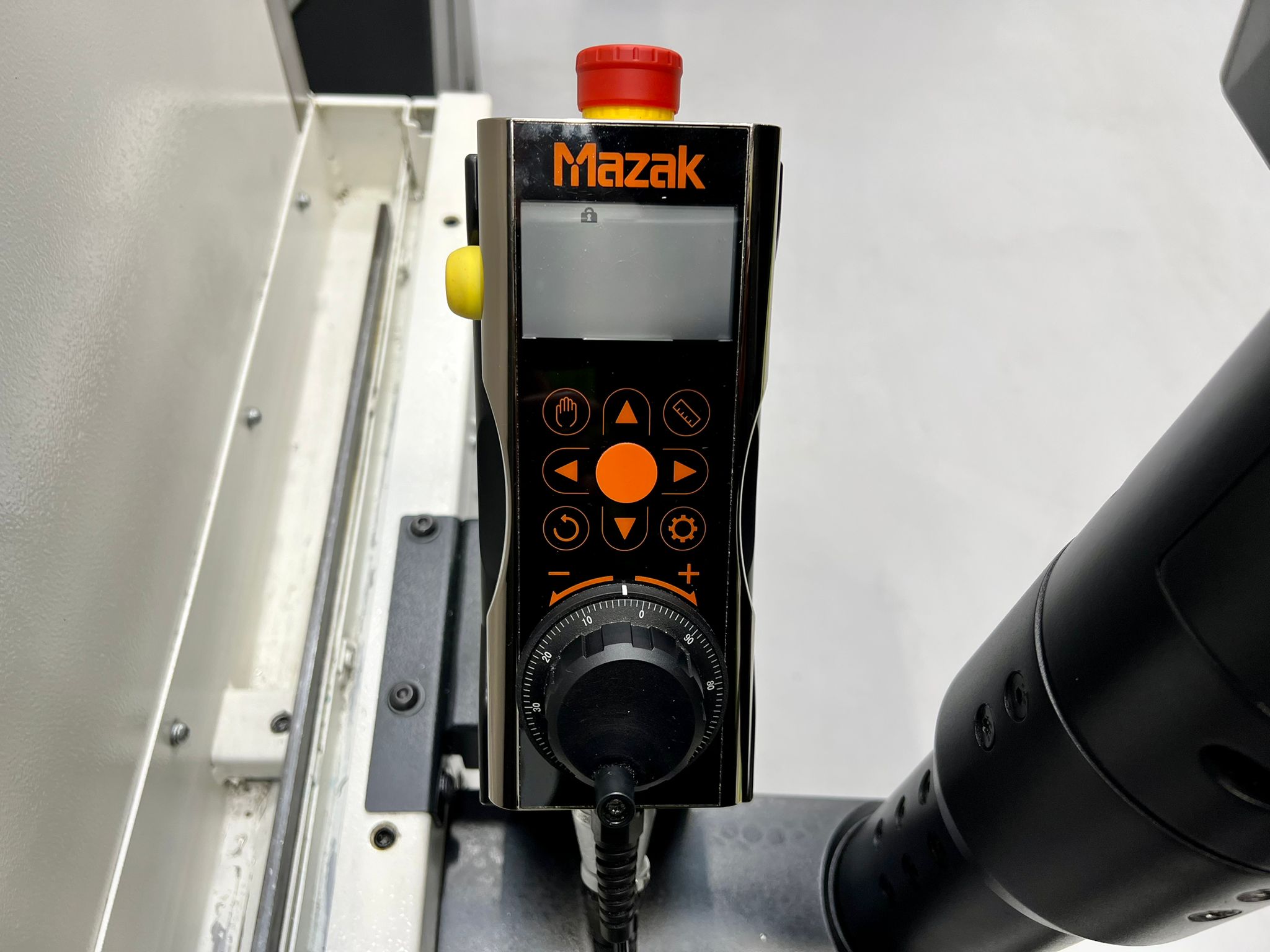

Manual pulse generator. Mazak API. Cylindrical Interpolation. High level productivity pack. Workpiece air blast. Hi pressure coolant thru. Synchronised tapping. 8MB program size. Increased spindle speed of 18000RPM. 4th Axis interface & KITAGAWA MR200 4th Axis Attachment and Tailspindle. Renishaw Inspection Plus Software. MAS BT Spindle Configuration.
Machine Dimensions (L x W x H) 2880 x 2725 x 2652
Weight 6800Kg
