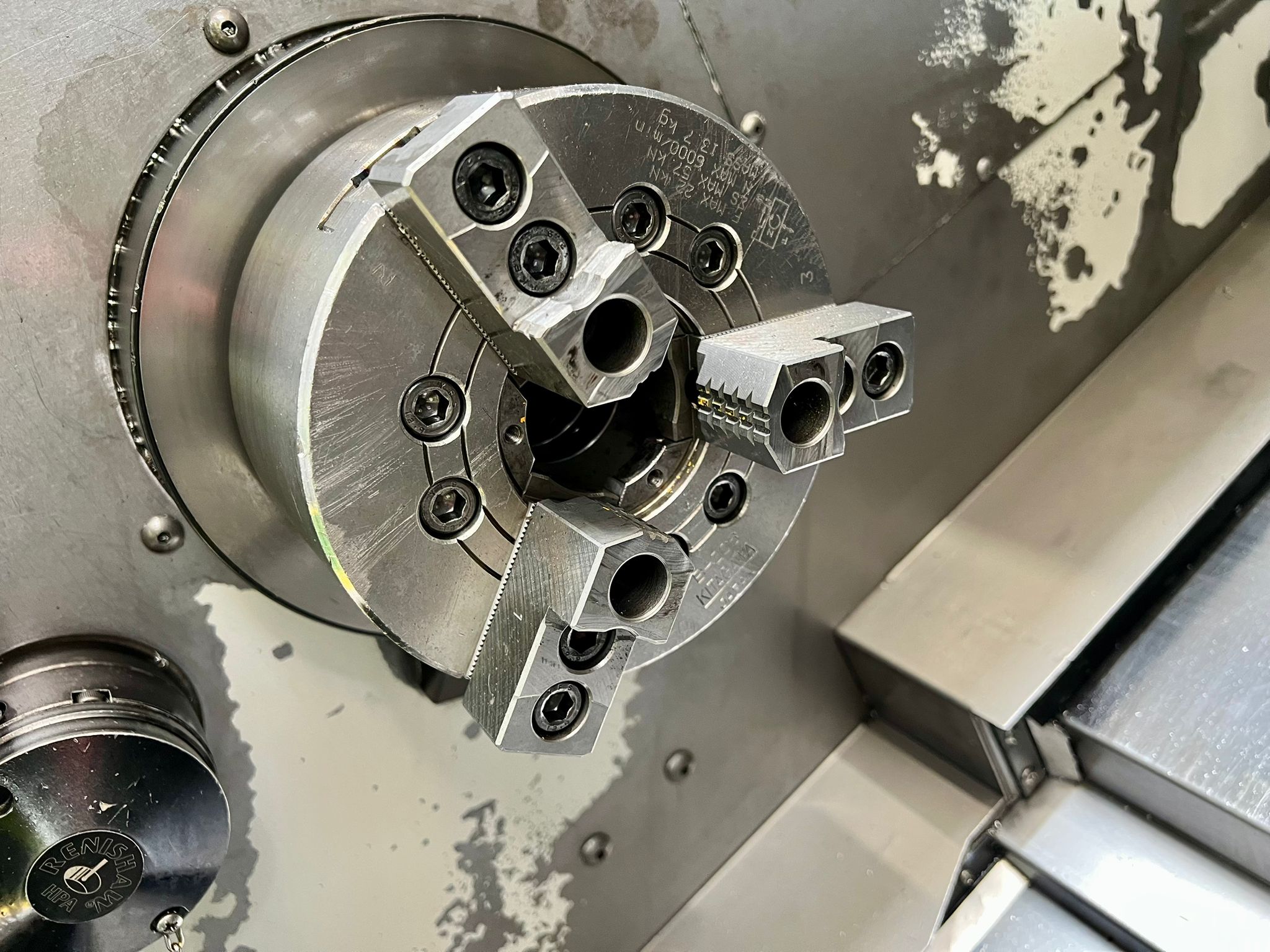

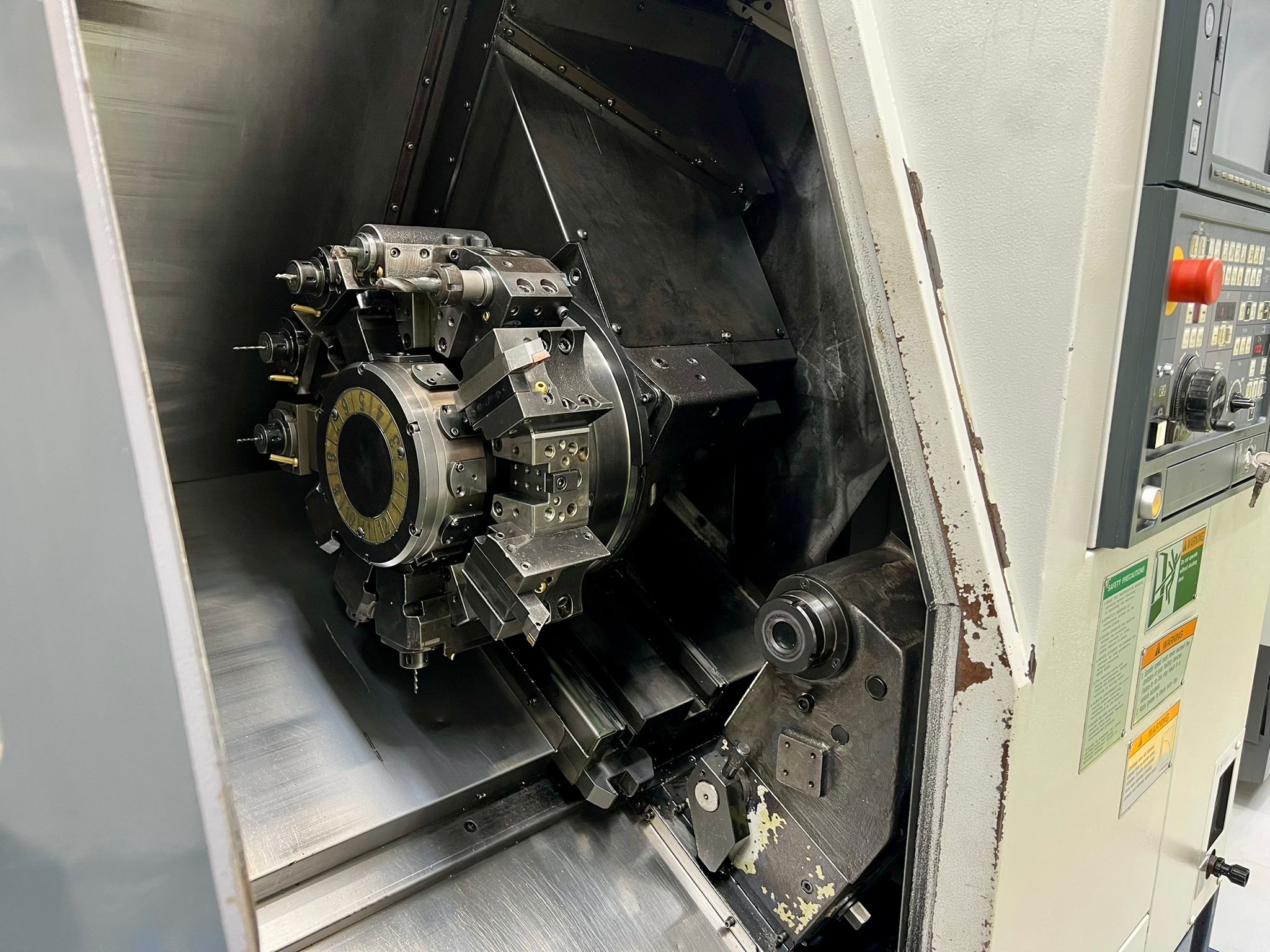

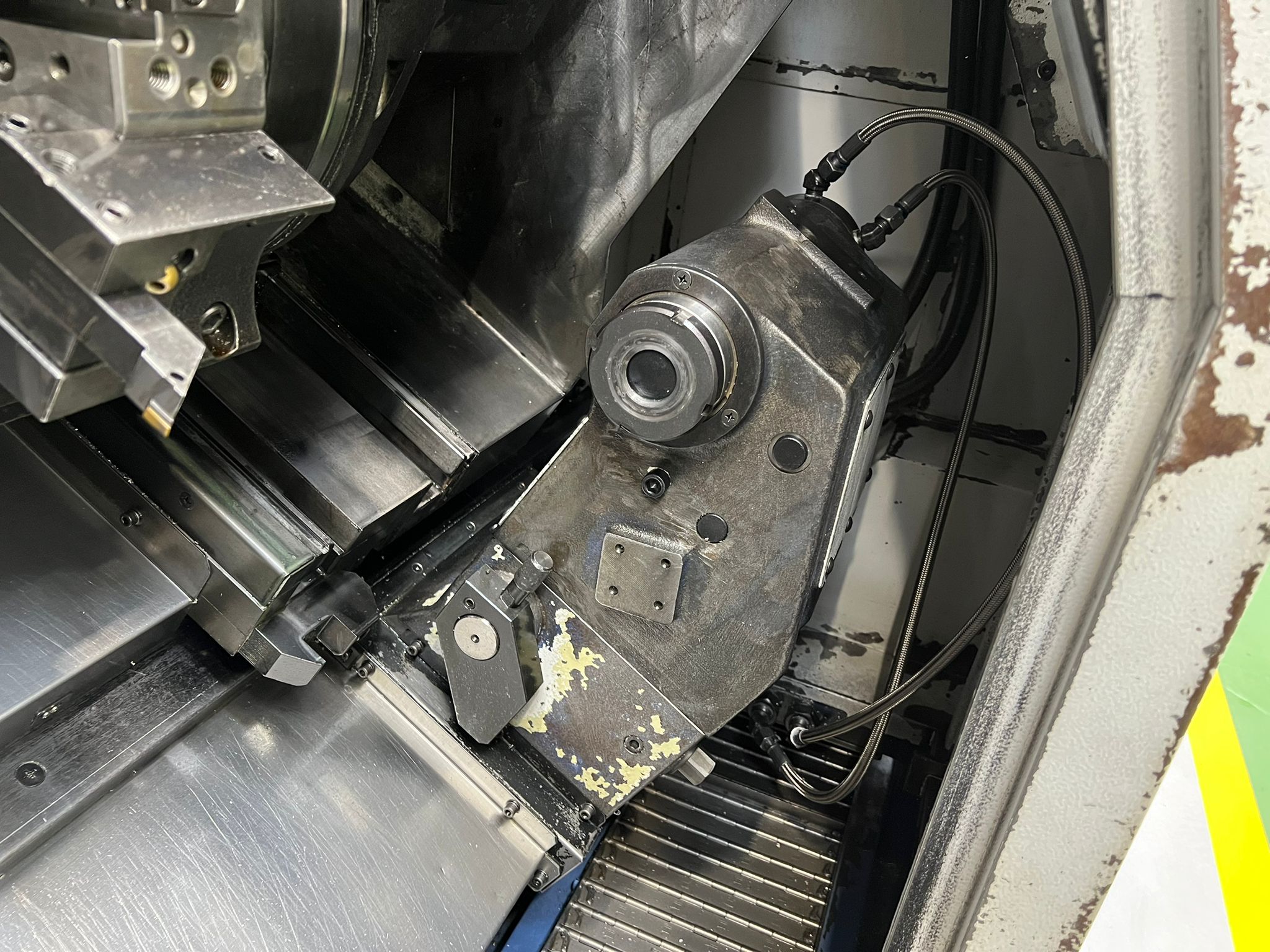

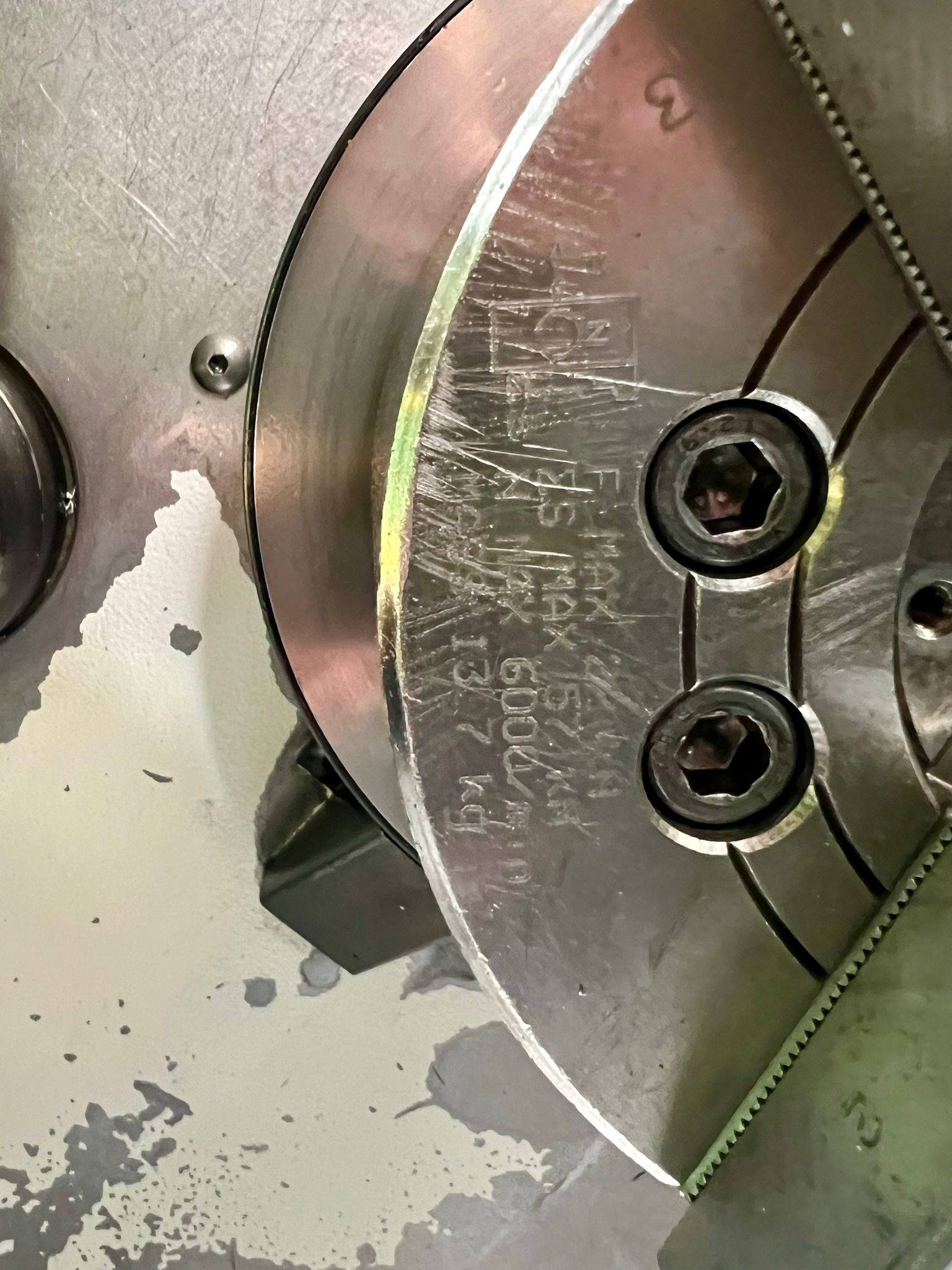

Maximum turning diameter 429mm. Maximum turning length 530mm. Distance between centres 624mm. Bar Capacity 55.8mm. Swing over bed 619mm. Swing over cross slide 454mm. X Axis Travel 231mm. Z Axis Travel 520mm.Rapid Traverse X/Z 20m/24m/min. Chuck dia. 203mm. 12 station turret. Spindle Nose A2-6. Spindle Speed 5000 rpm. Spindle Motor 14.0 kW. Tailstock Taper MT4.
Machine Dimensions L x W x H 2209mm x 1727mm x 1828mm. Approximate weight 4310 kg
