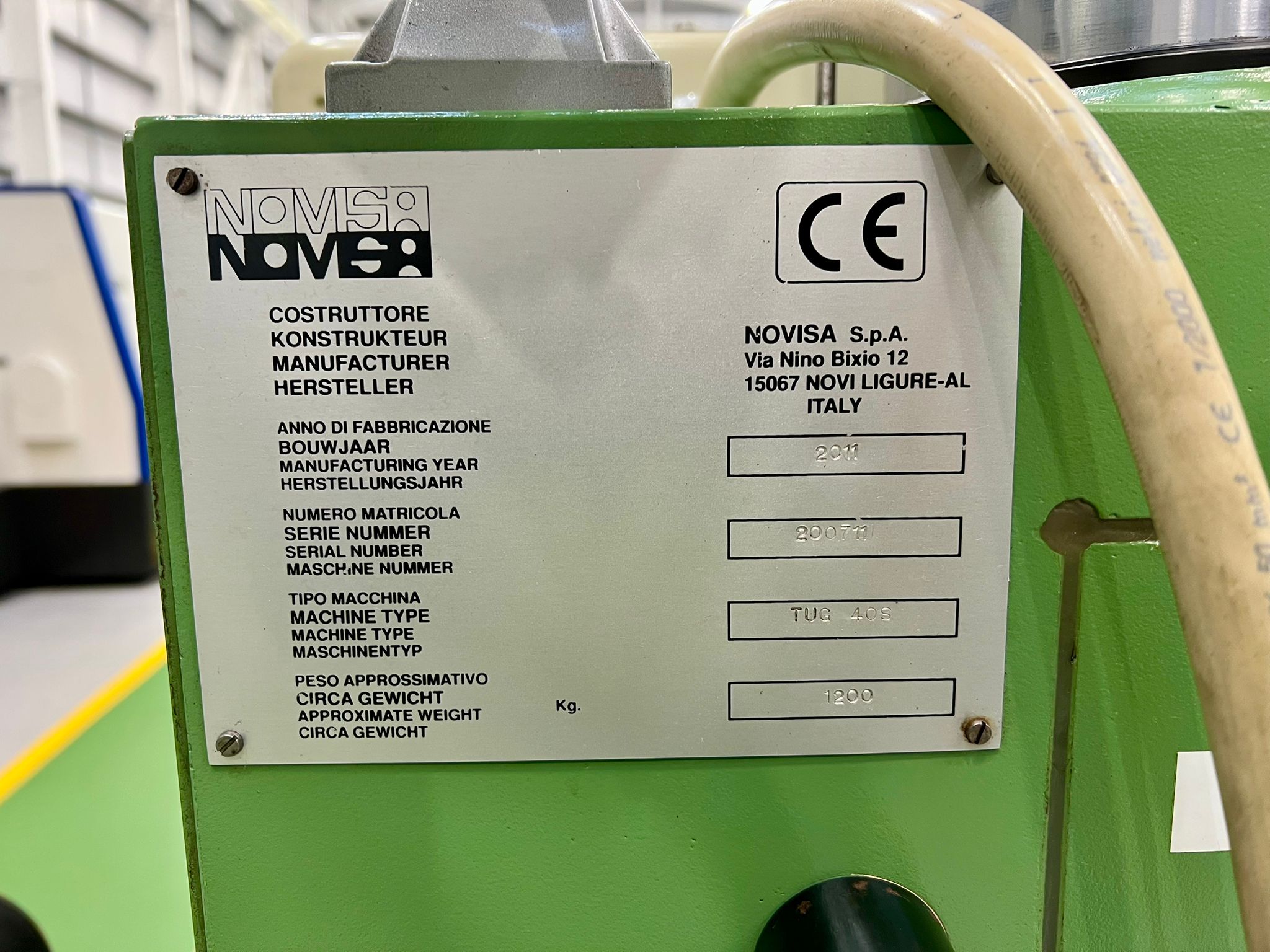

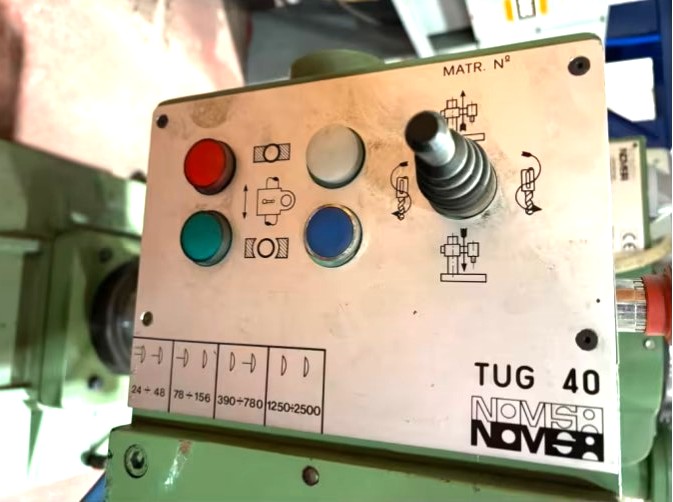

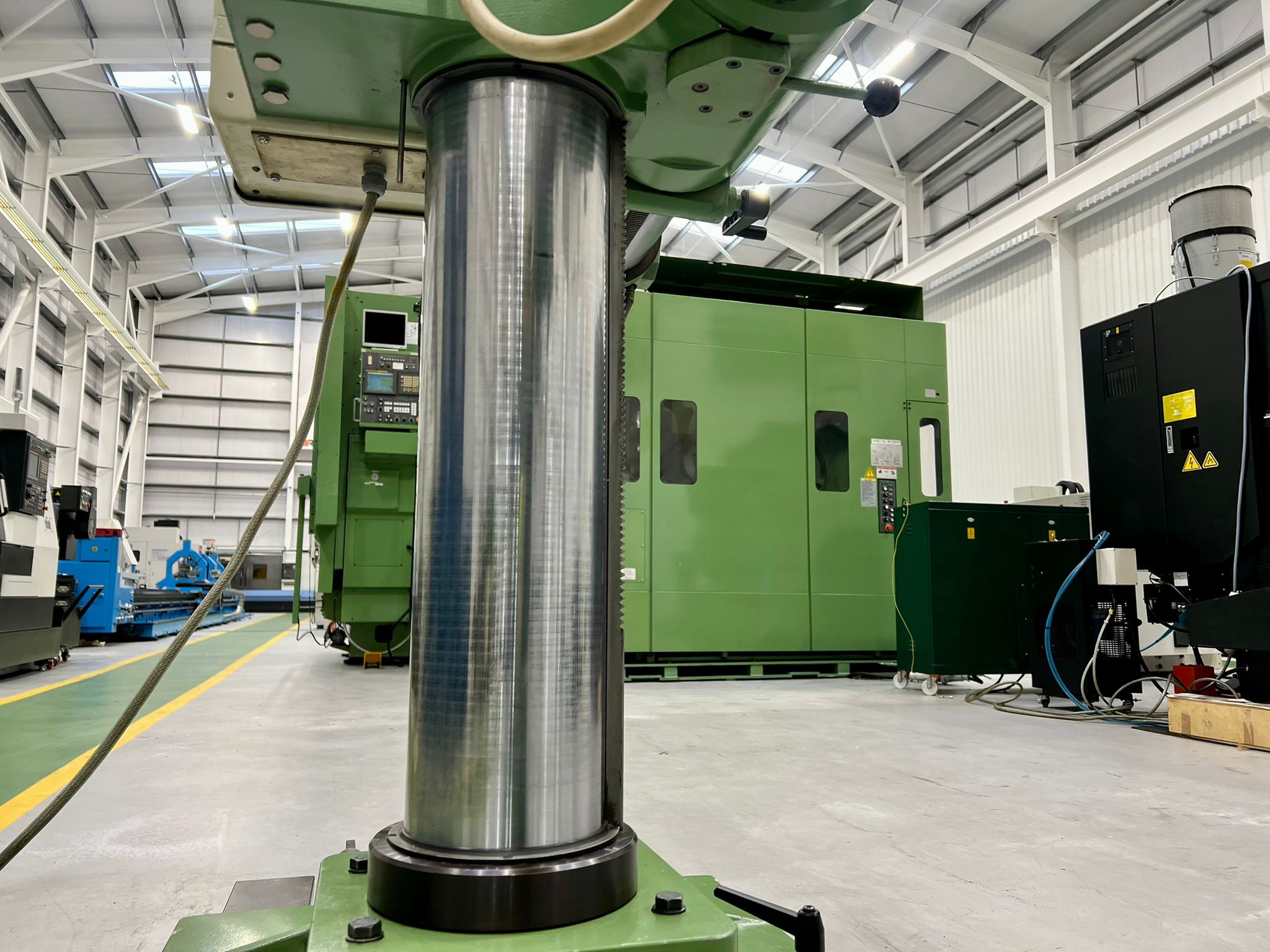

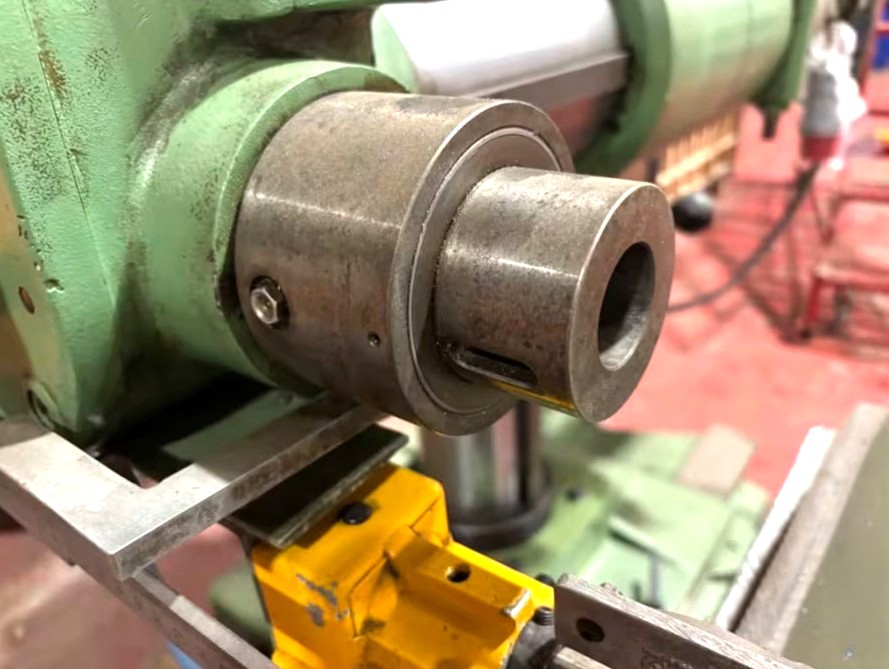

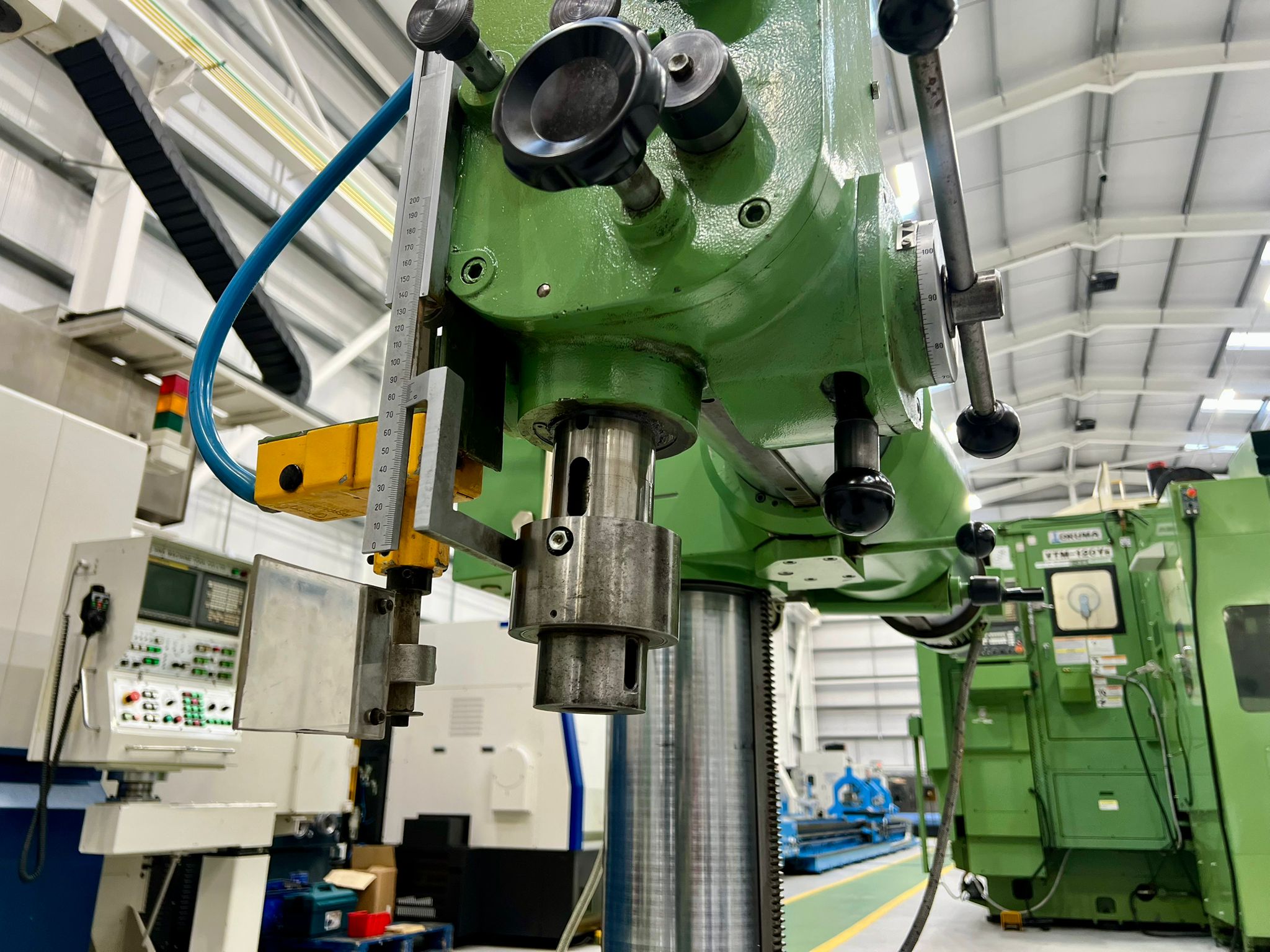

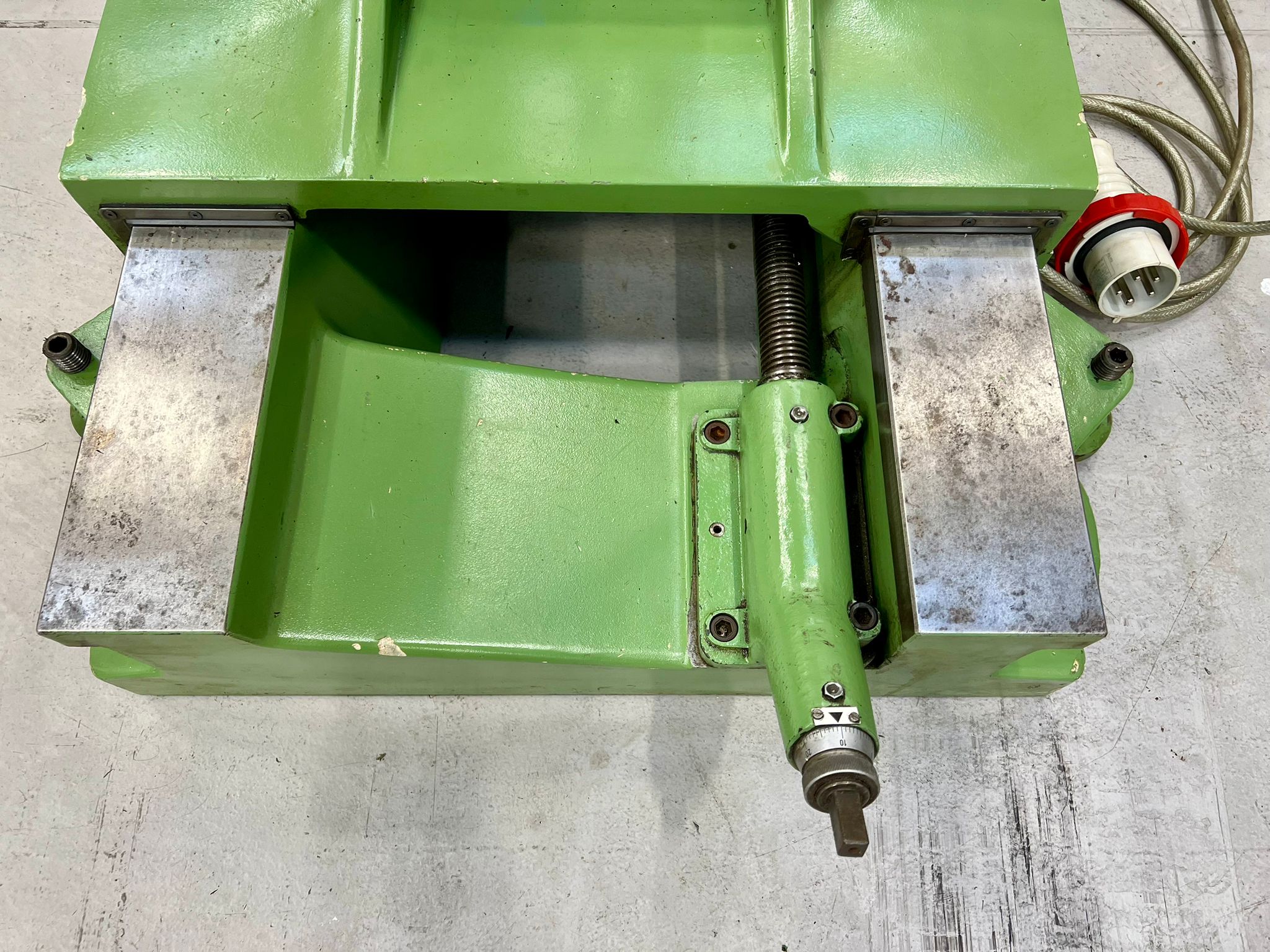

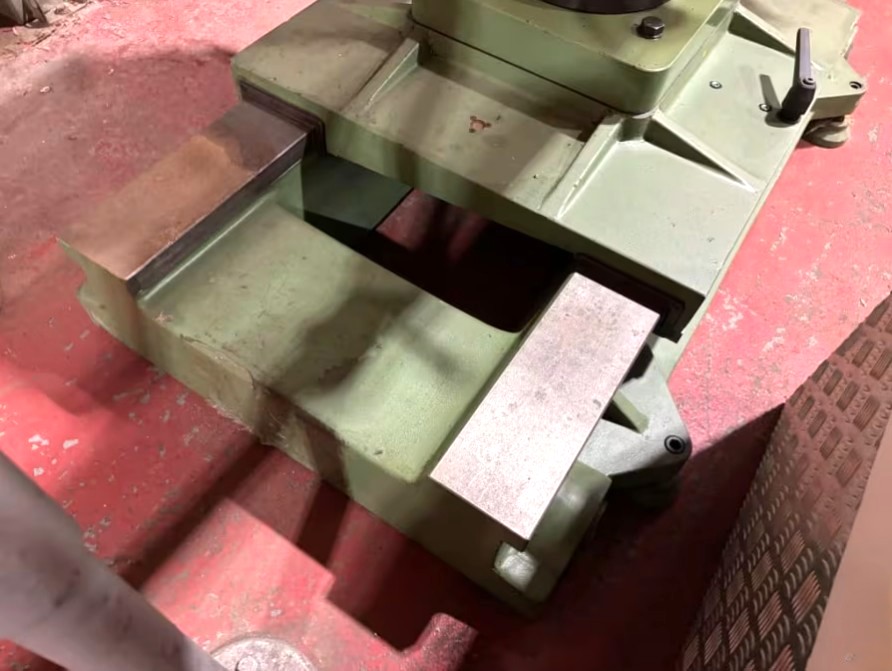

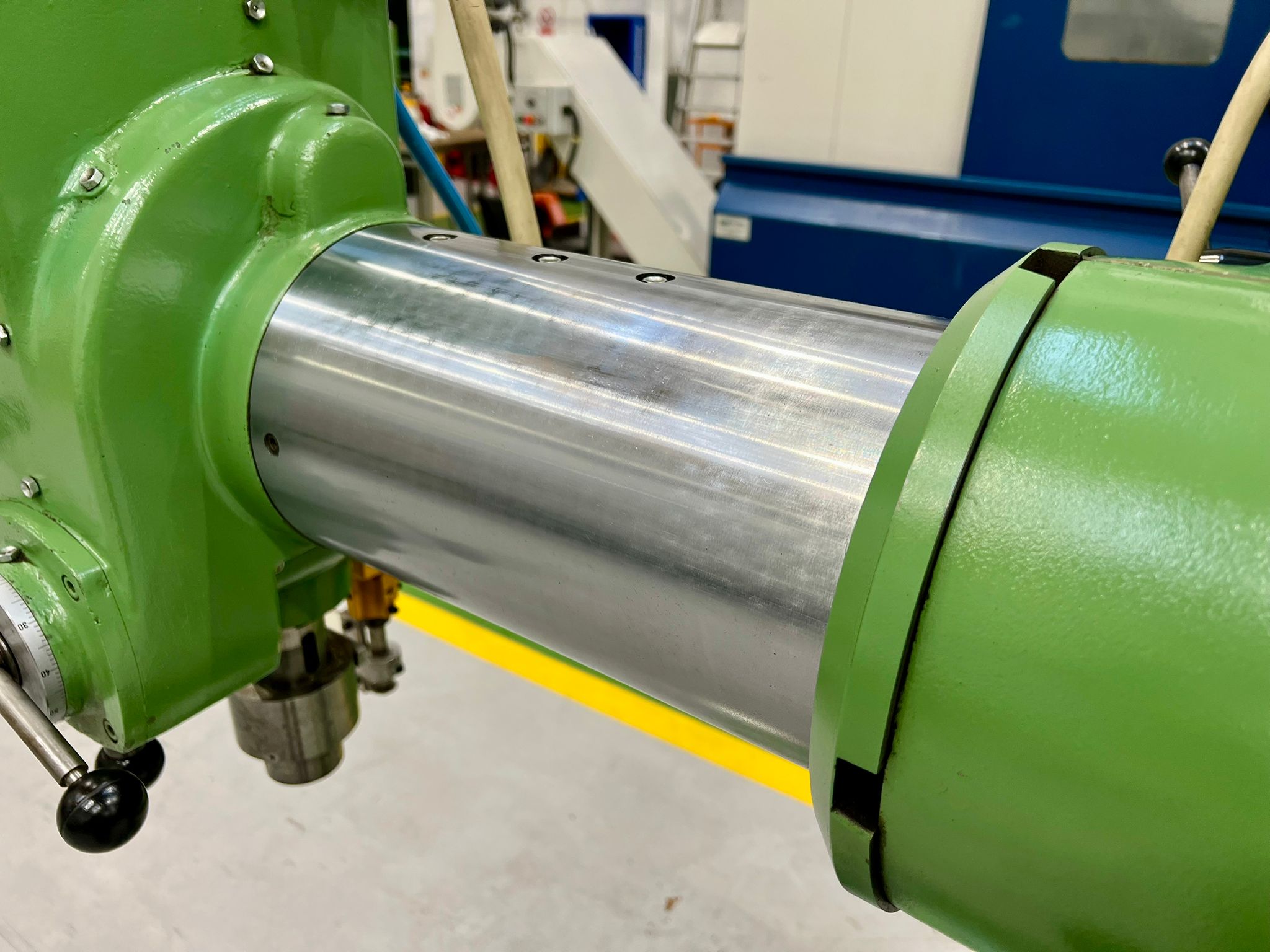

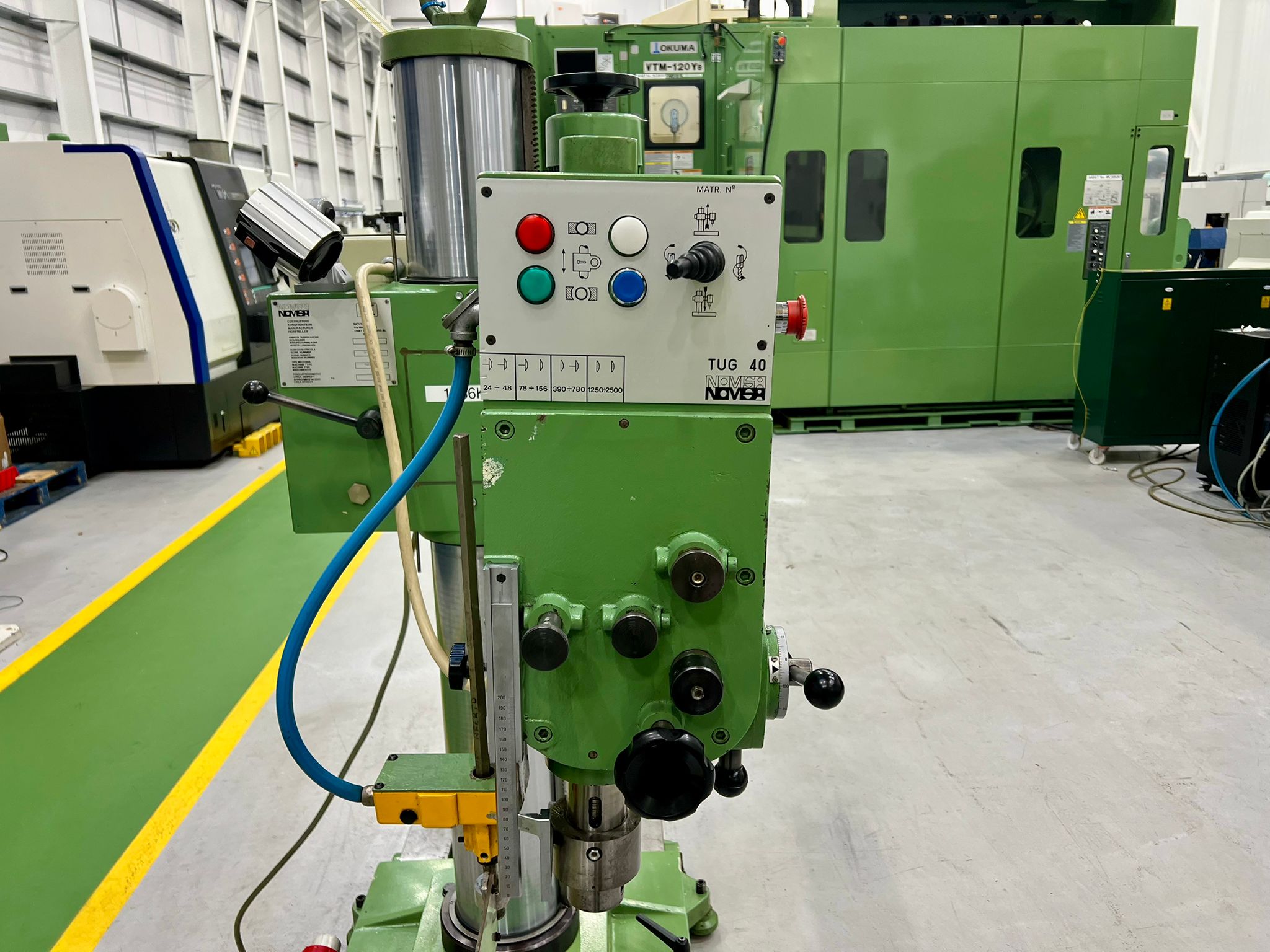

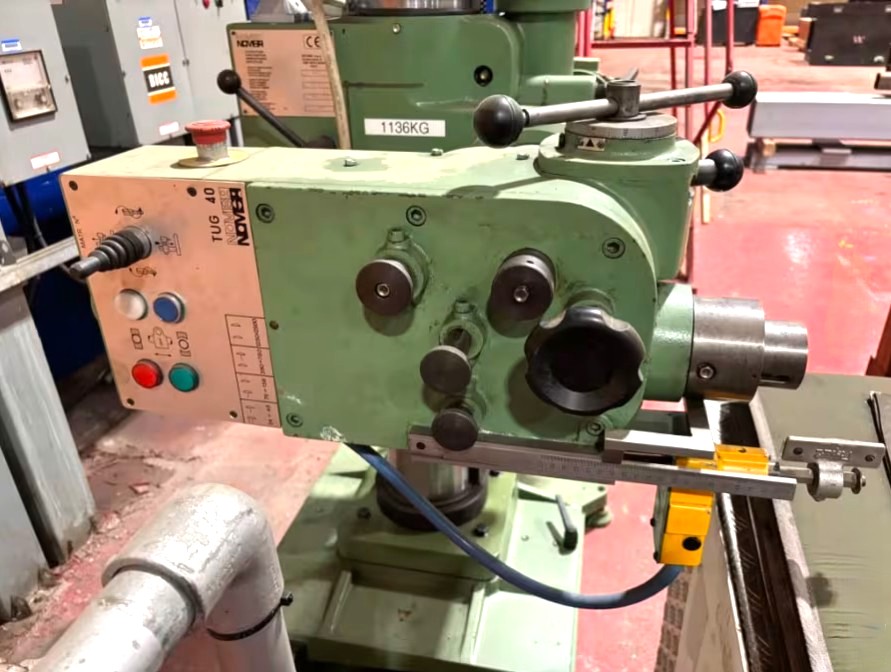

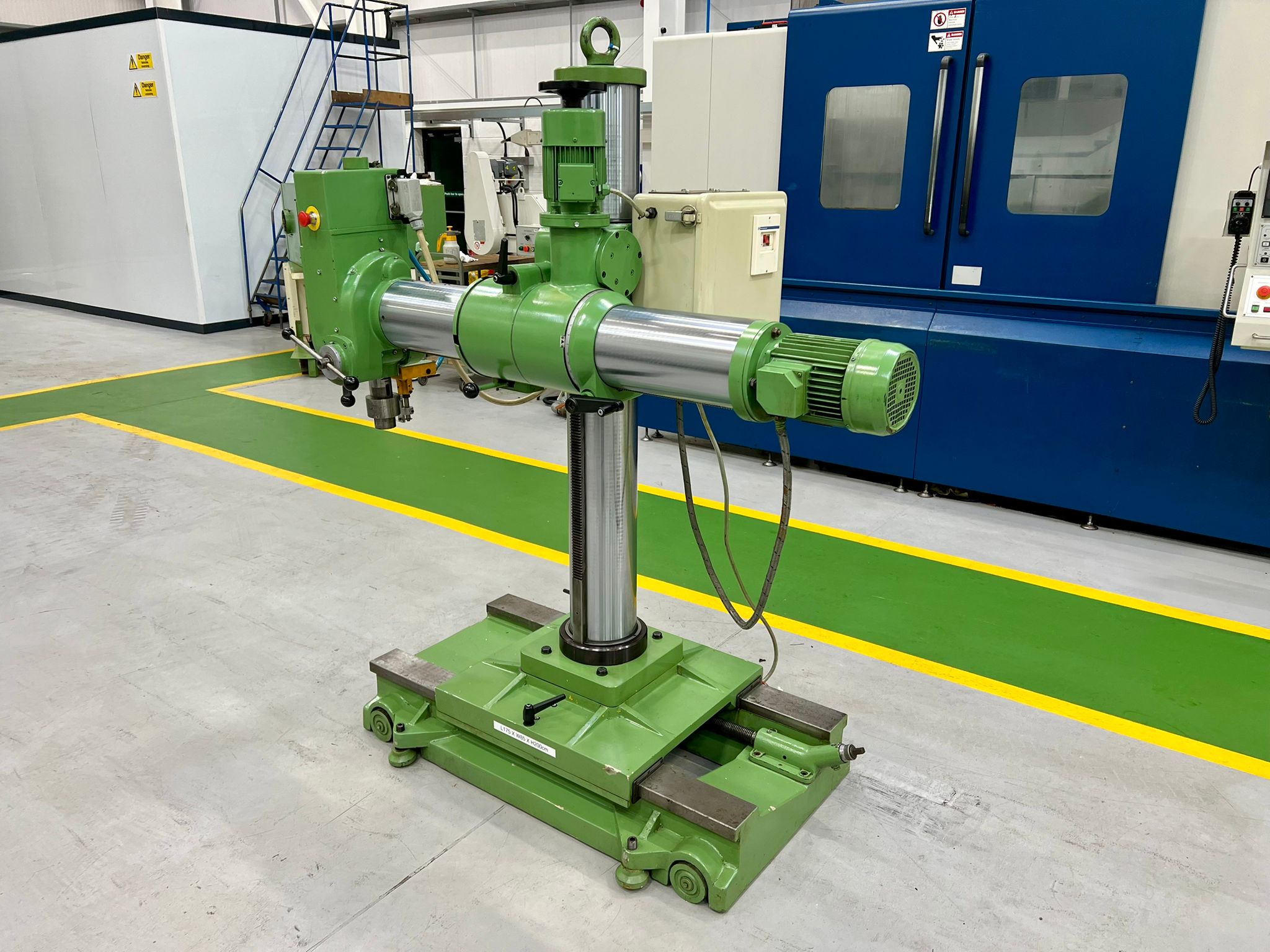

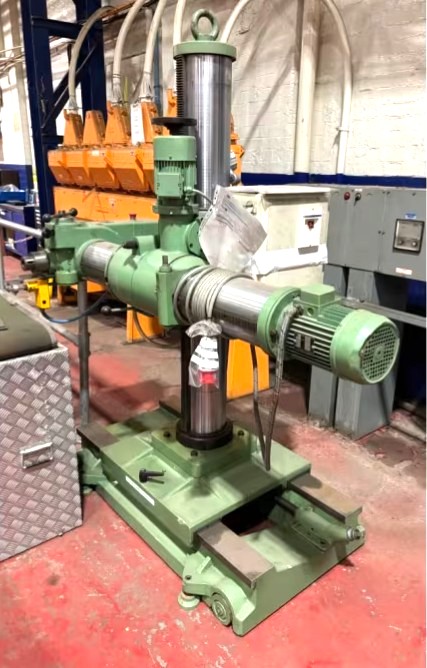

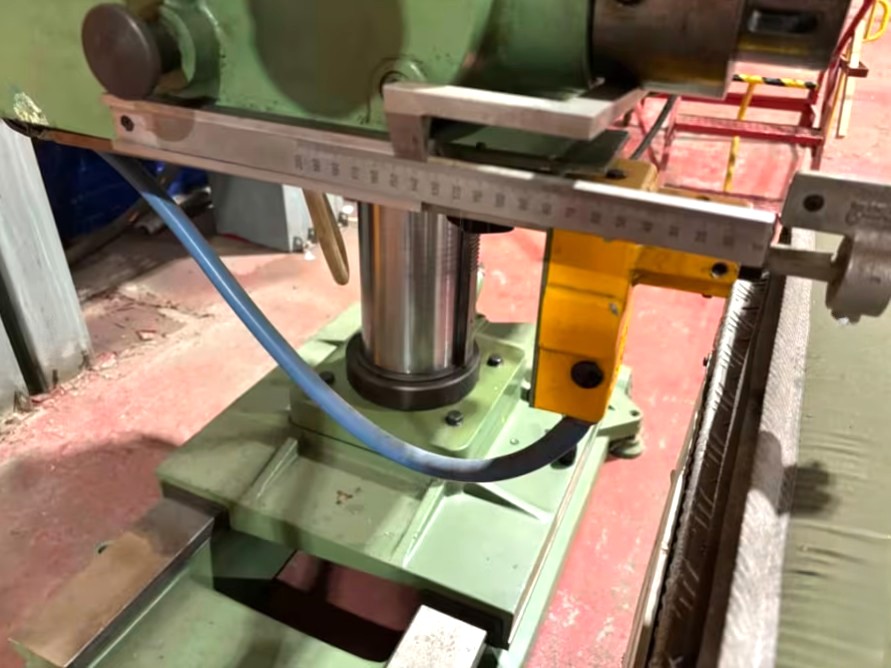

Drilling Capacity In Steel (TS 600 MPa) 32mm dia. Drilling Capacity In Iron Cast (TS 250 MPa) 40mm dia. Spindle Travel 190mm. Spindle dia. 60mm . Spindle Taper MT4. Spindle Speeds 24,48,75,150,380,760,1,200,2,400rpm. Feeds Range 0.09, 0.12, 0.25mm/rev. Min/Max Distance Between Spindle Axis & Column Axis 410mm/1030mm. Min/Max Distance Between Spindle Nose & Floor 100mm/1,300mm. Min/Max Distance From Spindle Axis To Floor (Horizontal Spindle) 560mm/1,570mm. Vertical Travel Of Arm 1,040mm. Column Travel On Bed 600mm. Bed Size 840 x 1,400mm. Head Tilting (90° Up & 90° Down) 180°. Head Rotation 360°. Column Rotation 360°. Column dia.190mm. Machine Height 2,000mm. Arm Vertical Rapid Traverse 1,650mm/min. Machine Serial No. 200711. Year of manufacture 2011.

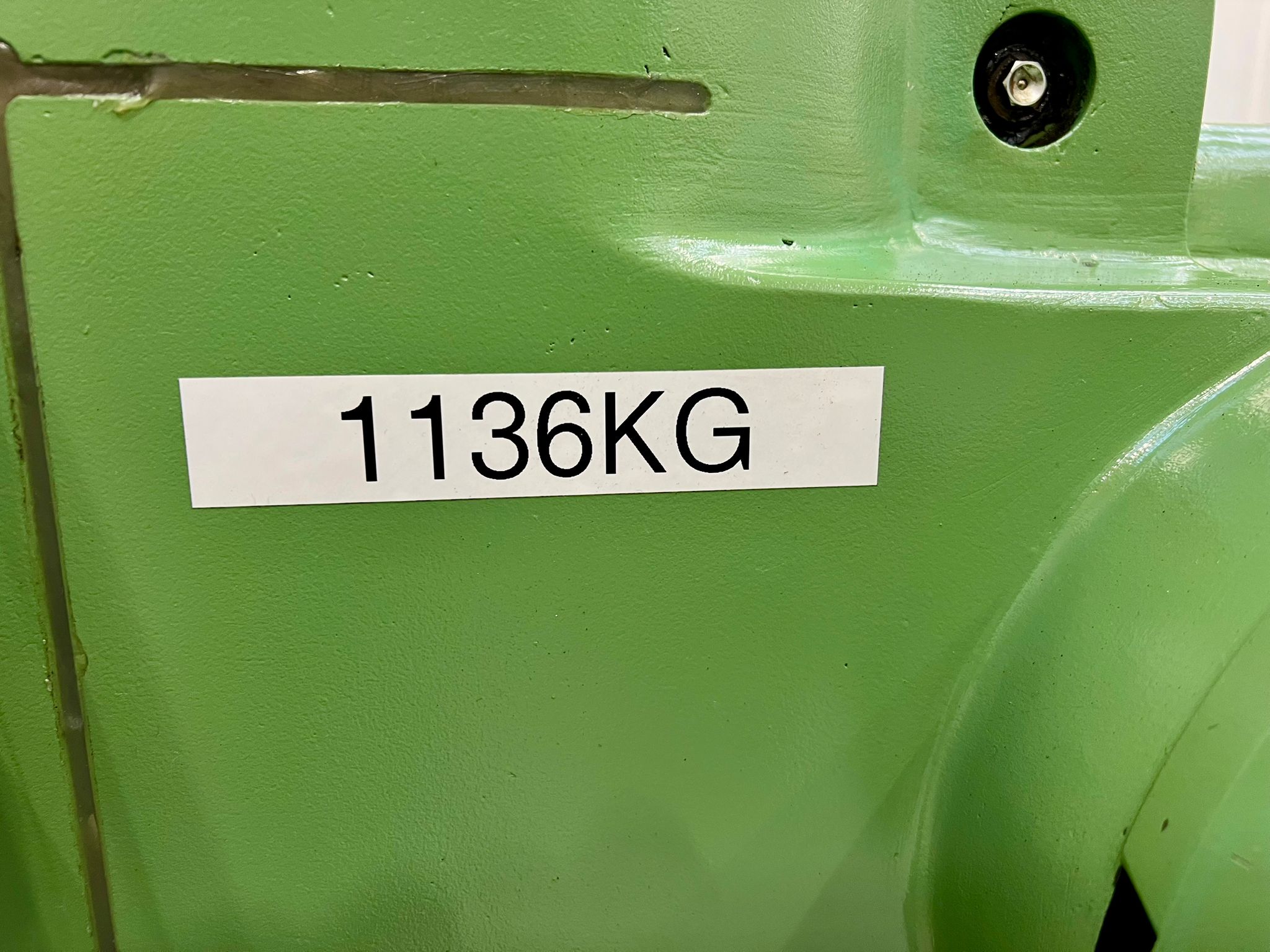

Machine Dimensions L x W x H 2100mm x 1000mm x 1600mm. Approximate Weight 1200kg.
