PROSAW Waytrain Model UE460 DSA Semi Automatic Horizontal Bandsaw with Roller Conveyor. Year 2010

PROSAW Waytrain Model UE460 DSA Semi Automatic Horizontal Bandsaw with Roller Conveyor. Year 2010

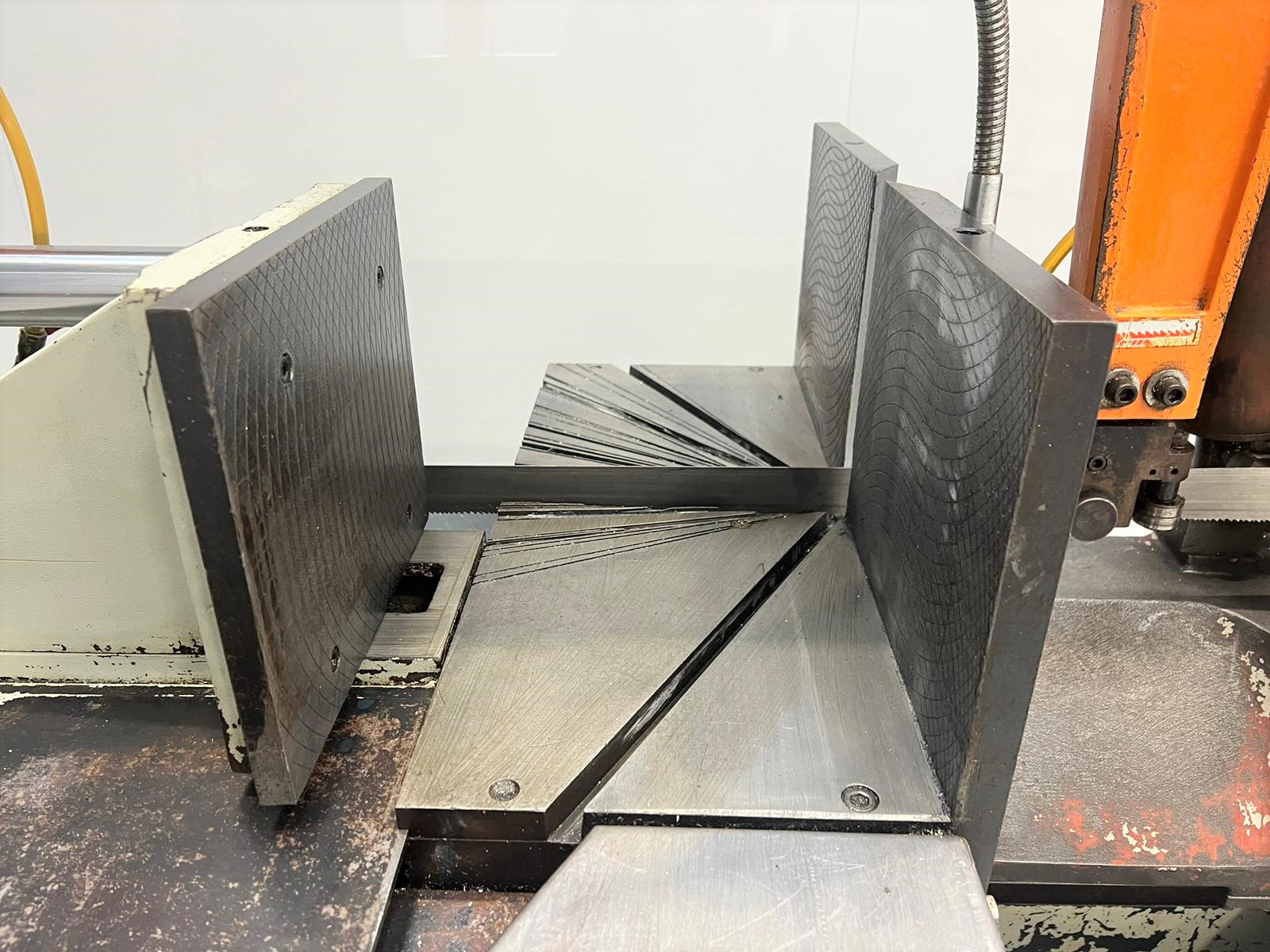

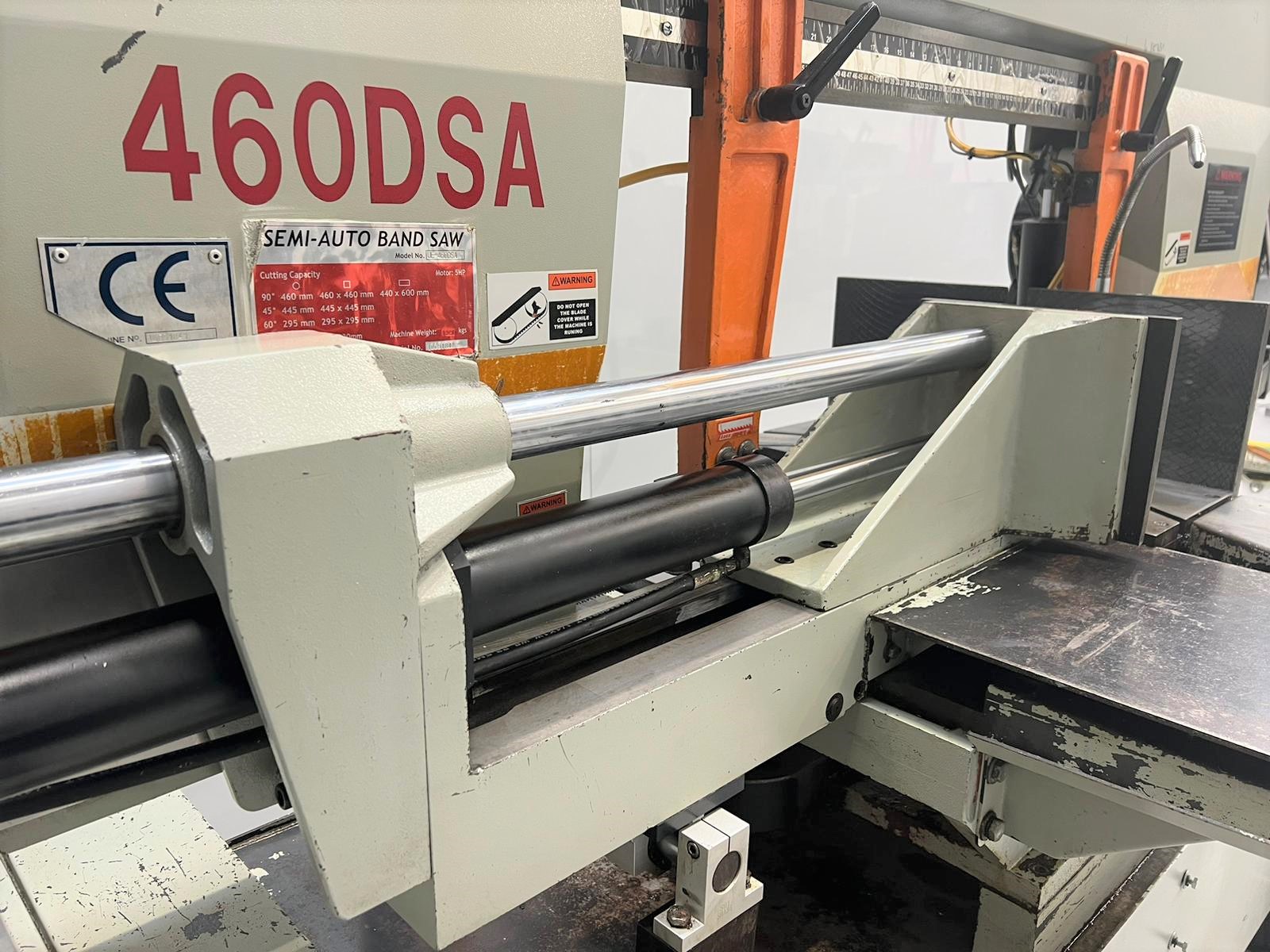

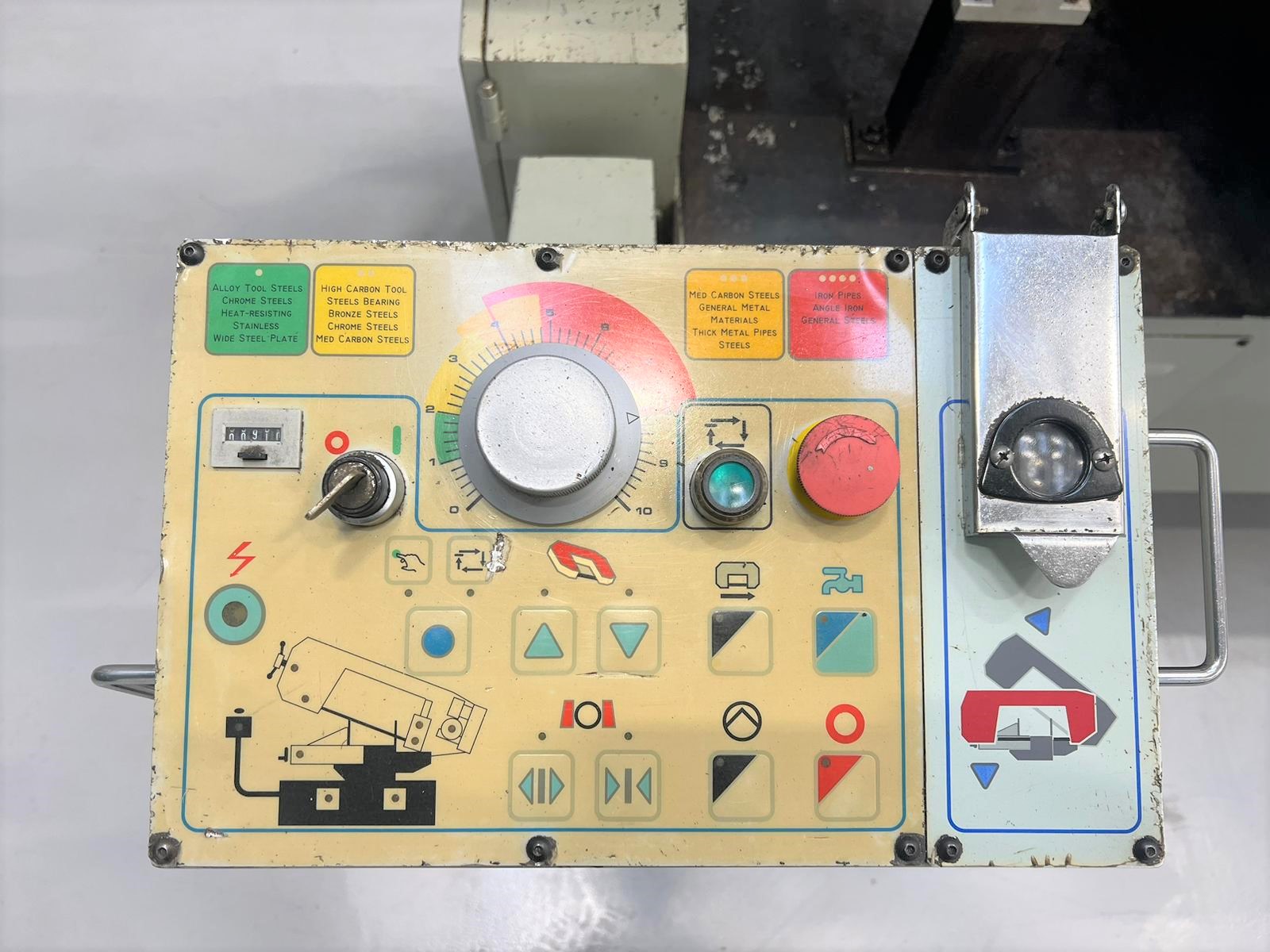

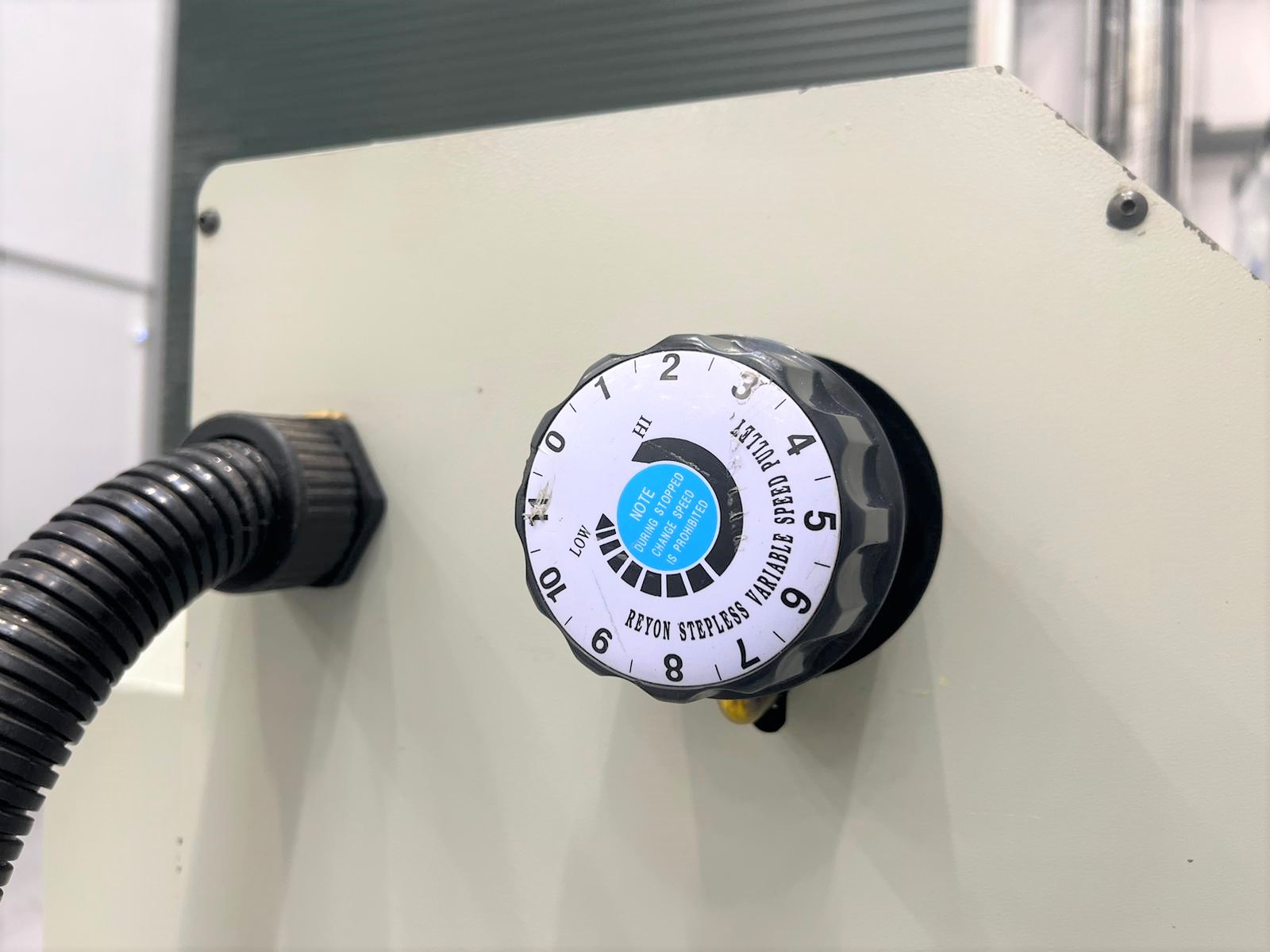

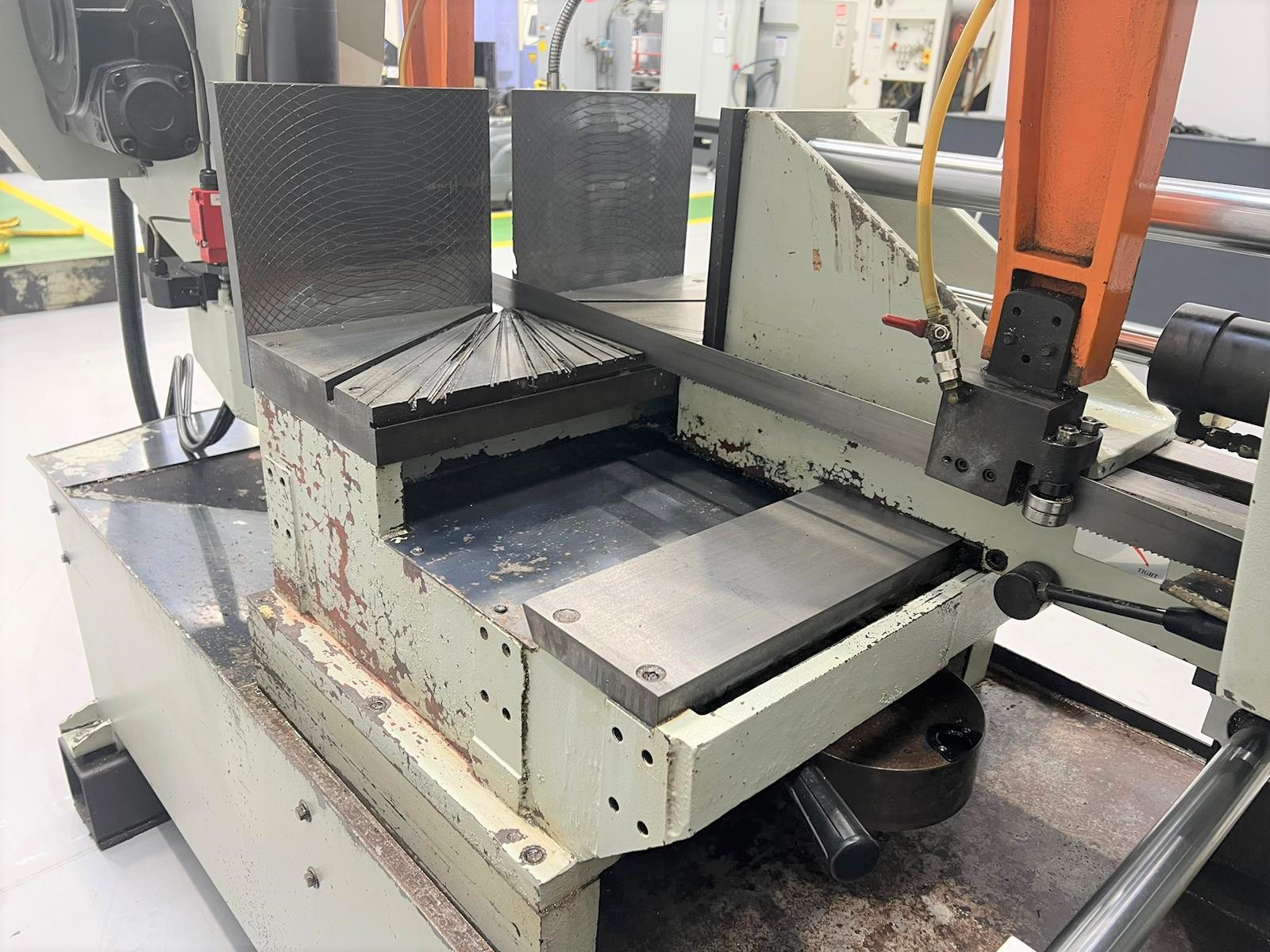

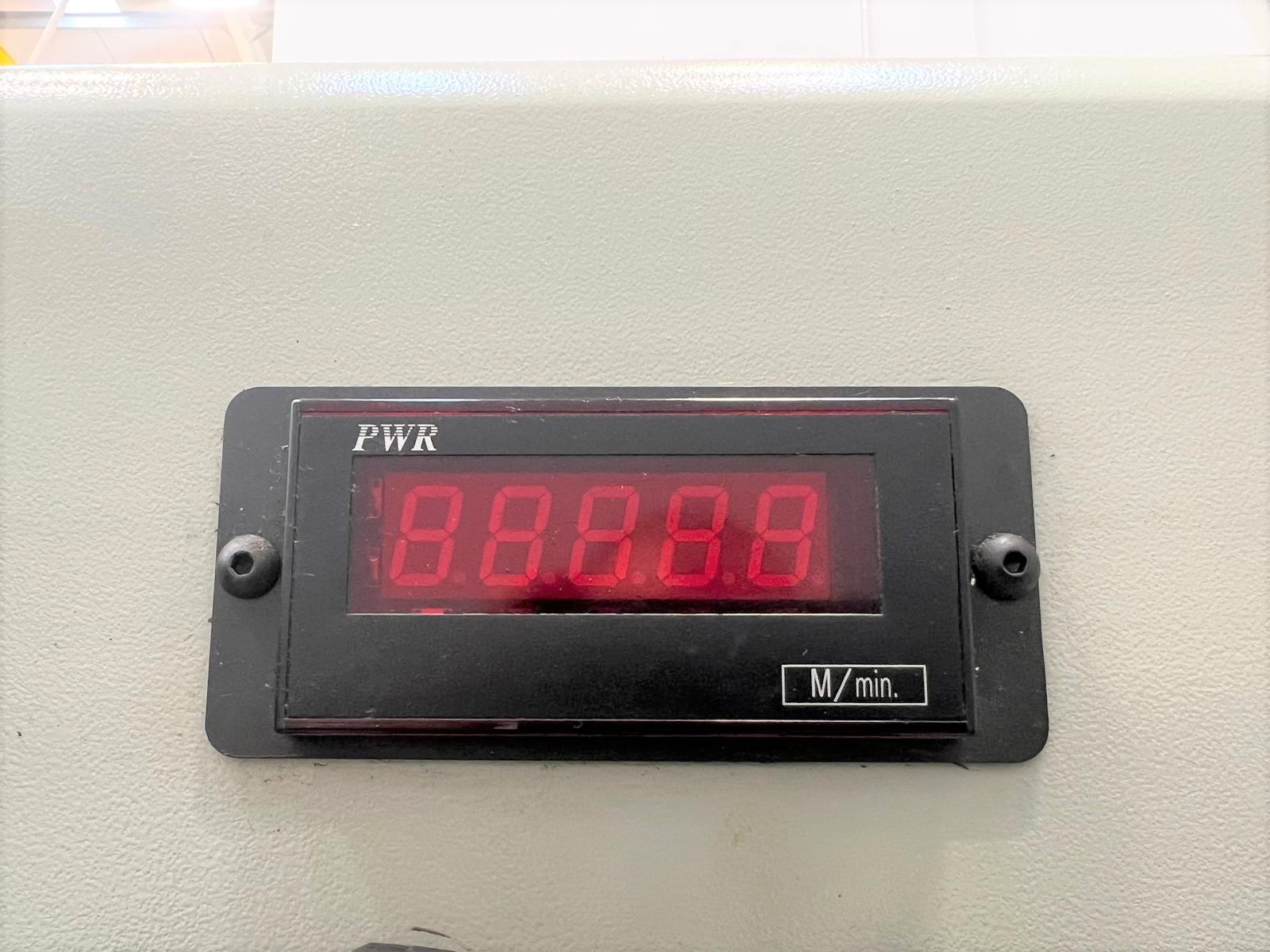

Semi-Automatic bandsaw with two way mitre up to 60 degrees. Variable blade speed, Hydraulic Vices and Powered Bow. Heavy duty bow, cast guide arms with carbide pads for fast accurate cutting. Easy mitre 60° – 0 – 60°. Full stoke hydraulic vice with vice pressure reduction. Automatic head height setting. Infinitely variable blade speed 26 – 80m/min. Blade speed readout. Variable downfeed control. Laser line for accurate material positioning. Swivelling control box. Motor driven chip brush. Blade dimensions 5330mm × 41mm × 1.3mm. Main motor 3.7 kW. Hydraulic tank 15 litres. Coolant tank 55 litres.Machine weight 1320 kg. Capacities at 90 degrees: 460mm dia.round/rectangular section horizontal 640mm x 360mm/rectangular section vertical 600mm x 440mm/square section 460mm x 460mm. Capacities at 45 degrees: (left & right) 445mm dia./445mm x 445mm square. Capacities at 60 degrees: (left & right) 295mm dia./295mm x 295mm square.



Price: £POA

Reference ID: 29433

Price Enquiry


or call us on 0161 633 8880
