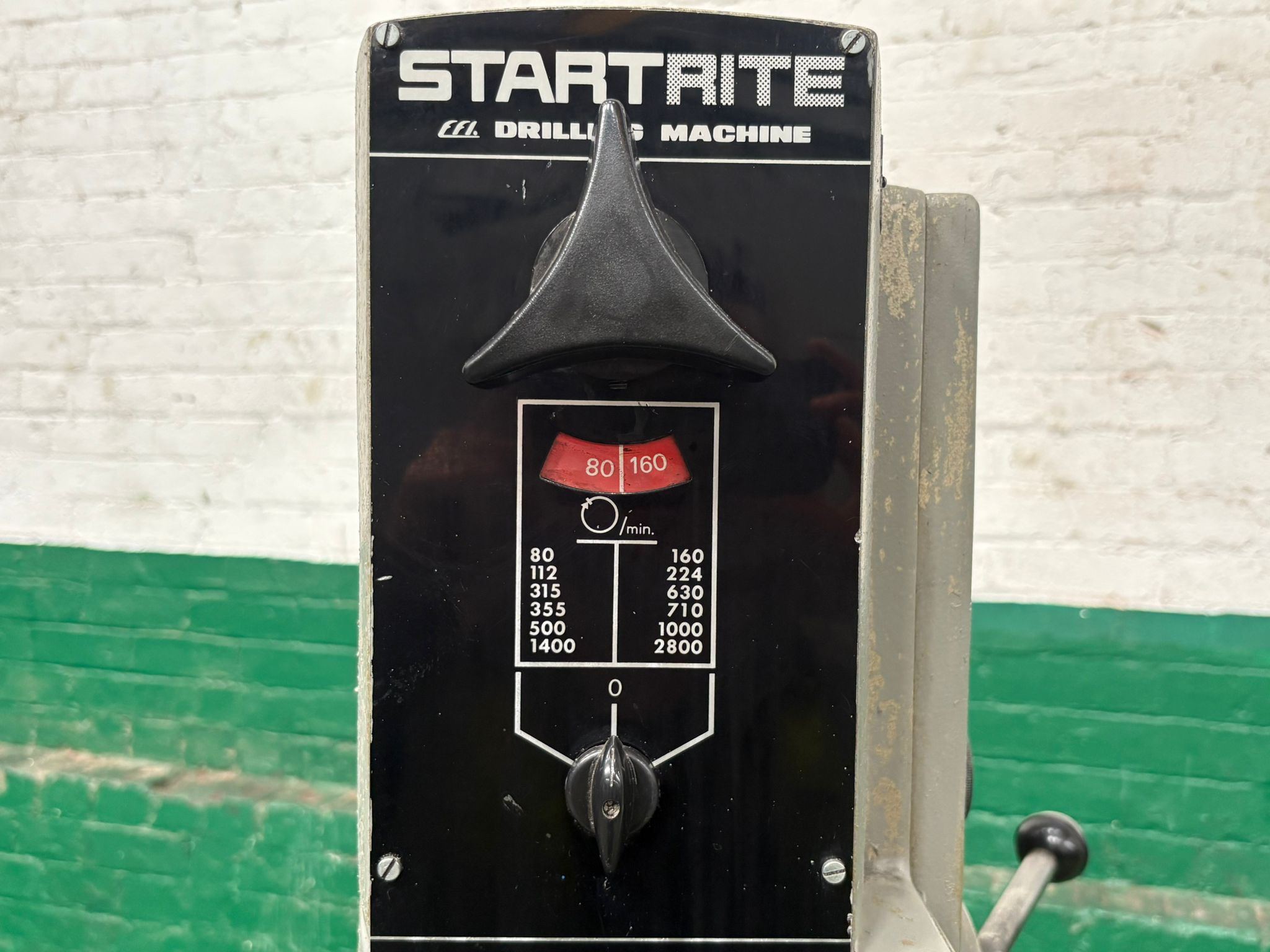

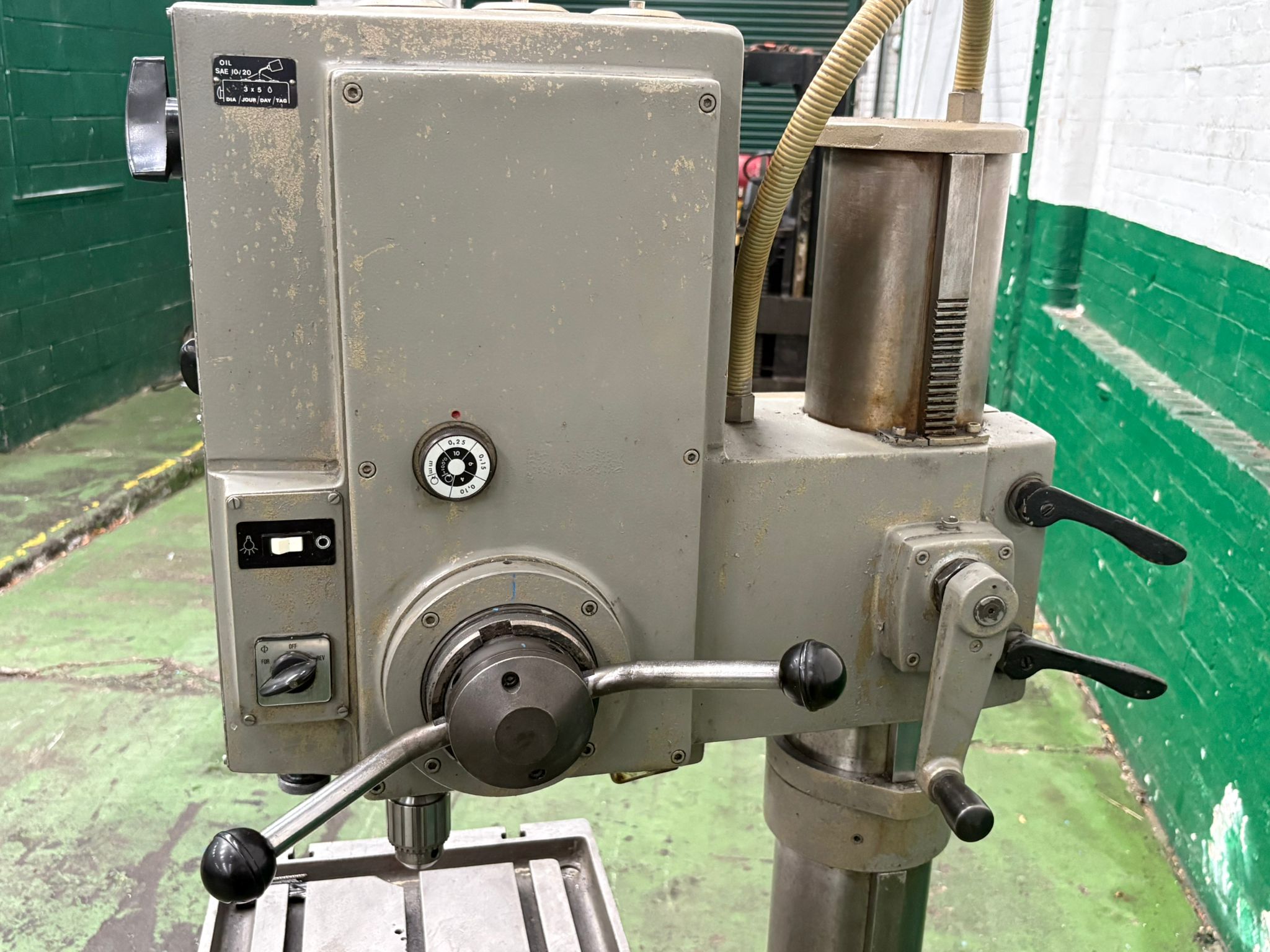

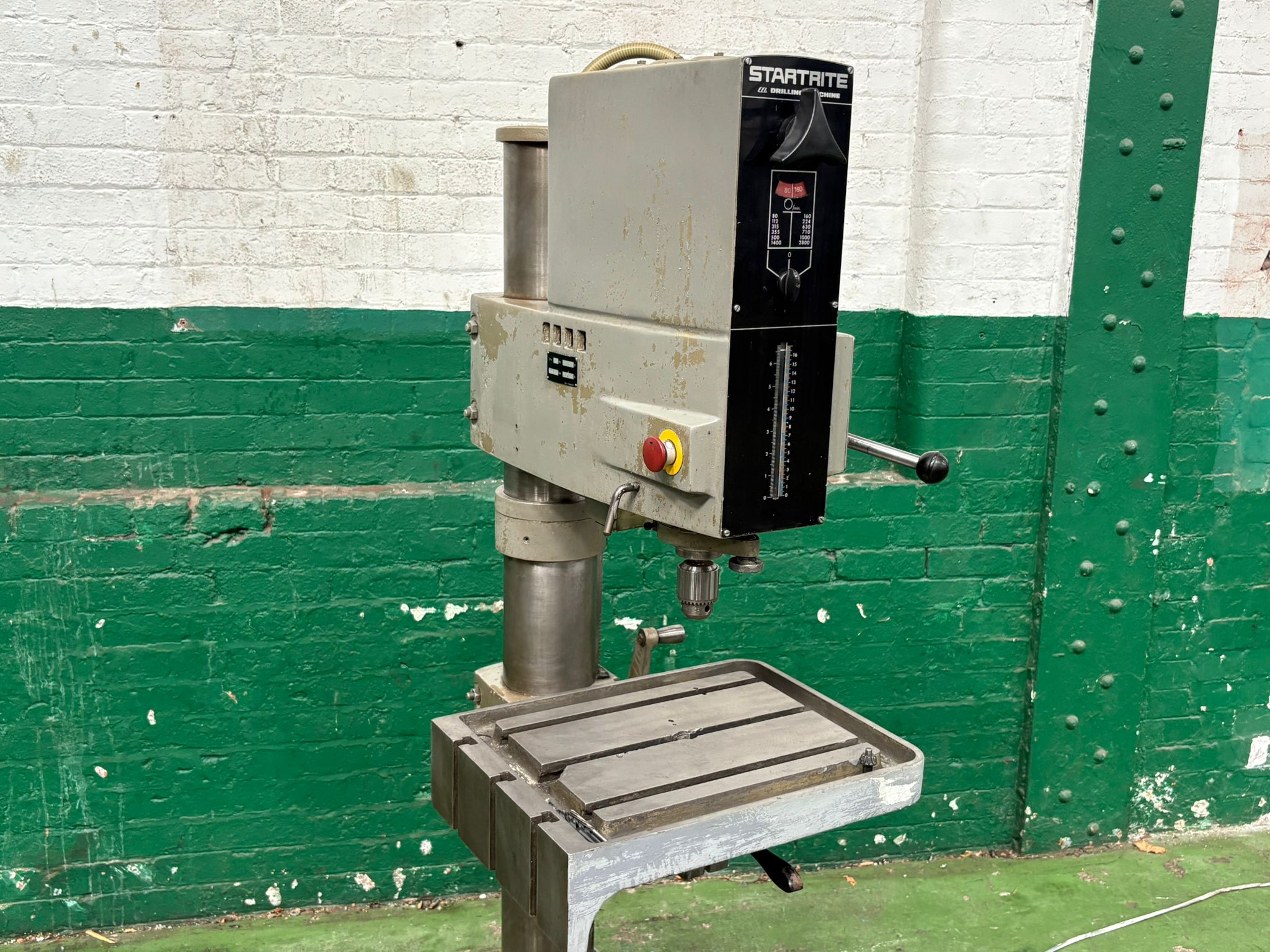

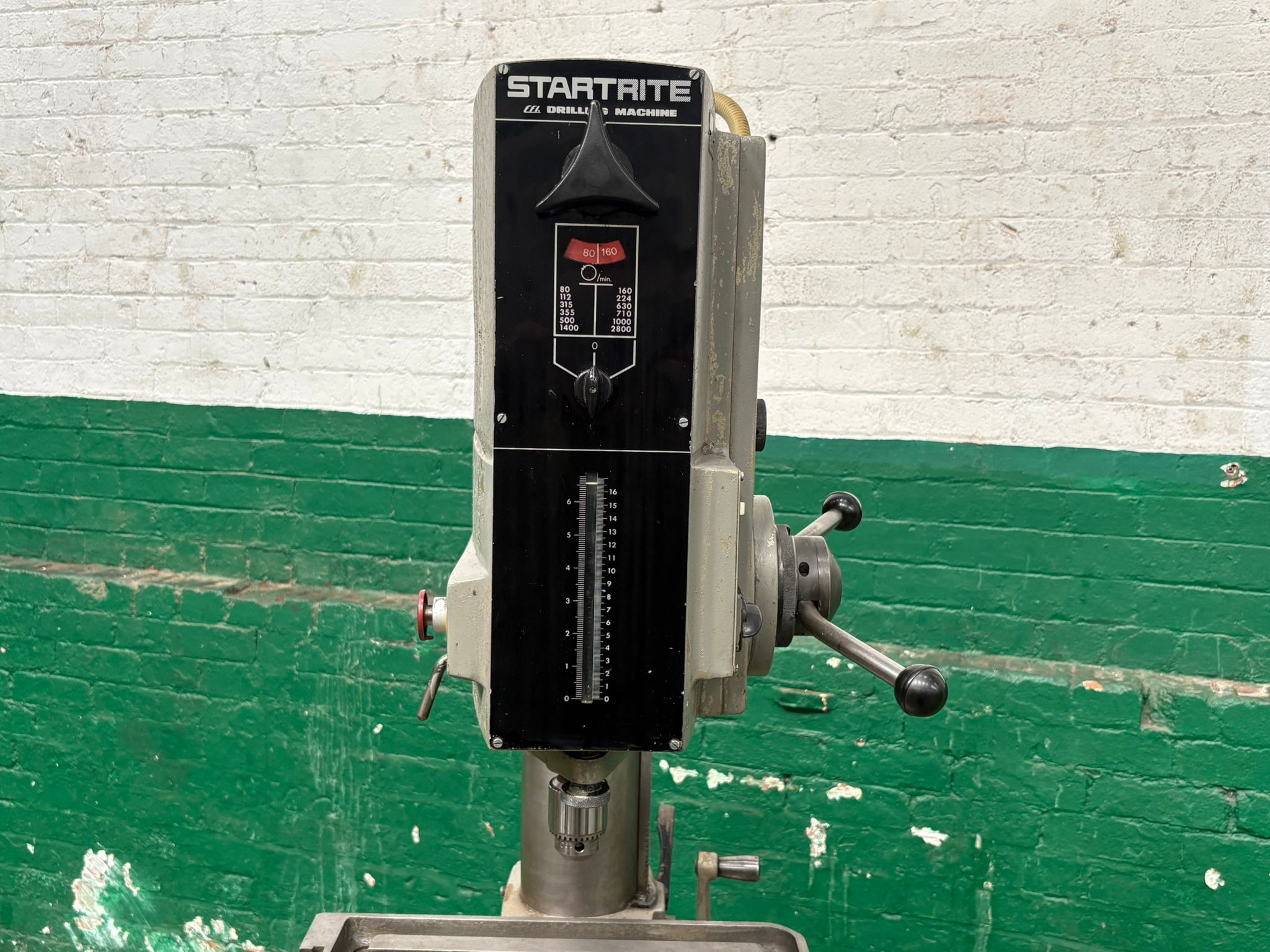

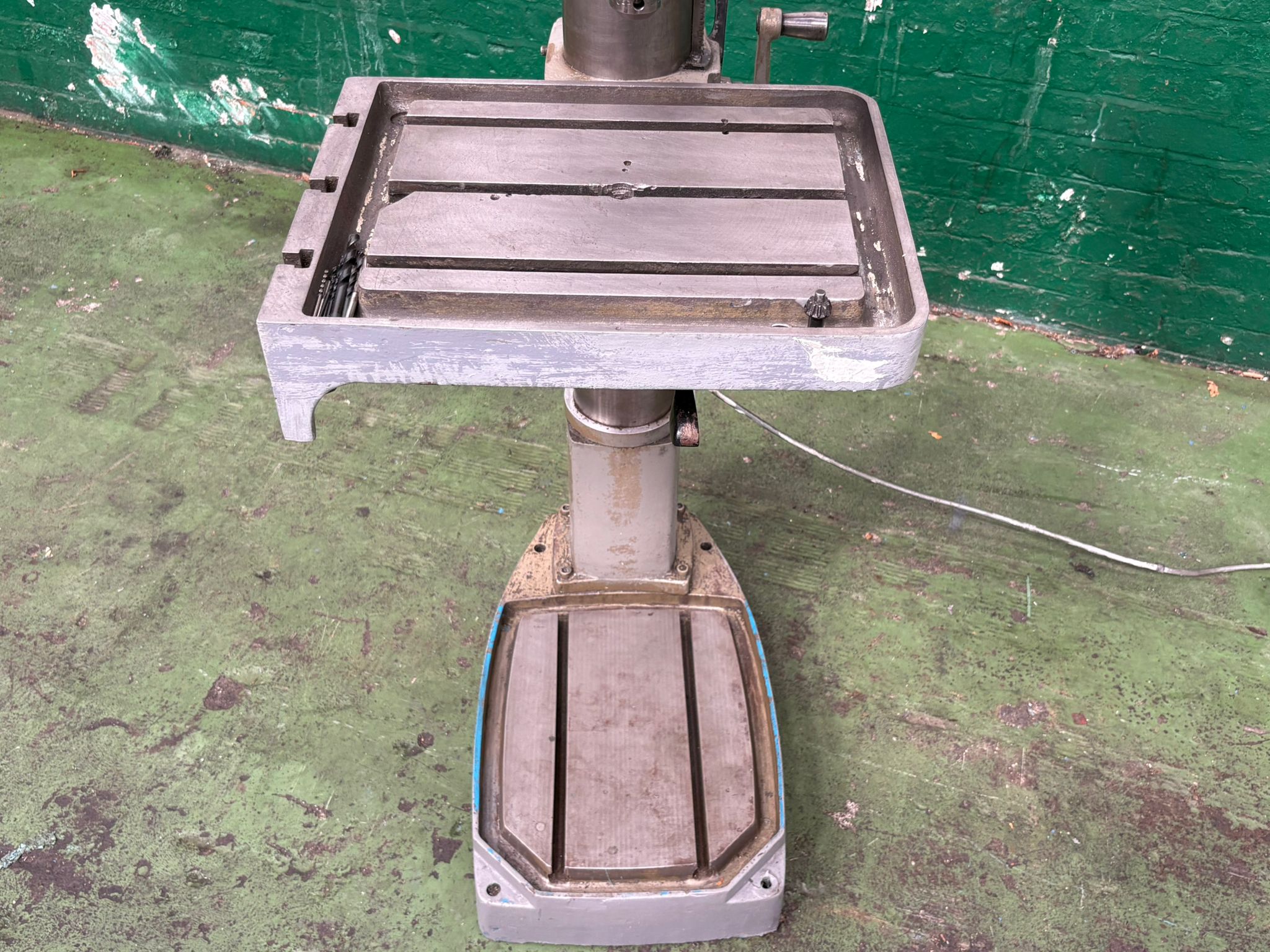

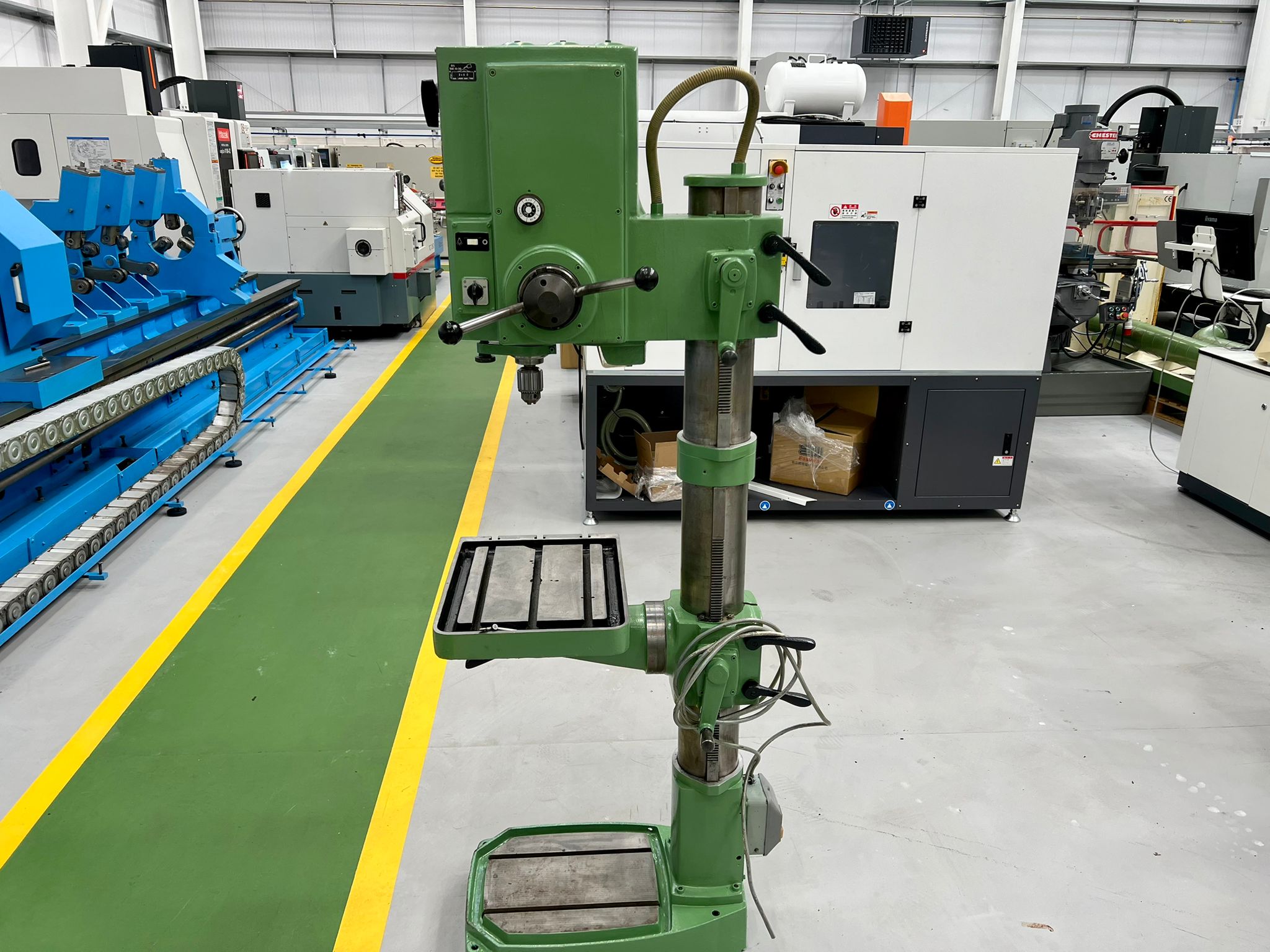

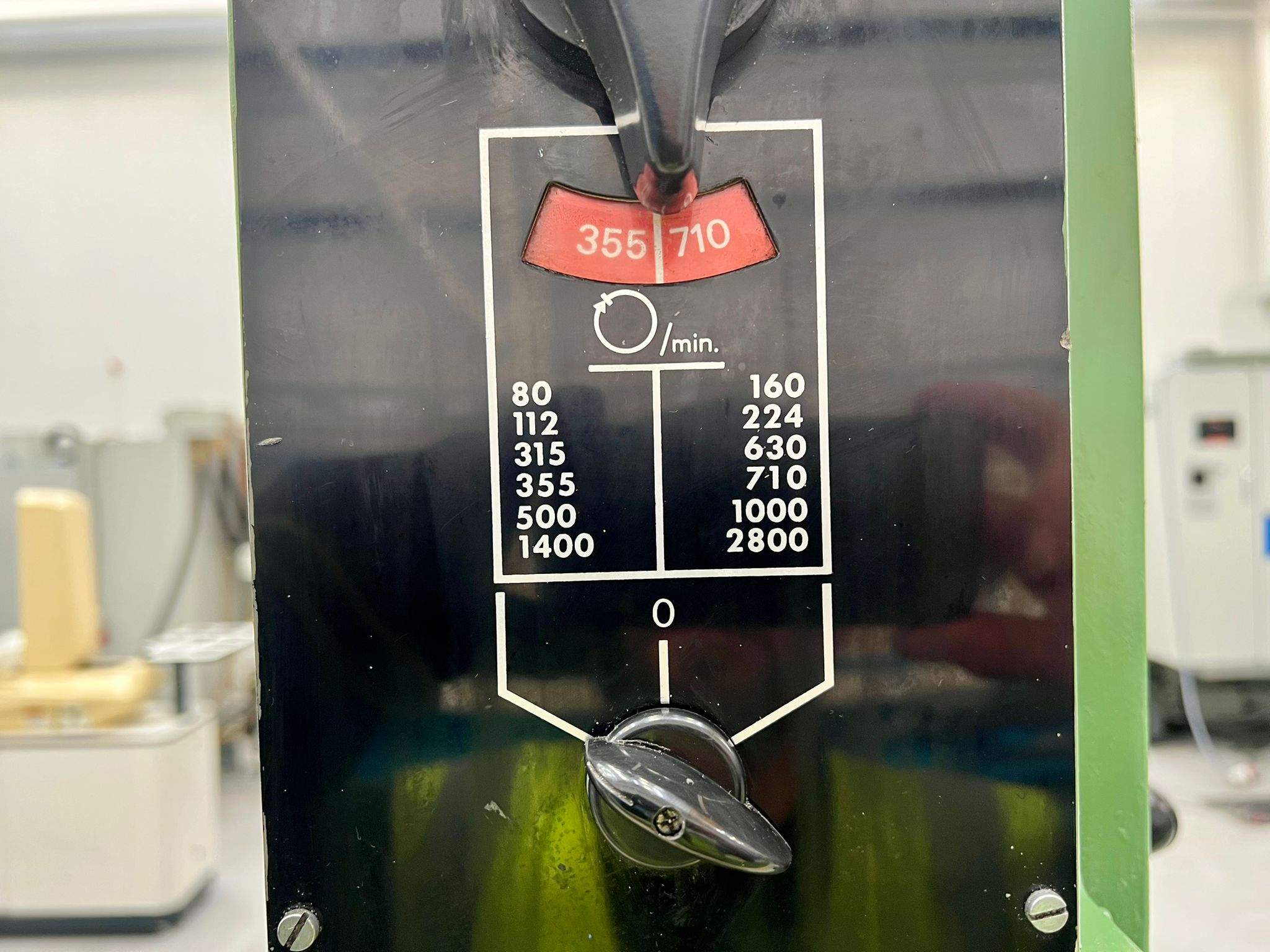

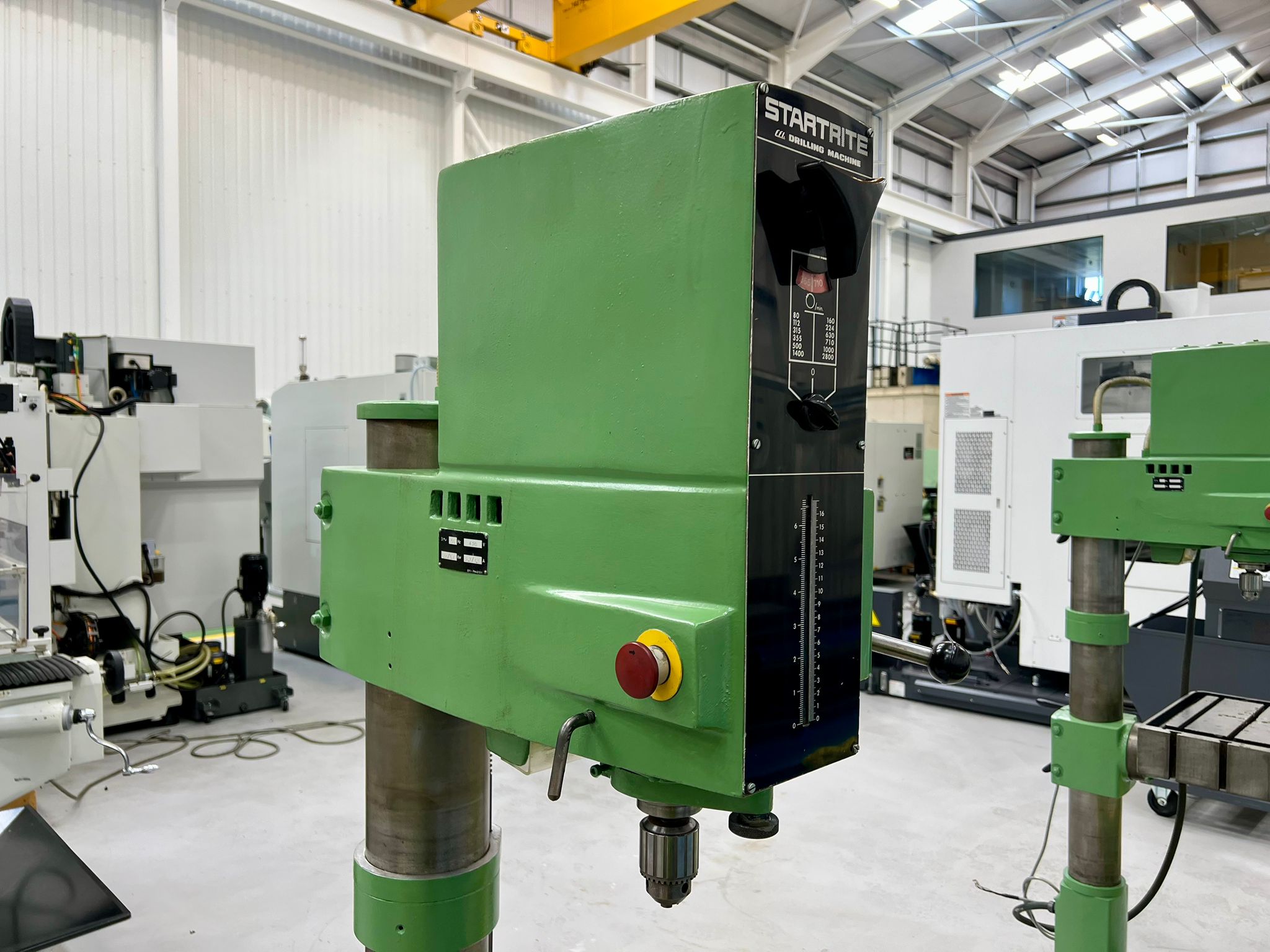

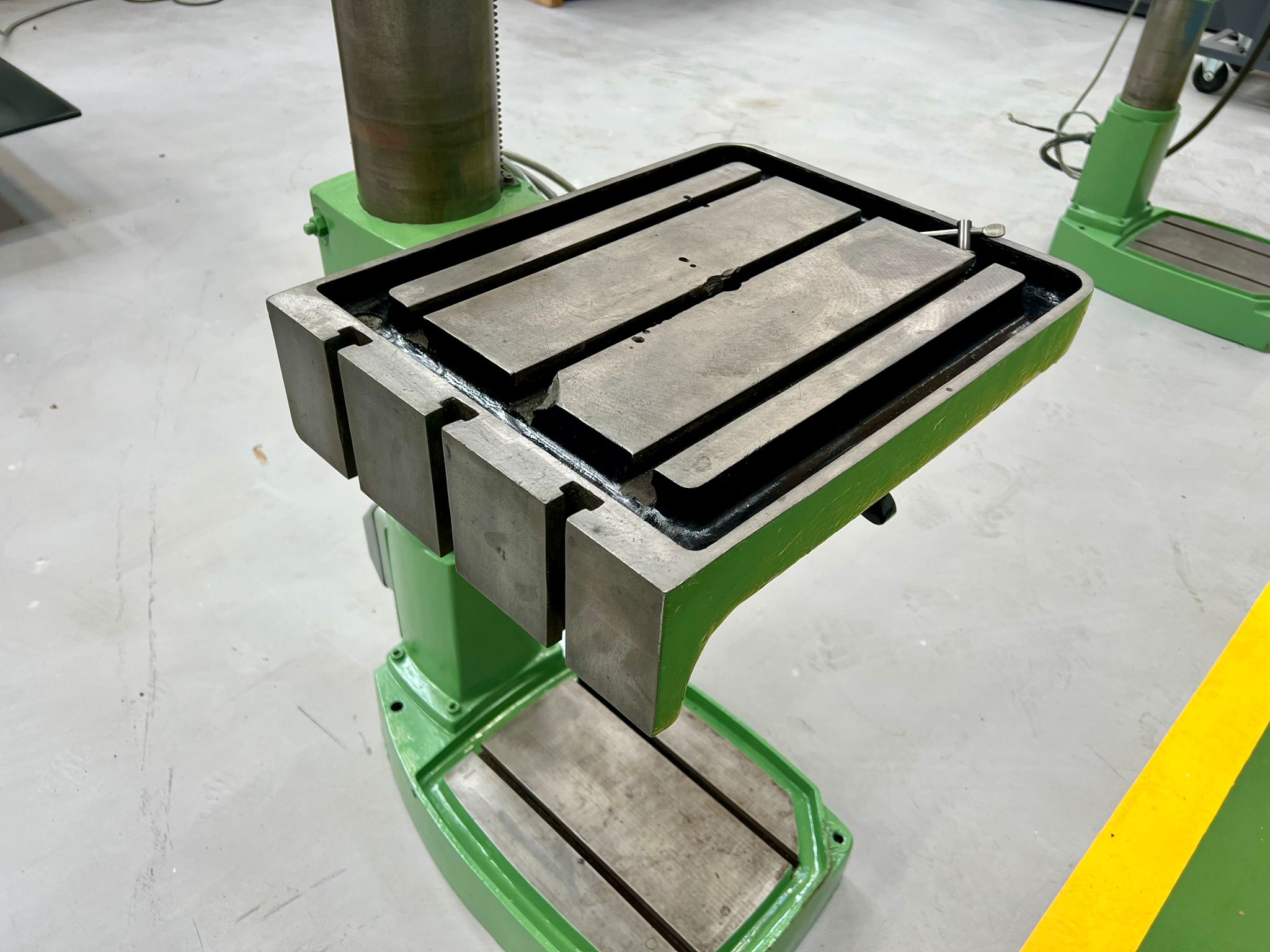

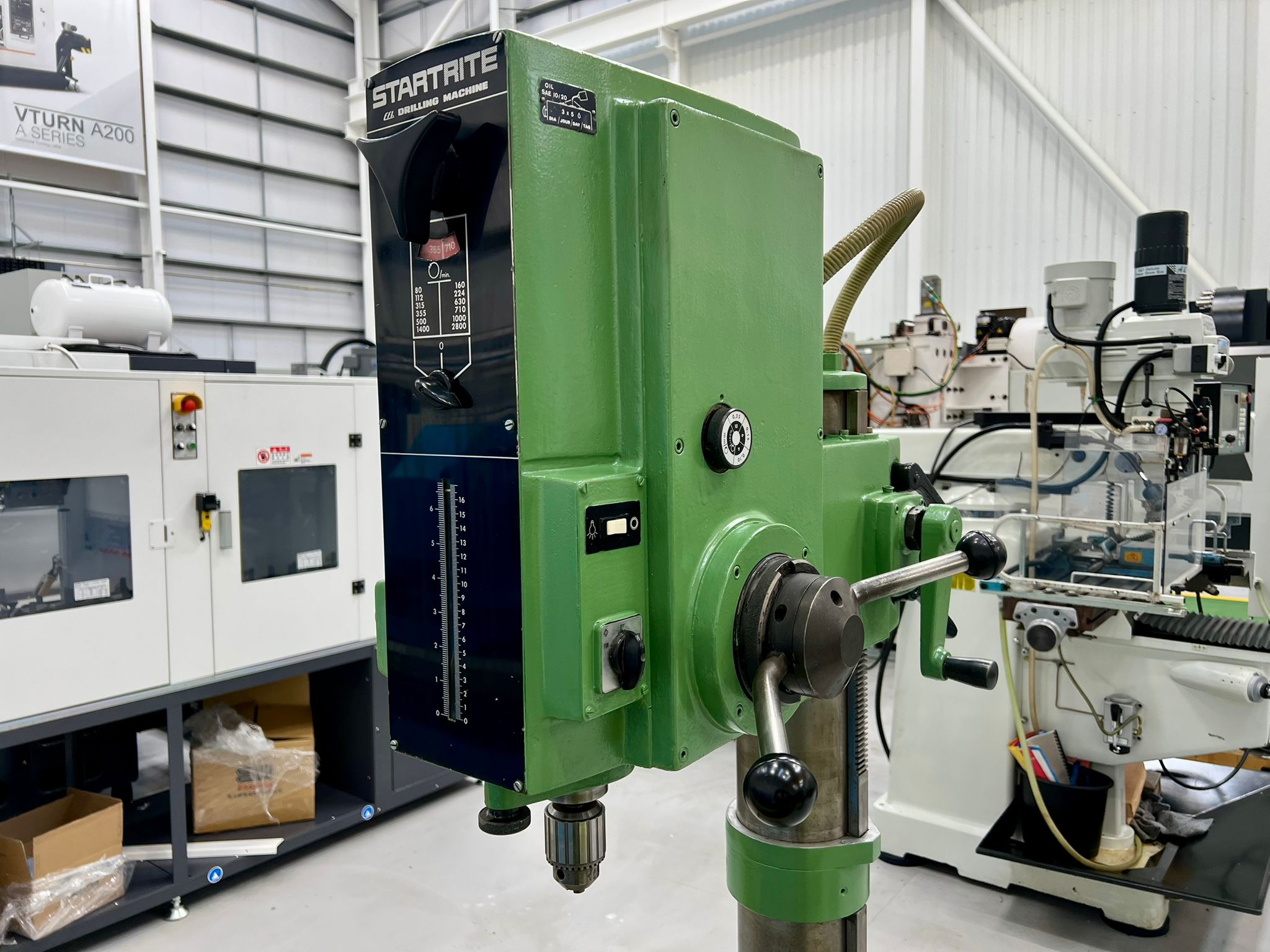

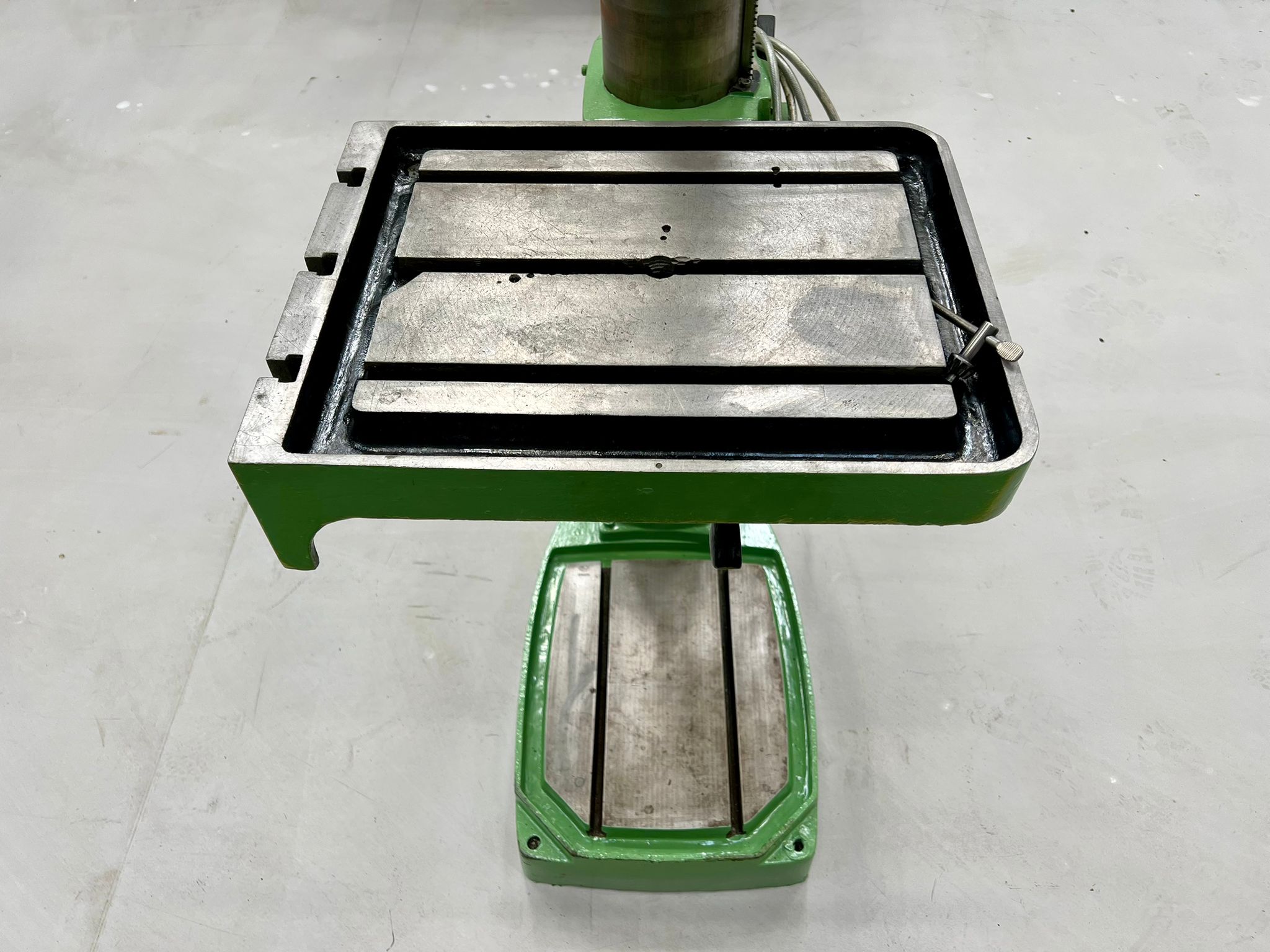

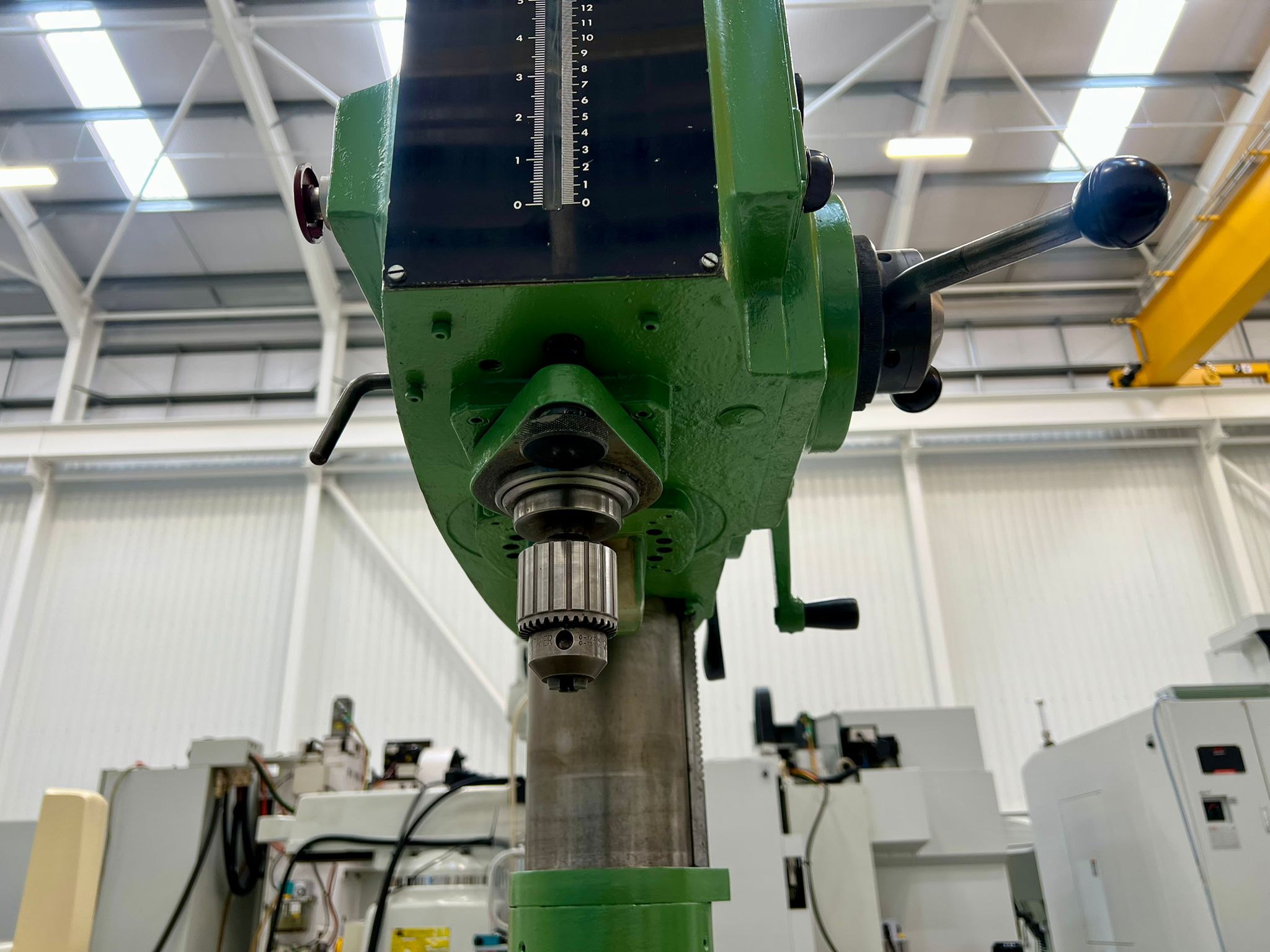

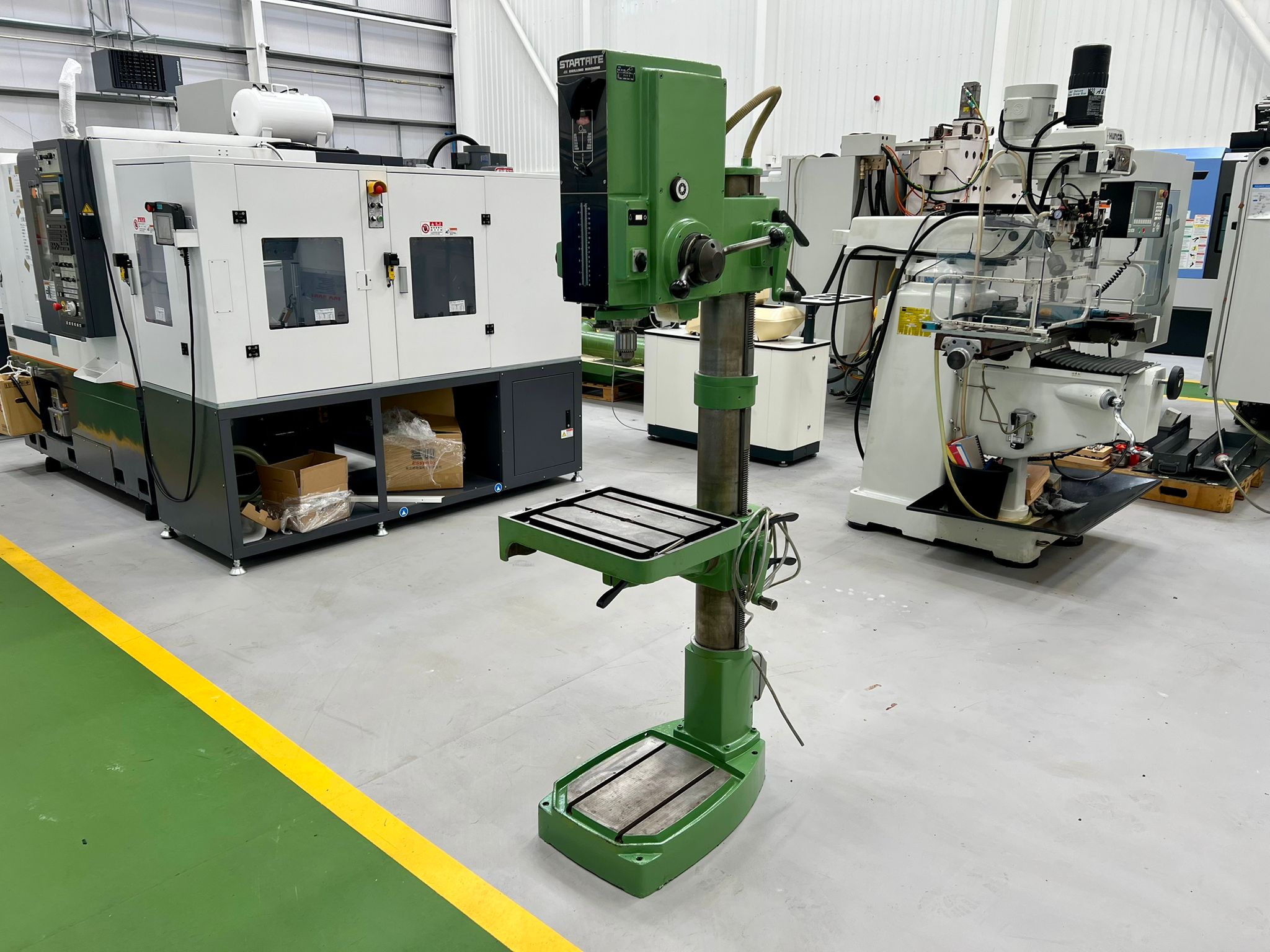

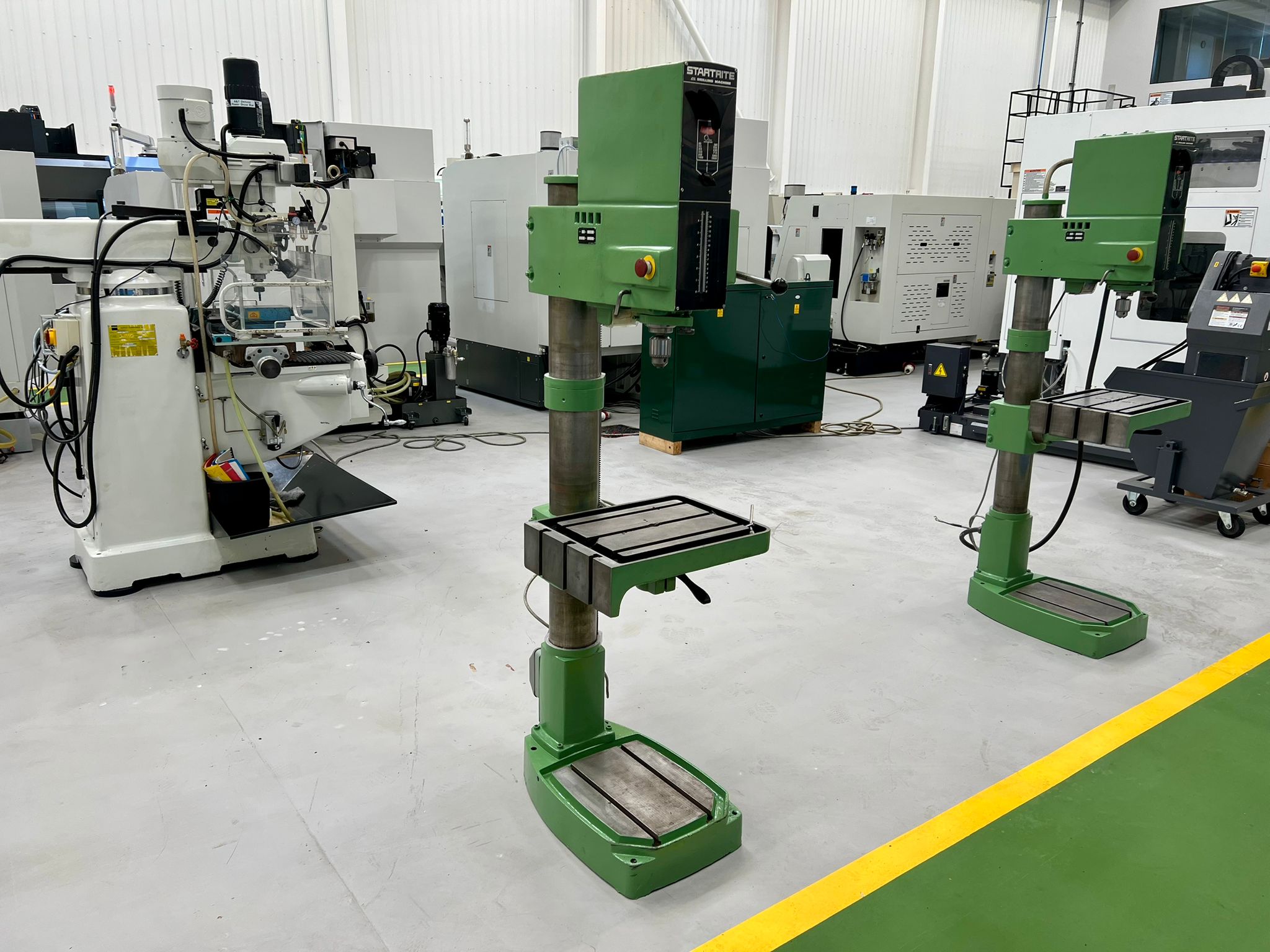

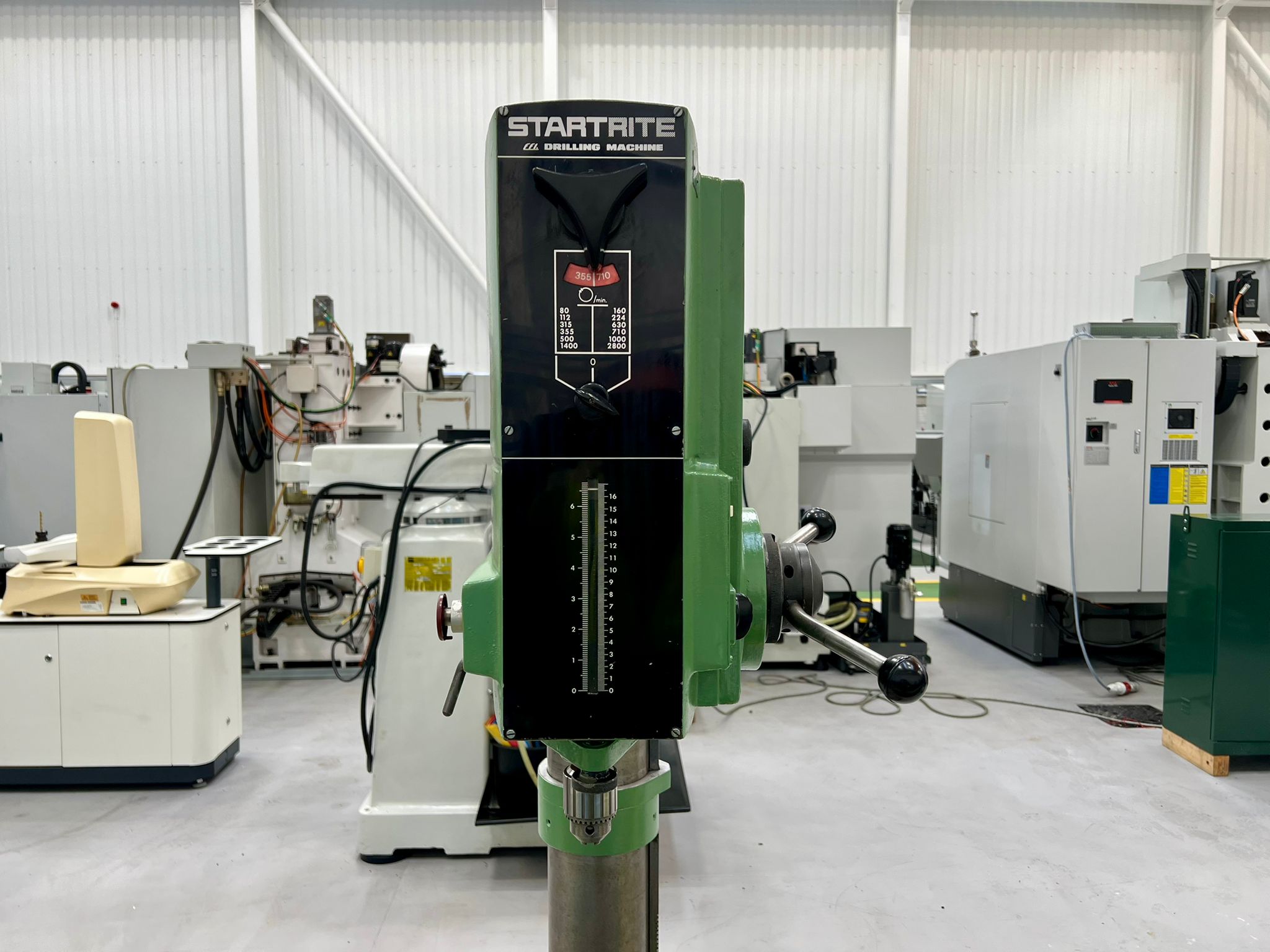

Drilling capacity in steel 32mm. Spindle travel 170mm. Spindle taper 3 Morse. Spindle speeds 80 – 2800 rpm. Feeds Feed Range 0.1, 0.15, 0.25mm/min. Maximum distance between spindle/table 825mm.Maximum distance between spindle/base 1340mm. Throat 312mm. Table size (3 x T Slots) 500mm x 380mm. Table movements are rotation, swivel & tilt. Rack & pinion rise and fall Headstock & Table. Forward & reverse spindle direction. Spindle power 0.96/1.4 kW. Rise & Fall Head. Machine Serial No. 8705
Machine Dimensions L x W x H 508mm x 712mm x 1778mm. Approximate weight 660 kg
