Swing over bed 600mm. Standard turning dia 285mm. Maximum turning dia. 420mm. Distance Between Centres 1130mm. Bar capacity 75mm. Travels X/Z 210/1100mm. Rapid feed – X / Z axis 18/24m/min. Feed motor 3/4k/w. Jog Feed X/Z: 0 ~ 1260 mm/min. Spindle Speed 3500RPM.Spindle Nose A2-8 (10”). Spindle motor power 15 / 18.5 / 22 KW. Spindle bearing inside dia 130mm. Spindle Taper 1/20

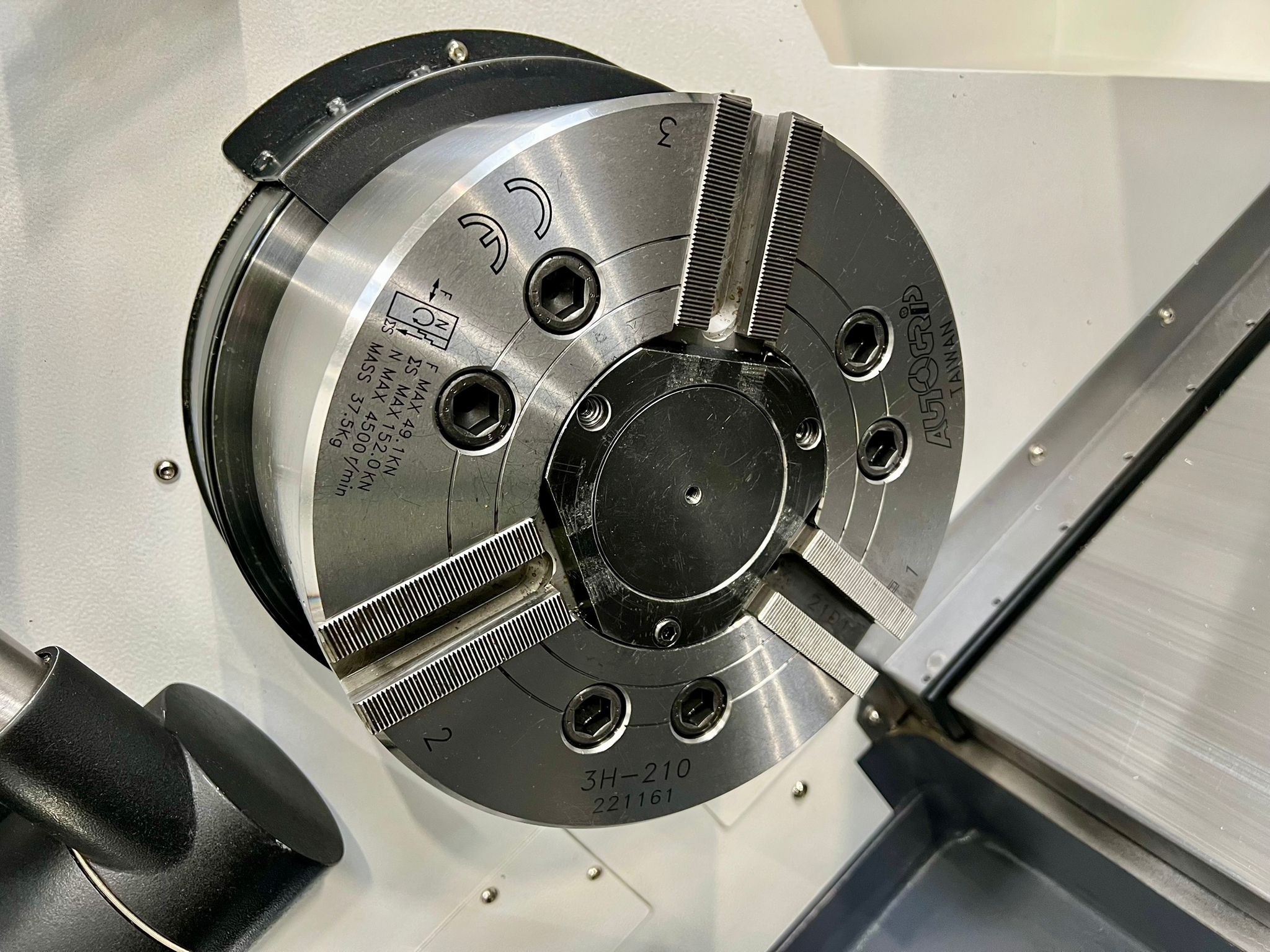

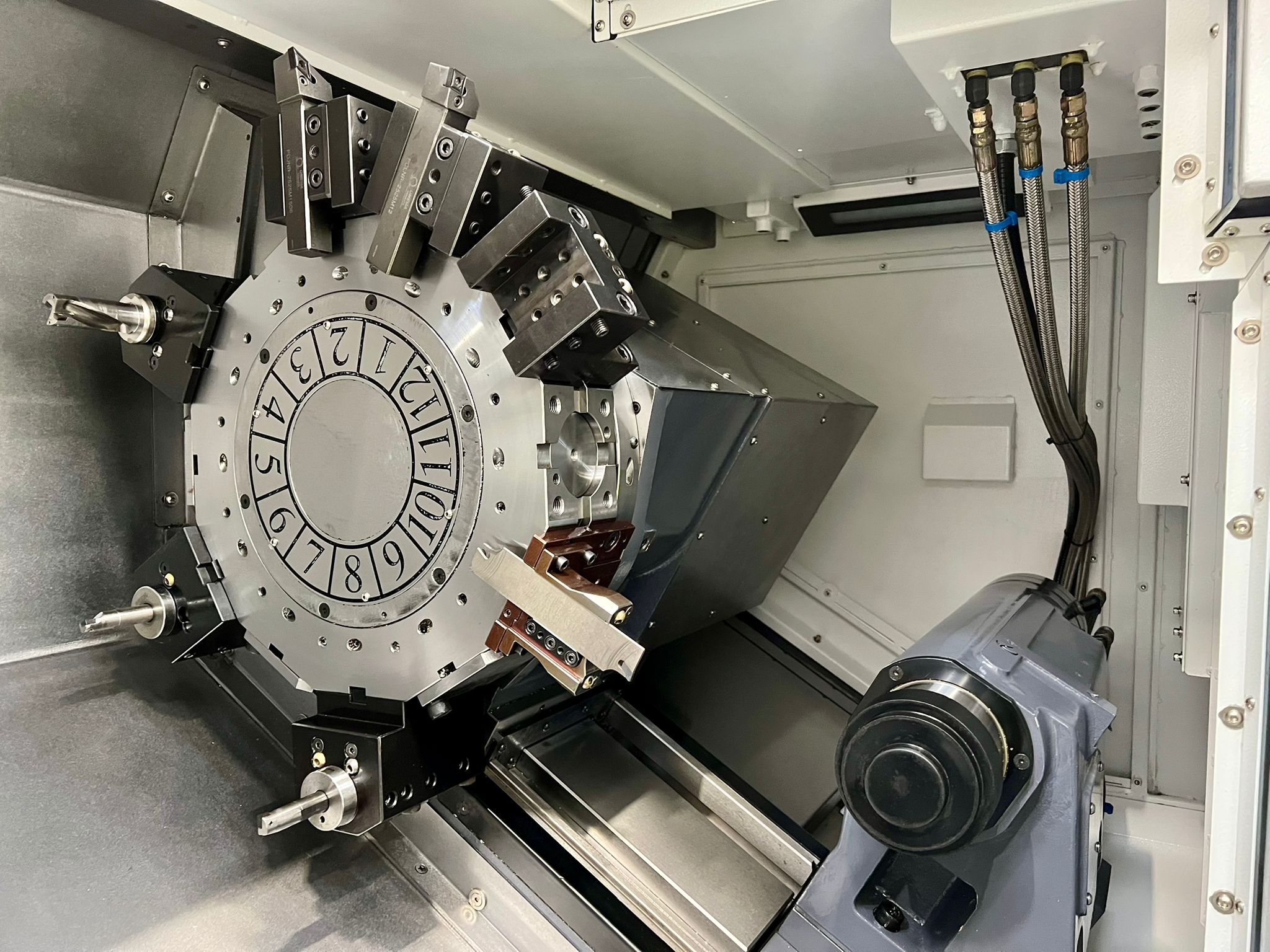

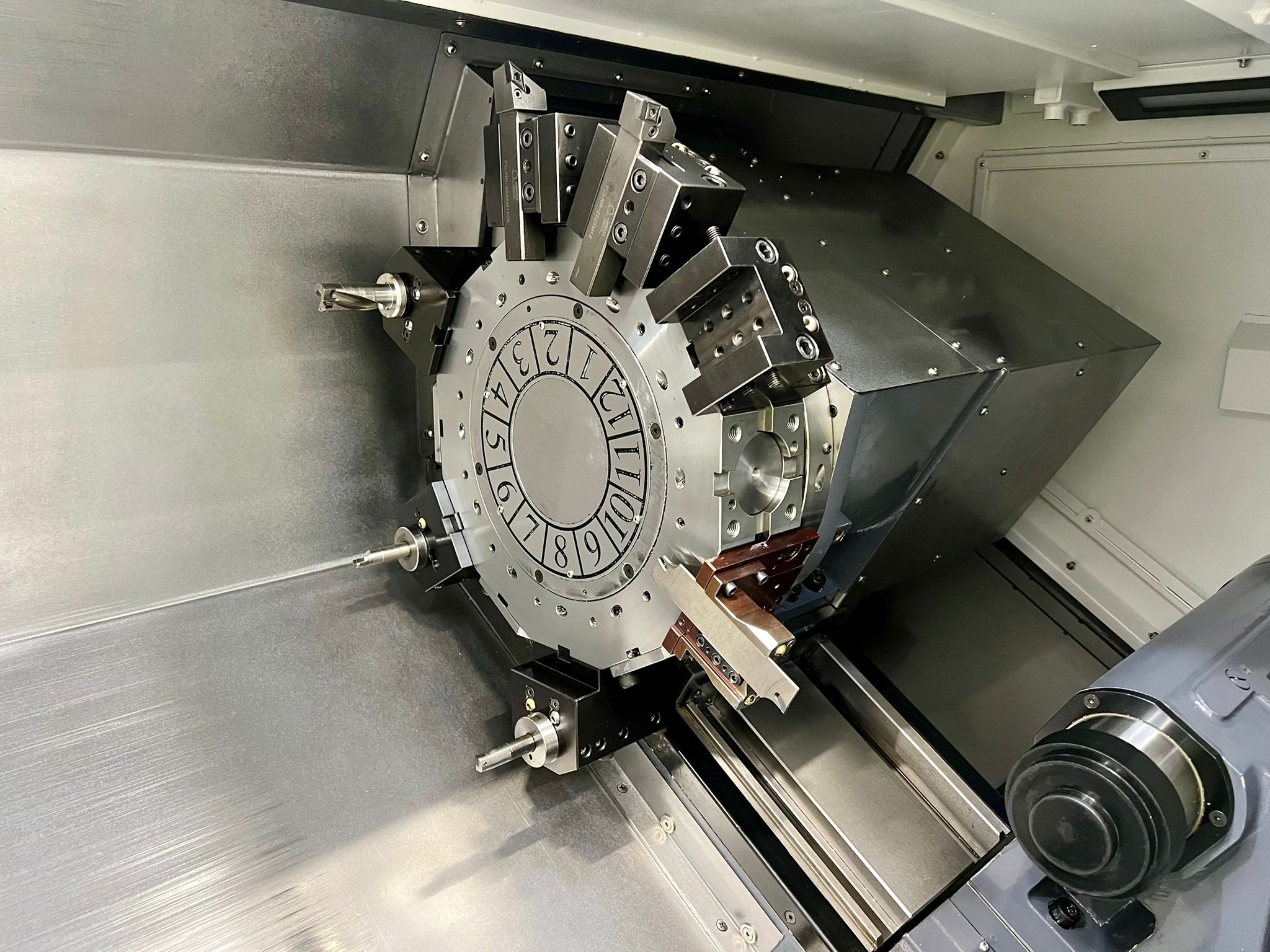

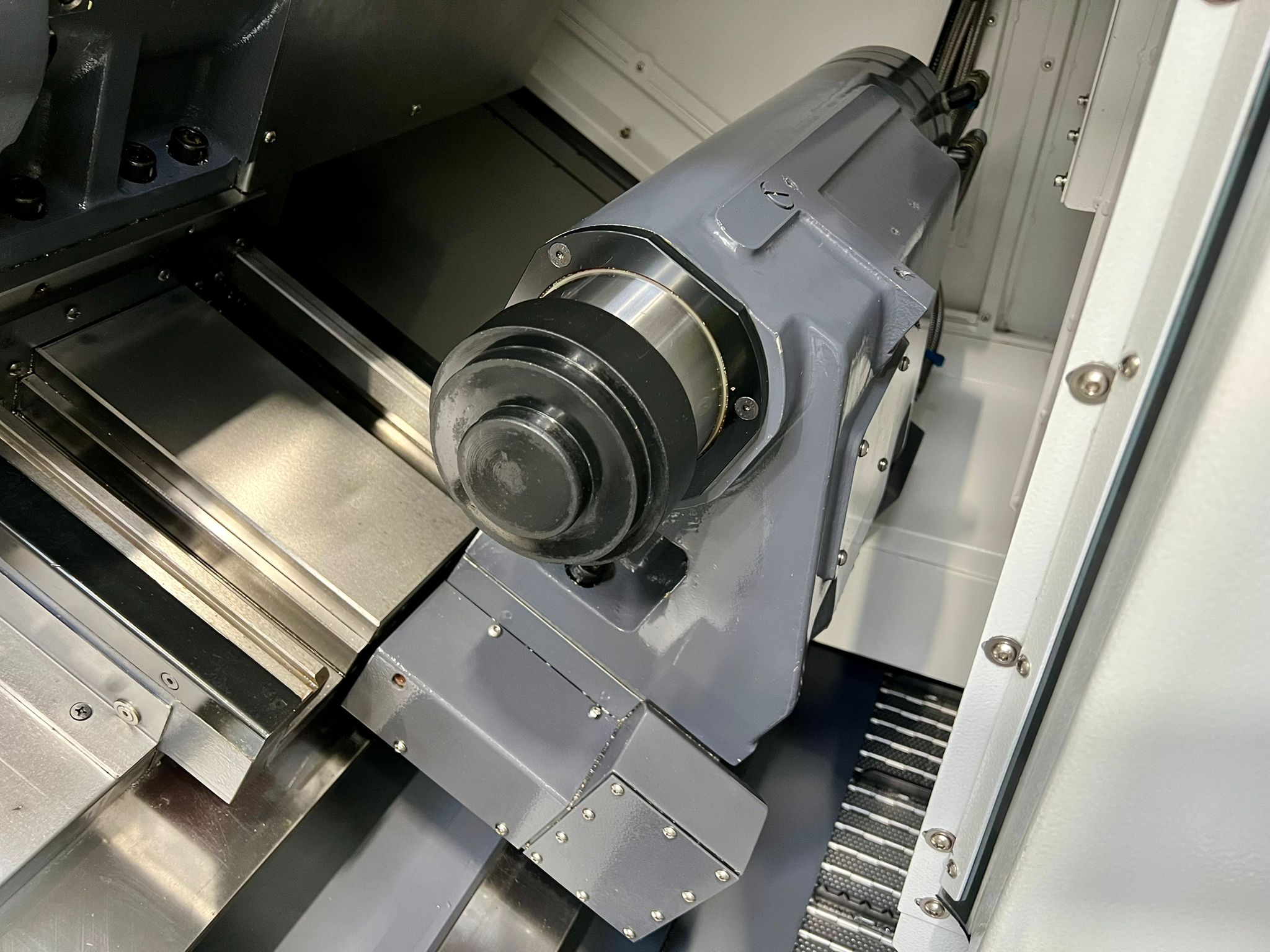

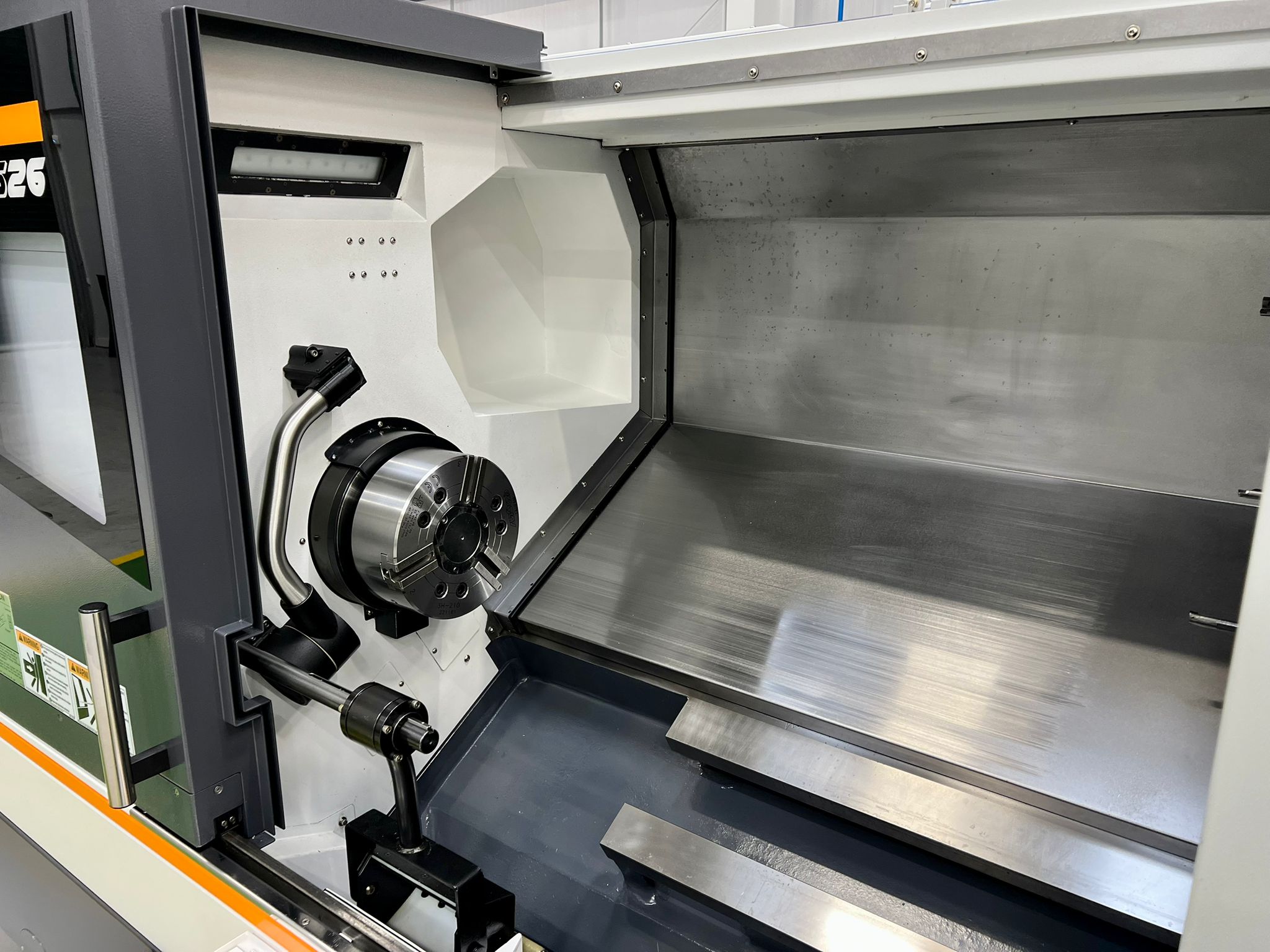

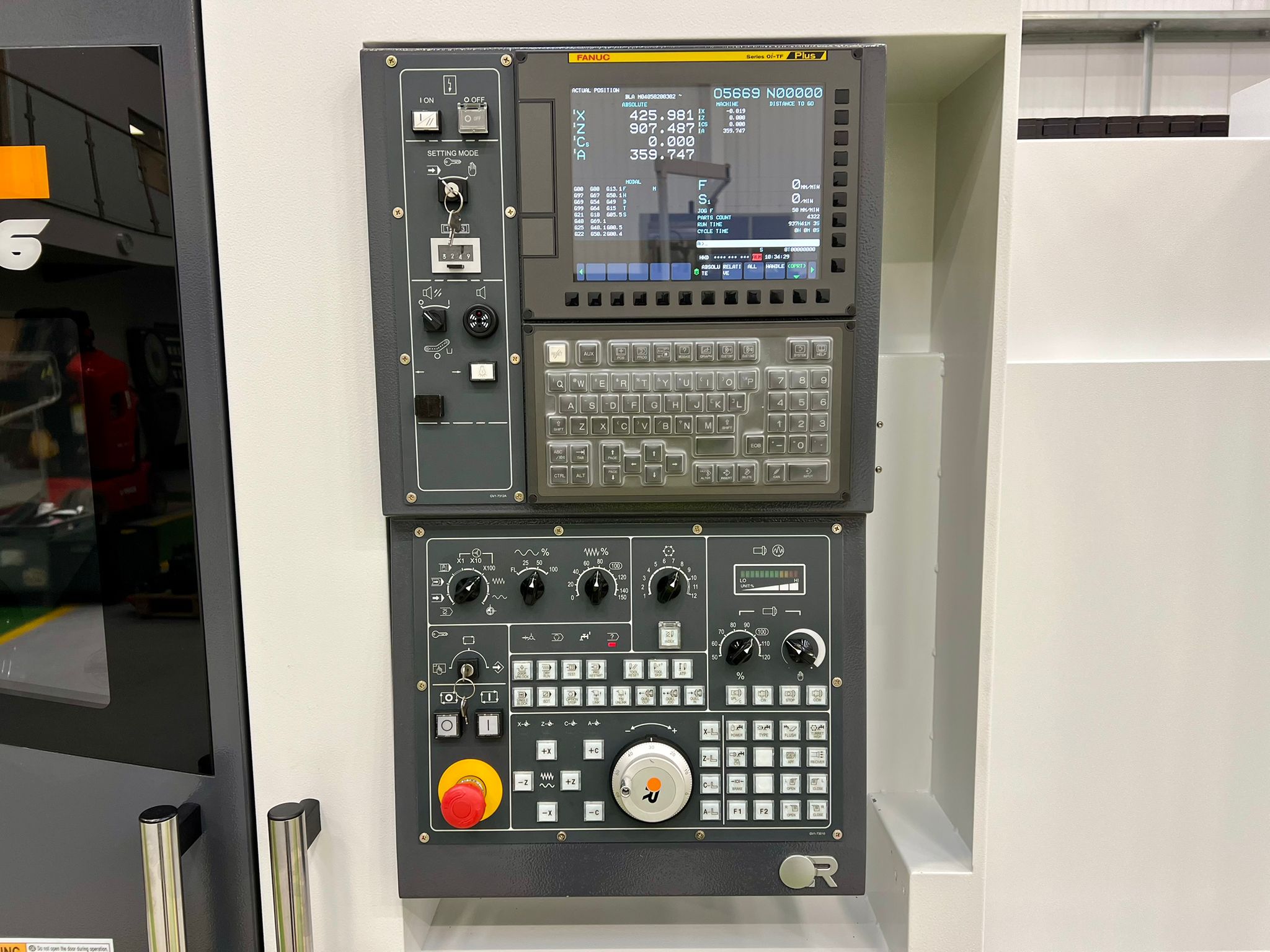

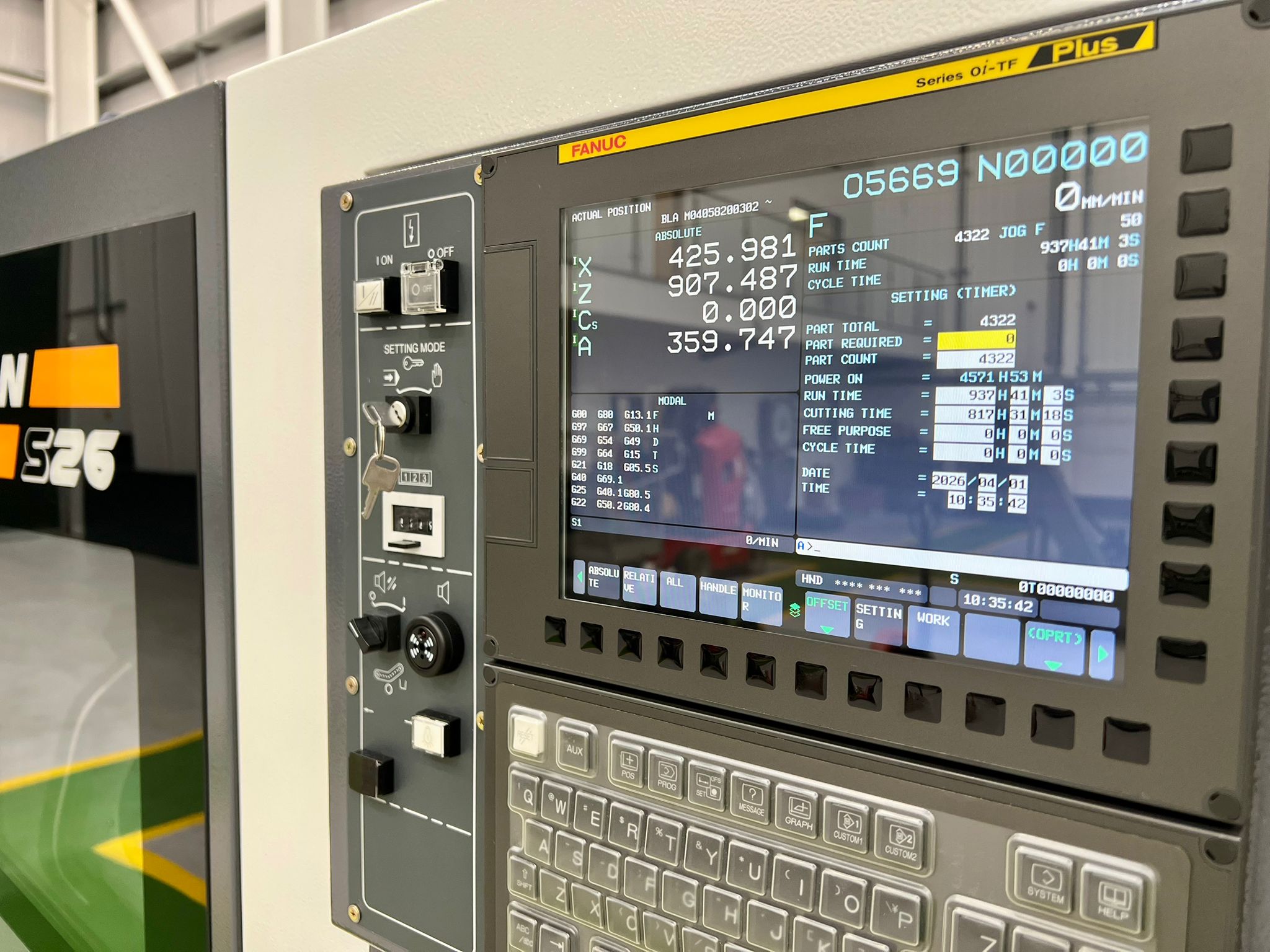

No. of tool positions (live) 12. Tool shank size 25mm. Max. boring bar dia 50mm. (BMT65). 10.4” Colour display with QWERTY keypads. Manual Guide I. 12 Station BMT-65 turret, max milling 6000rpm. 10” Autogrip hydraulic chuck. Programmable tailstock (MT4 Live). Chip conveyor & cart. AICC (40 Blocks). Air conditioner for electrical cabinet. Bar feeder interface. Manual tool presetter (Renishaw). Cutting Hours 817
Although the machine is manufactured in 2022, it was not installed until 2025
Available with 12 Month Warranty including Operator Error
Machine dimension L x W x H. 4673 x 1848 x 1819mm.
Weight 6830Kg.
