Swing over bed 700mm Swing over carriage 550mm. Distance between centres 630mm. Maximum turning dia. 300mm. Standard turning dia. 264mm. Bar capacity 52mm.

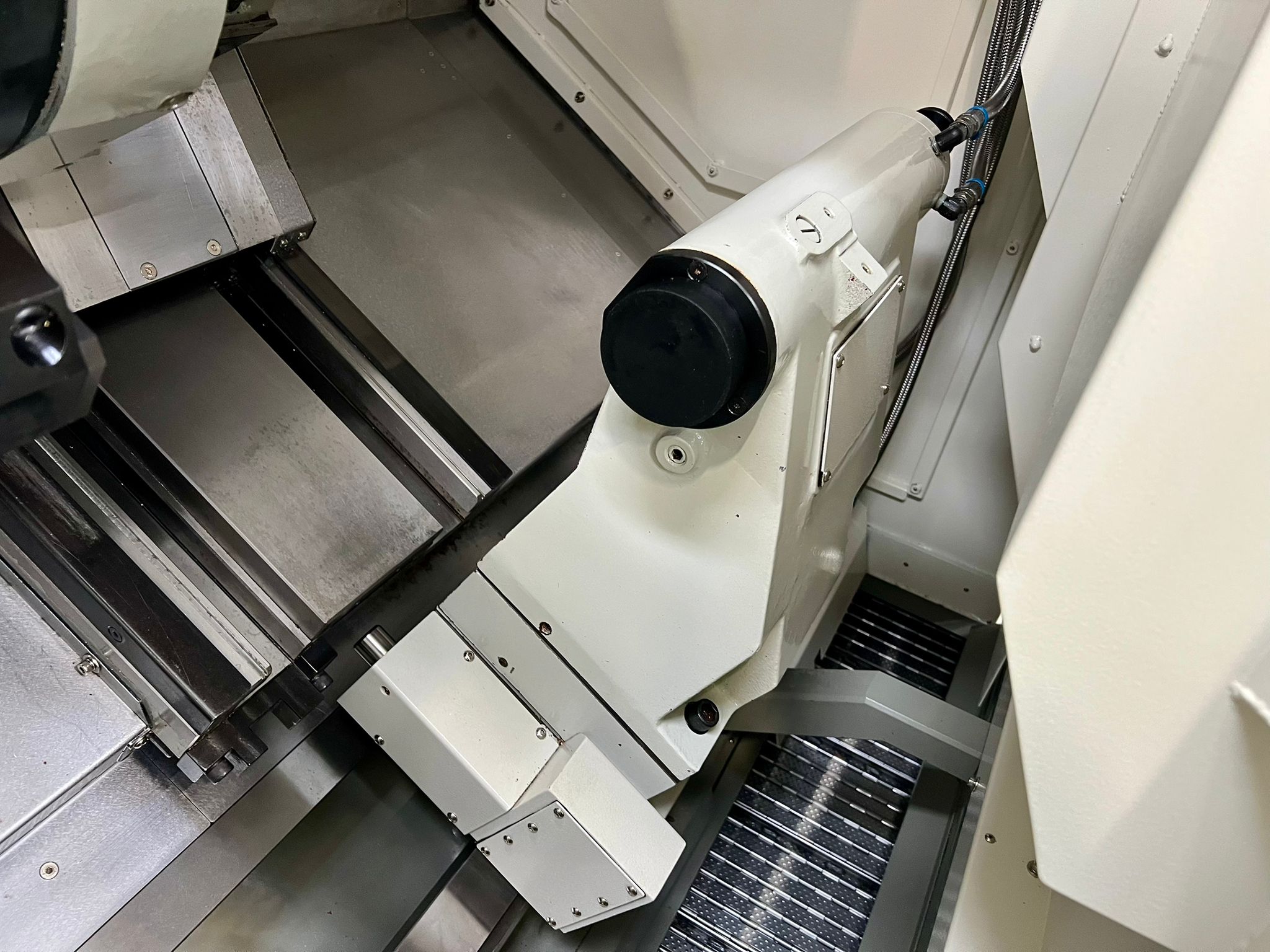

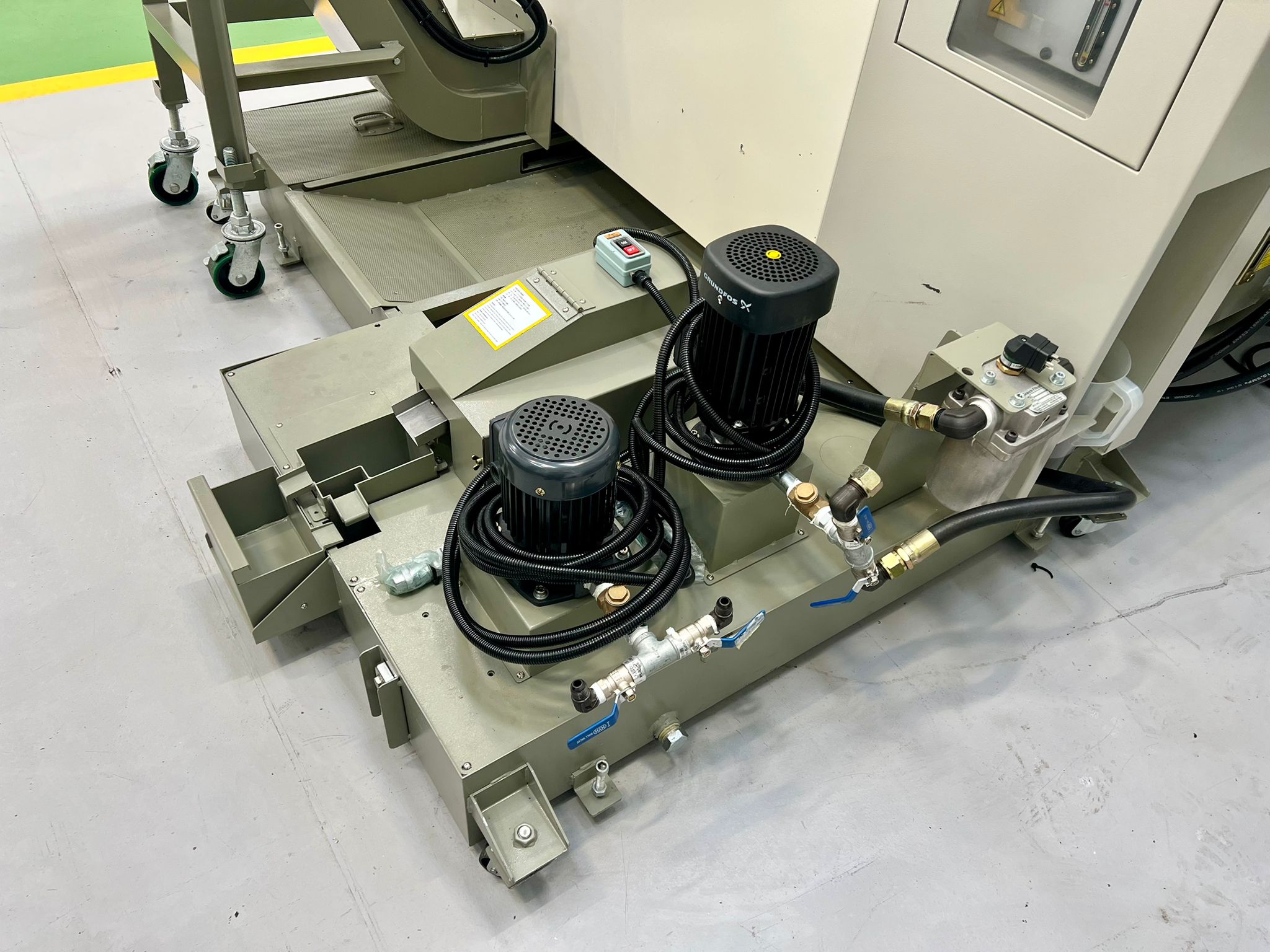

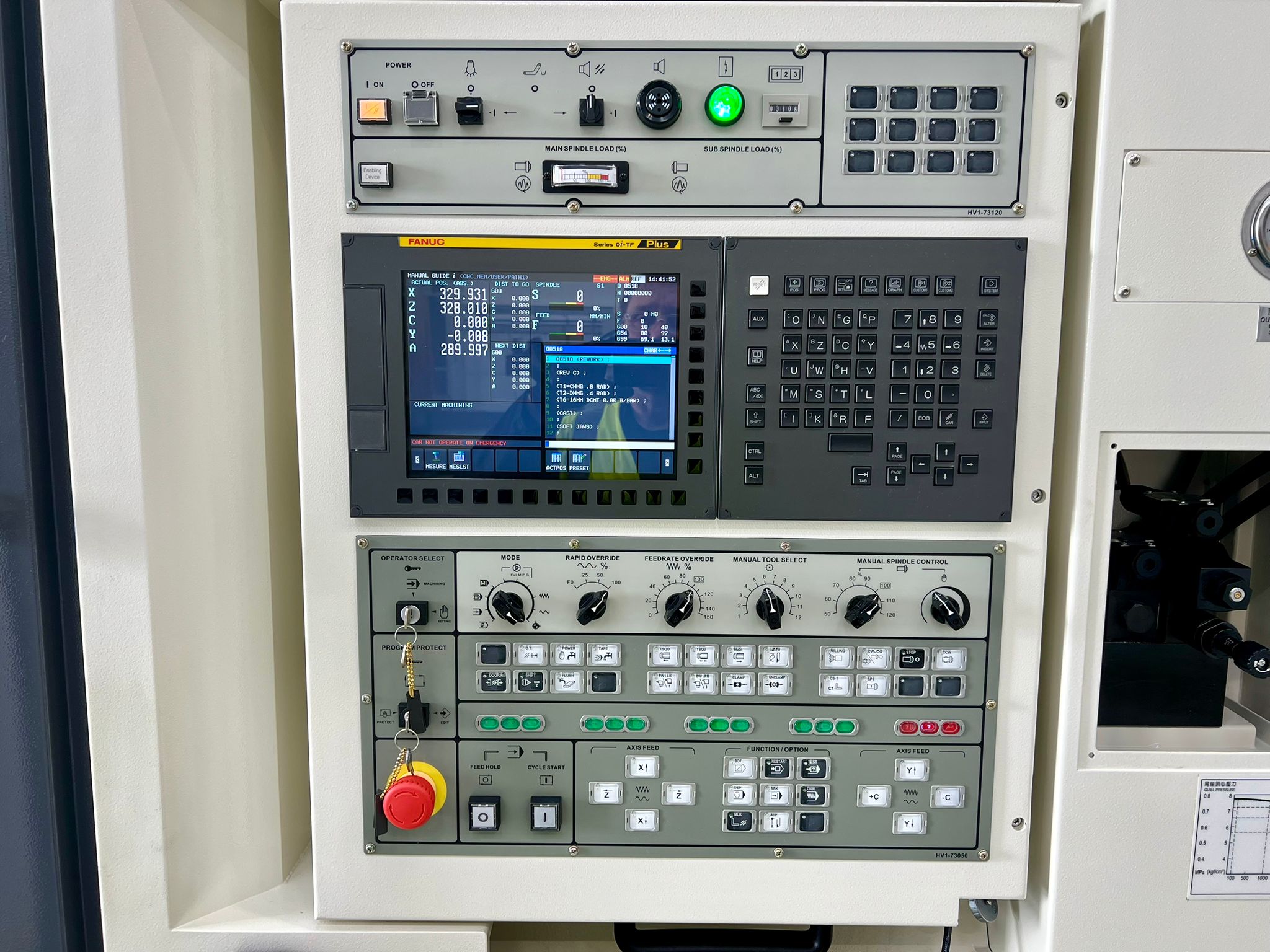

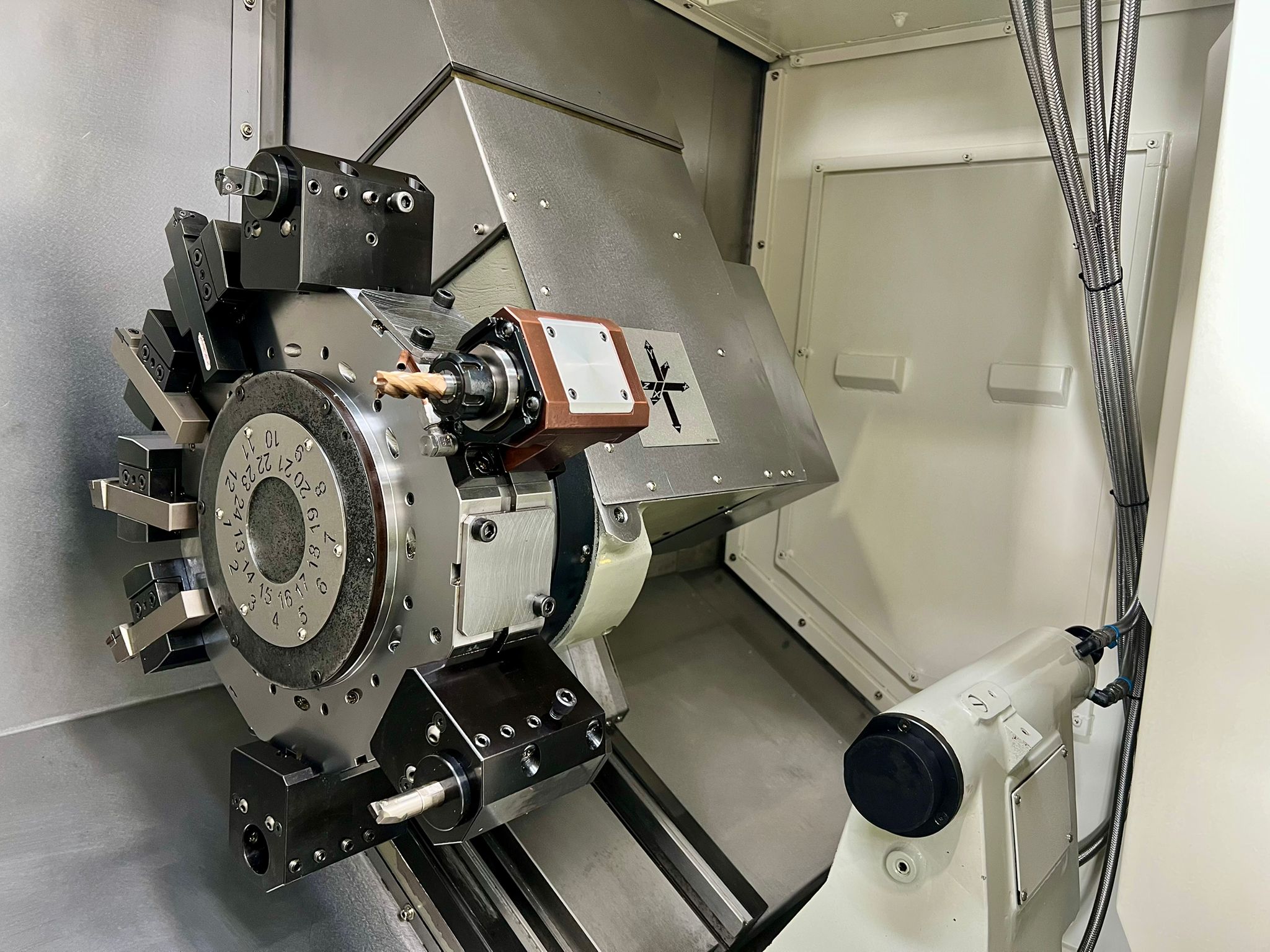

X/Z travels 150mm + 35mm/600mm. Y travel +/- 45mm. Maximum spindle speed 5000 rpm. Spindle nose A2-6 (8”). Spindle bore 62mm. 12 station turret – BMT-55 (all live stations). Maximum milling speeds 4000 rpm. Programmable Tailstock. Tailstock quill dia. 75mm. Quill travel 80mm. 4 MT. Main spindle motor 11/15 (15%) kW. Milling power 4.5 kW. Coolant capacity 290 litres. Manual Guide I (MGI). High Pressure Coolant.

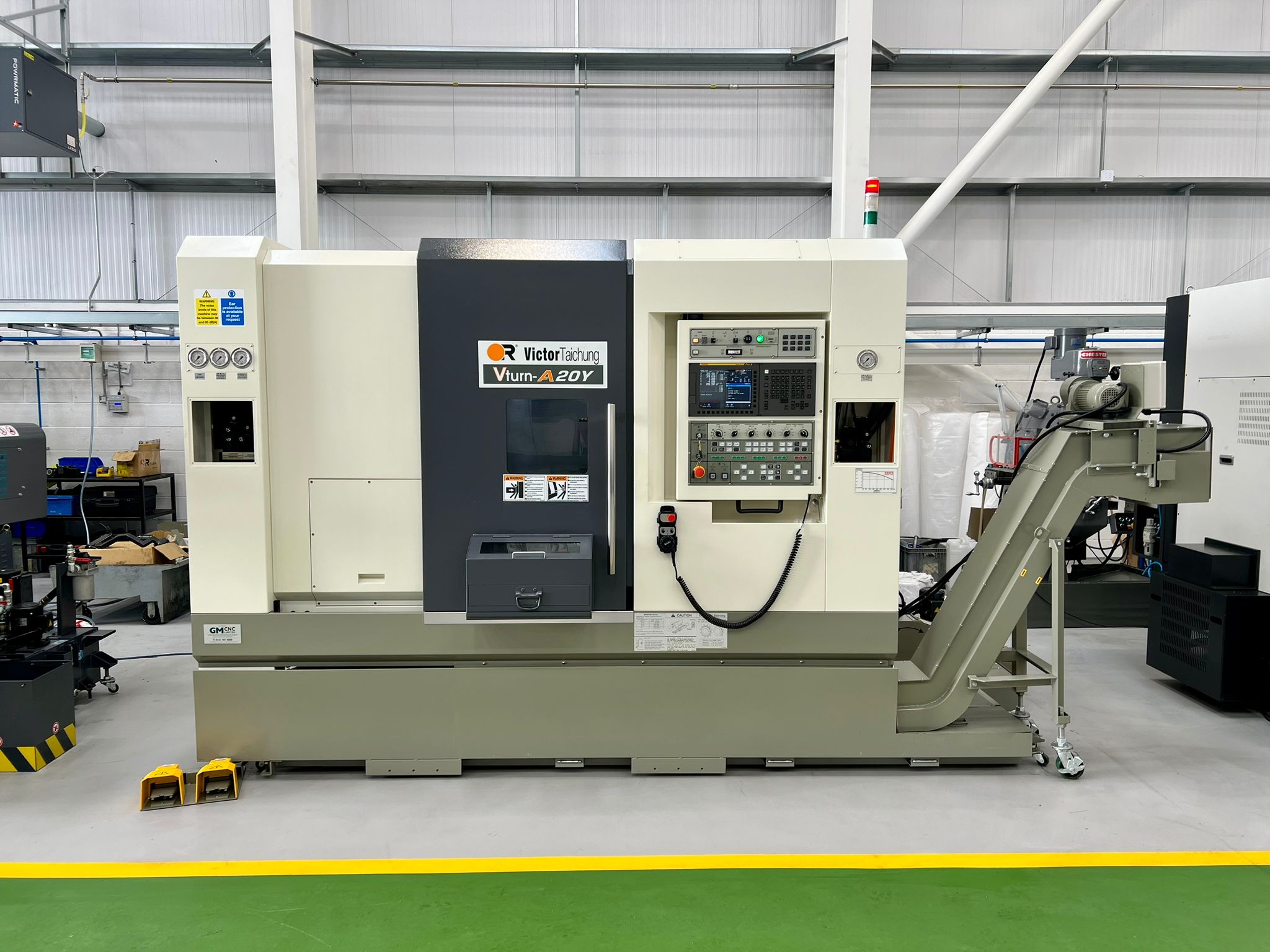

Machine dimensions L x W x H 4248mm x 1752mm x 1998mm. Approximate weight 6700 kg.
