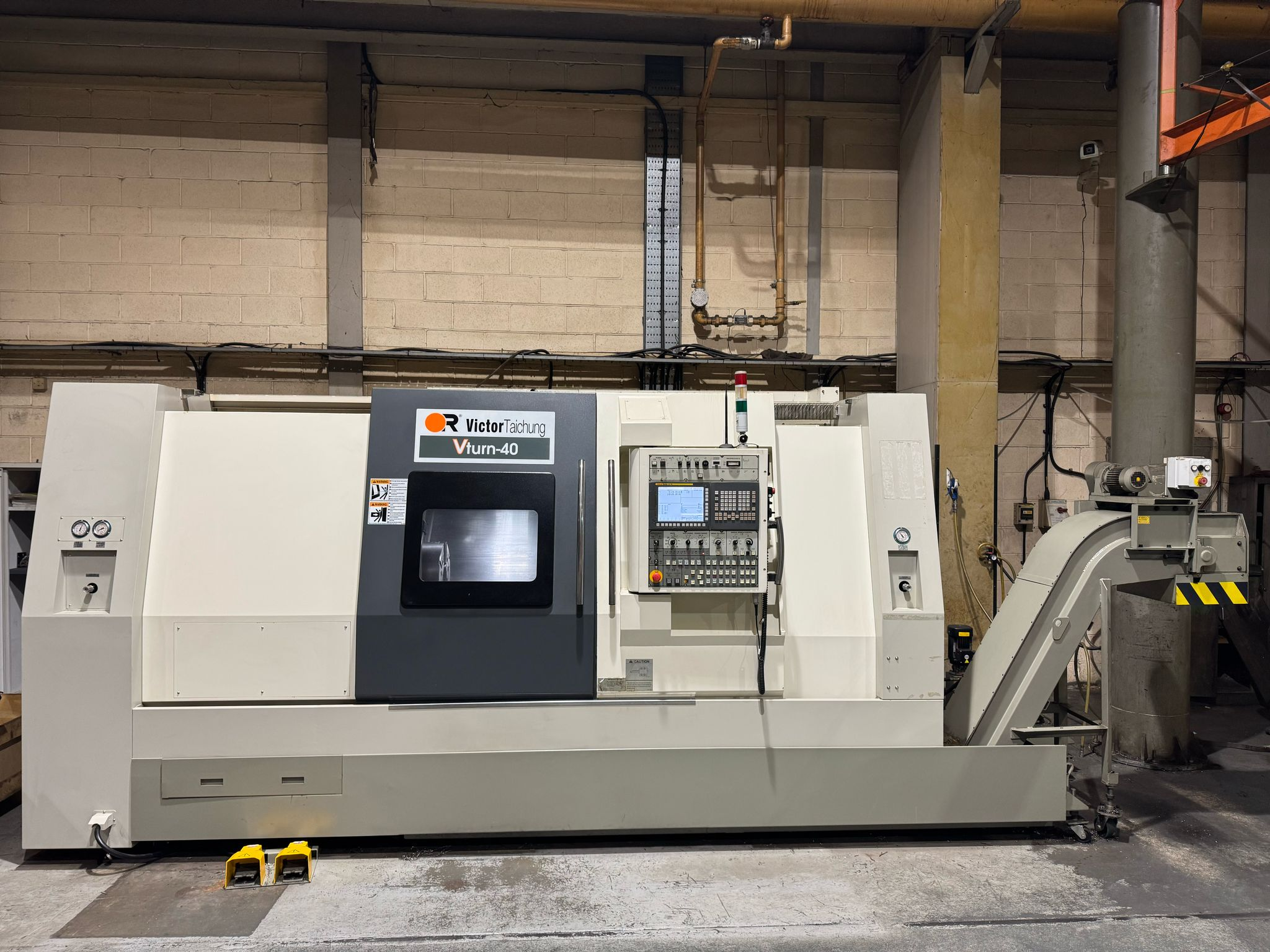

Swing over bed 780mm. Standard turning dia. 520mm. Maximum turning dia. 620mm. Swing over carriage 620mm. Distance between centres 1325mm. X/Z Axis travel 310+30mm/1250mm. Spindle bore 135mm. Bar capacity 117.5mm. Rapids X/Z 24/24m/min. X/Z Feed motors 4/4kW. X/Z Ball screw dia. x pitch 36mm x P8/50mm x P10. Maximum spindle speed 2000 rpm. Spindle motor power geared ( Cont/30min/15min) 30/37/45 kW. Spindle nose A2-11”. 10 station turret. Tailstock quill dia. 150mm. Quill stroke 150mm. Quill taper 5MT. Total power requirement 50 kVA. Coolant tank capacity 600 litres. Machine is fitted with a 381mm dia. 3 jaw chuck. 3 Point Open Ended Steady 30mm-300mm capacity. Approximate machine size 5300mm x 2700mm x 2200mm high. Approximate weight 12,700 kg.
