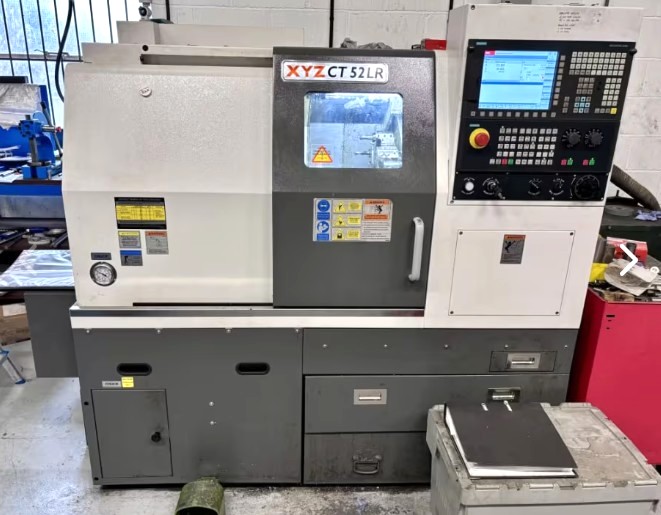

Maximum Swing 300mm. Maximum Swing Over Cross Slide 220mm. Maximum Turning 180mm. Maximum Turning Length 300mm. X/Z travels 165mm/315mm. Maximum Cutting Feedrate X/Z 20m/min. Spindle Bore 61mm. Bar Capacity 52mm. Maximum Spindle Speed 4,500rpm (7.5kW Motor). 10 Station Turret. Turning Tool Shank 20 x 20mm. Boring Bar Holder 30mm. Machine complete with Coolant System. Swarf Tray. Tool Setting Arm. Foot Switch. Toolkit & Manuals.
Machine dimensions 1920mm x 1520mm x 2080mm. Approximate Weight 2,200kg.
