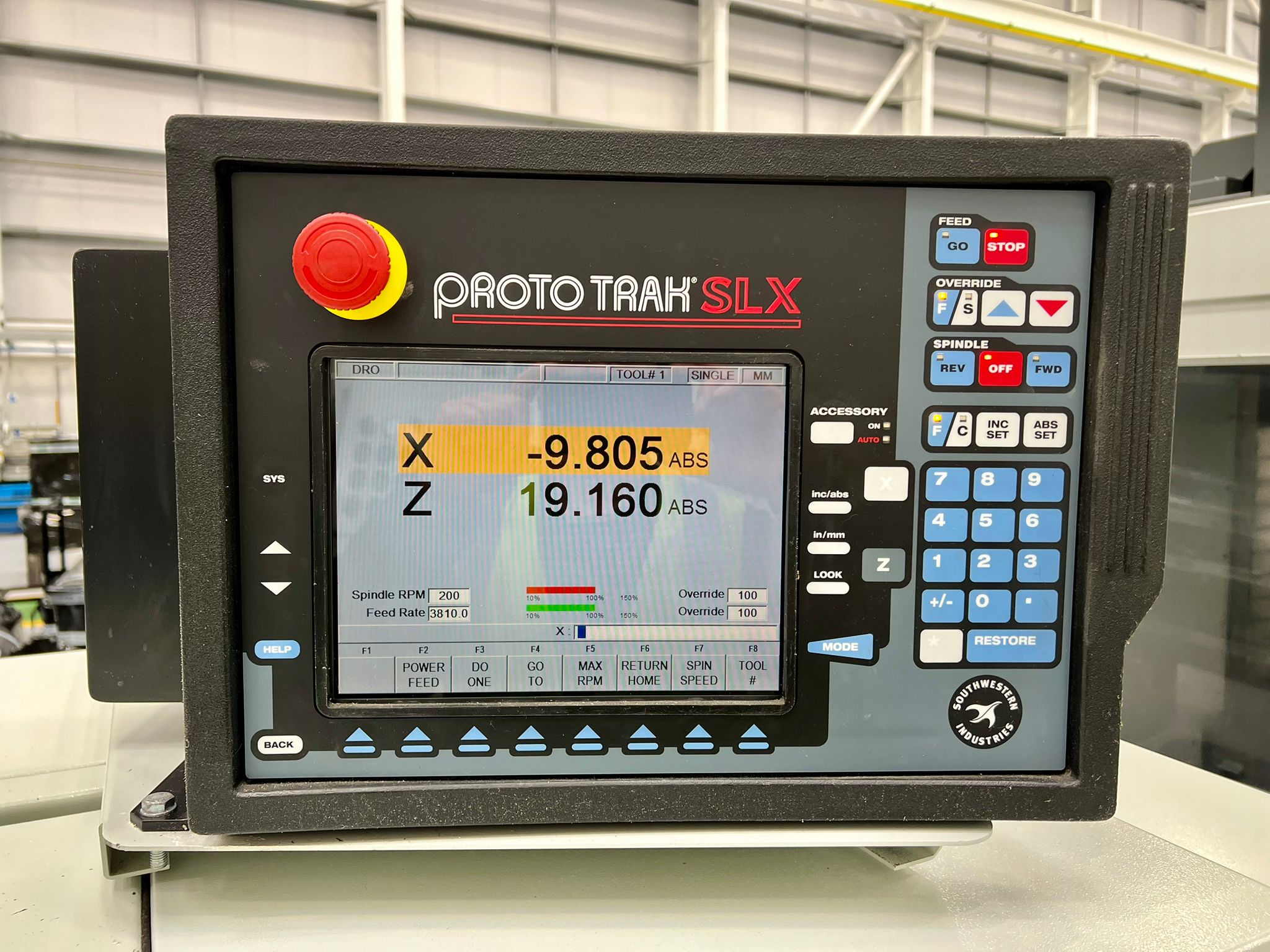

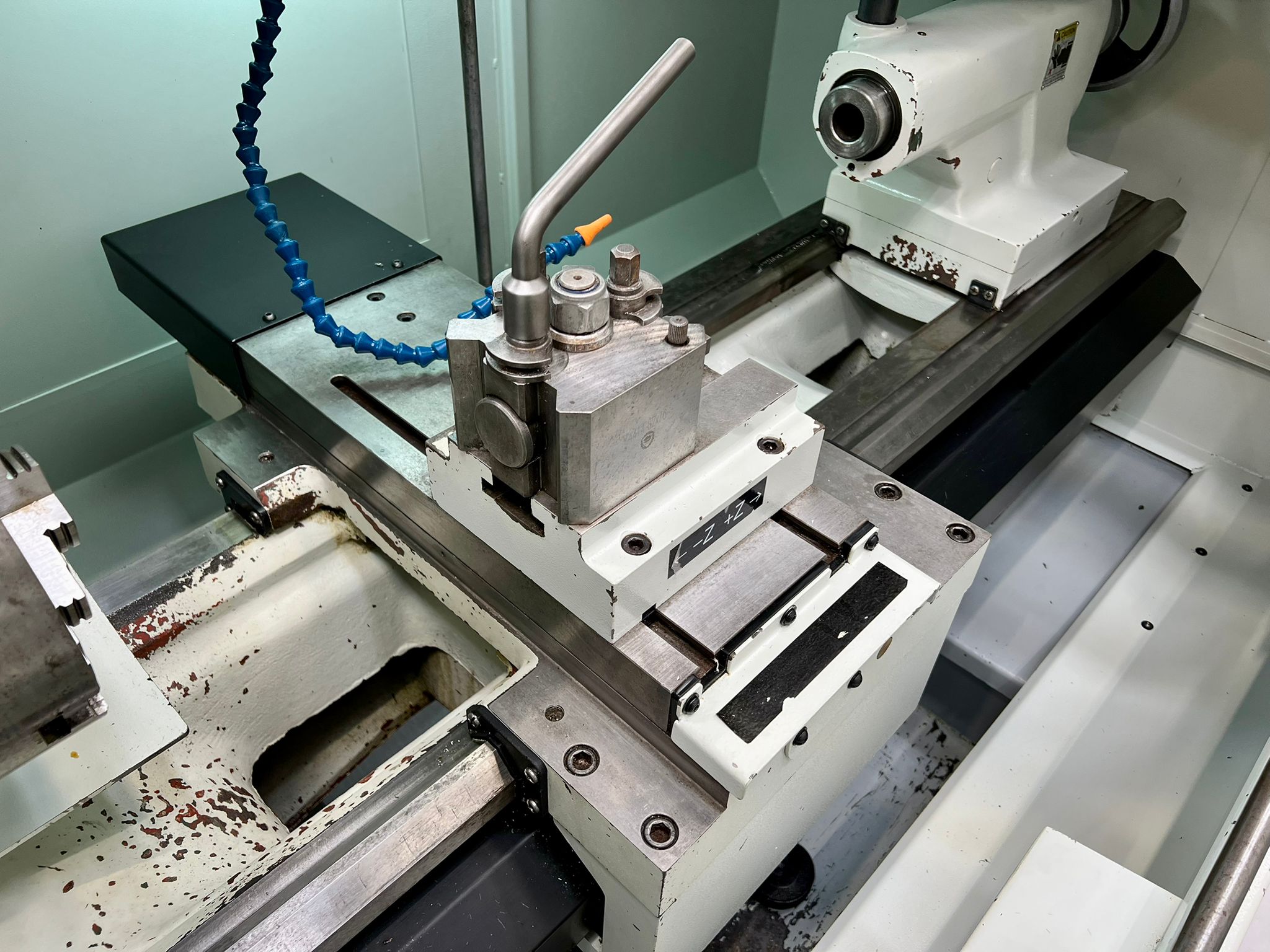

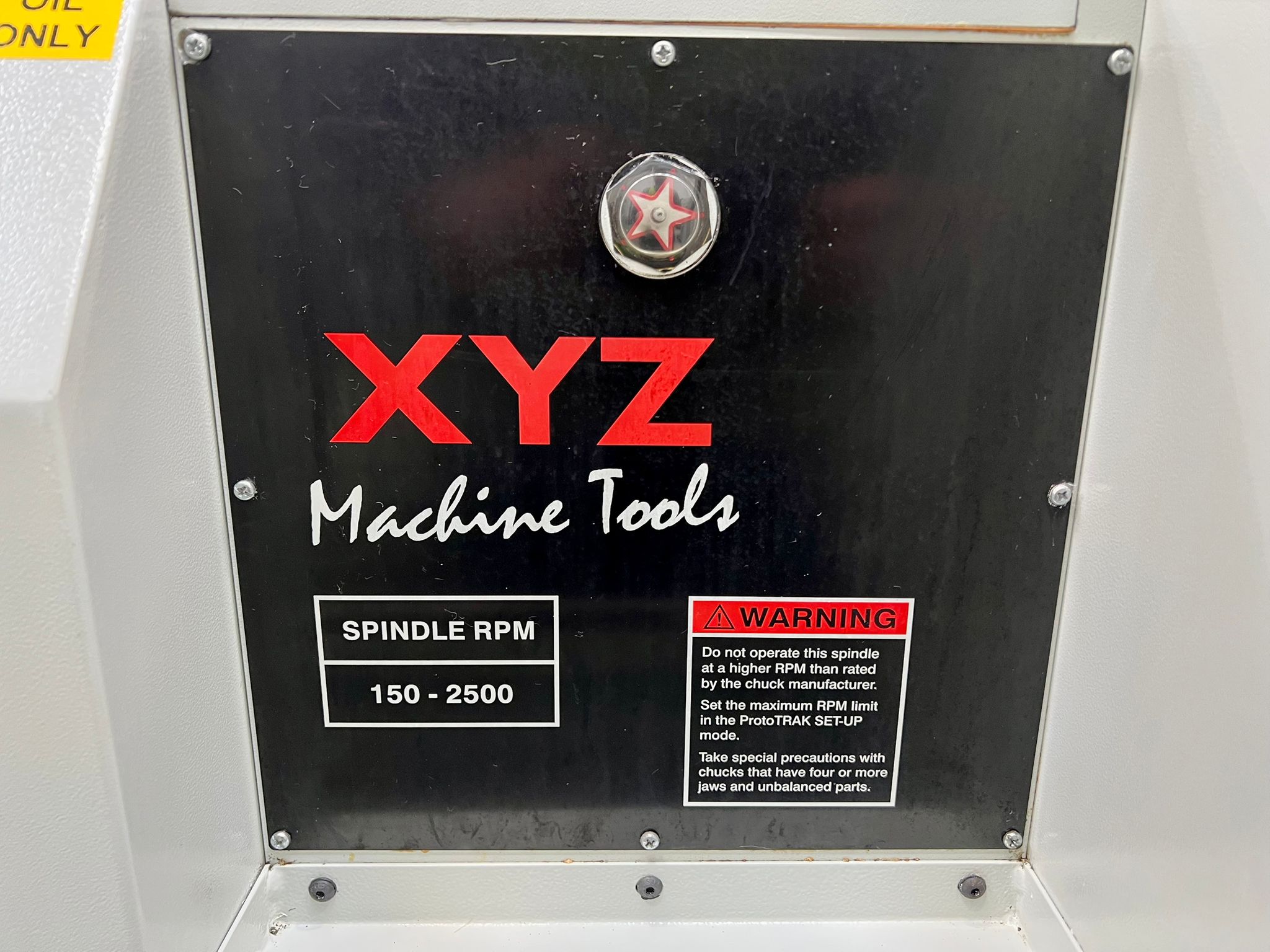

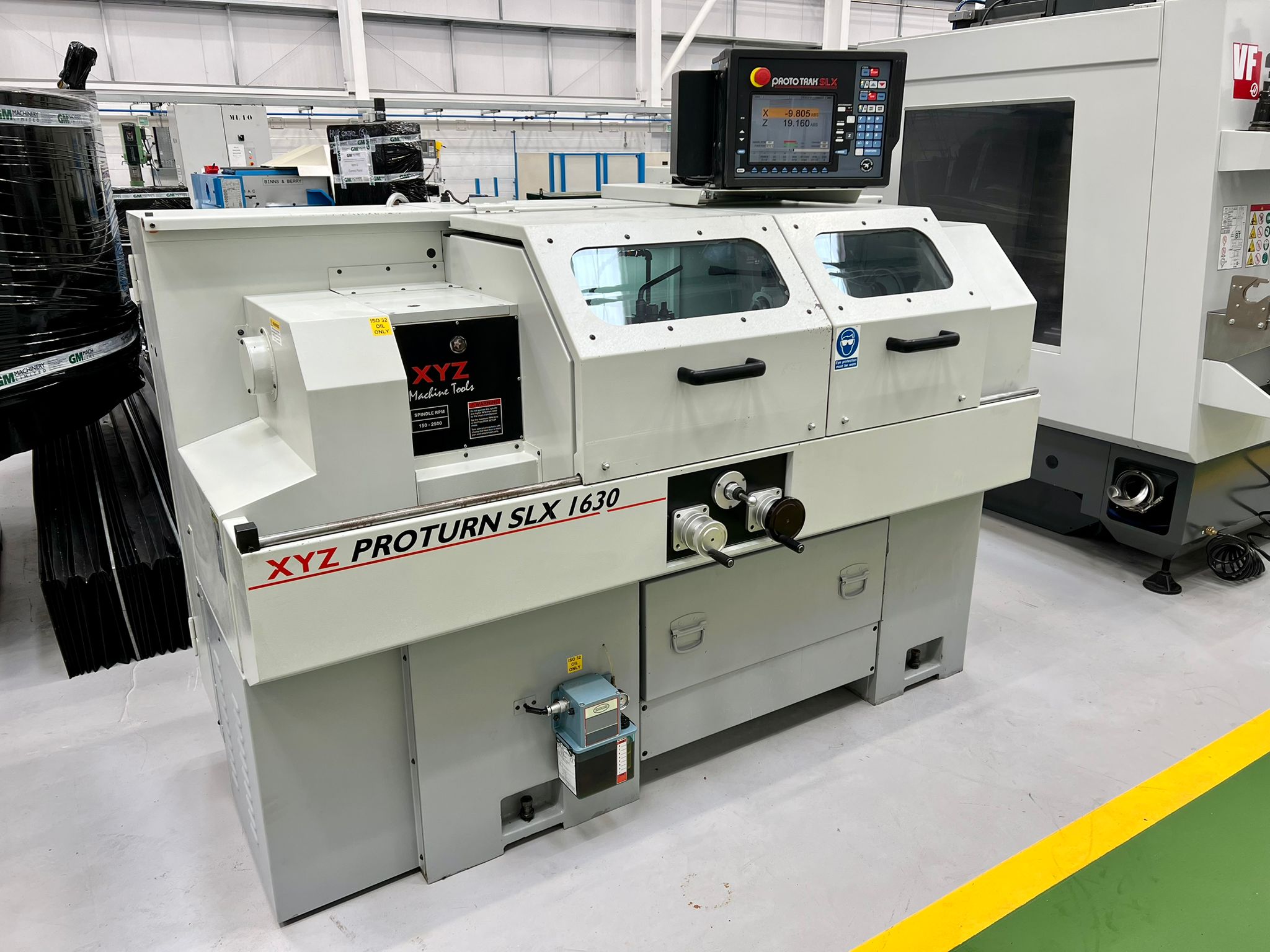

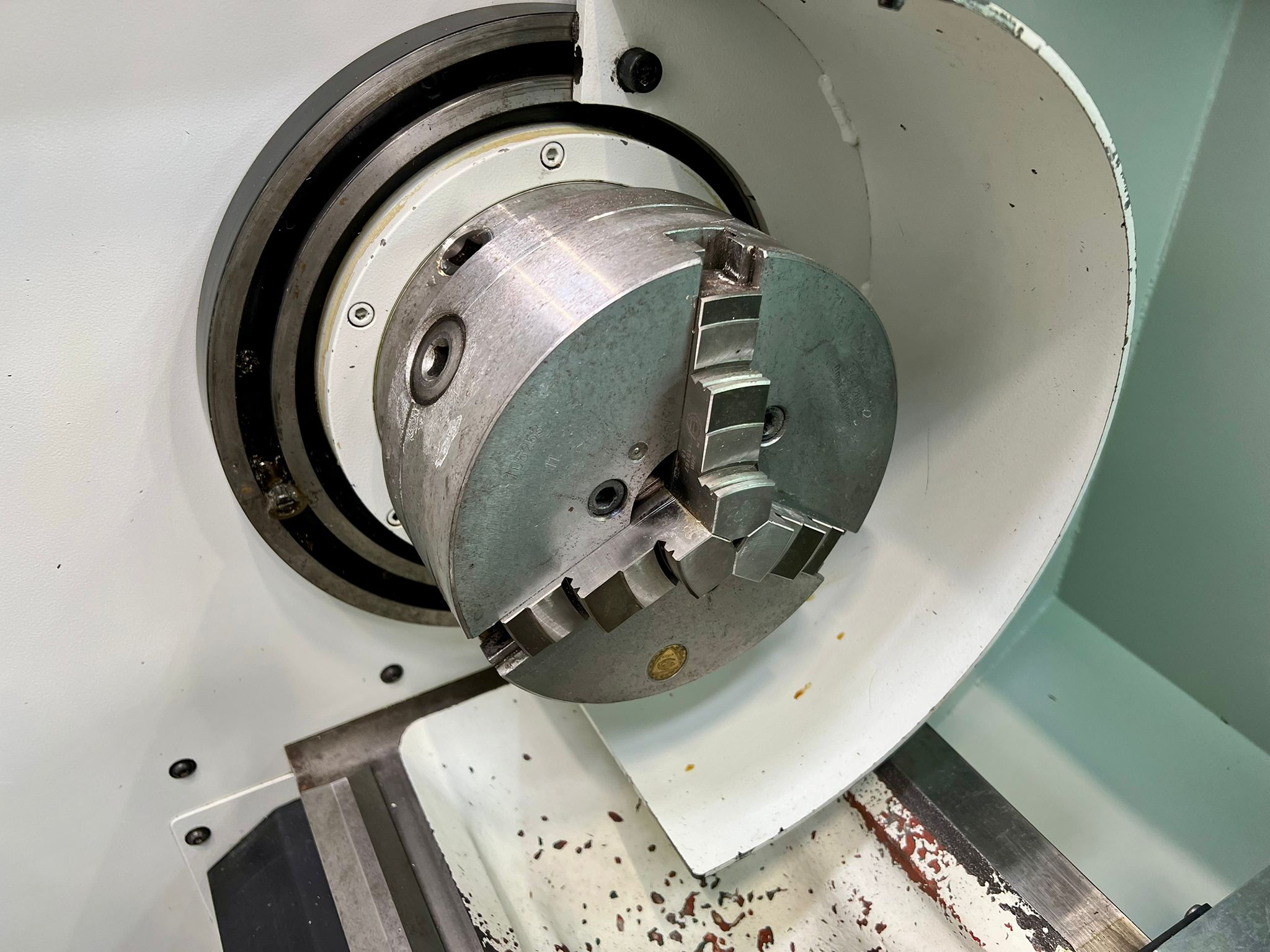

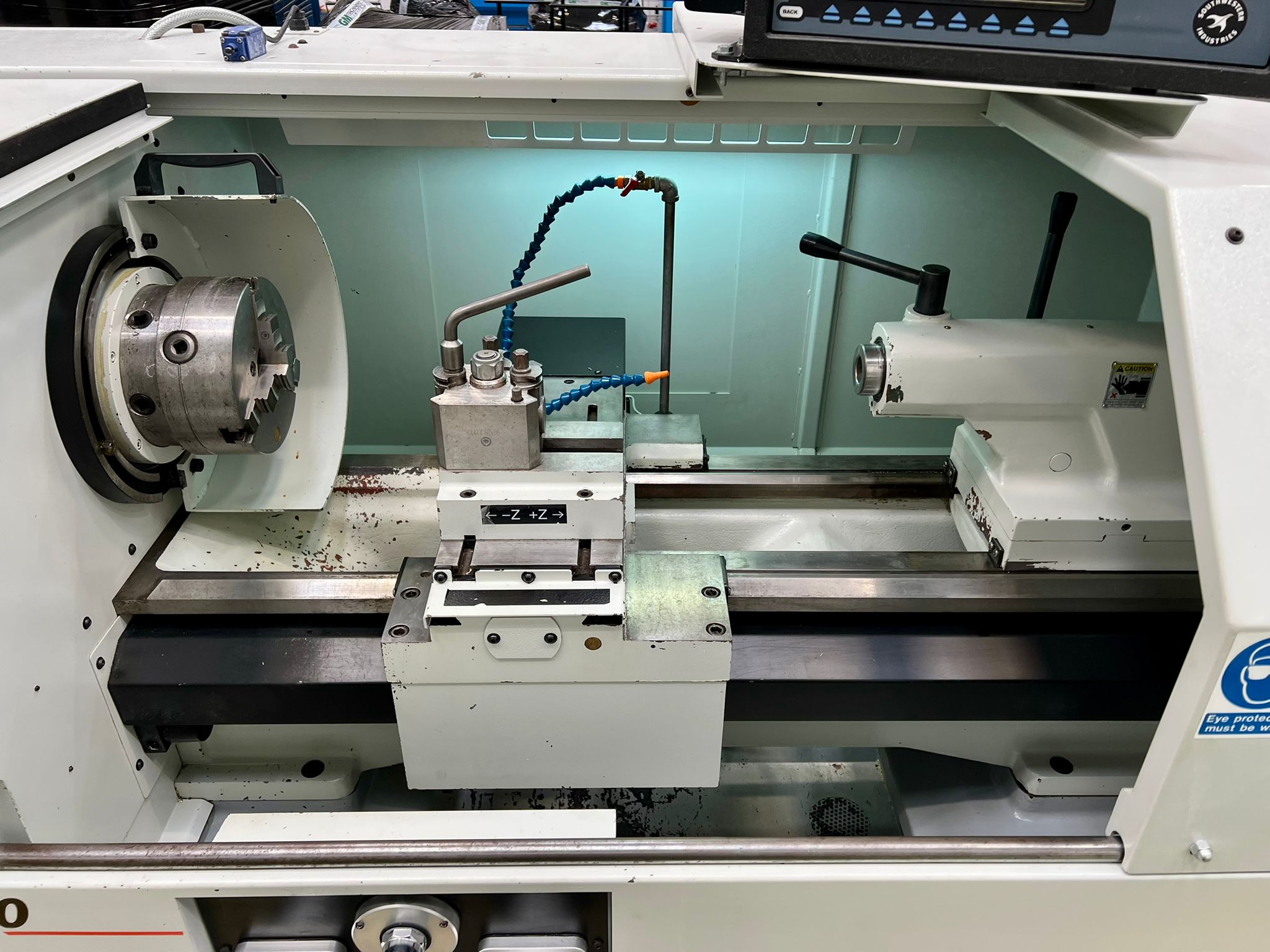

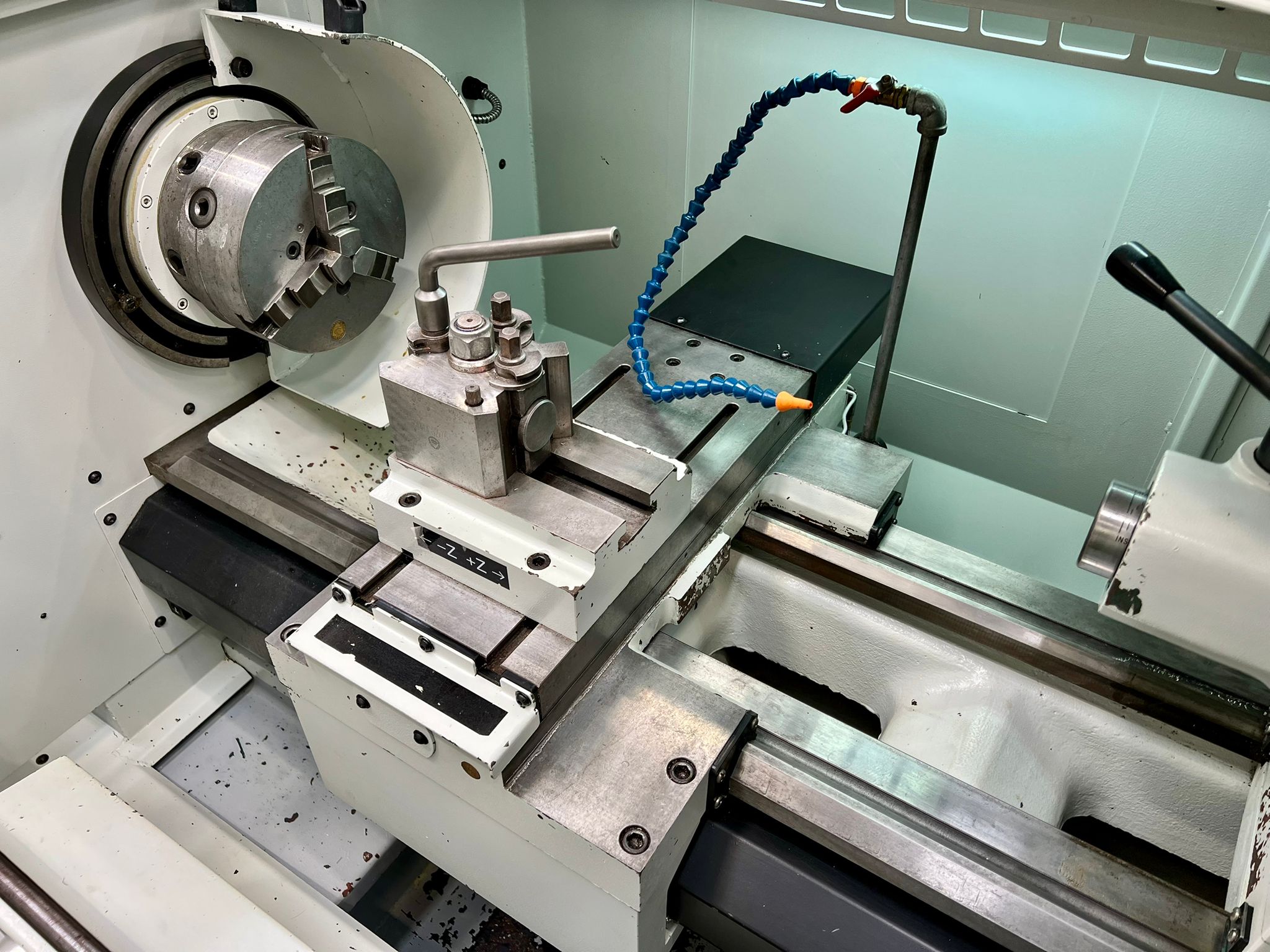

Swing over bed 400 mm. Swing over cross slide 218 mm. Cross Slide Travel 216 mm. Distance between centres 760 mm. Maximum Cutting Length 760 mm. Spindle bore 54 mm. Spindle nose D 1-6 camlock. Spindle motor 5.75 Kw (7.5hp). Spindle speeds 150-2500 rpm. Tailstock Quill Travel 127 mm. Tailstock taper MT4. Tailstock quill diameter 60 mm. Fitted with 3 jaw chuck. Quick change toolpost and ProtoTrak SLX control.
Machine dimensions L x W x H 2080mm x 1000mm x 1800 mm Weight 1530 kg
