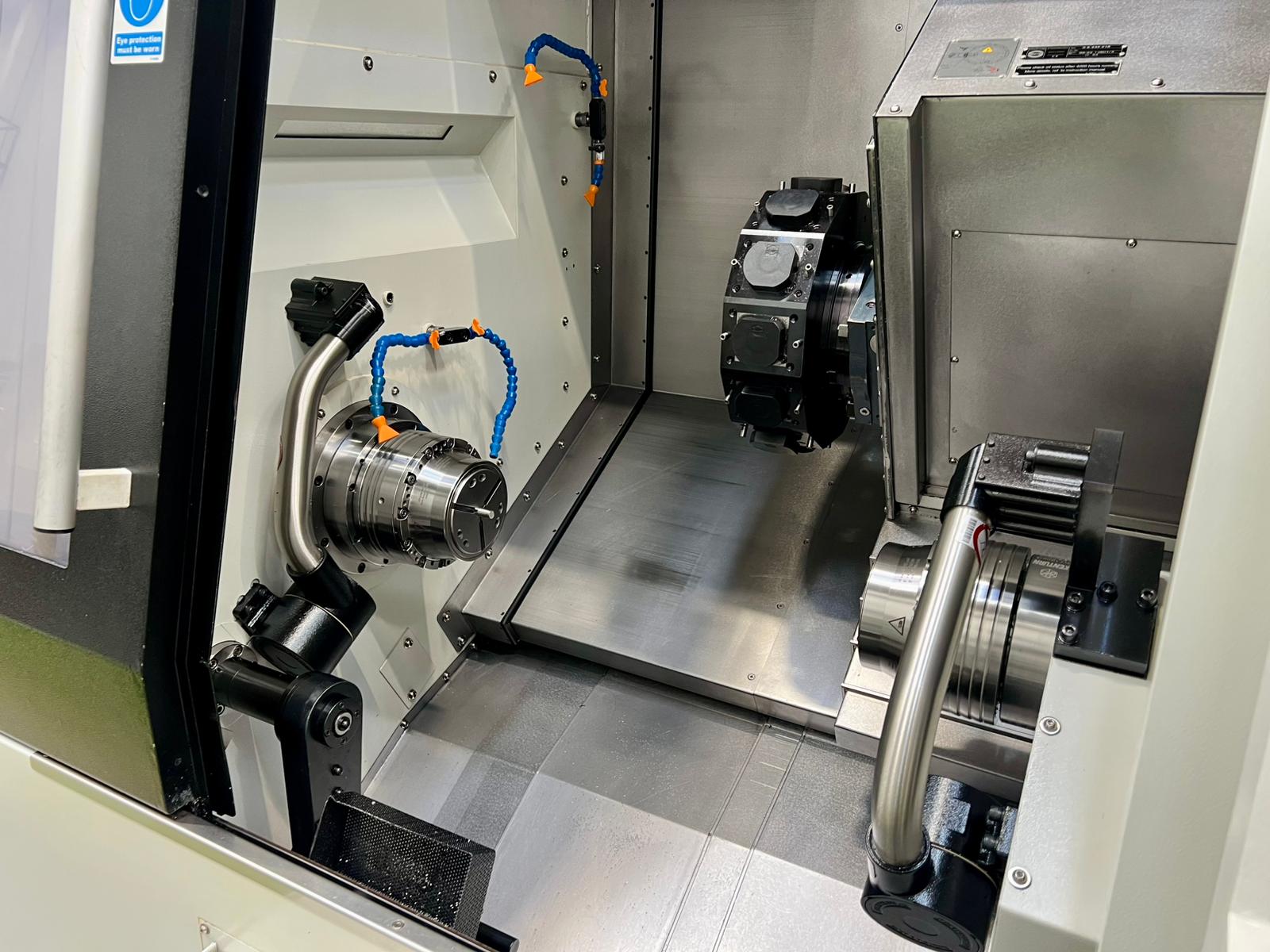

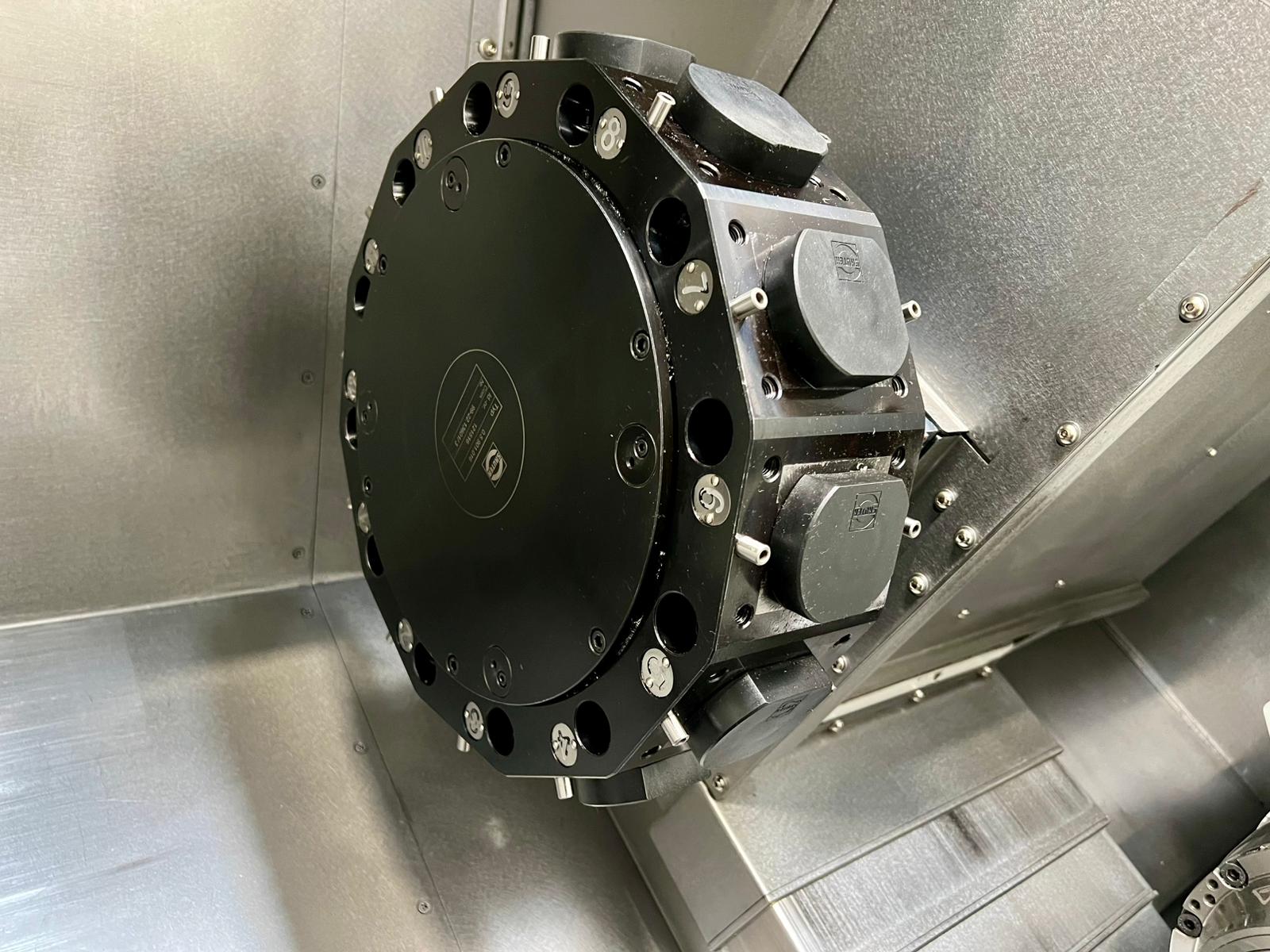

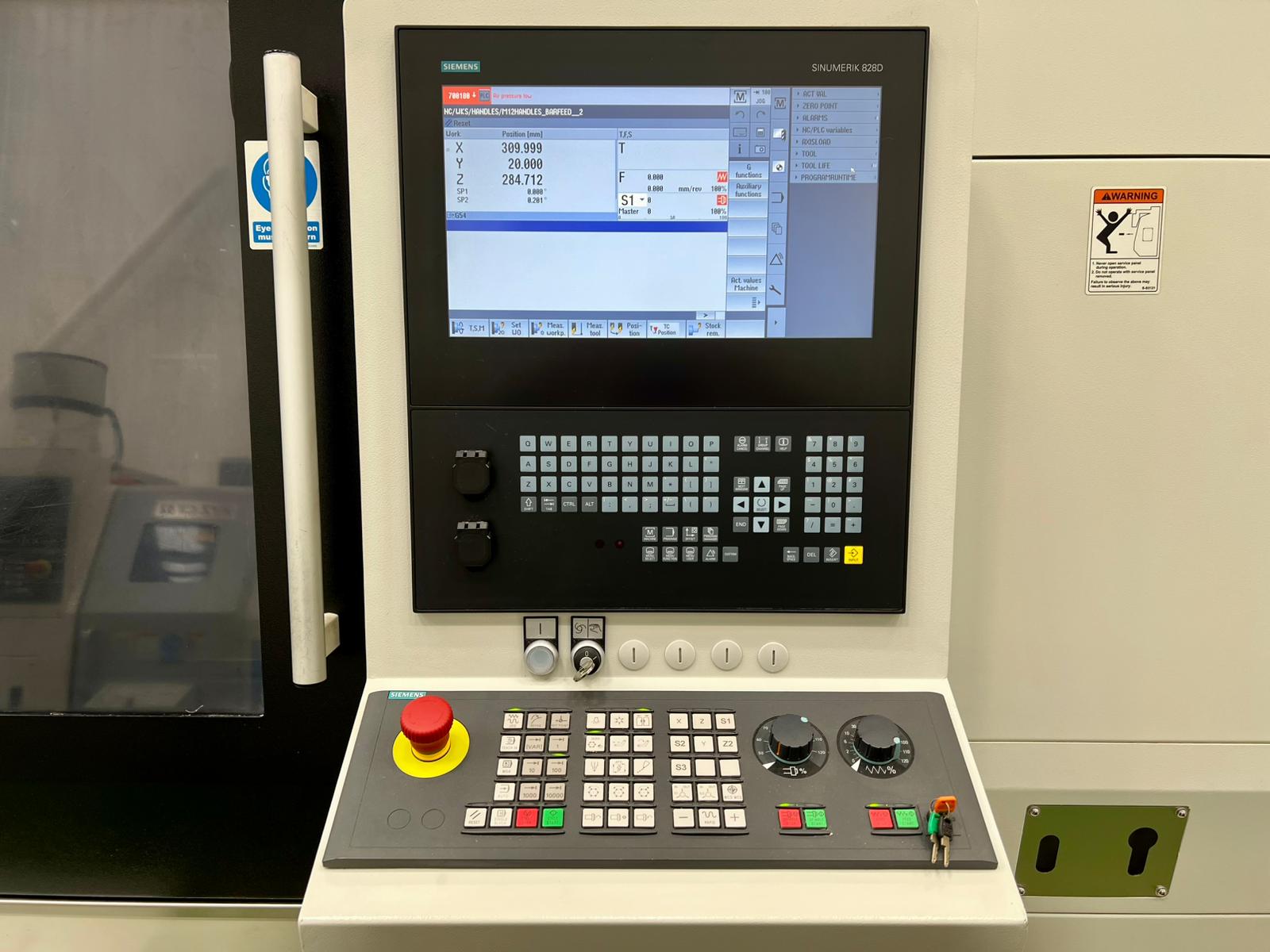

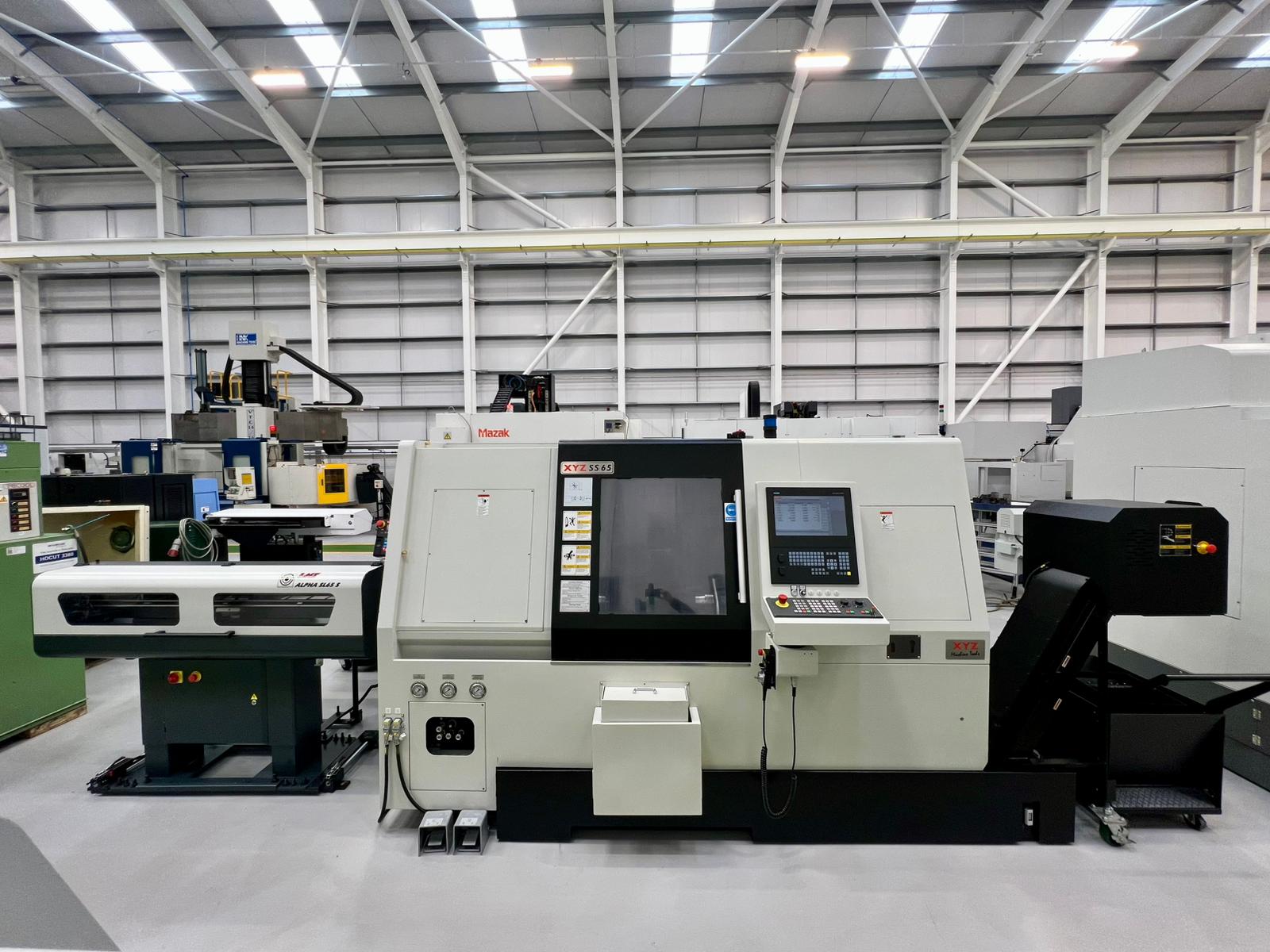

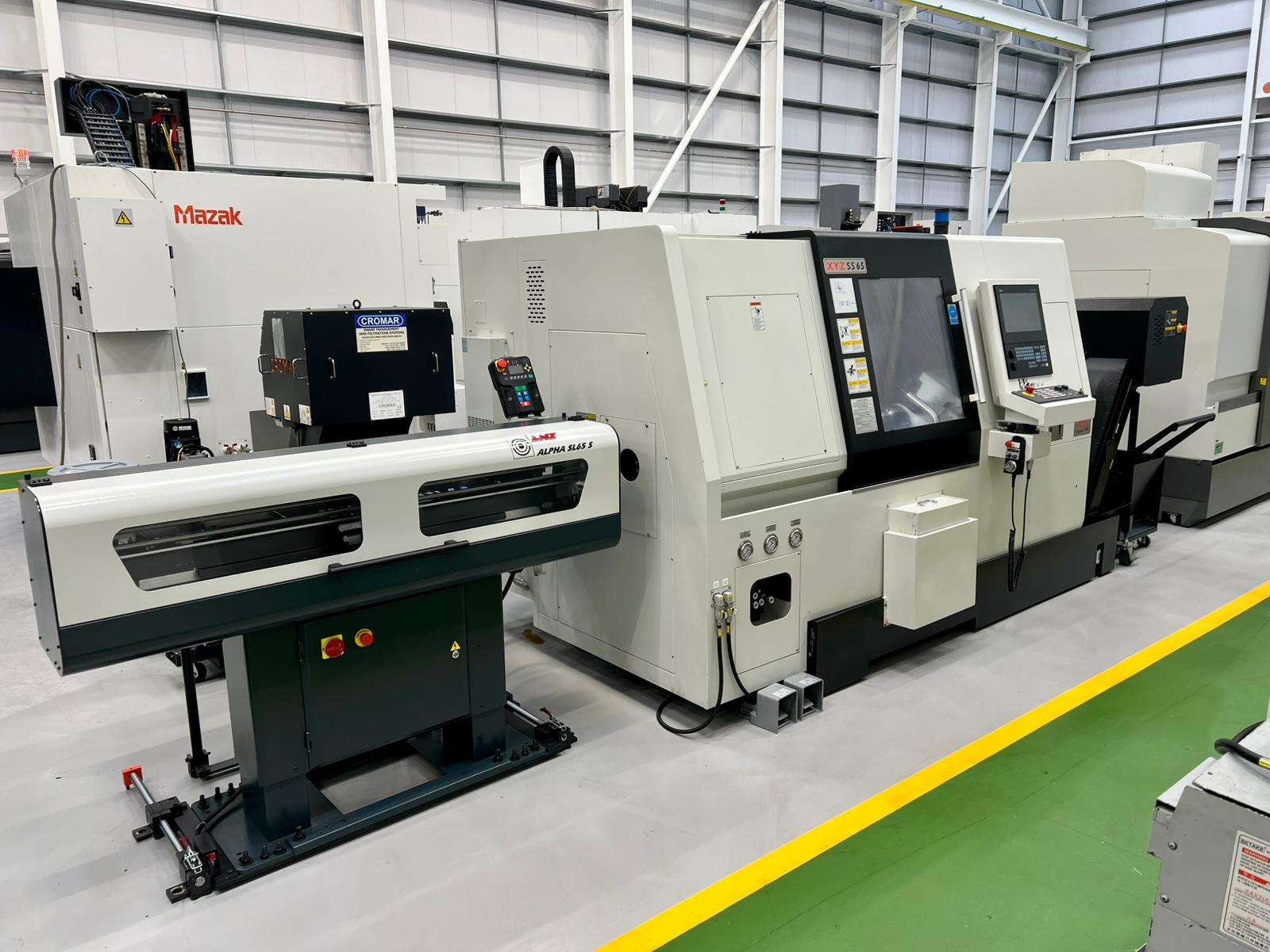

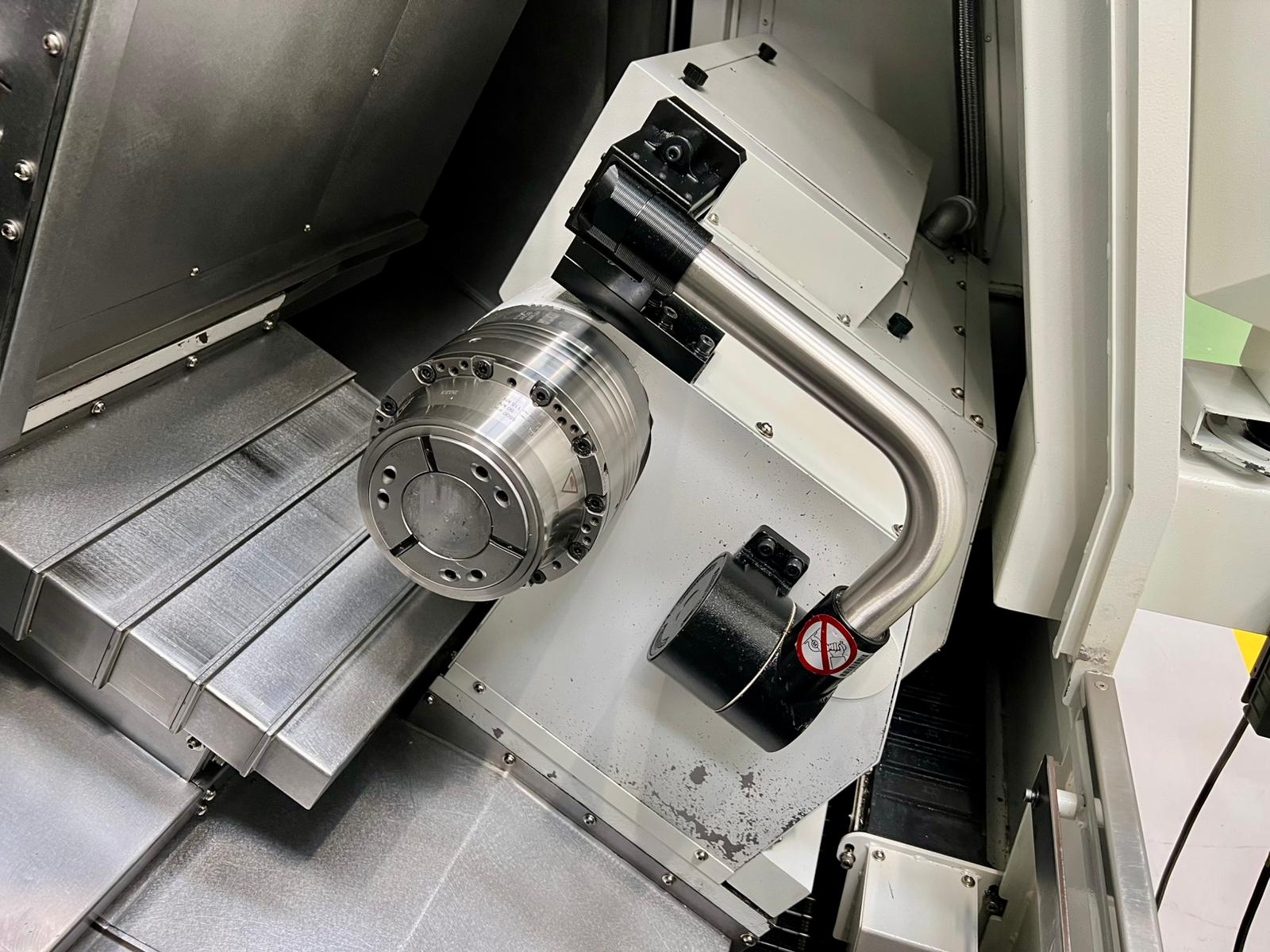

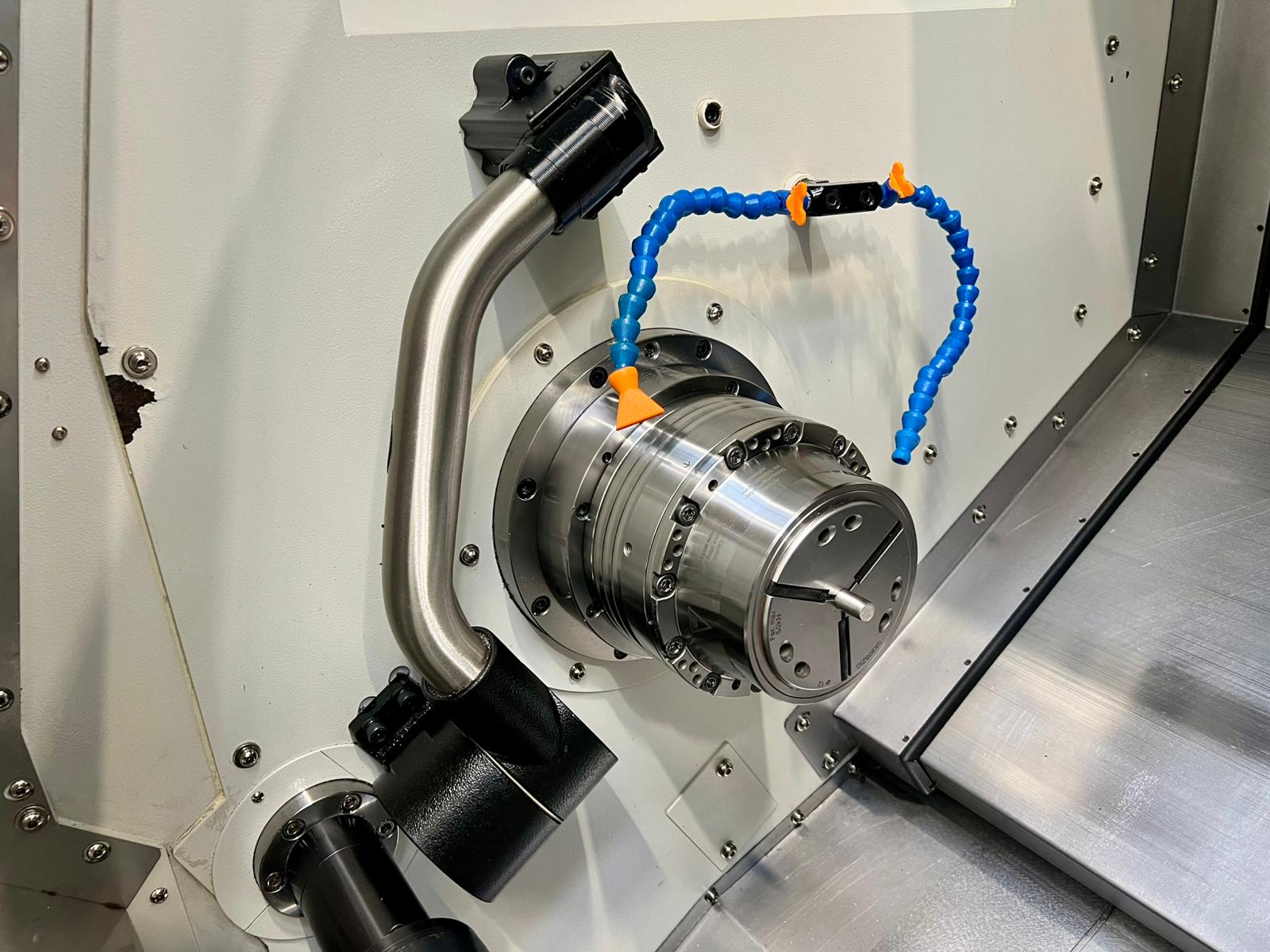

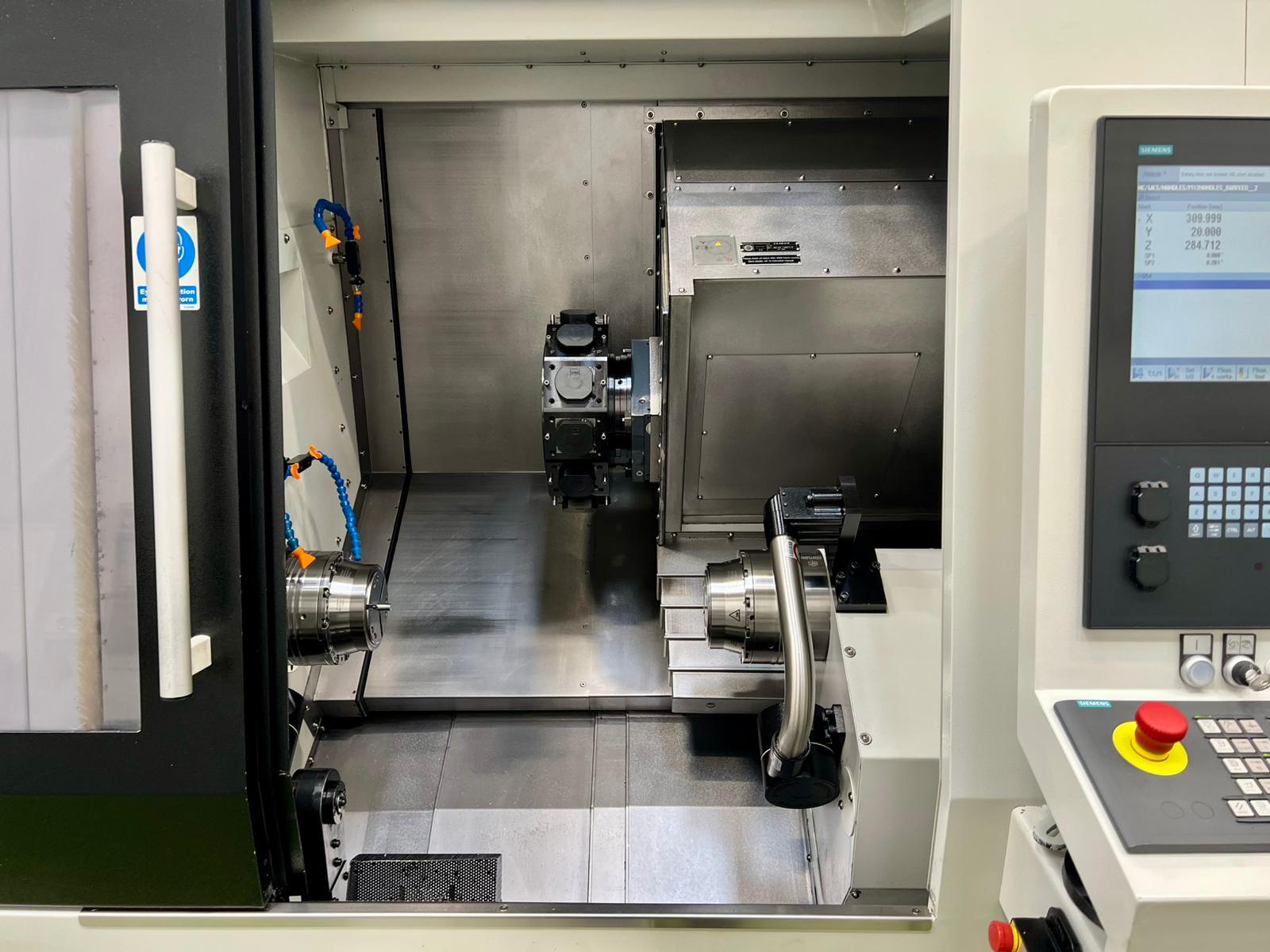

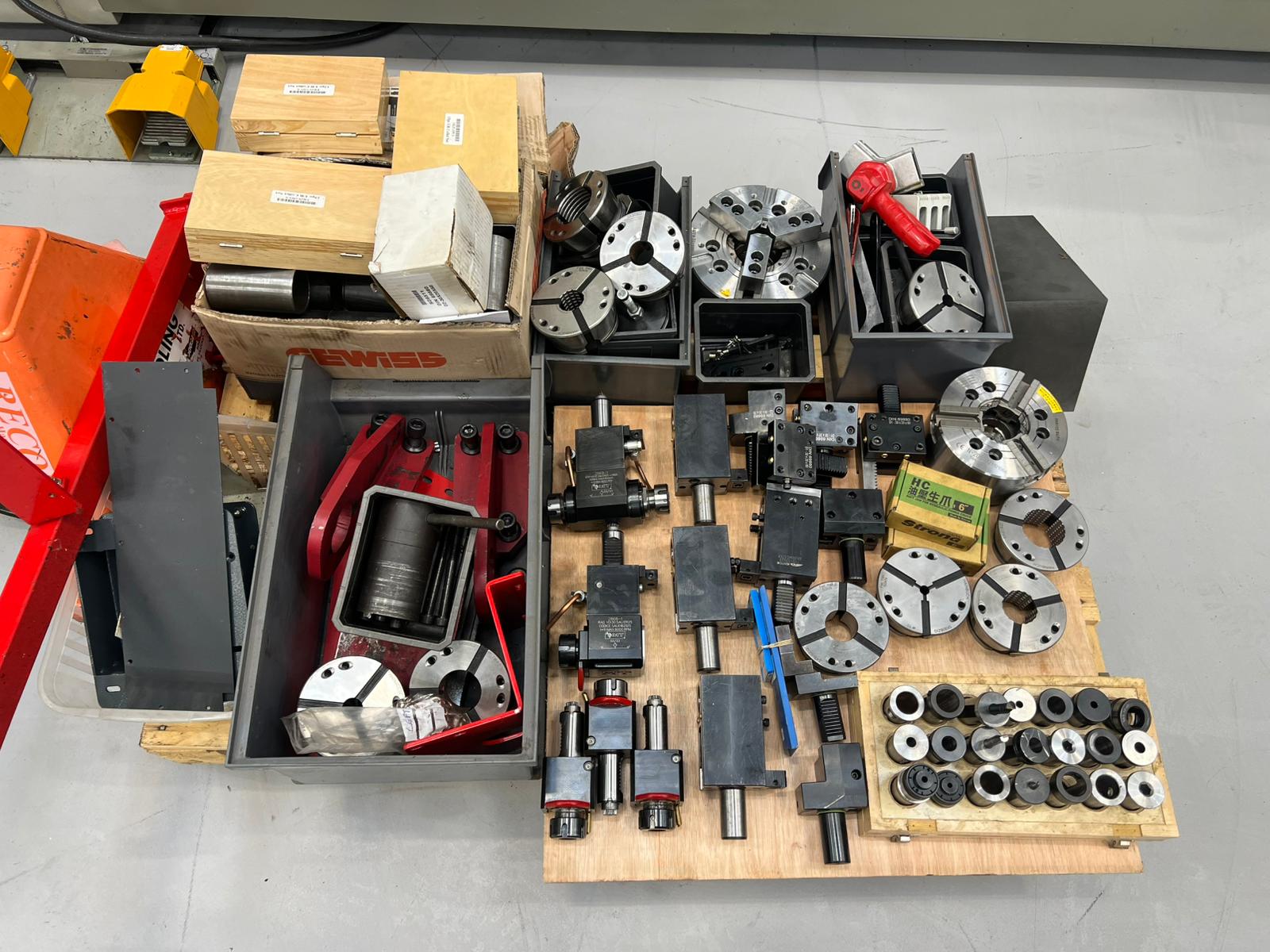

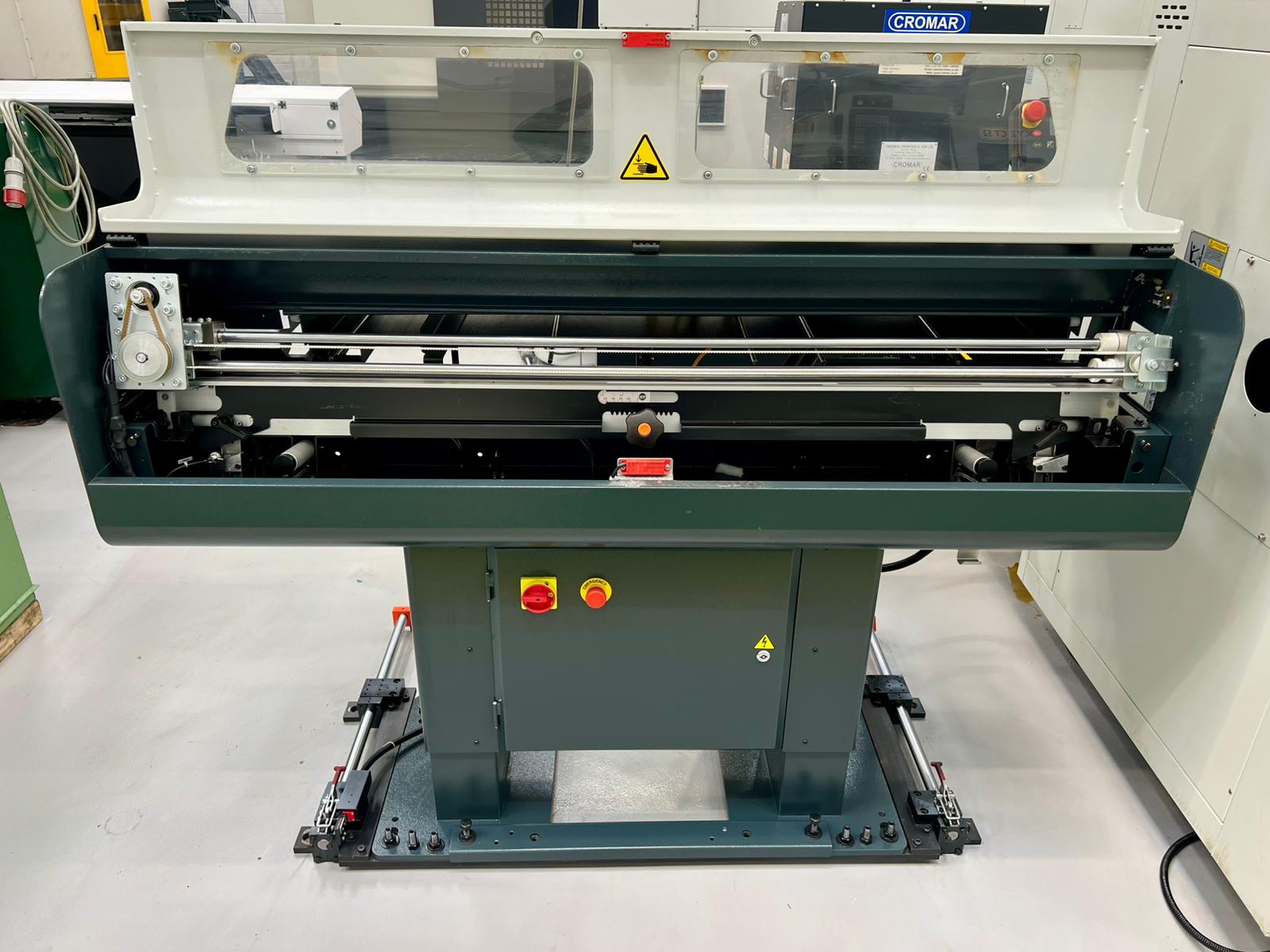

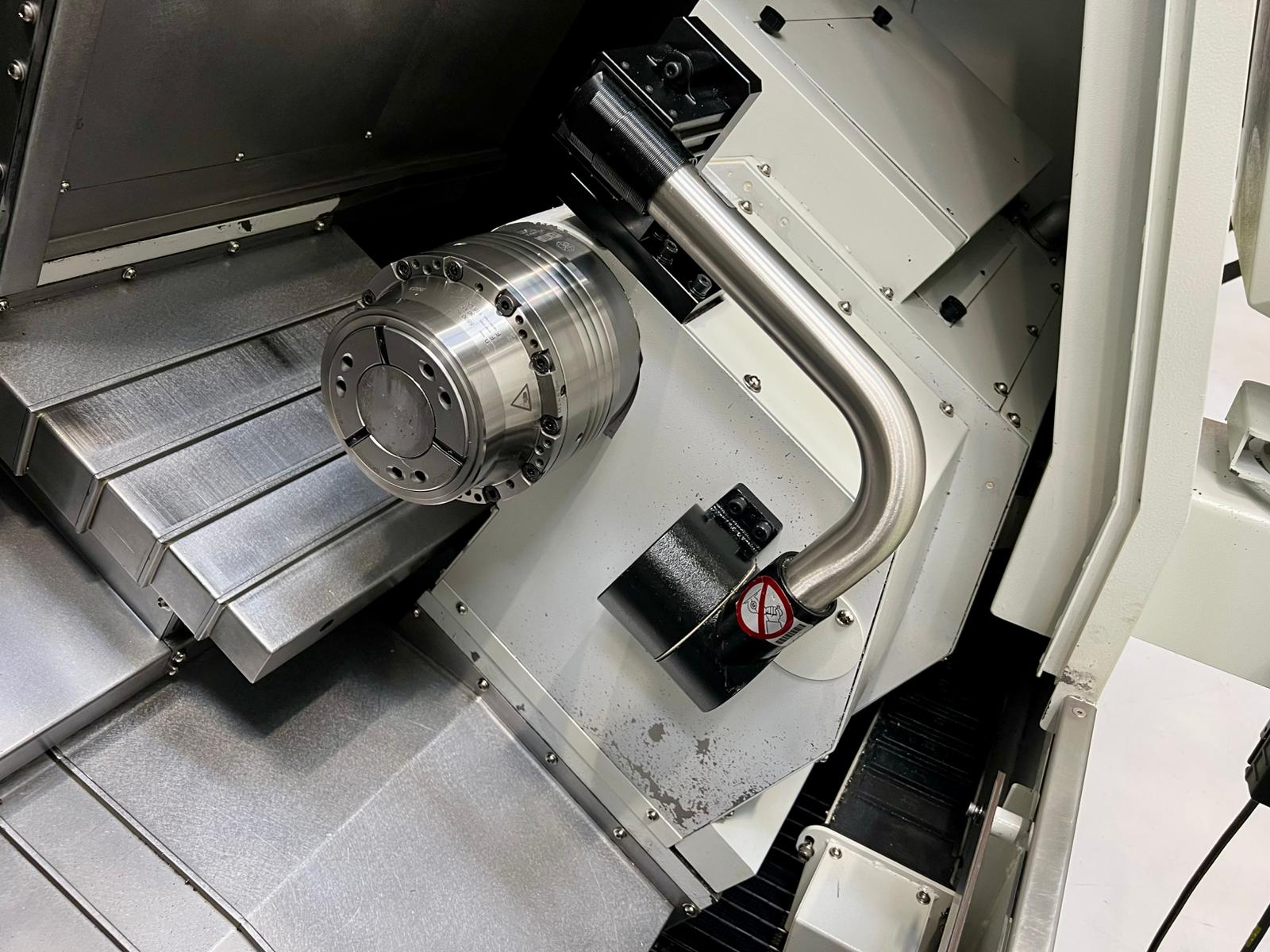

Swing over Bed 650mm. Swing over crosslide 380mm. Max Turning Diameter 380mm. Max turning length 520mm. Tool holder VDI 30 live. Y axis +/-50 mm (100 mm). Live tool max speed 5,000 rpm. Number of tool stations 12.Main spindle motor 16.5 KW/(23 HP). Max spindle speeds 4,000 rpm. Bar capacity 65 mm. Main spindle nose A2-6. Power chuck diarmeter 200 mm. Sub spindle motor 11 kW/ (15HP). Sub max main spindle speeds 5,000 rpm. Sub spindle hole diameter 52 mm. Sub spindle nose A2-5. Sub power chuck diameter 150 mm. Turning tool shank dimensions 20 x 20 mm. Boring bar dia. Ø40 mm. Rapid feed rate 24 M/min. X-axis ballscrew 32 mm x P10 x C3. Y-axis ballscrew 28 mm x P6 x C3. Z-axis ballscrew 2 mm x P10x C3. Z2-axis ballscrew 32 mm x PI0 x C3. Servo motor torque (XIZ) 11/16Nm. Positioning accuracy +/-Sum. Repeatability accuracy +/-2um. Coolant capacity 480L. Coolant pump delivery 135 L/min @2.5 Bar. LNS Alpha Barfeed. Swarf Conveyor with Skip. Selection of live & static tooling. 80mm Hainbuch Collet Chucks A2-5 & A26. 2 x Renishaw Automatic Toolsetting Probes. C Axis for Complex Contour with Brake. Siemens 828 Shop Turn/ShopMill
Touchscreen Control.
Dimensions (with swarf conveyor) L x W x H 4485 x 3135 x 1950mm. Weight 5000Kg.
